1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your HENGCMM 48V 5000W Vertical Wind Turbine Generator Kit. This system is designed to convert wind energy into electrical power, offering a sustainable energy solution for various applications.
The vertical axis wind turbine is compact, lightweight, and operates without fuel, ensuring a pollution-free and quiet energy generation process. Please read this manual thoroughly before installation and use.
2. Safety Information
Warning: Failure to follow these safety instructions may result in serious injury or property damage.
- Always ensure the turbine is properly grounded according to local electrical codes.
- Keep clear of the rotating blades during operation. Moving parts can cause severe injury.
- Wear appropriate personal protective equipment (PPE), including gloves, safety glasses, and hard hats, during installation and maintenance.
- Do not attempt to install or service the turbine during high winds or adverse weather conditions.
- Ensure all electrical connections are secure and insulated to prevent short circuits and electric shock.
- Disconnect power before performing any maintenance or inspection.
3. Product Overview
3.1 Features
- Durable Construction: Blades are made of galvanized aluminum alloy using precision injection molding technology for enhanced durability and efficient wind resource utilization.
- 360-Degree Wind Adaptability: The vertical axis design eliminates the need for wind direction tracking, allowing it to adapt to all wind directions and speeds.
- High Efficiency: Small size, lightweight, stable, and safe operation. The special control principle optimizes performance even at lower wind speeds (2.5~25m/s).
- Stable Performance: Equipped with a permanent magnet generator, designed to reduce torque and ensure overall system performance.
- Versatile Application: Suitable for various environments, including home, outdoor, factory, garden lighting, and can be integrated into hybrid systems with solar panels.
3.2 Components
The HENGCMM 48V 5000W Vertical Wind Turbine Generator Kit typically includes the following components:
- 3 x Wind Turbine Blades
- 1 x Generator Unit
- 1 x Set of Bolts and Nuts for assembly
- 1 x Rod and Arm Assembly
- 1 x Risk Control Unit (Controller)
- 1 x English Installation Manual
Figure 1: Detailed view of wind turbine components, highlighting durable blades, high-performance rotor, and stable horizontal flange connection.

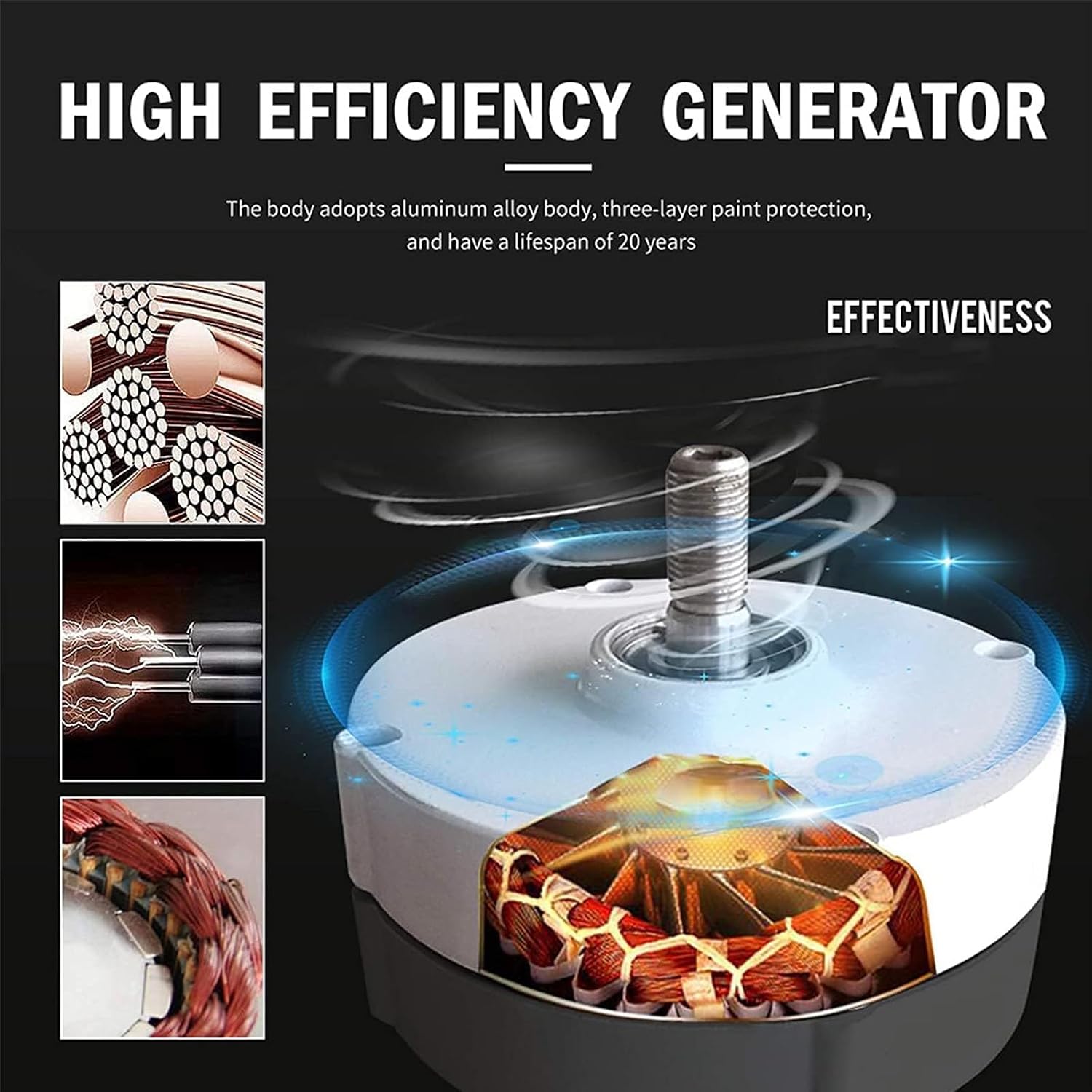

Figure 2: High efficiency generator featuring an aluminum alloy body and three-layer paint protection for extended lifespan.
Figure 3: Close-up views of the wind turbine's structural connections and blade mounting points, illustrating robust design.
4. Setup and Installation
The installation of the wind turbine requires careful attention to detail and adherence to safety guidelines. Refer to the dedicated English Installation Manual included with your kit for comprehensive step-by-step instructions.
4.1 Mounting Pole Requirements
The vertical axis wind turbine does not include a mounting pole. A mounting pole with a diameter of 60 mm is required for installation. Ensure the pole is securely anchored and capable of withstanding local wind conditions.
4.2 Electrical Connections
Connect the wind turbine to the provided controller, which manages power output and battery charging. For hybrid systems, integrate solar panels and other components as per the system diagram. Ensure all wiring is correctly sized and protected.
Figure 4: Diagram illustrating a typical wind and solar hybrid system setup, detailing connections between the wind turbine, solar panels, controller, battery bank, and electrical load.
4.3 Installation Height
The recommended installation height for the fan (turbine) is between 2 to 12 meters. Higher installation positions generally result in greater wind speeds and increased power generation efficiency.
Figure 5: Examples of vertical wind turbine applications in various settings, including islands, farms, homes, street lamps, marine environments, public facilities, power stations, and wind-solar hybrid systems.
5. Operating Instructions
Once properly installed and connected, the wind turbine will begin generating power when wind speeds reach the start-up threshold. The integrated controller manages the power output, converting wind energy into usable electricity for charging batteries or direct AC conversion.
- Automatic Operation: The turbine operates automatically, adjusting to wind conditions to maximize energy capture.
- Controller Monitoring: Monitor the controller display for system status, battery charge levels, and power output.
- Emergency Stop: Familiarize yourself with any emergency stop procedures or braking mechanisms on the controller for safe shutdown if necessary.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your wind turbine.
- Visual Inspection: Periodically inspect the blades for any signs of damage, cracks, or debris accumulation. Clean blades as needed to maintain aerodynamic efficiency.
- Structural Integrity: Check all bolts, nuts, and mounting pole connections for tightness and corrosion. Tighten any loose fasteners.
- Electrical Connections: Inspect all wiring and electrical connections for wear, corrosion, or loose contacts. Ensure insulation is intact.
- Generator and Controller: Keep the generator and controller free from dust, moisture, and debris. Ensure proper ventilation for the controller.
- Bearing Check: Listen for unusual noises from the generator or rotating parts, which may indicate bearing wear.
7. Troubleshooting
If you encounter issues with your wind turbine, consider the following troubleshooting steps:
- No Power Output:
- Check wind speed; ensure it meets the cut-in speed.
- Verify all electrical connections from the turbine to the controller and battery.
- Inspect the controller for error codes or indicators.
- Ensure no obstructions are preventing blade rotation.
- Unusual Noise/Vibration:
- Inspect blades for damage or imbalance.
- Check mounting pole and connections for looseness.
- Examine generator bearings for wear.
- Battery Not Charging:
- Confirm the controller is functioning correctly and connected to the battery.
- Check battery voltage and health.
- Ensure sufficient wind for power generation.
For persistent issues, consult the detailed troubleshooting section in the included English Installation Manual or contact customer support.
8. Specifications
| Specification | Value |
|---|---|
| Product Name | Vertical Axis Wind Turbine Kit |
| Shape | H-shape |
| Number of Blades | 3 |
| Wind Wheel Diameter | 520 mm |
| Blade Height | 750 mm |
| Rated Voltage (AC) | 48 V |
| Rated Power | 5000 W |
| Mounting Pole Size | 60 mm (diameter) |
| Start-up Wind Speed | 2 m/s |
| Cut-in Wind Speed | 3 m/s |
| Rated Wind Speed | 10 m/s |
| Safe Wind Speed | ≤40 m/s |
| Blade Material | Galvanized aluminum alloy |
| Generator Type | Three-phase AC permanent magnet generator |
| Control System | Electromagnetic |
| Fan Installation Height | 2-12 m |
| Generator Protection Level | IP54 |
| Operating Temperature | -25 ~ +45 °C |
| Operating Humidity | ≤90 % |
| Altitude | ≤4500 m |
Figure 6: Illustration showing different power outputs (5000W, 9000W) and voltage options (12V, 24V, 48V) available for vertical axis wind turbines.
9. Warranty and Support
For information regarding the product warranty, please refer to the documentation provided at the time of purchase or contact the seller directly. The included English Installation Manual contains additional details and contact information for support.
If you require technical assistance or have questions not covered in this manual, please reach out to HENGCMM customer support through the retailer where the product was purchased.
