Introduction
Thank you for choosing the ToiCottage HY2005M-HL-24V Control Box Receiver. This component is designed as a replacement part for specific 24V children's electric vehicles. This manual provides essential information for proper installation, operation, and maintenance to ensure safe and effective use.
Important: Please verify that your original control box model matches HY2005M-HL-24V exactly. This model is not compatible with HY2005RX-HL-24V or other similar models. Incorrect model usage can lead to malfunction or damage.

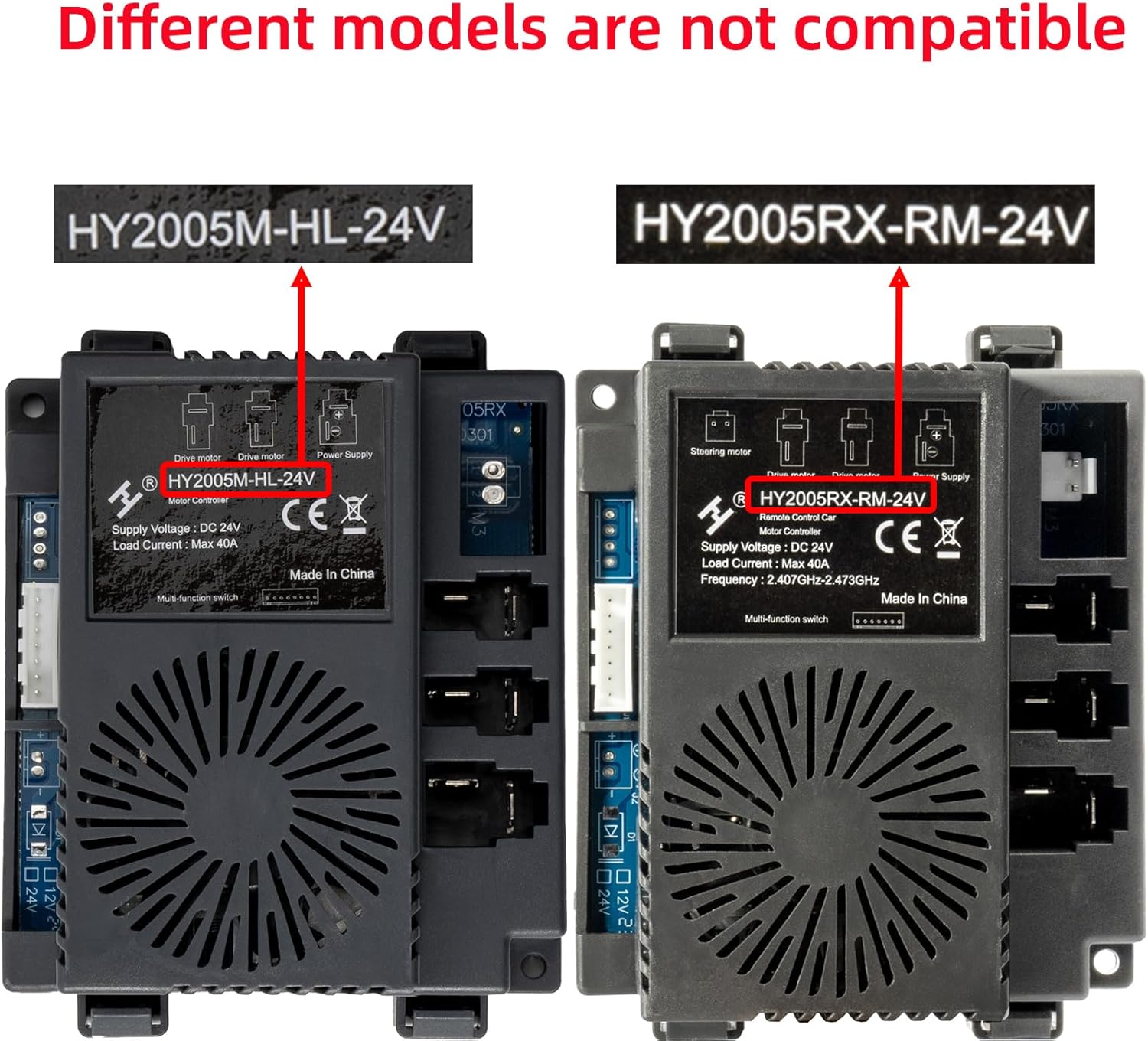

Image: Comparison of HY2005M-HL-24V and HY2005RX-RM-24V control boxes. Note the distinct model numbers and the warning that different models are not compatible. Ensure your existing unit matches HY2005M-HL-24V.
Important Safety Information
- Always disconnect power to the vehicle before installing or replacing the control box.
- Ensure all connections are secure and correctly polarized to prevent electrical shorts or damage.
- This product is intended for use by adults for repair and maintenance of children's electric vehicles. Keep out of reach of children during installation.
- Do not attempt to modify the control box. Unauthorized modifications can void the warranty and create safety hazards.
- If you are unsure about any step of the installation process, consult a qualified technician.
Product Overview
The HY2005M-HL-24V Control Box Receiver is a vital electronic component responsible for managing the motor and steering functions of compatible 24V children's electric vehicles. It receives signals from the remote control and translates them into actions for the vehicle's motors.

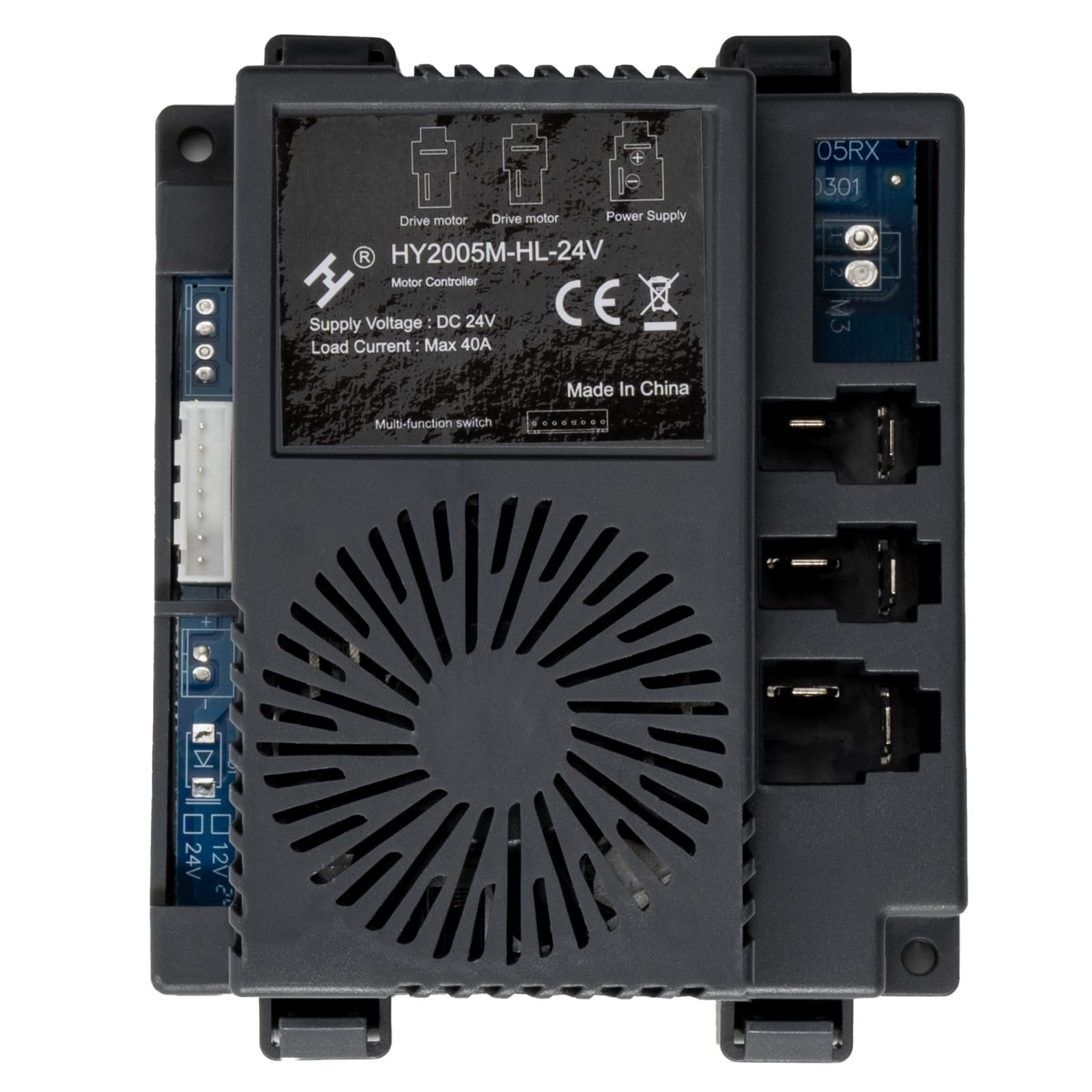

Image: Top-down view of the HY2005M-HL-24V Control Box Receiver. This image displays the model number, power supply specifications (DC 24V, Load Current: Max 40A), and basic connection diagrams for drive motors and power supply.
Image: Side view of the HY2005M-HL-24V Control Box Receiver. This perspective highlights the ventilation grilles and the various connection ports (J1, J2, 12V, 24V) along the bottom edge, which are used for connecting to the vehicle's wiring harness.
Image: Bottom view of the HY2005M-HL-24V Control Box Receiver. This view shows the mounting holes for securing the unit within the vehicle and the ventilation slots that allow for heat dissipation from the internal circuitry.
Specifications
| Model | HY2005M-HL-24V |
| Supply Voltage | DC 24V |
| Load Current | Max 40A |
| Product Dimensions | 4 x 3 x 2 inches (approximate) |
| Item Weight | 0.8 ounces (approximate) |
| Manufacturer | ToiCottage |
Setup and Installation
- Preparation: Ensure the children's electric vehicle is turned off and disconnected from its power source (battery).
- Locate Existing Control Box: Identify the current control box in the vehicle. It is typically located under the seat or hood.
- Verify Model: Double-check the model number on your existing control box to confirm it is HY2005M-HL-24V.
- Disconnect Wiring: Carefully disconnect all wiring harnesses from the old control box. Take photos or make notes of the connections if necessary for reference.
- Remove Old Control Box: Unscrew or unclip the old control box from its mounting location.
- Install New Control Box: Place the new HY2005M-HL-24V control box in the same location and secure it using the original screws or clips.
- Connect Wiring: Reconnect all wiring harnesses to the new control box. Ensure each connector is firmly seated in the correct port. Refer to the diagrams on the control box itself for guidance on motor and power supply connections.
- Initial Test: Reconnect the vehicle's battery. Turn on the vehicle and perform a brief test of all functions (forward, reverse, steering, lights if applicable) to ensure proper operation.
Operating Instructions
Once the HY2005M-HL-24V Control Box Receiver is correctly installed, the vehicle should operate as intended with its remote control and/or manual controls.
- Power On: Turn on the main power switch of the children's electric vehicle.
- Remote Control Pairing (if applicable): If the remote control does not immediately connect, refer to your vehicle's specific remote control pairing instructions. Typically, this involves holding a button on the remote while the vehicle is powered on.
- Functionality: Test all functions: forward, reverse, left turn, right turn, and any other features controlled by the remote or vehicle dashboard.
- Supervision: Always ensure children are supervised when operating the electric vehicle.
Maintenance
- Regular Inspection: Periodically check all wiring connections to the control box to ensure they remain secure and free from corrosion.
- Cleaning: Keep the control box free from dust, dirt, and moisture. Use a dry, soft cloth for cleaning. Do not use liquid cleaners directly on the unit.
- Environmental Protection: Avoid exposing the control box to extreme temperatures, direct sunlight, or wet conditions, as this can shorten its lifespan.
- Battery Care: Ensure the vehicle's battery is properly maintained and charged according to the vehicle manufacturer's instructions, as a faulty battery can affect control box performance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not power on. | Loose battery connection, dead battery, faulty power switch. | Check battery connections. Charge or replace battery. Inspect power switch. |
| Remote control not responding. | Remote batteries low/dead, remote not paired, interference. | Replace remote batteries. Re-pair remote control (refer to vehicle manual). Move away from sources of interference. |
| Vehicle moves intermittently or erratically. | Loose wiring connections, motor issue, control box fault. | Check all wiring connections to the control box and motors. If problem persists, consult a technician. |
| Control box gets unusually hot. | Overload, short circuit, poor ventilation. | Immediately disconnect power. Check for short circuits in wiring or motors. Ensure control box is not obstructed. |
If troubleshooting steps do not resolve the issue, please contact ToiCottage customer support for further assistance.
Warranty and Support
ToiCottage products are manufactured to high-quality standards. For information regarding warranty coverage and terms, please refer to the documentation provided with your original vehicle or contact ToiCottage customer service directly.
For technical support or inquiries, please visit the ToiCottage official website or contact their customer service department. When contacting support, please have your product model number (HY2005M-HL-24V) and details of your issue readily available.
