Introduction
This user manual provides comprehensive instructions for the safe and efficient operation of your Mainstays 2.2 Quart Air Fryer. Please read all instructions carefully before first use and retain for future reference. This appliance is designed for healthier cooking, utilizing hot air circulation to fry, roast, and bake with minimal oil.
Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed, including the following:
- Read all instructions.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
- A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
- Extension cords may be used if care is exercised in their use.
- The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance.
- The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.
Product Components

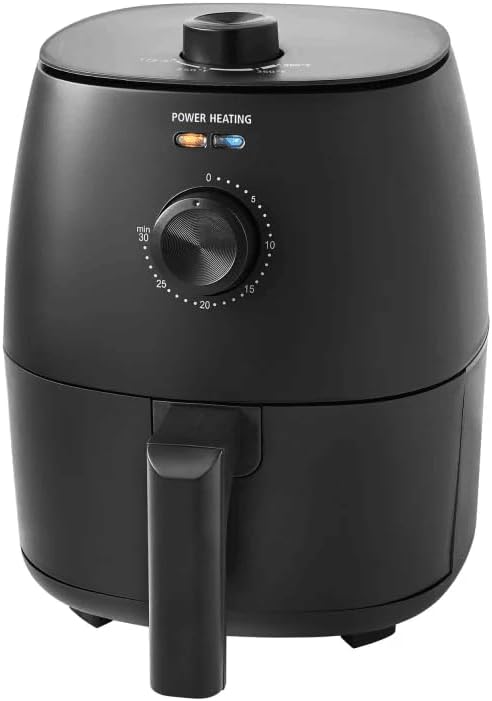

This image shows the Mainstays 2.2 Quart Air Fryer from the front, highlighting its compact design, the timer and temperature control knobs, and the power and heating indicator lights. The handle for the frying basket is visible at the bottom.

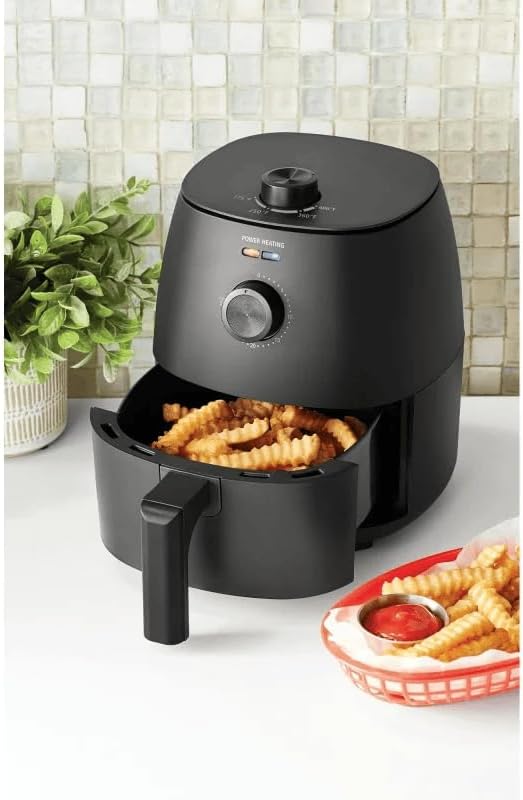

This image displays the Mainstays 2.2 Quart Air Fryer with its cooking basket partially pulled out, revealing crispy fries inside. It illustrates the appliance in use within a kitchen setting, emphasizing its practical application.

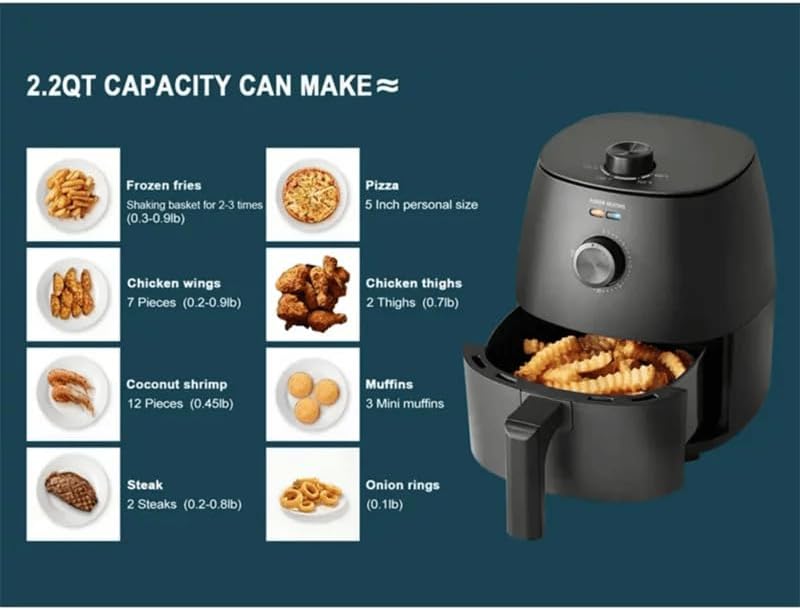

This image provides a visual guide to the 2.2-quart capacity of the air fryer, showing examples of food items and their quantities that can be cooked, such as frozen fries, chicken wings, pizza, and muffins. The air fryer itself is shown with its basket open.
This image shows the removable non-stick cooking basket and the perforated crisper plate of the Mainstays 2.2 Quart Air Fryer, detached from the main unit. This highlights the easy-to-clean components of the appliance.
The Mainstays 2.2 Quart Air Fryer consists of the main unit, a removable non-stick cooking basket, and a crisper plate. The main unit houses the heating element, fan, and control panel.
Setup
- Unpack the air fryer and remove all packaging materials.
- Wipe the exterior of the appliance with a damp cloth.
- Wash the cooking basket and crisper plate with hot water, dish soap, and a non-abrasive sponge. Rinse thoroughly and dry completely.
- Place the crisper plate inside the cooking basket.
- Slide the cooking basket back into the main unit until it clicks into place.
- Place the air fryer on a stable, heat-resistant surface, ensuring adequate air circulation around the appliance. Do not place it directly against a wall or other appliances.
- Plug the power cord into a grounded wall outlet.
Operating Instructions
Preheating
Preheating the air fryer helps achieve optimal cooking results.
- Plug in the air fryer.
- Turn the temperature control knob to your desired preheat temperature (e.g., 375°F / 190°C).
- Turn the timer knob to 3-5 minutes. The power and heating indicator lights will illuminate.
- The air fryer will automatically shut off once the timer reaches zero.
Cooking
- Carefully pull out the cooking basket from the air fryer.
- Place your ingredients into the basket, ensuring not to overfill. Do not exceed the MAX fill line.
- Slide the cooking basket back into the air fryer until it clicks securely into place.
- Set the desired temperature using the temperature control knob (175°F to 400°F).
- Set the cooking time using the timer knob (up to 30 minutes). The power and heating indicator lights will turn on.
- For even cooking, some foods may require shaking or tossing halfway through the cooking process. To do this, carefully pull out the basket, shake or toss the contents, and then reinsert the basket. The air fryer will resume cooking.
- When the timer reaches zero, the air fryer will automatically shut off. Carefully pull out the basket and remove the cooked food.
Temperature and Time Guide (Approximate)
| Food Item | Temperature | Time | Notes |
|---|---|---|---|
| Frozen Fries | 380°F (195°C) | 15-20 min | Shake 2-3 times |
| Chicken Wings | 360°F (180°C) | 18-25 min | Flip halfway |
| Steak | 400°F (205°C) | 8-12 min | Depends on thickness |
| Muffins (Mini) | 320°F (160°C) | 10-15 min | Use silicone cups |
Cooking times and temperatures are approximate and may vary based on food quantity, size, and desired crispness. Always use a food thermometer to ensure food is cooked to a safe internal temperature.
Cleaning and Maintenance
Clean the air fryer after every use.
- Unplug the air fryer from the wall outlet and allow it to cool completely before cleaning.
- Remove the cooking basket and crisper plate.
- Wash the cooking basket and crisper plate in hot water with dish soap and a non-abrasive sponge. They are also dishwasher safe.
- Wipe the exterior of the air fryer with a damp cloth. Do not immerse the main unit in water or any other liquid.
- Clean the interior of the air fryer with a damp cloth and mild dish soap if necessary. Ensure no food residue remains.
- Ensure all parts are completely dry before reassembling and storing the air fryer.
Storage
Store the air fryer in a cool, dry place. Ensure the power cord is neatly wrapped and secured.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance not plugged in; Basket not inserted correctly; Timer not set. | Ensure plug is securely in outlet; Push basket fully into unit; Set timer to desired cooking time. |
| Food not cooked evenly. | Basket overloaded; Food not shaken/flipped. | Cook in smaller batches; Shake or flip food halfway through cooking. |
| White smoke coming from appliance. | Fatty residue from previous use; Oil/grease dripping onto heating element. | Clean basket and crisper plate thoroughly; Remove excess oil from food before cooking. |
| Food not crispy. | Too much moisture in food; Not enough oil (for certain foods); Temperature too low. | Pat food dry before cooking; Lightly coat with oil if desired; Increase temperature or cooking time. |
Specifications
- Model: Mainstays 2.2
- Capacity: 2.2 Quarts (approx. 2 Liters)
- Power: 1150 Watts
- Voltage: 120V AC, 60Hz
- Temperature Range: 175°F - 400°F (80°C - 205°C)
- Timer: Up to 30 minutes with auto shut-off
- Dimensions: 9.84"D x 7.87"W x 8.27"H
- Material: Plastic (exterior), Non-stick coating (basket/plate)
- Special Features: Timer, Adjustable Temperature, Auto Shutoff, Non-Stick Dishwasher Safe Basket, Cool Touch Handle.
Warranty and Support
This product comes with a limited manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For technical support, replacement parts, or customer service inquiries, please contact the retailer or manufacturer directly. Keep your purchase receipt as proof of purchase.
