OUTGUAVA Tilt Out Trash Can Cabinet 13 Gallon Instruction Manual

1. Introduction

Thank you for choosing the OUTGUAVA Tilt Out Trash Can Cabinet. This cabinet is designed to discreetly store a 13-gallon trash can, offering a clean and organized solution for your kitchen, bathroom, laundry room, or living area. It features a convenient tilt-out mechanism for easy access to the trash can and an additional drawer for storage. This manual provides essential information for safe assembly, operation, and maintenance of your new cabinet.

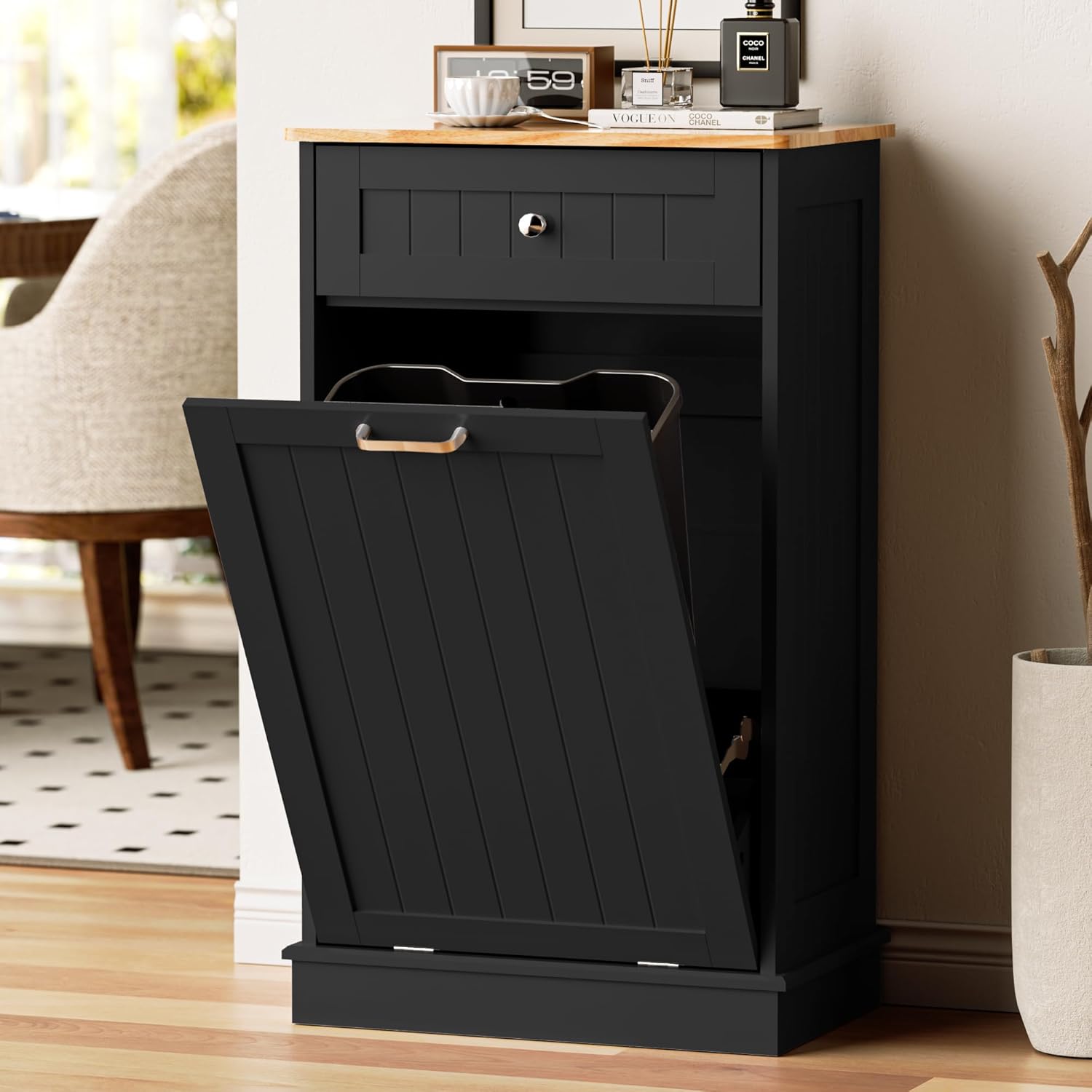

Figure 1.1: The OUTGUAVA Tilt Out Trash Can Cabinet in black, shown with its front panel tilted open, revealing a hidden trash can. A small storage drawer is located above the main compartment.

2. Safety Information

• Read all instructions carefully before assembly and use.
• Keep all small parts and packaging materials away from children and pets to prevent choking hazards.
• Ensure all screws and fasteners are securely tightened during assembly. Periodically check for loose connections.
• Do not stand or climb on the cabinet.
• Place the cabinet on a flat, stable surface to prevent tipping.
• Utilize the included anti-tipping hardware to secure the cabinet to a wall, especially in households with children or pets.

Figure 2.1: Illustration of the anti-tipping mechanism. It is crucial to secure the cabinet to a wall using the provided hardware to prevent accidental tipping, enhancing safety.

3. Package Contents

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.

Expected Components:

• Cabinet Panels (Side panels, back panel, top panel, base)
• Tilt-Out Door Panel
• Drawer Components (Front, sides, back, bottom)
• Hardware Pack (Screws, dowels, cam locks, hinges, drawer slides, handles, anti-tipping kit)
• Instruction Manual

4. Setup and Assembly

Assembly typically requires two people and basic tools (e.g., screwdriver). Follow the detailed assembly instructions provided in the package. The following points highlight key features and considerations during assembly.

Key Assembly Considerations:

1. Identify Parts: Lay out all numbered parts and hardware.
2. Assemble Frame: Connect the side panels to the base and back panel using the provided fasteners.
3. Install Drawer Slides: Attach the drawer slides to the cabinet frame and the drawer box.
4. Assemble Drawer: Construct the drawer box and attach the front panel and handle.
5. Install Tilt-Out Mechanism: Attach the tilt-out door panel to the cabinet using the hinges. Ensure smooth operation.
6. Attach Top Panel: Secure the top panel to the assembled frame. The top surface is designed with a waterproof board for durability.
7. Anti-Tipping Device: Securely attach the anti-tipping strap to the back of the cabinet and to a wall stud using appropriate wall anchors.

Figure 4.1: Detailed view of key features including the waterproof top board, adhesive hooks for hanging small items, and the spacious storage drawer. These elements are integrated during assembly.

5. Operating Instructions

5.1 Using the Tilt-Out Trash Can Compartment

1. Open: Gently pull the handle on the front panel outwards and downwards. The panel will tilt forward, allowing access to the interior.
2. Insert Trash Can: Place a standard 13-gallon trash can (not included) into the compartment. Ensure it fits securely.
3. Close: Push the front panel upwards and inwards until it is flush with the cabinet frame. The mechanism is designed for smooth closure.

Figure 5.1: The tilt-out mechanism allows the front panel to open at various angles for convenient access to the trash can. The mechanism ensures a controlled and smooth motion.

5.2 Using the Storage Drawer

The top drawer provides additional storage space for items such as trash bags, cleaning supplies, or small kitchen utensils. Pull the drawer handle to open and push to close.

5.3 Top Surface Usage

The flat top surface can be used to place decorative items, small appliances, or other household necessities. Its waterproof design makes it suitable for various environments.

6. Maintenance and Care

• Cleaning: Wipe the cabinet surfaces with a soft, damp cloth. For stubborn stains, use a mild soap solution and dry immediately. Avoid abrasive cleaners or harsh chemicals.
• Spills: Due to the waterproof surface, spills on the top panel can be easily wiped away. Clean spills promptly to prevent potential damage to other parts of the cabinet.
• Hardware: Periodically check all screws and fasteners to ensure they remain tight. Tighten if necessary to maintain stability.
• Moving: When moving the cabinet, lift it rather than dragging it to prevent damage to the base or floor.

7. Troubleshooting

Problem: Tilt-out door is stiff or not opening/closing smoothly.

• Solution: Check the hinges for any obstructions or loose screws. Ensure the trash can inside is not interfering with the mechanism. Lubricate hinges with a silicone-based spray if needed.

Problem: Cabinet feels wobbly or unstable.

• Solution: Verify that all assembly screws are fully tightened. Ensure the cabinet is placed on a level surface. Re-check the anti-tipping device attachment to the wall.

Problem: Drawer does not slide smoothly.

• Solution: Check if the drawer slides are properly aligned and securely attached. Ensure no objects are obstructing the drawer's path.

8. Specifications

Figure 8.1: Detailed dimensions of the OUTGUAVA Tilt Out Trash Can Cabinet, including external measurements and internal space for the trash bin. Note that the dustbin itself is not included.

9. Warranty and Support

For warranty information or customer support, please refer to the documentation included with your purchase or contact the retailer where the product was acquired. Keep your purchase receipt for warranty claims.
