GGM Gastro MMSS Mini Smoker User Manual

1. Introduction

Thank you for choosing the GGM Gastro MMSS Mini Smoker. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new mini smoker. Please read this manual thoroughly before initial use and keep it for future reference.

The GGM Gastro MMSS Mini Smoker is designed for smoking food with wood, featuring a main cooking chamber and a separate smoking chamber. Its robust construction of powder-coated cast iron ensures durability and heat resistance.

Image 1.1: Front view of the GGM Gastro MMSS Mini Smoker, showcasing its compact design and black finish.

2. Safety Instructions

Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, and injury to persons.

• Outdoor Use Only: This smoker is intended for outdoor use only. Do not use indoors or in enclosed spaces.
• Stable Surface: Place the smoker on a stable, level, non-combustible surface.
• Clearance: Maintain a safe distance from combustible materials (e.g., wooden decks, fences, buildings).
• Supervision: Never leave the smoker unattended while in use.
• Hot Surfaces: The smoker becomes extremely hot during operation. Use heat-resistant gloves when handling hot parts.
• Fuel: Use only wood chips or chunks specifically designed for smoking. Do not use charcoal lighter fluid, gasoline, or other flammable liquids.
• Children and Pets: Keep children and pets away from the smoker at all times.
• Ventilation: Ensure proper ventilation to prevent carbon monoxide buildup.
• Fire Extinguisher: Have a fire extinguisher readily available.
• Cool Down: Allow the smoker to cool completely before cleaning or storing.

3. Package Contents

Please check the package contents upon unpacking. If any parts are missing or damaged, contact your supplier immediately.

• 1x GGM Gastro MMSS Mini Smoker Unit
• 1x Stainless Steel Grate (AISI 304)
• 1x Smoke Outlet / Chimney
• 4x Wheels
• Assembly Hardware (screws, nuts, etc.)
• User Manual (this document)

4. Setup and Assembly

The GGM Gastro MMSS Mini Smoker requires minimal assembly. Follow these steps to set up your smoker:

1. Unpack Components: Carefully remove all parts from the packaging.
2. Attach Wheels: Securely attach the four wheels to the base of the smoker's legs using the provided hardware. Ensure they are firmly tightened for stability.
3. Install Smoke Outlet: Insert the smoke outlet (chimney) into the designated opening on the main cooking chamber. Ensure it is seated properly.
4. Place Grate: Position the stainless steel grate inside the main cooking chamber.
5. Pre-Seasoning (Optional but Recommended): Before first use, it is recommended to pre-season the smoker. This involves heating the smoker empty for 1-2 hours at a low temperature (e.g., 50°C) to burn off any manufacturing residues and cure the paint. Ensure good ventilation during this process.

Image 4.1: The mini smoker with its main cooking chamber and side smoking chamber lids open, revealing the internal grate and firebox access.

5. Operating Instructions

This section details how to operate your GGM Gastro MMSS Mini Smoker for optimal smoking results.

5.1 Fueling the Smoker

• Open the door of the separate smoking chamber (firebox) located on the side.
• Place a small amount of wood chips or chunks (e.g., hickory, apple, cherry) into the firebox. Do not overfill.
• Ignite the wood using a safe method, such as a fire starter cube or a small amount of kindling. Avoid using chemical accelerants.
• Once the wood is smoldering and producing smoke, close the firebox door.

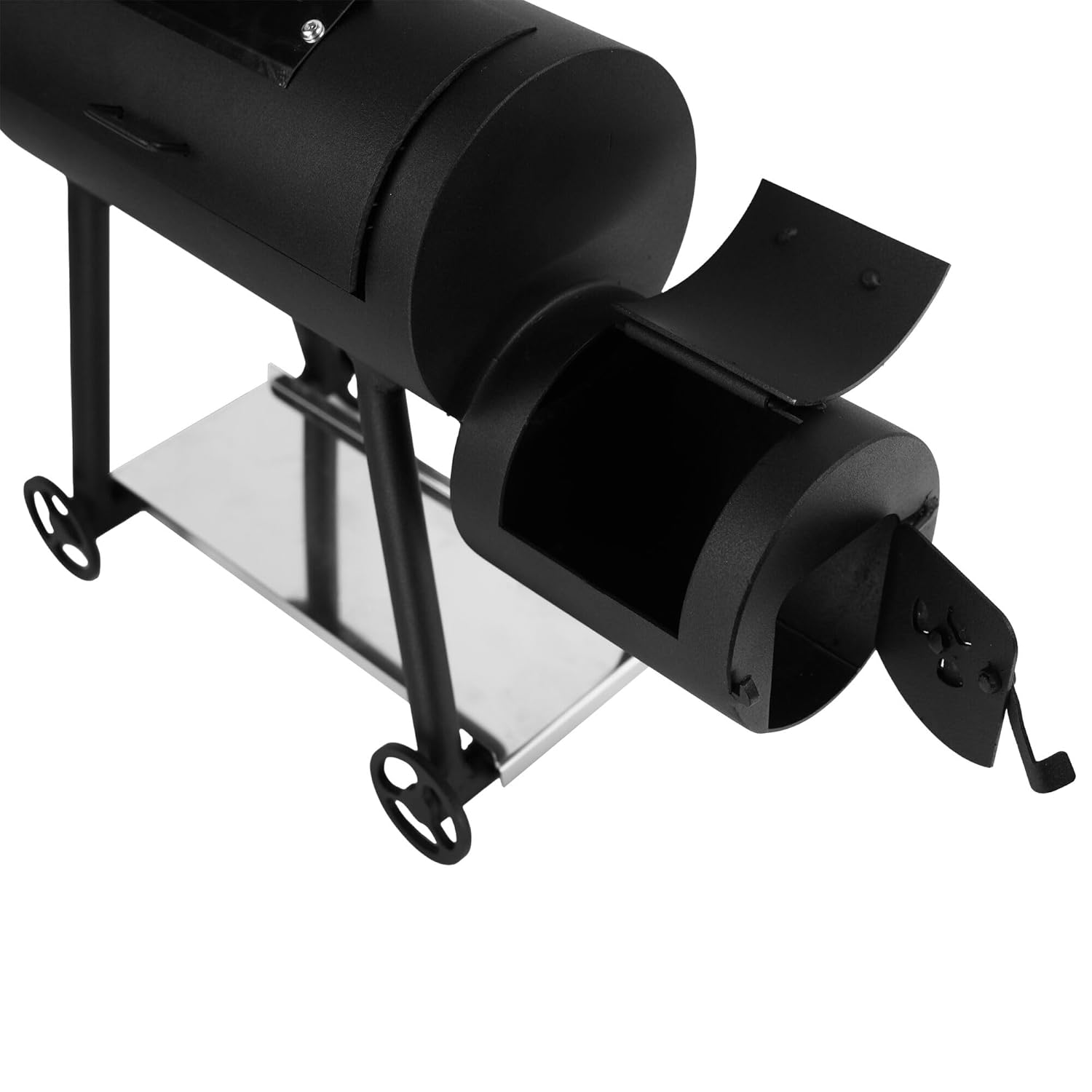

Image 5.1: The side firebox with its lid open, ready for adding wood chips or chunks for smoking.

5.2 Temperature Control

• The smoker is designed to operate at temperatures up to 70°C (158°F). This low temperature is ideal for cold smoking or maintaining warmth.
• Temperature is primarily controlled by the amount of fuel added to the firebox and the adjustment of the air vents on the firebox door and the smoke outlet.
• To increase temperature, add more fuel and open the vents slightly to allow more airflow.
• To decrease temperature, reduce fuel and close the vents slightly to restrict airflow.
• Monitor the internal temperature using a reliable thermometer (not included, but recommended for precise cooking).

Image 5.2: Close-up of the firebox door, showing the adjustable air vent for temperature control.

5.3 Smoking Food

• Once the desired temperature and smoke production are achieved, place your food on the stainless steel grate in the main cooking chamber.
• Close the lid of the main cooking chamber to retain heat and smoke.
• Monitor the food and temperature throughout the smoking process. Add more wood as needed to maintain consistent smoke.
• Avoid opening the lids frequently, as this releases heat and smoke, prolonging cooking time.

6. Maintenance and Cleaning

Regular cleaning and maintenance will extend the life of your GGM Gastro MMSS Mini Smoker.

• After Each Use:
  • Allow the smoker to cool completely.
  • Remove the cooking grate and clean it with warm, soapy water and a brush. Rinse thoroughly and dry.
  • Empty any ash from the firebox.
  • Wipe down the interior and exterior surfaces with a damp cloth.
• Deep Cleaning (Periodically):
  • For stubborn grease or residue, use a non-abrasive cleaner suitable for cast iron.
  • Inspect all components for wear or damage.
• Storage: Store the smoker in a dry, covered area when not in use to protect it from the elements. A smoker cover is recommended.

7. Troubleshooting

This section addresses common issues you might encounter with your mini smoker.

8. Specifications

Technical details for the GGM Gastro MMSS Mini Smoker.

Image 8.1: Dimensional drawing of the GGM Gastro MMSS Mini Smoker, showing key measurements.

9. Warranty and Support

For warranty information and technical support, please contact your point of purchase or visit the official GGM Gastro website. Please have your model number (GGM Gastro - MMSS) and purchase date available when contacting support.

GGM Gastro Official Website: www.ggmgastro.com
