YOKEFELLOW UV LED Nail Lamp Instruction Manual

1. Product Overview

The YOKEFELLOW UV LED Nail Lamp is a versatile and portable nail dryer designed for curing various gel nail polishes. Featuring a cordless and rechargeable design, it offers convenience for both professional salon and home use. The lamp incorporates dual light source technology (365nm+405nm) with 36 LED lamp beads for efficient and safe curing, preventing harm to eyes or skin darkening. Its smart features include an LED display, auto-sensing capabilities, and multiple timer settings for precise control over the curing process.

This device is equipped with a 6000mAh built-in battery, providing extended cordless operation. The removable magnetic base allows for easy cleaning and accommodates both hands and feet. The intuitive touch LCD display provides clear information on battery level and timer settings, with the added functionality to switch the display direction for user convenience.

2. Safety Information

Please read and understand all safety instructions before using the YOKEFELLOW UV LED Nail Lamp. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Keep out of reach of children.
• Avoid direct contact with skin and eyes. Prolonged exposure to UV/LED light may cause discomfort.
• Use in a well-ventilated area to prevent accumulation of fumes from nail products.
• Stop use immediately if irritation, discomfort, or any adverse reaction occurs. Consult a medical professional if symptoms persist.
• Do not use the lamp while it is charging to protect the battery and ensure optimal performance.
• Do not disassemble, modify, or attempt to repair the device. Refer all servicing to qualified personnel.
• Do not expose the device to water or excessive moisture.
• Ensure the power adapter and cable are undamaged before each use.

3. Product Features and Components

Overall Design

The YOKEFELLOW UV LED Nail Lamp features a compact and ergonomic design, presented in a stylish pink finish. It is equipped with a top-mounted LED display and control panel, and a spacious curing chamber suitable for both hands and feet. The overall construction emphasizes portability and ease of use.

Large Smart LCD Display

The integrated LCD display provides clear visibility of the curing time and battery level. This smart screen enhances the user experience by allowing precise monitoring of the curing process. It features touch controls for timer settings.

Infrared Smart Sensor

Equipped with a built-in infrared sensor, the lamp automatically activates when hands or feet are inserted and deactivates when removed. This feature provides hands-free operation and conserves battery life, defaulting to a 60-second curing cycle when activated by the sensor.

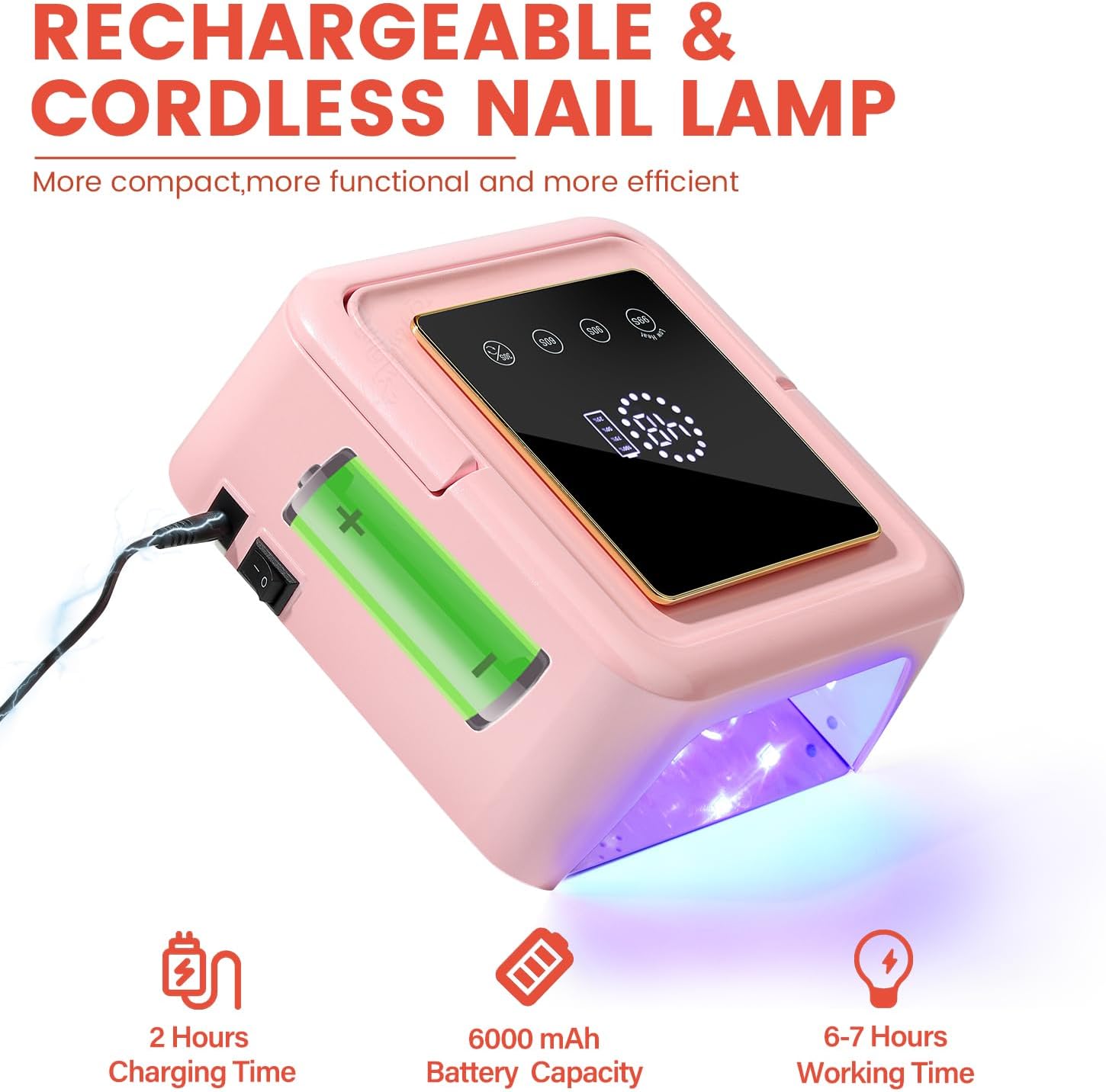

Rechargeable & Cordless Design

The lamp features a powerful 6000mAh built-in rechargeable battery, allowing for cordless operation and portability. The battery level is conveniently displayed on the LED screen, ensuring you are aware of the remaining power. A handle is integrated for easy transport.

Time Digital Direction Switch

For enhanced user convenience, the digital display direction can be switched. Press and hold the 30-second timer button for 3 seconds to flip the LCD screen time display, making it readable from different angles.

Careful Design: Removable Base & Portable Handle

The lamp is designed with a removable magnetic base, facilitating easy cleaning of the interior. This large space accommodates an entire hand or foot. A sturdy, well-made handle is integrated for effortless portability. The base also includes subtle finger placement cues for optimal positioning.

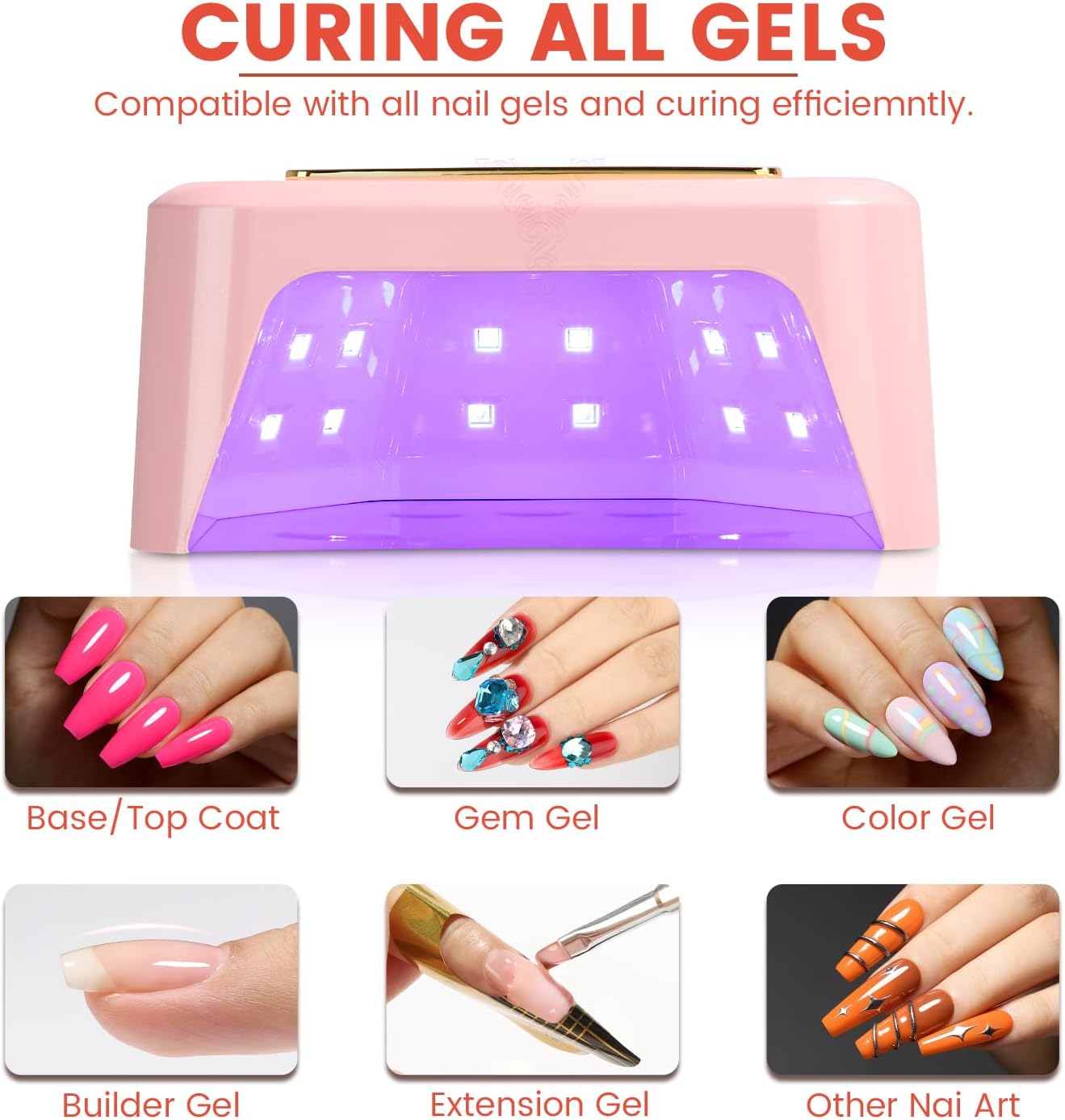

Curing All Gel Nail Polishes

This UV LED nail lamp is compatible with and effectively cures a wide range of nail gels, including but not limited to primer, topcoat, gel polishing agent, sculpture gel, rhinestone gel, builder gel, and extension gel. This broad compatibility makes it suitable for various nail art applications.

4. Setup

1. Initial Charge: Before first use, fully charge the nail lamp using the provided power adapter. The battery level is indicated on the LED display.
2. Placement: Place the nail lamp on a stable, flat surface in a well-ventilated area.
3. Power On: Locate the power switch (typically on the side or back) and turn the unit ON. The LED display will illuminate.

5. Operating Instructions

Follow these steps for effective use of your YOKEFELLOW UV LED Nail Lamp:

1. Prepare Nails: Ensure nails are clean, filed, and any base coat or gel polish is applied according to the product instructions.
2. Select Timer Setting:
   • 30 seconds: For thin gel polish.
   • 60 seconds: For regular color gel.
   • 90 seconds: For dark color or thick gel polish.
   • 99 seconds: Painless low heat mode, ideal for sensitive nails or builder gels to minimize heat spikes.
   Press the corresponding timer button on the LCD display to select your desired curing time.
3. Automatic Sensing: Alternatively, you can place your hand or foot into the lamp without pressing a timer button. The built-in infrared sensor will automatically detect your presence and start a 60-second curing cycle.
4. Curing Process: Place your painted nails inside the lamp, ensuring they are fully within the curing area and positioned correctly over the LED beads. The lamp will begin curing.
5. Monitor Display: The LED display will count down the remaining curing time.
6. Completion: Once the timer reaches zero or you remove your hand/foot (if using auto-sensing), the lamp will turn off. Carefully remove your hand/foot.
7. Switching Display Direction: To flip the orientation of the time display on the LCD screen, press and hold the 30-second timer button for approximately 3 seconds.

6. Maintenance

• Cleaning: Regularly clean the surface of the lamp and the interior curing chamber. The magnetic removable base can be detached for easier cleaning. Use a soft, dry cloth. For stubborn stains, a slightly damp cloth with mild soap can be used, ensuring no liquid enters the electrical components.
• Storage: Store the lamp in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
• Battery Care: To prolong battery life, avoid completely draining the battery frequently. Charge the lamp when the battery indicator shows low power.

7. Troubleshooting

Important Note: Do not use the nail lamp while it is charging. This is a battery protection feature. If you encounter issues not listed here or problems persist, please contact customer support.

8. Specifications

9. Customer Support

For any questions, concerns, or assistance with your YOKEFELLOW UV LED Nail Lamp, please contact our customer support team. We are committed to providing high-quality service and support.

Please refer to your purchase documentation or the seller's information on the platform where you purchased the product for specific contact details.

You can also visit the official YOKE FELLOW store for more information and support resources: YOKE FELLOW Store on Amazon
