Merax 30-inch Bathroom Vanity with Sink Instruction Manual

Product Overview

This manual provides detailed instructions for the assembly, operation, and maintenance of your Merax 30-inch Bathroom Vanity with Sink. Please read all instructions carefully before beginning assembly or use.

The Merax 30-inch Bathroom Vanity is constructed from high-quality solid wood and MDF, featuring an eco-friendly painted surface that is waterproof and stain-resistant. It includes two storage doors, one large drawer, and an adjustable shelf for versatile storage. The integrated resin basin is designed for easy cleaning and is compatible with a 4-inch centerset faucet.

Image: Merax 30-inch Bathroom Vanity with Sink, showcasing its design and integrated sink.

Features

• High-Quality Construction: Made of solid wood and MDF with an eco-friendly, waterproof, and stain-resistant painted finish.
• Ample Storage: Features two storage doors with two-tier racks and one large drawer with a removable section panel for customizable organization.
• Integrated Resin Sink: Pure white, smooth, and waterproof surface for easy cleaning. Pre-drilled hole compatible with a 4-inch centerset faucet.
• Adjustable Shelf: The interior shelf can be adjusted to three different heights to accommodate various item sizes.

Image: Close-up views of the vanity's features, including silver metal knobs, door hinges, drawer slides, and solid wood feet.

Image: Interior view of the vanity showcasing the adjustable shelf and large drawer for ample storage.

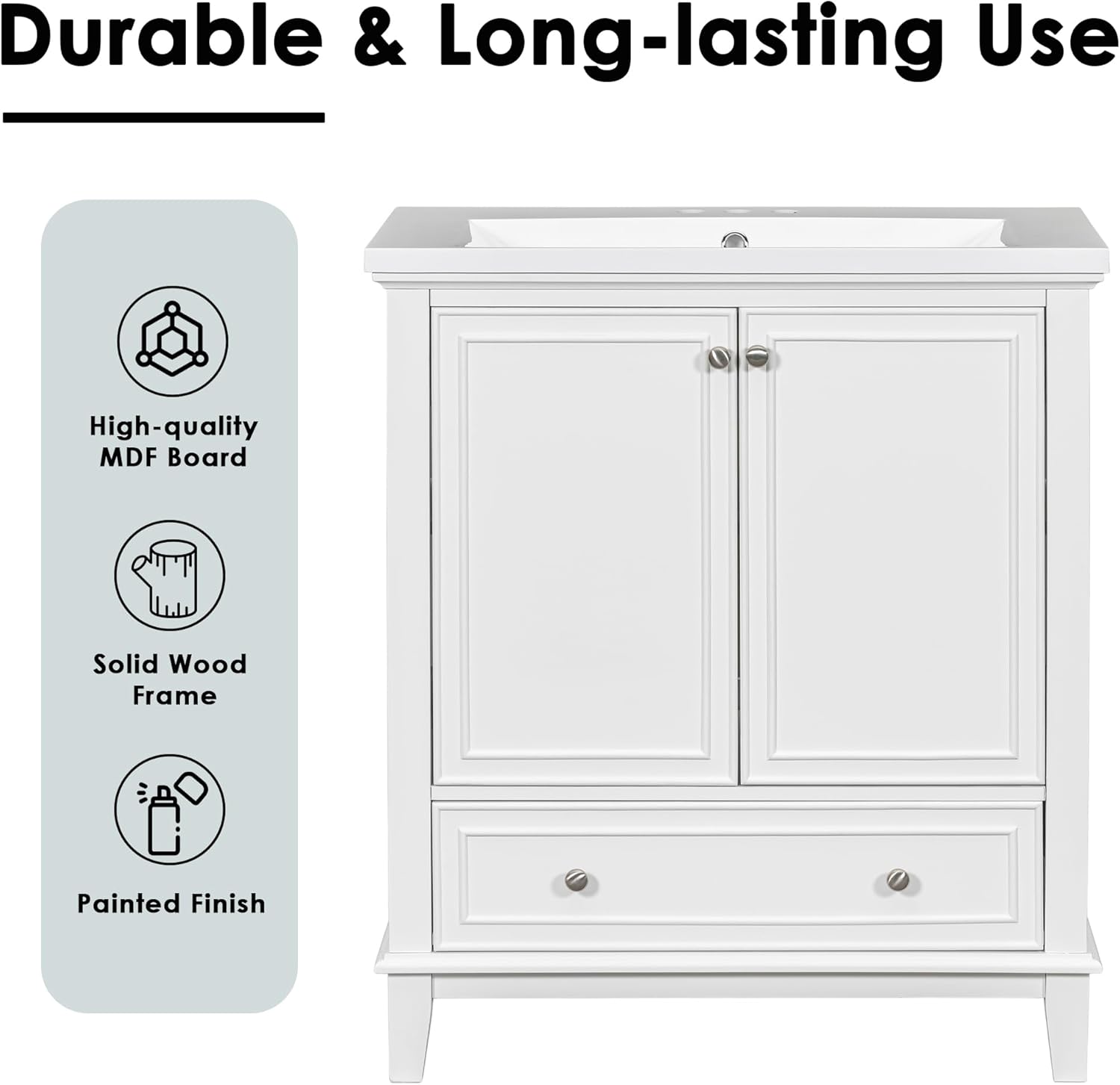

Image: Illustration highlighting the durable construction with high-quality MDF board, solid wood frame, and painted finish.

Image: Close-up of the drawer with a removable divider, illustrating its multi-functional design.

Image: Detailed view of the solid ceramic sink, chrome-finish overflow, and pre-drilled faucet hole.

Setup and Installation

Assembly is required for this vanity. Please follow the steps below carefully. It is recommended to have two people for assembly.

Assembly Video Guide

Step-by-Step Assembly Instructions

1. Unpack Components: Carefully unpack all parts and hardware. Verify all components are present against the parts list in your included manual.
2. Assemble Side Panels: Attach cam screws to the designated holes on the side panels (e.g., boards #4, #5, #6, #7 as shown in the video).
3. Insert Dowel Pins: Insert dowel pins into the corresponding holes on the side panels.
4. Connect Base Boards: Connect the base boards (#1, #2) using dowel pins and screws.
5. Construct Cabinet Frame: Assemble the main cabinet frame by inserting boards (#11, #12, #13, #15) into the side panels (#6, #7) and securing them with cam bolts.
6. Install Back Panels: Secure the back panels (#17, #18, #19) to the assembled frame using screws.
7. Install Shelf Supports: Insert shelf supports into the pre-drilled holes on the interior side panels (#4, #5, #6, #7).
8. Place Shelves: Carefully place the adjustable shelves onto the installed shelf supports.
9. Attach Door Hinges: Install the hinges onto the cabinet doors.
10. Mount Doors: Attach the doors to the cabinet frame, ensuring they close smoothly. Adjust hinges as needed for proper alignment.
11. Install Corner Connectors (Optional for Wall Mounting): If securing to a wall, install corner connectors on the top rear corners of the vanity.
12. Secure to Wall (Optional): Install expansion screws into the wall at the desired height, then secure the vanity through the corner connectors.
13. Install Sink Top: Carefully place the sink top onto the assembled cabinet. Ensure it is properly aligned and level.
14. Install Faucet and Drain: Install your chosen 4-inch centerset faucet and drain assembly (not included) according to their respective manufacturer's instructions.

Operating Instructions

• Using the Sink: The integrated resin sink is designed for daily use. Ensure the drain stopper is properly seated when filling the basin.
• Accessing Storage: Open the two cabinet doors to access the adjustable shelf. The large bottom drawer slides open for additional storage.
• Adjusting Shelves: To adjust the shelf height, remove items from the shelf, lift the shelf, and reposition the shelf supports to the desired level. Then, place the shelf back onto the supports.
• Drawer Divider: The section panel in the large drawer is removable. Adjust or remove it to customize the drawer's storage compartments as needed.

Maintenance

• Cleaning the Vanity: Wipe the cabinet surfaces with a damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
• Cleaning the Sink: The smooth, waterproof resin sink is easy to clean. Use mild soap and water for regular cleaning. For tougher stains, consult a non-abrasive bathroom cleaner suitable for resin surfaces.
• Hardware Care: Periodically check and tighten any loose screws or hardware on hinges and drawer slides to ensure smooth operation and longevity.

Troubleshooting

• Loose Doors/Drawers: If doors or drawers become loose or misaligned, check the hinge and slide screws and tighten them as necessary.
• Water Leaks: If you notice any leaks around the sink or plumbing, immediately turn off the water supply. Check all plumbing connections for tightness and proper sealing. Consult a professional plumber if the issue persists.
• Stains on Surface: For stubborn stains on the vanity surface, use a mild, non-abrasive cleaner. Test on an inconspicuous area first.

Specifications

Warranty and Support

One Year Quality Guarantee: Merax provides a one-year quality guarantee for this product. If you have any questions or encounter any issues, please feel free to contact us. We are committed to providing satisfactory service within 24 hours.

For further assistance, please refer to the contact information provided with your purchase or visit the official Merax website.
