1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your DELAVIN Frameless Glass Shower Door. Please read all instructions carefully before beginning installation to ensure proper function and safety. Keep this manual for future reference.
2. Safety Information
WARNING: Improper installation or handling of glass can result in serious injury or product damage.
- Always wear safety glasses, gloves, and appropriate protective gear during installation.
- Glass is heavy and fragile. Handle with extreme care. Two or more people are required for safe handling and installation.
- Ensure the installation surface (walls, floor) is structurally sound and capable of supporting the weight of the shower door.
- Verify all measurements and clearances before drilling or making permanent modifications.
- Do not overtighten screws, as this can crack glass or damage hardware.
- Keep children and pets away from the installation area.
- If you are unsure about any step, consult a qualified professional installer.
3. Package Contents
Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, do not proceed with installation and contact customer support.
- Tempered Ultra-Clear Glass Panels (Fixed and Sliding)
- Stainless Steel Top Guide Rail
- Sliding Rollers and Brackets
- Door Handles (Matte Black)
- Wall Mount Brackets and Anchors
- Anti-Splash Threshold
- Side Anti-Water Strips
- Bottom Guide/Floor Guide
- Installation Hardware (screws, washers, gaskets, etc.)
- Detailed Installation Instructions
4. Tools Required
The following tools are typically required for installation:
- Measuring Tape
- Pencil
- Level
- Drill with appropriate drill bits (for tile/concrete and wood studs)
- Screwdriver Set (Phillips and Flathead)
- Caulking Gun and Silicone Sealant (mildew-resistant)
- Utility Knife
- Rubber Mallet (optional, for gentle adjustments)
- Safety Glasses and Gloves
5. Installation
The DELAVIN Frameless Glass Shower Door is designed for convenient and reversible installation, allowing you to choose between left or right-side opening to best suit your bathroom layout. Refer to the detailed installation instructions included in your package for step-by-step guidance.
5.1. Pre-Installation Checks
- Measure Your Opening: The recommended installation width range is 56 inches to 59 inches. The height of the glass sliding shower door is 72 inches.
- Wall Preparation: Ensure walls are plumb, level, and capable of supporting the door's weight.
5.2. Flexible Top Guide Rail Adjustment
The stainless steel upper guide rail can be adjusted to fit your specific bathroom entrance width. If your bathroom entrance width is less than 58 inches, you can trim the length of the top guide rail by up to 4 inches to achieve a perfect fit.

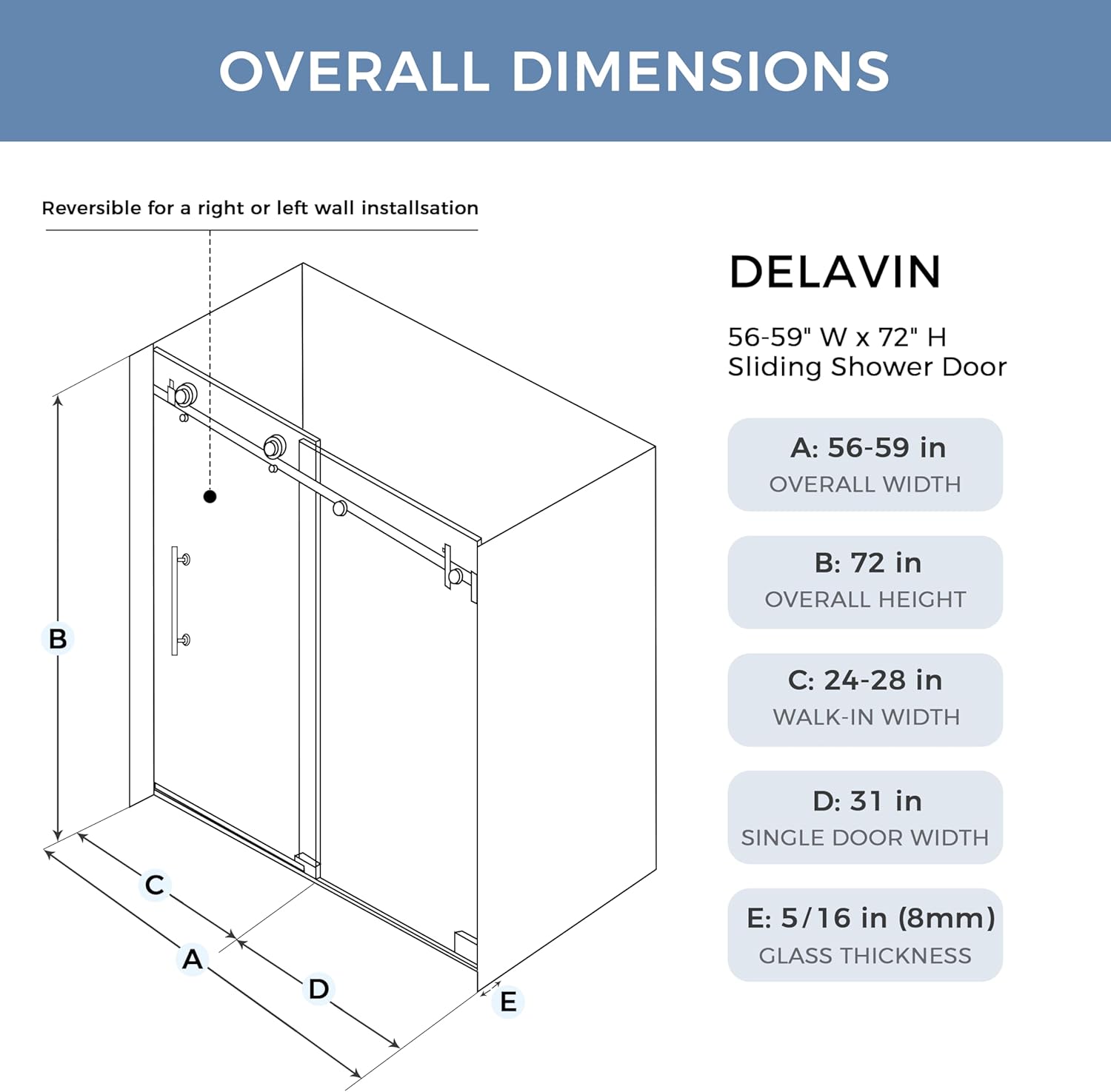

5.3. Overall Dimensions
Understanding the overall dimensions is crucial for planning your installation. The walk-in width ranges from 24 inches to 28 inches, accommodating various needs.
5.4. Reversible Installation
The shower door can be installed to slide open from either the left or the right side. This flexibility allows you to adapt the door to your bathroom's specific layout and personal preference.
6. Operation
Your DELAVIN Frameless Glass Shower Door is designed for smooth and effortless operation.
6.1. Smooth Sliding Mechanism
The door features solid stainless steel rollers that ensure the glass panel glides smoothly and quietly along the top guide rail. The anti-jump design provides stability during movement.
6.2. Door Handles
The sturdy stainless steel long handle provides a comfortable and secure grip for opening and closing the door. The design includes internal buttons for easy access from inside the shower.
7. Maintenance and Cleaning
Regular cleaning and maintenance will preserve the appearance and functionality of your shower door.
7.1. Glass Cleaning
Clean the tempered ultra-clear glass panels regularly with a soft cloth and a non-abrasive glass cleaner. Avoid using harsh chemicals, abrasive pads, or scouring powders, as these can scratch the glass or damage the explosion-proof film.
7.2. Hardware Cleaning
Wipe down the matte black stainless steel hardware with a soft, damp cloth. For stubborn spots, use a mild soap solution and rinse thoroughly. Avoid abrasive cleaners or strong detergents that can damage the finish.
7.3. Leakage Prevention Design
The anti-splash threshold and side anti-water strips are designed to prevent water from escaping the shower area. Regularly inspect these components for wear or damage and ensure they are free from debris to maintain an effective seal.
8. Troubleshooting
If you encounter any issues with your shower door, refer to the following common solutions:
- Door Not Sliding Smoothly: Check the top guide rail for obstructions or debris. Clean the rollers and the rail. Ensure the rollers are properly aligned.
- Water Leakage: Verify that the anti-splash threshold and side anti-water strips are correctly installed and free from gaps. Reapply silicone sealant if necessary. Ensure the showerhead is not directly spraying at the door seams.
- Glass Appears Cloudy or Stained: Use a specialized glass cleaner for hard water stains. Regular cleaning after each use can prevent mineral buildup.
- Loose Hardware: Periodically check all screws and fasteners for tightness. Do not overtighten.
For issues not covered here, or if problems persist, please contact DELAVIN customer support.
9. Specifications
| Feature | Detail |
|---|---|
| Brand | DELAVIN |
| Model | Frameless Glass Shower Door |
| Dimensions (W x H) | 56-59" W x 72" H |
| Color | Matte Black |
| Material | 5/16" (8mm) Tempered Ultra-Clear Glass, Stainless Steel Hardware |
| Glass Type | Tempered Ultra-Clear Glass with Explosion-Proof Film (ANSI Certified) |
| Style | Modern, Frameless |
| Installation Type | Sliding, Reversible (Left/Right) |
| Assembly Required | Yes |
9.1. Tempered Ultra-Clear Glass
The shower door features 5/16" (8mm) thick tempered ultra-clear glass, which is ANSI certified for high strength and safety. This glass includes an explosion-proof film that helps contain shattered pieces in the unlikely event of breakage, enhancing user safety.
10. Warranty and Support
For specific warranty details, please refer to the warranty card included with your product or visit the official DELAVIN website. If you have any questions, require assistance with installation, or need to report missing/damaged parts, please contact DELAVIN customer support.
Customer Support Contact: Refer to your product packaging or the official DELAVIN website for the most current contact information.
