FERREX 20V Li-Ion Cordless Drill Driver FAS Instruction Manual

1. Introduction

Thank you for choosing the FERREX 20V Li-Ion Cordless Drill Driver. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new tool. Please read these instructions carefully before use and keep them for future reference.

2. Safety Instructions

Always follow basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury.

• Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators. Do not expose power tools to rain or wet conditions.
• Personal Safety: Always wear eye protection. Use hearing protection when operating for extended periods. Dress properly; avoid loose clothing or jewelry. Secure long hair.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
• Battery Pack Use and Care: Recharge only with the charger specified by the manufacturer. Do not use battery packs with any other power tools. When the battery pack is not in use, keep it away from other metal objects.

3. Package Contents

Carefully unpack your FERREX 20V Li-Ion Cordless Drill Driver and check that all items are present and undamaged. If any parts are missing or damaged, please contact your retailer.

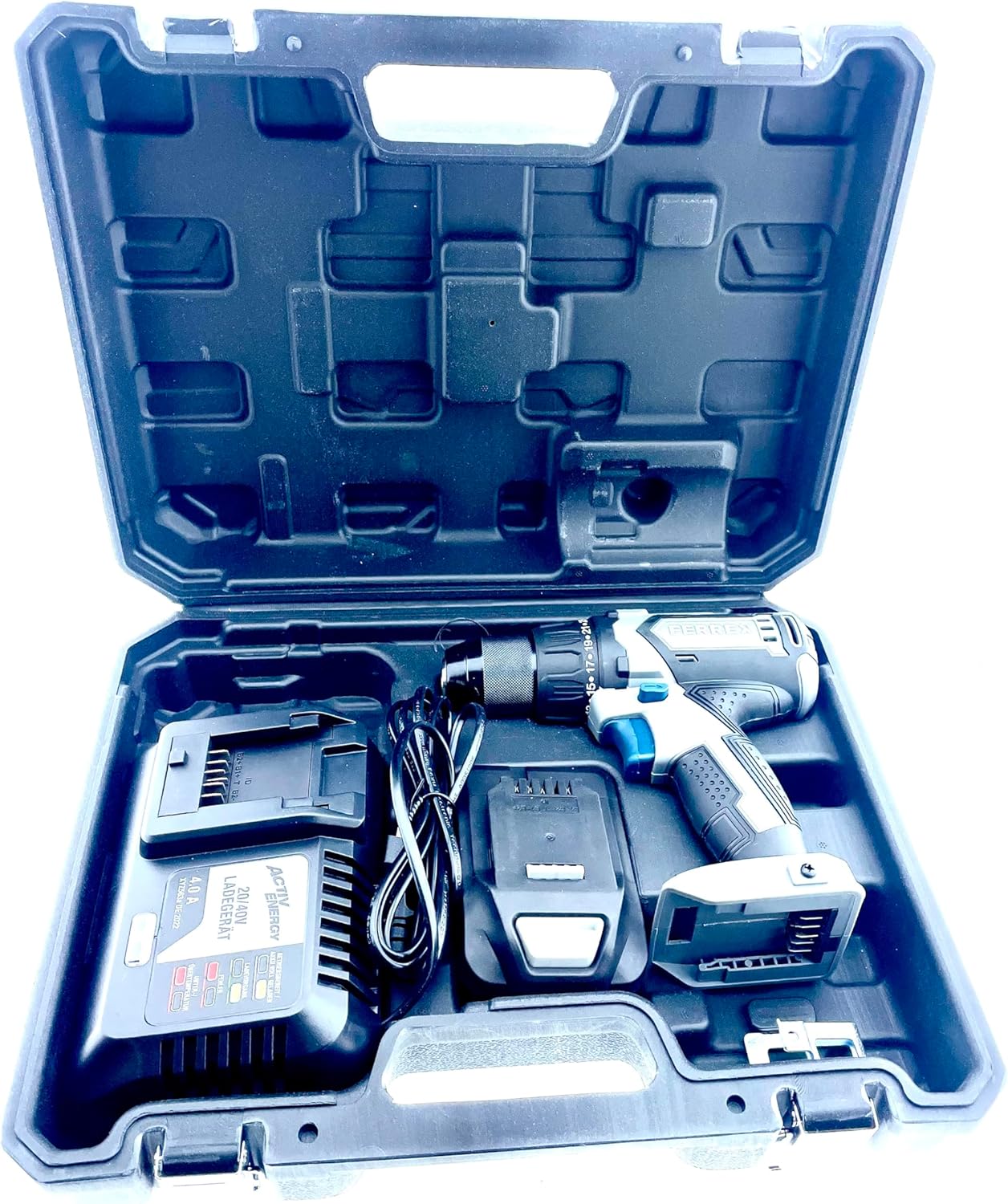

Image: The FERREX 20V Li-Ion Cordless Drill Driver kit, including the drill, battery, and charger, neatly organized within its practical carrying case.

• FERREX 20V Li-Ion Cordless Drill Driver
• 20V Li-Ion Battery Pack
• 20V/40V Battery Charger
• Belt Clip
• Instruction Manual
• Practical Carrying Case

4. Product Overview

Familiarize yourself with the components of your drill driver before operation.

Image: The FERREX 20V Li-Ion Cordless Drill Driver, showing the chuck, torque collar, speed selector, trigger, and attached battery pack.

1. Keyless Chuck: For quick and easy bit changes.
2. Torque Adjustment Collar: Selects the desired torque setting or drilling mode.
3. Speed Selector Switch: Changes between high and low-speed gears.
4. Forward/Reverse Selector: Controls the direction of rotation.
5. Trigger Switch: Activates the tool and controls speed.
6. LED Work Light: Illuminates the work area.
7. Battery Pack: Provides power to the tool.
8. Battery Release Button: For detaching the battery.
9. Belt Clip: For convenient carrying.

5. Setup

5.1 Charging the Battery

The battery pack is not fully charged upon purchase. It must be charged before first use.

Image: The FERREX 20V/40V battery charger, showing its design and indicator lights.

1. Connect the charger to a suitable power outlet.
2. Slide the battery pack onto the charger base, ensuring it clicks into place.
3. The charging indicator light on the charger will show the charging status. Refer to the charger's specific instructions for light indications (e.g., red for charging, green for fully charged).
4. Once fully charged, disconnect the charger from the power outlet and remove the battery pack.

5.2 Installing and Removing the Battery Pack

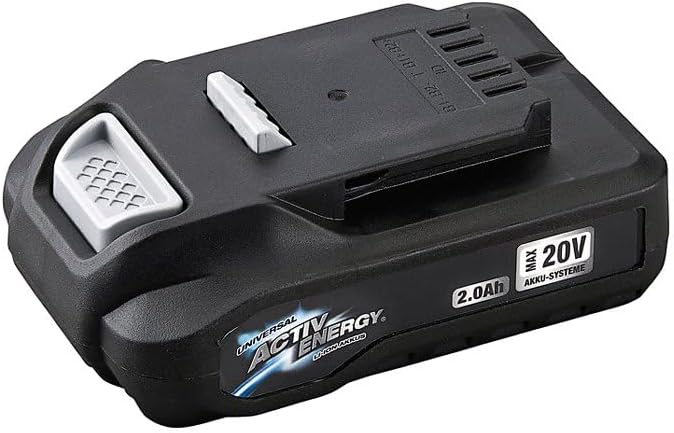

Image: The FERREX 20V Li-Ion battery pack, showing its connection points and release button.

To Install: Align the battery pack with the base of the drill driver and slide it in until it clicks securely into place.

To Remove: Press the battery release button (located on the battery pack) and slide the battery pack out from the tool.

5.3 Installing and Removing Drill Bits/Accessories

1. Ensure the drill driver is switched off and the forward/reverse selector is in the center (locked) position to prevent accidental starting.
2. Grip the rear half of the keyless chuck and rotate the front half counter-clockwise until the chuck jaws are open wide enough to accept the bit.
3. Insert the drill bit or accessory fully into the chuck.
4. Rotate the front half of the chuck clockwise to tighten the jaws firmly around the bit. Ensure the bit is centered and secure.
5. To remove, reverse the process.

6. Operating Instructions

6.1 Powering On/Off and Speed Control

The tool is activated by pressing the trigger switch. The speed is variable depending on how far the trigger is pressed. Releasing the trigger switch turns the tool off. The quick stop function ensures the chuck stops rotating almost immediately upon releasing the trigger.

6.2 Forward/Reverse Rotation

The forward/reverse selector switch controls the direction of rotation. Push it to the left for forward (drilling/driving) rotation and to the right for reverse (removing screws) rotation. When the switch is in the center position, the trigger is locked, preventing accidental operation.

6.3 Speed Settings (Gearbox)

The drill driver features a 2-speed gearbox:

• Gear 1 (Low Speed, High Torque): Select this for heavy-duty drilling, driving large screws, or applications requiring more power. (0-400 RPM)
• Gear 2 (High Speed, Low Torque): Select this for fast drilling in softer materials or for smaller screws. (0-1500 RPM)

To change gears, slide the speed selector switch located on top of the drill. Always ensure the tool has come to a complete stop before changing gears.

6.4 Torque Adjustment

The torque adjustment collar allows you to select the desired torque setting (1-25) or the drilling mode. This prevents over-driving screws and damaging the workpiece.

• Settings 1-25: Use lower settings for smaller screws and softer materials, and higher settings for larger screws and harder materials. The clutch will disengage when the set torque is reached.
• Drilling Mode (Drill Symbol): Select this mode for drilling applications. The clutch will not engage, providing maximum torque.

6.5 LED Work Light

The integrated LED work light automatically illuminates when the trigger is pressed, providing better visibility in dimly lit work areas.

6.6 Belt Clip

The included belt clip can be attached to either side of the drill driver for convenient temporary storage while working.

7. Maintenance

Regular maintenance ensures optimal performance and extends the life of your tool.

• Cleaning: Keep the ventilation slots of the tool clean to prevent overheating. Use a soft, damp cloth to clean the housing. Do not use harsh chemicals or abrasive cleaners.
• Chuck Maintenance: Periodically clean the chuck jaws to ensure proper gripping of bits.
• Battery Care: Store battery packs in a cool, dry place away from direct sunlight. Do not store fully discharged batteries for extended periods. Recharge them periodically if not in use.
• Storage: Store the drill driver, battery, and charger in the provided carrying case in a dry, secure location, out of reach of children.

8. Troubleshooting

If you encounter issues with your drill driver, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

9. Specifications

10. Warranty and Support

Your FERREX 20V Li-Ion Cordless Drill Driver is manufactured to high-quality standards. For warranty information or technical support, please refer to the warranty card included with your purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
