GOPLUS 3-Wheel Foldable Golf Push Cart

1. Product Overview

The GOPLUS 3-Wheel Foldable Golf Push Cart (Model TQ48714FR) is designed to provide convenience and stability for golfers. Constructed from robust iron, this cart features a lightweight yet durable frame, smooth-rolling ball-bearing wheels, and a stable 3-wheel design suitable for various terrains. It includes an adjustable handle and a detachable, height-adjustable seat for comfort during your game.

Key features include:

• Detachable Spring-Type Seat: The seat is designed to lift when not in use, reducing wear, and lowers to the ground for enhanced stability when occupied.
• Adjustable Handle and Seat: The handle offers 4 adjustable positions, with a height range of 99 to 116 cm, accommodating users of different heights. The seat has a 26 cm diameter and is continuously adjustable in height from 58 to 65 cm.
• Quick Folding Mechanism: Equipped with quick-release wheels and an easy folding mechanism, the cart can be collapsed in seconds for convenient storage and transport. Pressure lock buckles securely fasten your golf bag.
• Multi-functional Design: Features include a scorecard holder, umbrella tube, cup holder, and an insulated storage bag. The foam handle provides optimal comfort and a non-slip grip.
• Premium Materials: Made from high-quality metal (Iron+PP+EVA), ensuring durability and stability. Includes a functional pedal brake for the rear wheel.

Image 1.1: Overview of the GOPLUS 3-Wheel Foldable Golf Push Cart, showcasing its umbrella holder, elastic bag supports, cup holder, and rear wheel brake.

Image 1.2: A golfer utilizing the GOPLUS golf cart on a course, demonstrating its practical use with an attached umbrella.

2. Setup and Assembly

Your GOPLUS golf cart is designed for quick and easy setup. Follow these steps to prepare your cart for use:

1. Unfold the Frame: Release any securing latches and gently unfold the main frame of the golf cart until it locks into its open position. Ensure all joints are securely engaged.
2. Attach Wheels: The cart features quick-release wheels. Align each wheel with its axle and press the release button (if present) while inserting until it clicks into place. Ensure all three wheels are firmly attached.
3. Adjust Handle Height: Locate the handle adjustment mechanism. Press the release button or lever and adjust the handle to one of the four desired height positions (99-116 cm). Release the button/lever to lock it in place.
4. Install Seat: Insert the seat post into its designated slot on the cart. The seat is height-adjustable (58-65 cm) and can be continuously adjusted by loosening and tightening the locking mechanism.
5. Attach Accessories: Secure the scorecard holder, umbrella tube, and any other accessories to their respective mounting points on the handle console.

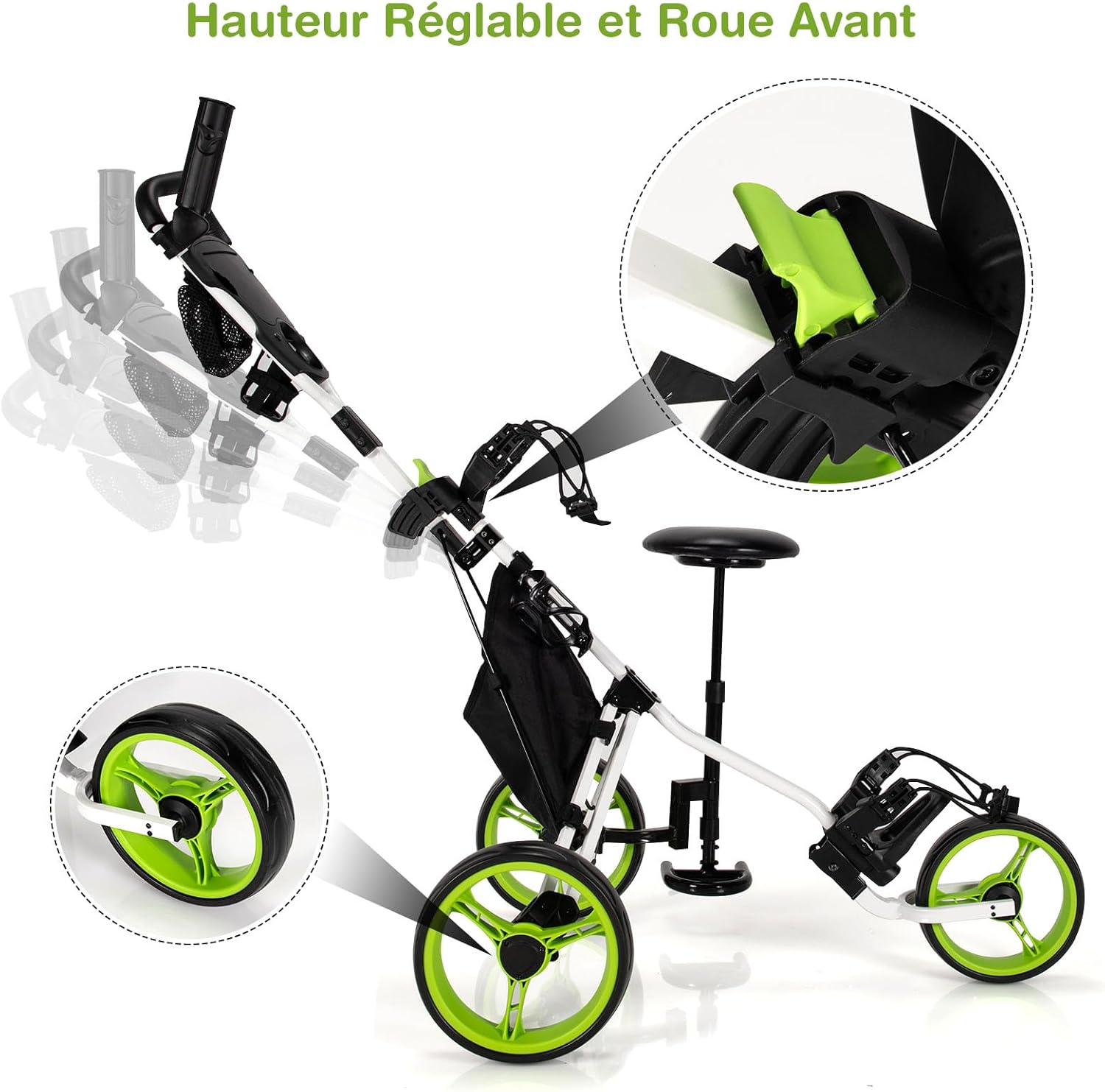

Image 2.1: Illustration of the adjustable handle height and the design of the front wheel, crucial for setup and customization.

3. Operating Instructions

To ensure optimal performance and safety, please follow these operating guidelines:

3.1 Securing Your Golf Bag

• Place your golf bag onto the upper and lower bag supports.
• Use the elastic straps provided on both supports to firmly secure your golf bag. Ensure the bag is snug and will not shift during movement.

3.2 Adjusting the Handle and Seat

• Handle: To adjust the handle height, locate the adjustment mechanism near the handle. Press the button or lift the lever, then move the handle to one of the four desired positions. Release to lock.
• Seat: The seat height can be adjusted continuously between 58 cm and 65 cm. Loosen the locking collar on the seat post, adjust to your preferred height, and then tighten the collar securely. The seat cushion has a diameter of 26 cm.

Image 3.1: The flexible hydraulic seat of the golf cart, illustrating its vertical adjustment range for user comfort.

3.3 Using the Foot Brake

• To engage the brake, press down on the pedal brake located near the rear wheel.
• To release the brake, lift the pedal brake. Always ensure the brake is engaged when the cart is stationary, especially on inclines.

3.4 Utilizing Storage and Accessories

• Scorecard Holder: Use the integrated holder on the handle console to keep your scorecard and pencil readily accessible.
• Umbrella Tube: Insert your golf umbrella into the dedicated tube to provide shade or protection from rain.
• Insulated Bag: Store beverages or snacks in the insulated bag for easy access during your game.
• Cup Holder: Place your drink in the convenient cup holder.

Image 3.2: Detailed view of the cart's ample storage options, including the scorecard holder, mesh bag for golf balls, and a general storage bag.

Image 3.3: Close-up of the rubberized, anti-slip handle and the umbrella attachment, emphasizing the cart's lightweight and anti-rust construction.

3.5 Folding for Storage

To fold the cart for storage or transport:

1. Remove any accessories and your golf bag.
2. Release the seat locking mechanism and lower the seat.
3. Locate the main folding mechanism (usually a lever or button near the frame joints). Activate it and carefully collapse the cart. Ensure all parts fold smoothly and lock into their compact position.
4. If applicable, remove the quick-release wheels for even more compact storage.

4. Maintenance

Regular maintenance will extend the life and performance of your GOPLUS golf cart:

• Cleaning: Wipe down the frame and wheels with a damp cloth after each use to remove dirt, grass, and debris. For stubborn stains, use a mild soap solution. Avoid harsh chemicals that may damage the materials.
• Lubrication: Periodically check moving parts, such as wheel axles and folding mechanisms. Apply a silicone-based lubricant if any parts feel stiff or squeaky.
• Inspection: Regularly inspect all bolts, screws, and straps to ensure they are tight and secure. Replace any worn or damaged parts immediately.
• Storage: Store the golf cart in a dry, cool place away from direct sunlight and extreme temperatures to prevent material degradation.

5. Troubleshooting

Here are solutions to common issues you might encounter:

• Cart does not fold/unfold smoothly: Check for any obstructions in the folding mechanism. Ensure all release levers or buttons are fully engaged. Lubricate moving parts if necessary.
• Wheels are stiff or squeaky: Remove any debris (grass, mud) from around the wheel axles. Apply a small amount of lubricant to the axle points.
• Brake is not engaging/disengaging: Inspect the brake mechanism for any obstructions or damage. Ensure the pedal is fully pressed or released.
• Golf bag is not secure: Ensure the elastic straps are properly positioned over your golf bag and tightened. Adjust the bag's position on the supports if needed.

6. Specifications

Image 6.1: Illustration comparing the cart's 27 cm rear wheels, designed for smooth movement across various terrains including uneven ground, gravel, brick, and grass, versus smaller 24 cm wheels.

7. Warranty and Support

For warranty information, product support, or to inquire about replacement parts, please contact GOPLUS customer service. Refer to your purchase documentation for specific contact details or visit the official GOPLUS website.
