wikiwiki 11FT Cantilever Patio Umbrella User Manual

1. Product Overview

The wikiwiki 11FT Cantilever Patio Umbrella is designed to provide extensive shade and enhance your outdoor living space. Featuring a robust aluminum framework and a durable, fade-resistant canopy, this umbrella offers both stability and ease of use with its 360-degree rotation and infinite tilting system.

Image: The wikiwiki 11FT Cantilever Patio Umbrella in a beige color, showcasing its offset design and large canopy.

Key Features:

• Premium Fabric: 240 GSM solution-dyed fabric with PU waterproof coating, UV resistant, and a 3-year fade-resistant canopy guarantee.
• Solid Framework: Extra-thick aluminum pole and ribs for improved strength and stability, powder-coated to prevent chipping, flaking, rusting, and corrosion.
• Unique Design: Large canopy provides ample shade and serves as an excellent decorative piece for various outdoor occasions.
• Rotation & Tilt: 360-degree rotation via foot pedal and infinite adjustment tilting mechanism for maximum sun coverage.

Image: The umbrella providing shade over a modern outdoor patio seating area, demonstrating its large coverage.

2. Safety Information

Please read and understand all safety warnings and instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Always ensure the umbrella is securely anchored with a weighted base (sold separately) or other suitable weights to prevent tipping, especially in windy conditions.
• Do not use the umbrella during strong winds, heavy rain, or other extreme weather conditions. Close and secure the canopy to prevent damage.
• Keep children and pets away from the umbrella during assembly and operation.
• Avoid placing the umbrella near open flames or heat sources.

3. Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer service.

• Umbrella Canopy
• Main Pole Assembly
• Cross Base
• Crank Handle
• Foot Pedal
• Hardware Pack (bolts, washers, nuts, tools)
• Instruction Manual

4. Setup & Assembly

Follow these steps to assemble your wikiwiki Cantilever Patio Umbrella. It is recommended to have two people for assembly.

1. Prepare the Base: Place the cross base on a flat, stable surface where you intend to use the umbrella.
2. Secure the Base: IMPORTANT: To ensure stability, you must purchase a weighted base separately (e.g., wikiwiki HDPE Base, search B09QKQFD9L or B09QKR5TJ4), or use sandbags, bricks, or nail the foundation to your deck. The umbrella requires more than 300 pounds of weight for proper stability.

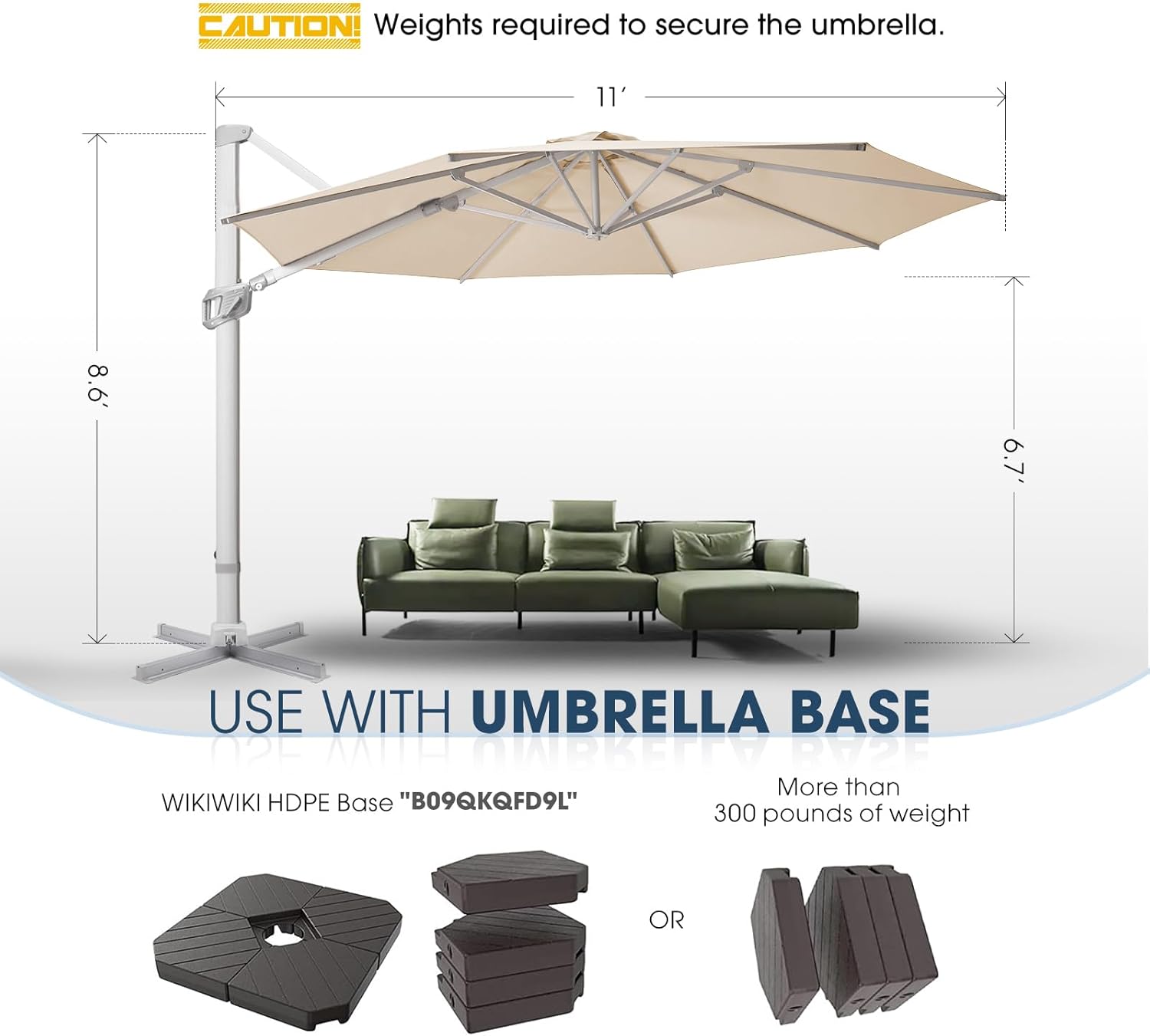

Image: A diagram illustrating the umbrella's dimensions and emphasizing the critical requirement for a weighted base to ensure stability.

3. Attach the Main Pole: Carefully attach the main pole assembly to the cross base using the provided hardware. Ensure all bolts are tightened securely.
4. Mount the Canopy: Lift the umbrella canopy and attach it to the main pole's arm. Follow the specific instructions in your hardware pack for secure attachment.
5. Final Checks: Double-check all connections and ensure the umbrella is stable before proceeding to operation.


Image: A detailed visual guide showing the umbrella's main components and various options for securing the base with weights.

5. Operating Instructions

Your wikiwiki Cantilever Patio Umbrella is designed for easy and flexible shade control.

5.1 Opening and Closing the Canopy

• To Open: Turn the crank handle clockwise until the canopy is fully extended and taut.
• To Close: Turn the crank handle counter-clockwise until the canopy is fully retracted. Secure the canopy with the attached strap when closed.

5.2 360-Degree Rotation

To rotate the umbrella, simply step on the foot pedal located at the base of the main pole. While holding the pedal down, gently rotate the umbrella to your desired position. Release the pedal to lock the umbrella in place.

5.3 Infinite Tilting System

The umbrella features an ergonomically designed sliding handle for effortless tilting. Slide the handle up or down to adjust the canopy angle and achieve maximum shade throughout the day. The infinite adjustment allows for precise positioning.

Image: Visual guide detailing the infinite adjustment for tilting, 360-degree rotation, and adjustable left & right movement of the umbrella canopy.

Image: An exploded view highlighting the crank system, crank handle, foot pedal, and the necessity of a weighted base for the cantilever patio umbrella.

6. Care & Maintenance

Proper care will extend the life and appearance of your umbrella.

• Cleaning the Canopy: Clean the canopy fabric with mild soap and water. Rinse thoroughly and allow to air dry completely before closing or storing. Do not use harsh chemicals or abrasive cleaners.


Image: A close-up view of the 240 GSM solution-dyed fabric, highlighting its texture and quality.

• Frame Maintenance: Periodically wipe down the aluminum frame with a damp cloth to remove dirt and debris. Check all bolts and connections regularly and tighten if necessary.
• Storage: Cover and store the umbrella at night or during extreme weather conditions (strong winds, heavy rain, snow) to extend its service life. For long-term storage, ensure the umbrella is clean and dry, then store it in a cool, dry place.

Image: Infographic detailing the fabric's properties: 240G solution-dyed, AATCC 16.3 Colorfastness to Light (Grade 4), and 60 months fade-resistant against fading.
• UV Protection: The fabric provides UV protection. The Skin Cancer Foundation recommends this fabric as an effective UV protectant only for covered areas.


Image: A close-up showing the UV protection rating of 99.93% and endorsement from The Skin Cancer Foundation.

7. Troubleshooting

If you encounter issues with your umbrella, please refer to the following common problems and solutions:

• Umbrella is unstable: Ensure the base is adequately weighted (over 300 lbs recommended) and placed on a flat, level surface. Check all assembly bolts for tightness.
• Crank mechanism is stiff: Apply a silicone-based lubricant to the moving parts of the crank mechanism. Ensure no fabric is caught in the mechanism.
• Canopy does not open/close smoothly: Check for any obstructions or tangled fabric. Ensure the crank mechanism is not damaged.
• Umbrella leans or sways: Verify that the main pole is securely attached to the base and that the base is stable and properly weighted.

8. Specifications

Image: A close-up view of the umbrella's aluminum-made stronger structure, highlighting its anti-rust properties and 25% thickened ribs for enhanced durability.

9. Warranty & Support

wikiwiki stands behind the quality of its products.

• Canopy Guarantee: We proudly provide a 3-YEAR fade-resistant canopy guarantee.
• Umbrella Guarantee: We proudly provide a 1-YEAR guarantee service for the entire umbrella.
• Customer Service: For any questions, concerns, or support needs, please contact our 24/7 customer service.
