Sunbeam Royal Ultra Fleece Heated Electric Blanket Twin Size Instruction Manual

Important Safety Information

Please read all instructions carefully before using your Sunbeam Royal Ultra Fleece Heated Electric Blanket. Failure to follow these instructions may result in fire, electric shock, or injury.

• Do not use with infants, children, incapacitated persons, or anyone insensitive to heat.
• Do not use with pets.
• Never use the blanket if the cord or controller is damaged.
• Do not dry clean. Dry cleaning solvents may damage the insulation of the heating element.
• Do not iron the blanket.
• Ensure the blanket is used on a bed and not as a throw blanket on a couch or chair, as this can cause overheating.
• Always unplug the blanket when not in use.

Setup Guide

Follow these steps to properly set up your heated electric blanket:

1. Unpack the Blanket: Carefully remove the blanket and controller from its packaging. Inspect for any damage.
2. Connect the Controller: Locate the connector on the blanket. Align the controller's plug with the blanket's connector and push firmly until it clicks into place. Ensure a secure connection.
3. Position the Blanket: Lay the heated blanket flat on your mattress. Ensure the connector is positioned at the foot of the bed for easy access and to prevent entanglement.
4. Secure the Blanket: For best results, place a fitted sheet over the heated blanket to keep it in place.
5. Plug into Power: Plug the power cord from the controller into a 120V AC electrical outlet. Do not use with extension cords or power strips.

For larger sizes (Queen, King), your blanket may come with two controllers, allowing individual heat settings for each side of the bed. The setup process for each controller remains the same.

Operating Instructions

Your Sunbeam Royal Ultra Fleece Heated Electric Blanket is designed for easy and personalized comfort.

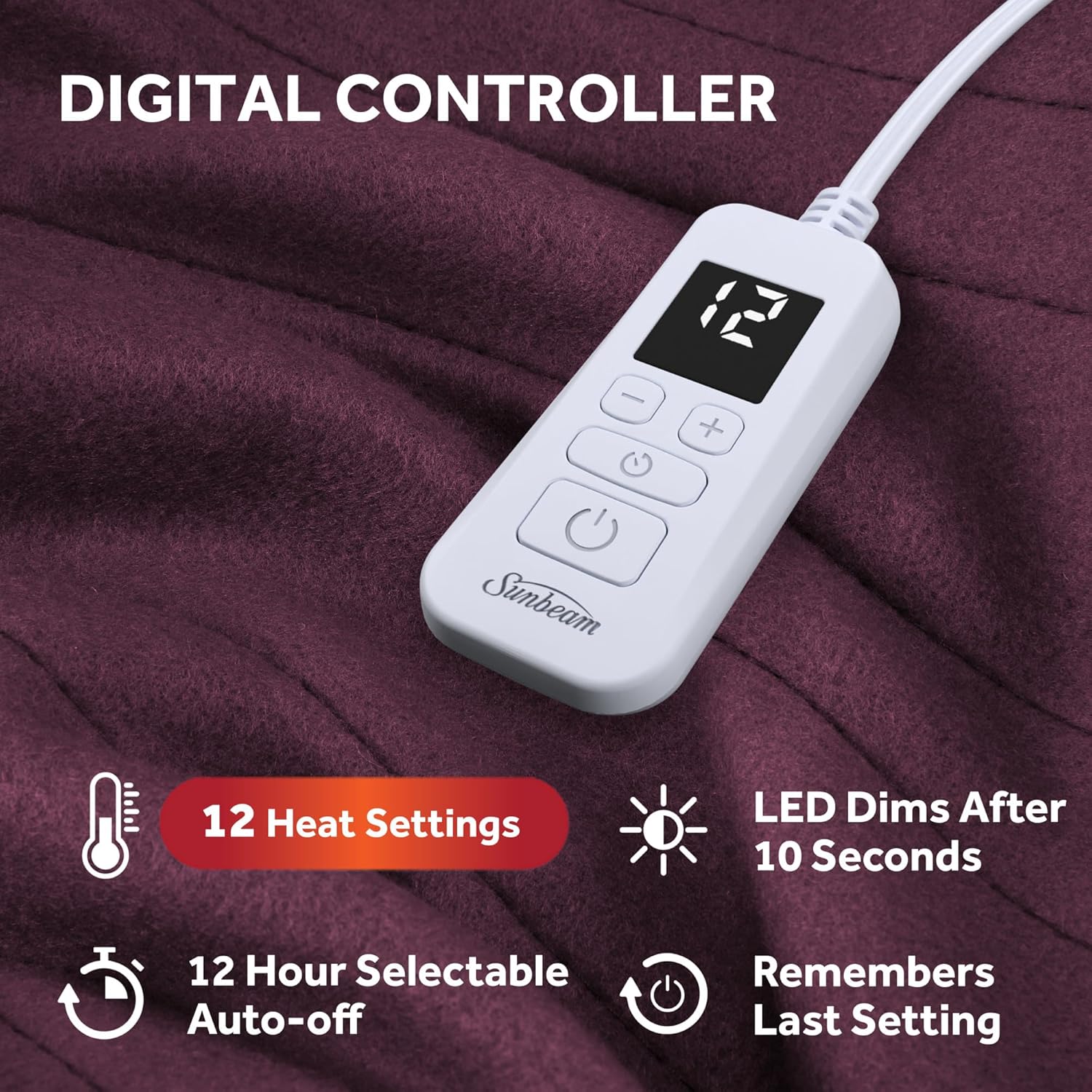

1. Power On/Off: Press the power button on the digital controller to turn the blanket on or off.
2. Adjust Heat Settings: Use the up (+) and down (-) arrow buttons to select your desired heat level from 1 to 12. The LED display will show the current setting.
3. Auto Shut-Off: The blanket features a 12-hour selectable auto shut-off for safety. You can adjust this duration using the timer button on the controller.
4. Smart Controller: The controller remembers your last heat setting for convenience. The LED display will dim automatically after 10 seconds to minimize light disturbance during sleep.

Care and Maintenance

Proper care ensures the longevity and performance of your heated blanket.

1. Before Washing: Always detach the digital controller(s) from the blanket before washing. Ensure all cords are disconnected.
2. Machine Washing: The blanket is machine washable. Use a gentle cycle with cold water. Do not use bleach.
3. Drying: The blanket is dryer-safe. Tumble dry on low heat or, preferably, hang dry to extend its lifespan and maintain softness. Do not iron.
4. Storage: When not in use, store the blanket neatly folded in a cool, dry place. Avoid placing heavy objects on top of it to prevent damage to the internal wiring.

Troubleshooting

If your heated blanket is not functioning as expected, try these common solutions:

• No Heat/Power: Ensure the power cord is securely plugged into both the blanket and the wall outlet. Check if the outlet is functional by plugging in another appliance.
• Controller Display Not Working: Unplug the blanket from the wall outlet for a few minutes, then plug it back in. This may reset the controller.
• Uneven Heat: Ensure the blanket is laid flat on the bed without excessive folding or bunching, which can interfere with even heat distribution.
• Error Codes: Refer to the specific error codes in the full user manual (if provided with your product) or contact customer support.

Product Specifications

Warranty and Support

Sunbeam products are manufactured to high-quality standards. For warranty information or technical support, please refer to the documentation included with your purchase or visit the official Sunbeam website. Keep your proof of purchase for warranty claims.
