BERGNER Copper Coffee Maker

1. Introduction

Thank you for choosing the BERGNER Copper Coffee Maker. This manual provides essential information for the safe and efficient use of your new coffee maker. Please read these instructions thoroughly before first use and retain them for future reference.

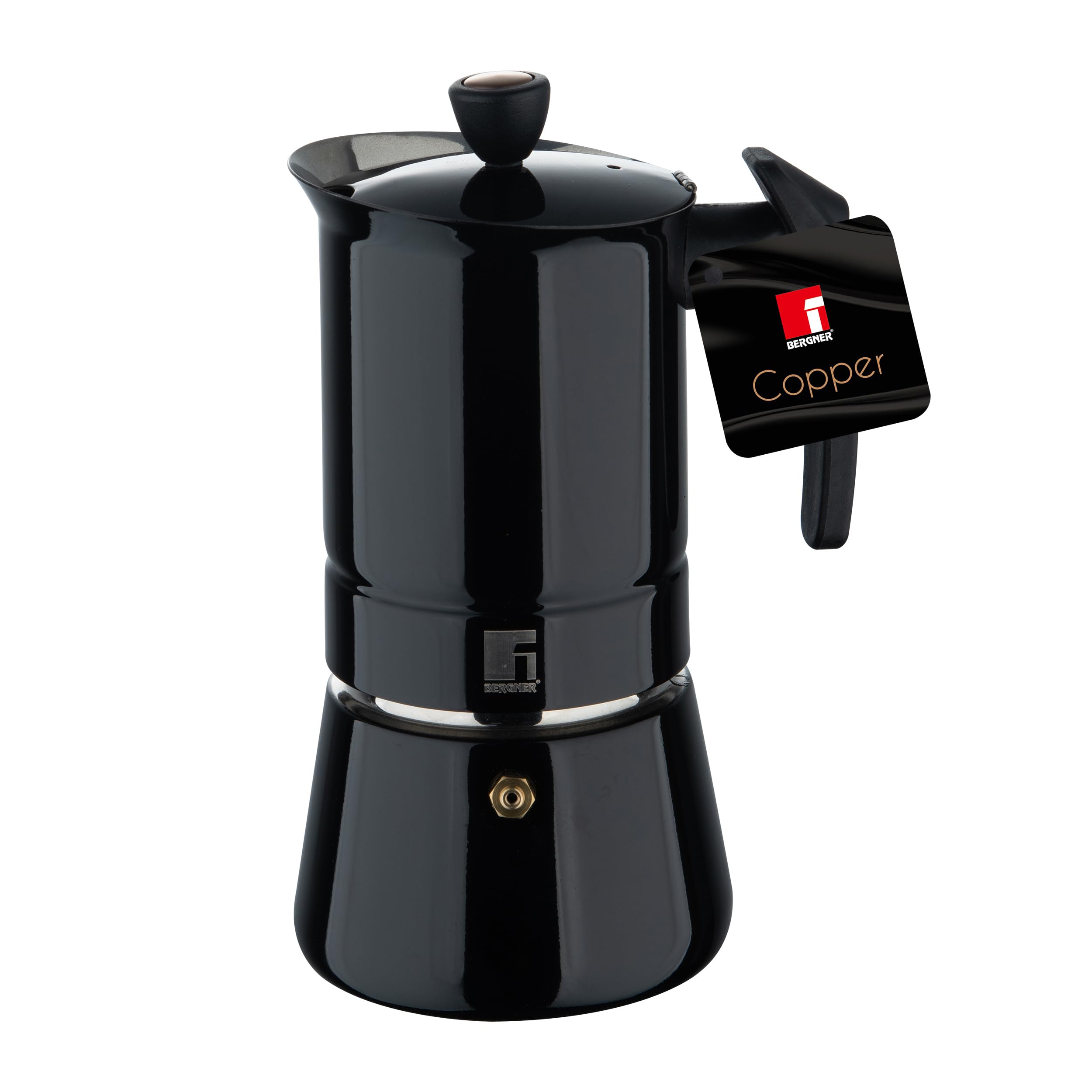

Figure 1: BERGNER Copper Coffee Maker (Model BG-38242-CP)

This image shows the complete BERGNER Copper Coffee Maker from the front, highlighting its sleek black and copper design and compact size.

2. Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and injury to persons, do not immerse cord, plugs, or coffee maker in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Exercise extreme caution when disposing of hot steam.
• Ensure the safety valve is not obstructed.

3. Parts Diagram

Familiarize yourself with the components of your BERGNER Copper Coffee Maker:

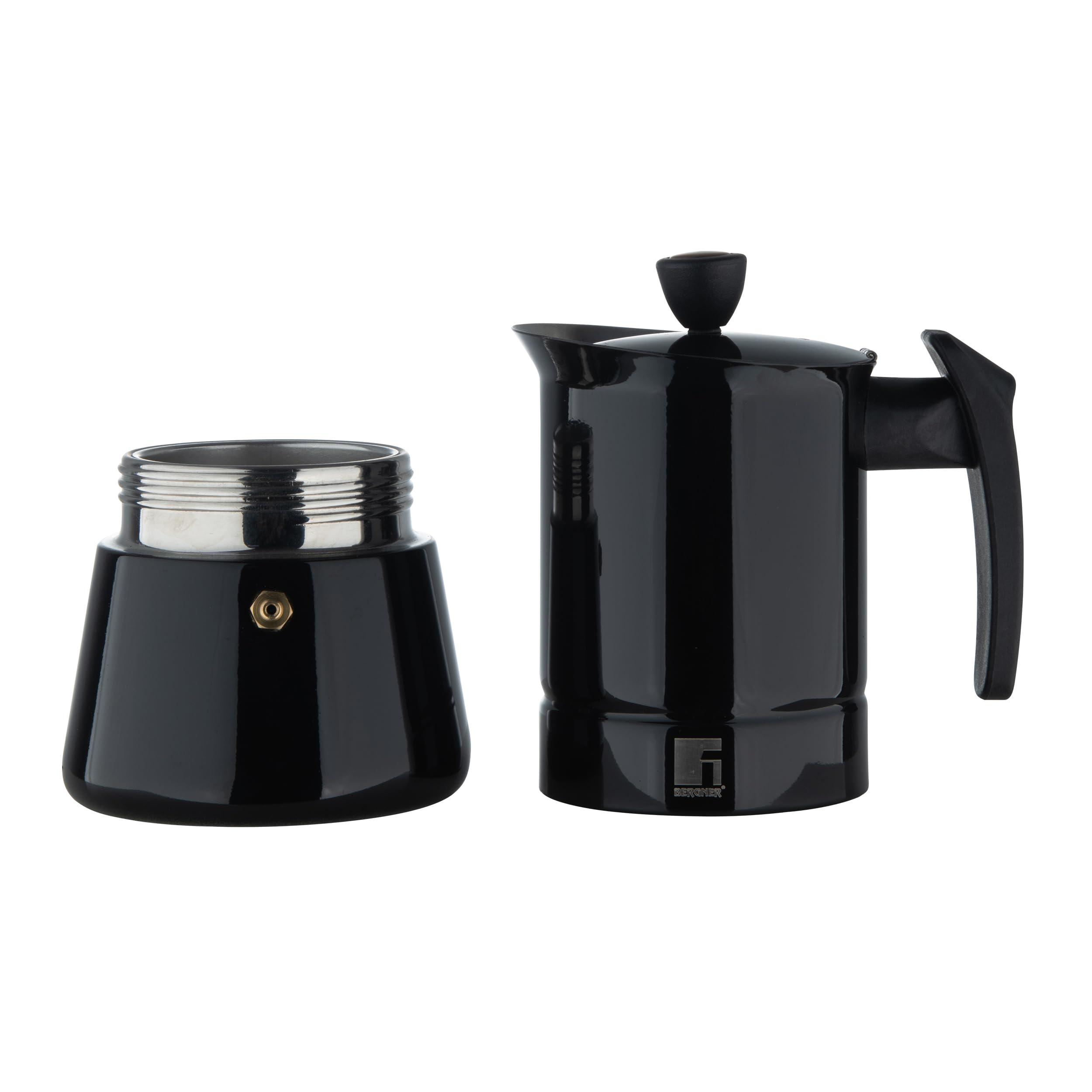

Figure 2: Disassembled Coffee Maker

This image displays the coffee maker separated into its two main components: the lower water chamber with the filter funnel, and the upper collection chamber with the lid and handle.

1. Upper Chamber: Collects the brewed coffee.
2. Lid: Covers the upper chamber.
3. Handle: For safe handling of the hot coffee maker.
4. Filter Funnel: Holds the ground coffee.
5. Gasket and Filter Plate: Located inside the upper chamber, these create a seal and filter the coffee.
6. Lower Chamber (Water Reservoir): Holds the water for brewing.
7. Safety Valve: Releases excess pressure from the lower chamber.

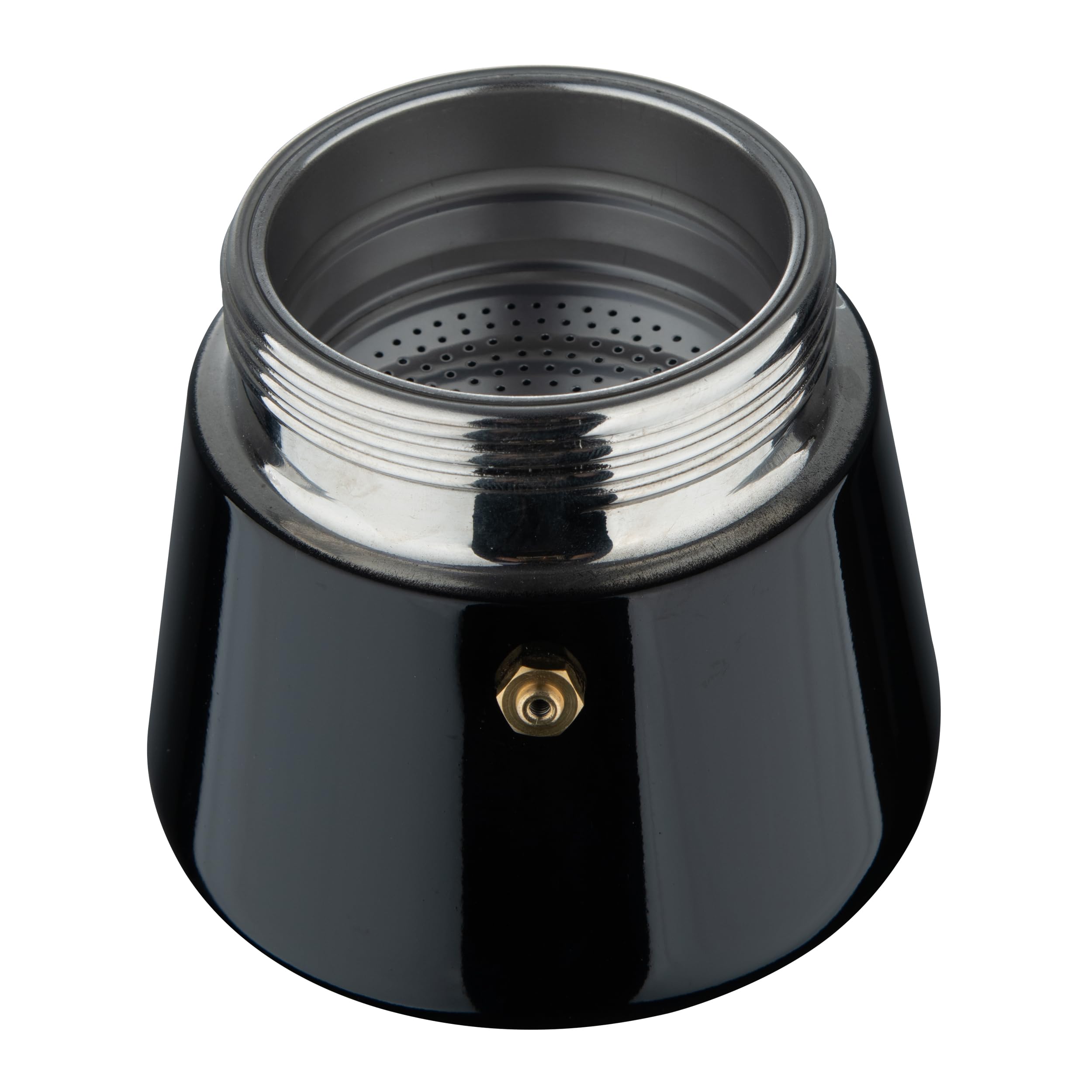

Figure 3: Lower Chamber Detail

A detailed view of the lower water chamber, showing the internal structure and the safety valve on the side.

4. Setup and First Use

Before using your coffee maker for the first time, follow these steps:

1. Unpack: Remove all packaging materials and labels.
2. Wash: Disassemble the coffee maker and wash all parts with warm soapy water. Rinse thoroughly and dry completely.
3. First Brew (Seasoning): To season the coffee maker and remove any manufacturing residues, perform 2-3 brewing cycles using only water and a small amount of inexpensive ground coffee. Discard the coffee from these cycles.

5. Operating Instructions

Follow these steps to brew coffee with your BERGNER Copper Coffee Maker:

1. Fill Water: Unscrew the upper chamber from the lower chamber. Fill the lower chamber with cold water up to the level of the safety valve. Do not overfill.
2. Add Coffee: Insert the filter funnel into the lower chamber. Fill the filter funnel with medium-fine ground coffee. Do not tamp the coffee. Level the coffee gently.
3. Assemble: Screw the upper chamber firmly onto the lower chamber, ensuring a tight seal. Do not overtighten.
4. Heat: Place the coffee maker on a stovetop over medium heat. For induction cooktops, ensure the base is fully in contact with the burner. Keep the lid closed during brewing.
5. Brewing: Water will heat up and rise through the coffee grounds into the upper chamber. You will hear a gurgling sound as the coffee brews.
6. Serve: Once the upper chamber is full and the gurgling sound stops, remove the coffee maker from the heat. Pour and serve the freshly brewed coffee.

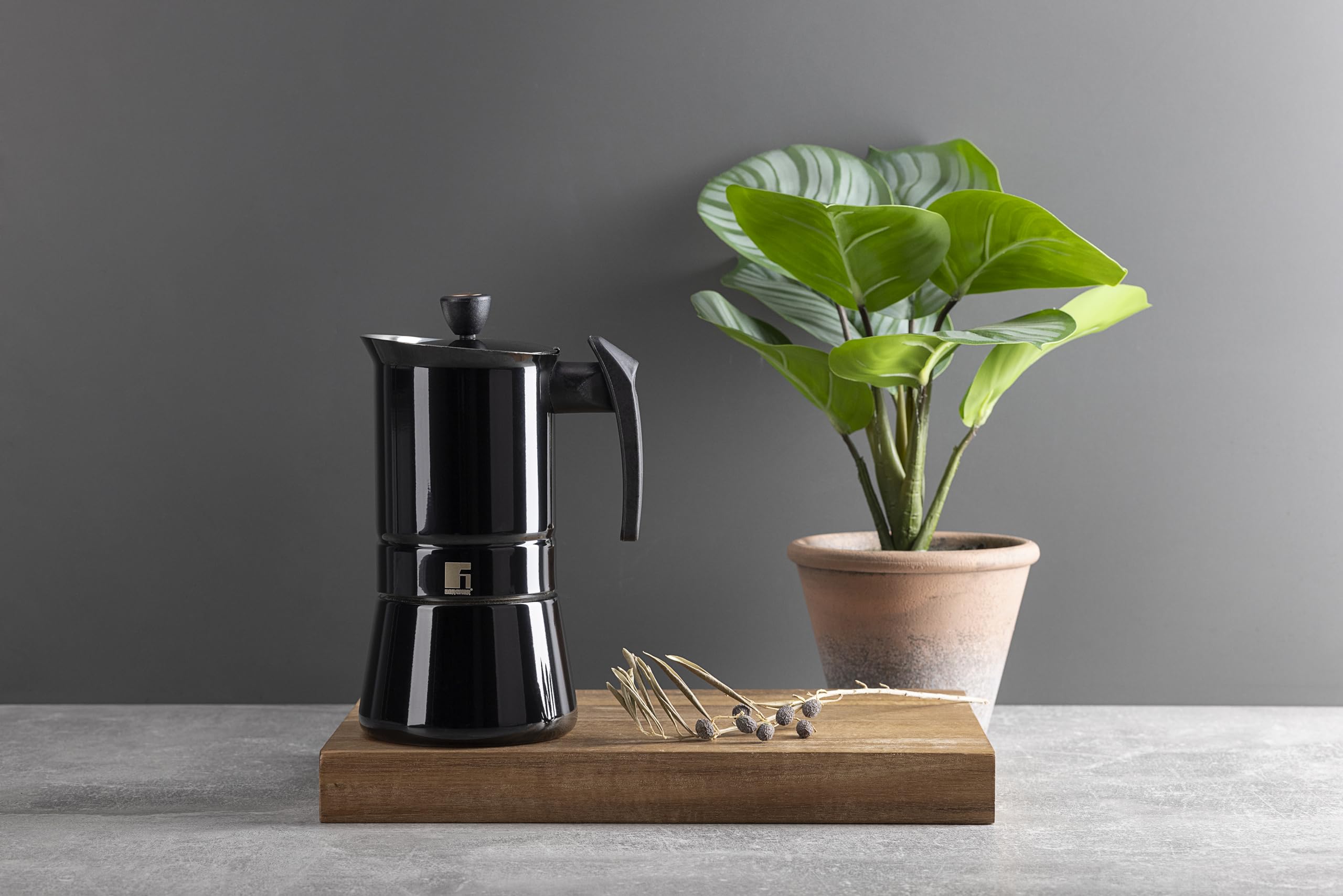

Figure 4: Coffee Maker in Use

This image shows the BERGNER Copper Coffee Maker placed on a wooden surface, illustrating its presence in a kitchen setting, ready for brewing or serving.

6. Cleaning and Maintenance

Proper cleaning ensures the longevity and performance of your coffee maker:

• Daily Cleaning: After each use, allow the coffee maker to cool completely. Disassemble all parts. Discard used coffee grounds. Wash all components with warm water and a mild detergent. Rinse thoroughly.
• Drying: Dry all parts completely before reassembling or storing to prevent mineral buildup and corrosion.
• Avoid Abrasives: Do not use abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the finish.
• Gasket and Filter Plate: Periodically check the rubber gasket and filter plate for wear and tear. Replace if they appear damaged or if the seal is compromised.
• Descaling: Over time, mineral deposits may build up. To descale, fill the lower chamber with a solution of equal parts water and white vinegar. Place the filter funnel (without coffee) and upper chamber. Brew the solution. Repeat with plain water to rinse.

7. Troubleshooting

8. Specifications

• Model: BG-38242-CP
• Brand: Bergner
• Capacity: 6 Cups
• Dimensions: 14.2 x 10.5 x 20 cm (Length x Width x Height)
• Material: Black Stainless Steel
• Color: Black/Copper
• Compatibility: Suitable for various heat sources (e.g., gas, electric, induction).

9. Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or visit the official Bergner website. Keep your purchase receipt as proof of purchase.

For further assistance, you may contact Bergner customer service through their official channels. Details can typically be found on the product packaging or the brand's official website.

Note: Warranty terms and conditions may vary by region.
