Generic Nugget Ice Maker Drain Plug User Manual

1. Introduction

This manual provides essential information for the proper installation, usage, and maintenance of your Generic Silicone Drain Plug for Nugget Ice Makers. This drain plug is designed to ensure a secure seal for the water drainage system of compatible ice maker models, facilitating easy and hygienic draining.

2. Product Overview

The Generic Silicone Drain Plug is a replacement component specifically engineered for various nugget ice maker models. It is made from durable, food-grade silicone, ensuring a tight seal and long-lasting performance. Its design allows for easy insertion and removal.

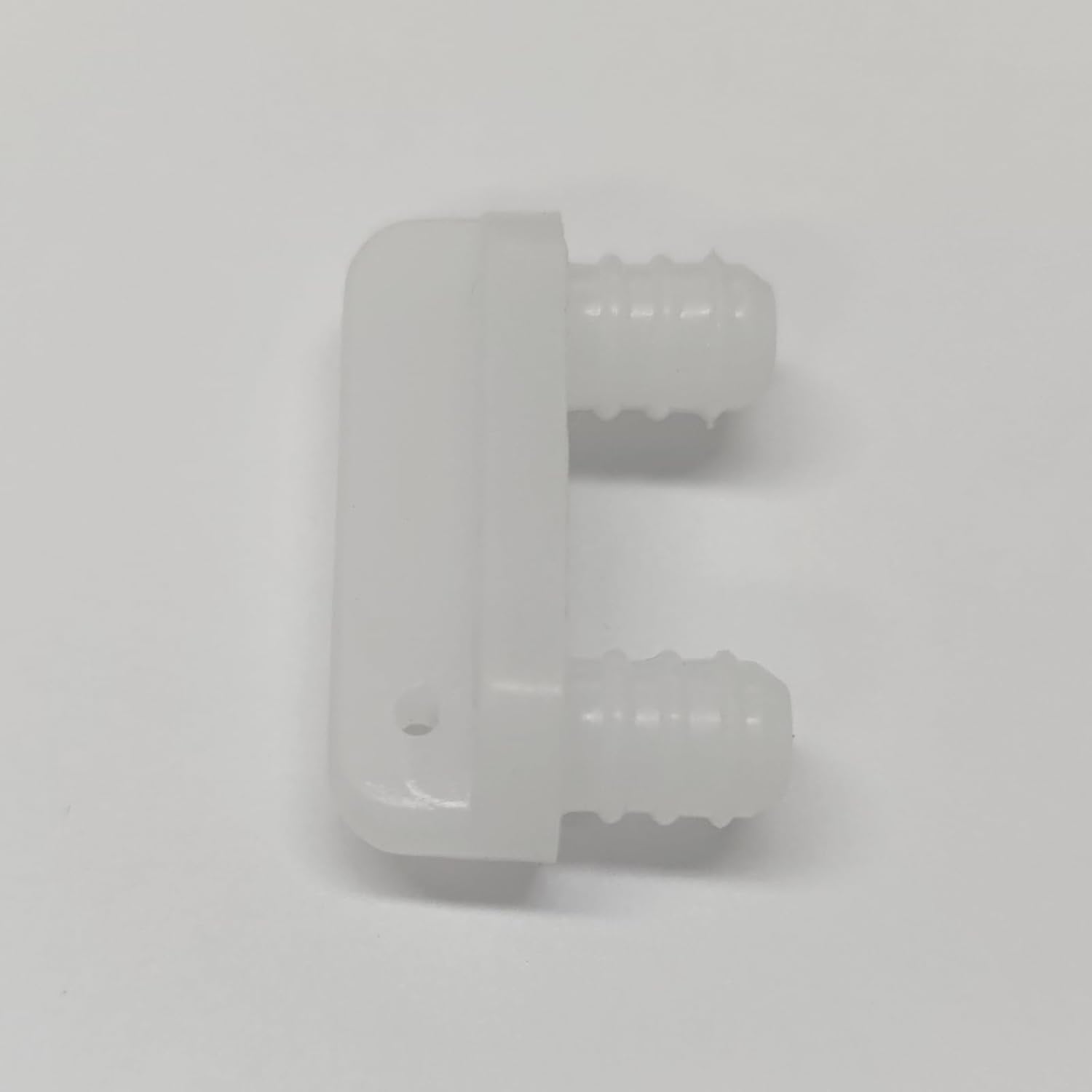

Figure 2.1: Side view of the silicone drain plug, showing its L-shaped design with two ribbed inserts.

Figure 2.2: Top view of the silicone drain plug, highlighting the two ribbed cylindrical sections designed for insertion.

3. Compatibility

This drain plug is compatible with the following nugget ice maker models:

• HZB-15N
• HZB-15NS
• HZB-15NB
• HZB-15NP

Please verify your ice maker model number before installation to ensure proper fit and function.

4. Setup and Installation

Follow these steps to properly install the drain plug:

1. Ensure Safety: Before beginning, unplug your nugget ice maker from the power outlet to prevent electrical hazards.
2. Locate Drain Port: Identify the drain port on your ice maker. This is typically located at the bottom or rear of the unit.
3. Remove Old Plug (if applicable): If a previous drain plug is present, gently pull it out. Dispose of it responsibly.
4. Insert New Plug: Align the ribbed cylindrical sections of the new silicone drain plug with the drain port opening. Gently push the plug firmly into the port until it creates a snug and secure seal. Ensure both sections are fully inserted.
5. Verify Seal: Once inserted, lightly tug on the plug to confirm it is securely in place and will not easily dislodge.

Figure 4.1: Close-up view of the drain plug, illustrating the ribbed sections designed for secure insertion into the ice maker's drain port.

5. Operating and Usage

The drain plug's primary function is to seal the ice maker's water reservoir for normal operation and to facilitate controlled draining when needed.

• Normal Operation: Ensure the drain plug is fully inserted and sealed before filling the ice maker with water and operating it. This prevents leaks and ensures proper ice production.
• Draining the Ice Maker: When it's time to clean or store your ice maker, place a suitable container under the drain port. Gently pull the drain plug straight out to allow water to flow out. Once draining is complete, reinsert the plug firmly.

6. Maintenance

Regular maintenance of the drain plug ensures its longevity and proper function.

• Cleaning: Periodically remove the drain plug and wash it with warm, soapy water. Rinse thoroughly to remove all soap residue.
• Inspection: Before each use, inspect the silicone plug for any signs of wear, tears, or damage. A damaged plug may not create a proper seal, leading to leaks.
• Storage: When not in use, store the drain plug in a clean, dry place away from direct sunlight and extreme temperatures.

Figure 6.1: The drain plug shown on a dark surface, illustrating its compact and flat profile for easy handling and storage.

7. Troubleshooting

8. Specifications

• Product Type: Nugget Ice Maker Drain Plug
• Material: Silicone
• Color: Translucent White
• Compatibility: HZB-15N, HZB-15NS, HZB-15NB, HZB-15NP Nugget Ice Makers

9. Warranty and Support

As this is a generic replacement part, specific warranty information may vary. Please refer to the retailer or original manufacturer for details regarding returns or defects. For further assistance or inquiries, please contact the seller through the platform where the purchase was made.
