1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your SPARKHOBBY LANNRC 2004 Series Brushless Motor. Designed for FPV drones, these motors offer reliable performance across various KV ratings. Please read this manual thoroughly before use to ensure proper function and longevity of your motor.
2. Product Overview
The SPARKHOBBY LANNRC 2004 Series Brushless Motors are engineered for FPV drone applications, particularly suitable for 3.5-5 inch traversing drones. Key features include:
- Dynamic Balancing: Each motor undergoes dynamic balancing to minimize vibration and enhance flight stability.
- Crush Resistant Damping Bearing: Equipped with durable bearings designed to withstand impacts and reduce wear.
- Versatile Application: Suitable for various RC aircraft, including drones, fixed-wing planes, helicopters, and multicopters.
- Robust Construction: Features a 12N14P configuration, 2.5mm inner shaft, and 1.5mm outer shaft for reliable power delivery.

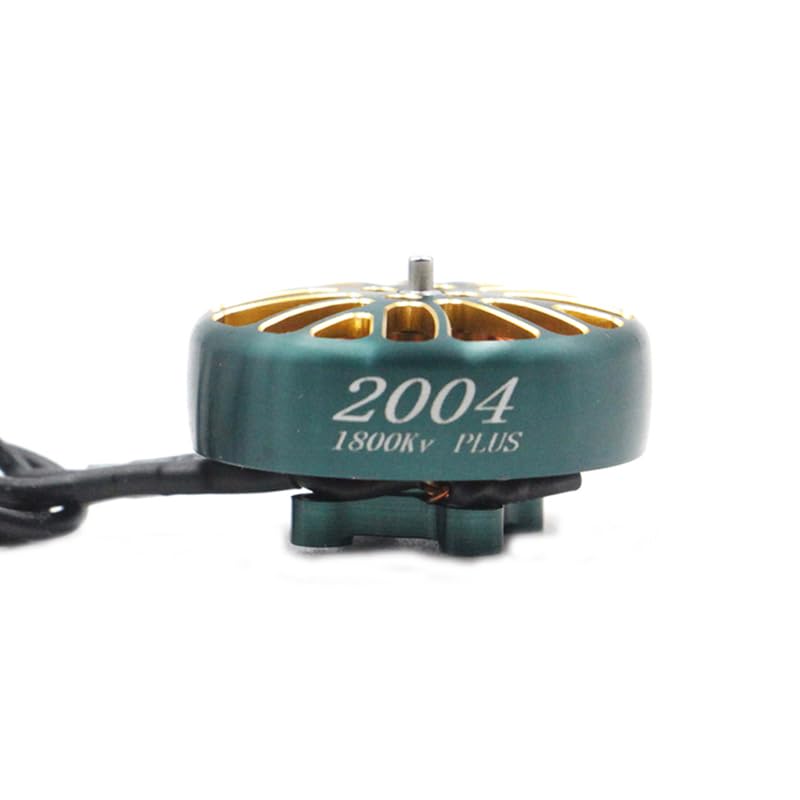

Image 1: SPARKHOBBY LANNRC 2004 1800kv Brushless Motor. This image shows a single motor unit with its wiring.

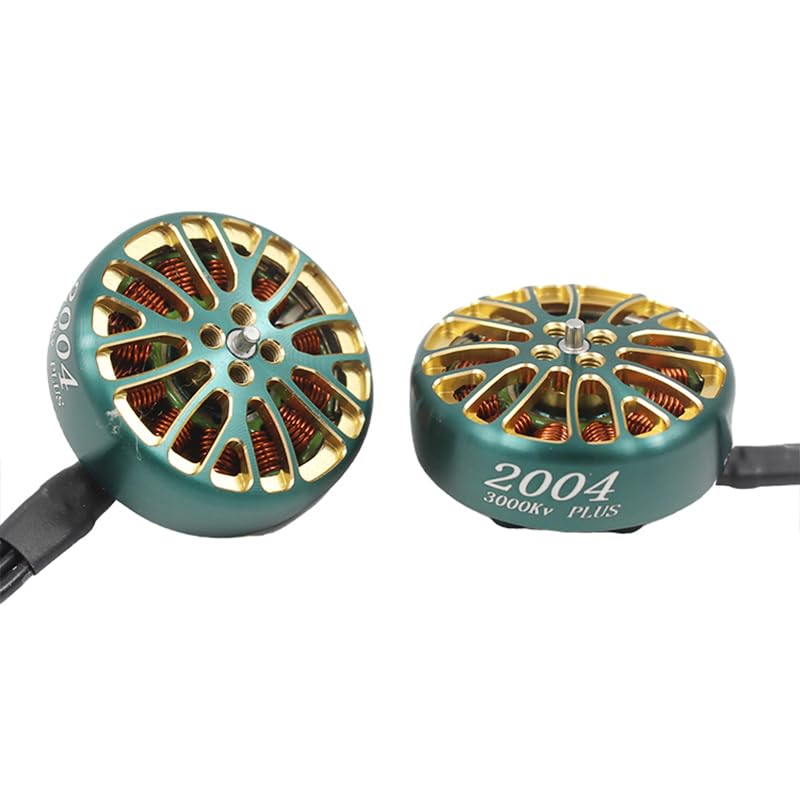

Image 2: Two SPARKHOBBY LANNRC 2004 3000kv brushless motors, showcasing their green and gold design.
3. Specifications
The LANNRC 2004 series motors are available in multiple KV ratings. Below are the detailed specifications for each variant:
3.1. 2004 1800kv Motor
| KV Rating | 1800 |
| Configuration | 12N14P |
| Stator Diameter | 20mm |
| Stator Length | 4mm |
| Shaft Diameter | 2.5mm (inner) / 1.5mm (outer) |
| Motor Dimensions (Dia. x Len) | Φ25.7 x 15.5mm |
| Weight | 16.5g |
| Idle Current (10V) | ≤0.5A |
| LIPO Cells | 4-6S |
| Max Continuous Power (60S) | 438W |
| Internal Resistance | 208mΩ |
| Cable | 22AWG x 150mm |
3.2. 2004 2500kv Motor
| KV Rating | 2500 |
| Configuration | 12N14P |
| Stator Diameter | 20mm |
| Stator Length | 4mm |
| Shaft Diameter | 2.5mm (inner) / 1.5mm (outer) |
| Motor Dimensions (Dia. x Len) | Φ25.7 x 15.5mm |
| Weight | 16.5g |
| Idle Current (10V) | ≤0.7A |
| LIPO Cells | 4-6S |
| Max Continuous Power (60S) | 620W |
| Internal Resistance | 126mΩ |
| Cable | 22AWG x 150mm |
3.3. 2004 3000kv Motor
| KV Rating | 3000 |
| Configuration | 12N14P |
| Stator Diameter | 20mm |
| Stator Length | 4mm |
| Shaft Diameter | 2.5mm (inner) / 1.5mm (outer) |
| Motor Dimensions (Dia. x Len) | Φ25.7 x 15.5mm |
| Weight | 16.5g |
| Idle Current (10V) | ≤0.9A |
| LIPO Cells | 3-4S |
| Max Continuous Power (60S) | 496W |
| Internal Resistance | 88mΩ |
| Cable | 22AWG x 150mm |
Image 3: Technical data and dimensional drawing for the LANNRC 2004-KV1800 motor, including a performance chart for a GF5125 prop.
Image 4: A SPARKHOBBY LANNRC 2004 brushless motor placed on a digital scale, displaying a weight of 16.5 grams.
4. Setup and Installation
Proper installation is crucial for motor performance and safety. Follow these general guidelines:
- Mounting: Securely attach the motor to your drone's frame using appropriate screws. Ensure the screws do not penetrate too deeply into the motor windings, which can cause damage. Refer to your drone frame's manual for specific screw length recommendations.
- Wiring: Connect the three motor wires to your Electronic Speed Controller (ESC). The order of connection determines the motor's rotation direction. If the motor spins in the wrong direction, swap any two of the three wires.
- Propeller Installation: Mount the propeller securely onto the motor shaft. Ensure the propeller is balanced and oriented correctly for thrust. Tighten the propeller nut firmly but do not overtighten.
- Testing: Before flight, perform a low-power test to verify motor rotation and propeller direction. Ensure all connections are secure and there is no abnormal noise or vibration.

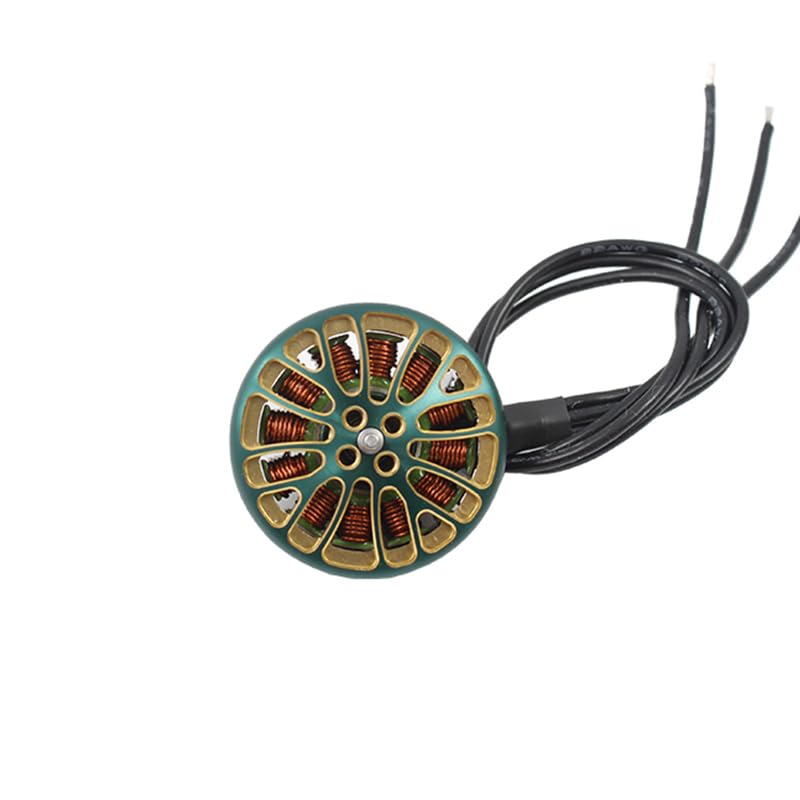

Image 5: Bottom view of the SPARKHOBBY LANNRC 2004 brushless motor, showing the mounting screw holes and internal wiring.

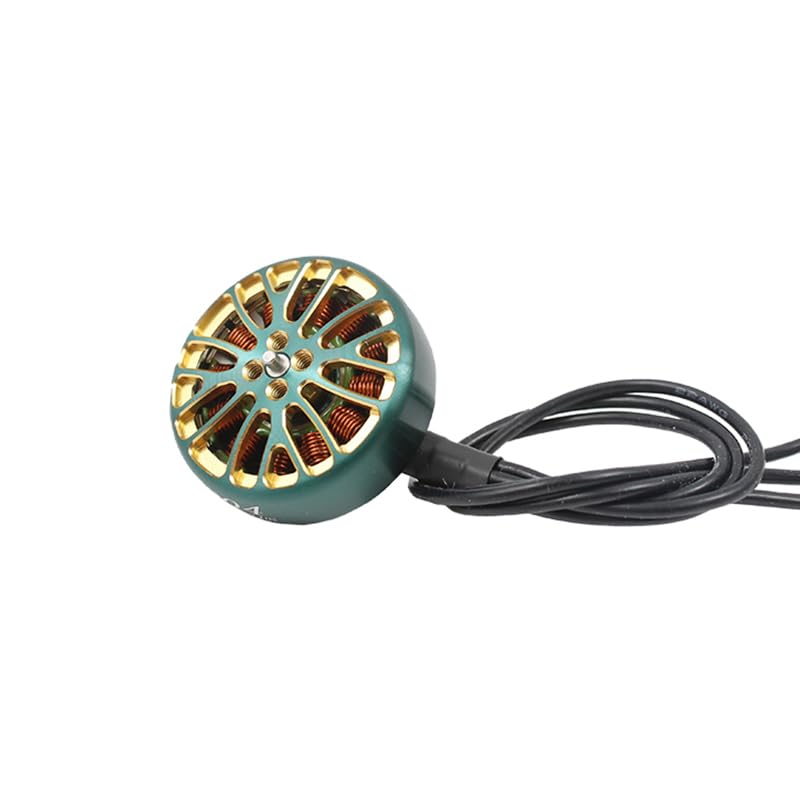

Image 6: Top view of the SPARKHOBBY LANNRC 2004 brushless motor, highlighting the shaft and bell design.
Image 7: A SPARKHOBBY LANNRC 2004 brushless motor with its three power wires neatly bundled.
5. Operating Instructions
These motors are designed for high-performance FPV drone flight. Adhere to the following for optimal operation:
- Battery Compatibility: Use LIPO batteries within the specified voltage range (3-6S depending on KV). Using incorrect voltage can damage the motor or ESC.
- Propeller Selection: Choose propellers that are compatible with your motor's KV rating and drone size. Incompatible propellers can lead to overheating or reduced efficiency.
- ESC Configuration: Ensure your ESCs are properly calibrated and configured for your motors. This includes setting motor timing, PWM frequency, and current limits as recommended by your ESC manufacturer.
- Temperature Monitoring: During initial flights, monitor motor temperature. Excessive heat can indicate an issue with propeller choice, ESC settings, or motor load.
Video 1: A demonstration of the SPARKHOBBY brushless motor in operation, showcasing its smooth rotation and power. This video highlights the motor's performance characteristics.
6. Maintenance
Regular maintenance extends the lifespan and ensures consistent performance of your brushless motors:
- Cleaning: Periodically clean the motors to remove dust, dirt, and debris, especially from the bell and stator area. Use compressed air or a soft brush.
- Bearing Inspection: Check motor bearings for any signs of wear, roughness, or excessive play. Worn bearings can lead to increased vibration and reduced efficiency. Replace bearings if necessary.
- Shaft Inspection: Inspect the motor shaft for bends or damage after any hard impacts. A bent shaft can cause severe vibrations.
- Wire Integrity: Ensure all motor wires are intact, free from cuts or fraying, and securely soldered to the motor and ESC.
7. Troubleshooting
If you encounter issues with your motor, consider the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor not spinning or stuttering | Loose wire connection, faulty ESC, damaged motor winding, incorrect ESC calibration. | Check all wire connections. Recalibrate ESC. Inspect motor for visible damage. Test with a known good ESC or motor. |
| Motor spinning in wrong direction | Incorrect wiring order to ESC. | Swap any two of the three motor wires connected to the ESC. |
| Excessive vibration | Unbalanced propeller, bent motor shaft, loose motor mount, worn bearings. | Check propeller balance. Inspect motor shaft for bends. Tighten motor mounting screws. Replace worn bearings. |
| Motor overheating | Over-propped, incorrect ESC timing, low battery voltage, motor damage. | Use a smaller propeller or one with less pitch. Adjust ESC timing. Ensure battery is fully charged and healthy. Inspect motor for damage. |
8. Warranty and Support
Specific warranty information for the SPARKHOBBY LANNRC 2004 Series Brushless Motor is not provided in this manual. For detailed warranty terms, technical support, or further assistance, please visit the official SPARKHOBBY website or contact their customer service directly.
You can visit the SPARKHOBBY Store on Amazon for more product information.
