AAOBOSI 30 Inch Dual Zone Wine and Beverage Cooler

1. Introduction

Thank you for choosing the AAOBOSI 30 Inch Dual Zone Wine and Beverage Cooler. This appliance is designed to store both wines and beverages at their optimal temperatures, featuring two independent temperature zones. The left zone is ideal for beverages, while the right zone is specifically designed for wines. This cooler offers versatile placement options, either as a built-in unit under a counter or as a freestanding appliance.

Key features include intelligent digital temperature control, low noise operation, removable fashion wooden frames for wine bottles, and double safety locks for security.

Image 1.1: Front view of the AAOBOSI 30 Inch Dual Zone Wine and Beverage Cooler, showcasing its dual compartments for beverages and wine bottles.

Image 1.2: Visual representation of the cooler's capacity, accommodating 31 wine bottles and 110 standard beverage cans.

2. Important Safety Information

Please read all instructions carefully before using the appliance to ensure safe operation and to prevent injury or damage. Keep this manual for future reference.

• Ensure the appliance is properly grounded.
• Do not operate the cooler with a damaged power cord or plug.
• Keep ventilation openings clear of obstruction.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The appliance is equipped with double safety locks to prevent accidental opening, especially by children. Always ensure the doors are securely locked when not in use.
• Unplug the appliance before cleaning or performing any maintenance.

3. Setup and Installation

3.1 Unpacking

Carefully remove all packaging materials. It is recommended that two people handle the unit due to its weight. Inspect the cooler for any shipping damage. If damage is found, contact your retailer immediately.

3.2 Placement Options

The AAOBOSI wine and beverage cooler offers flexibility for both freestanding and built-in installations. Ensure adequate clearance for ventilation, especially for the front heat dissipation vents.

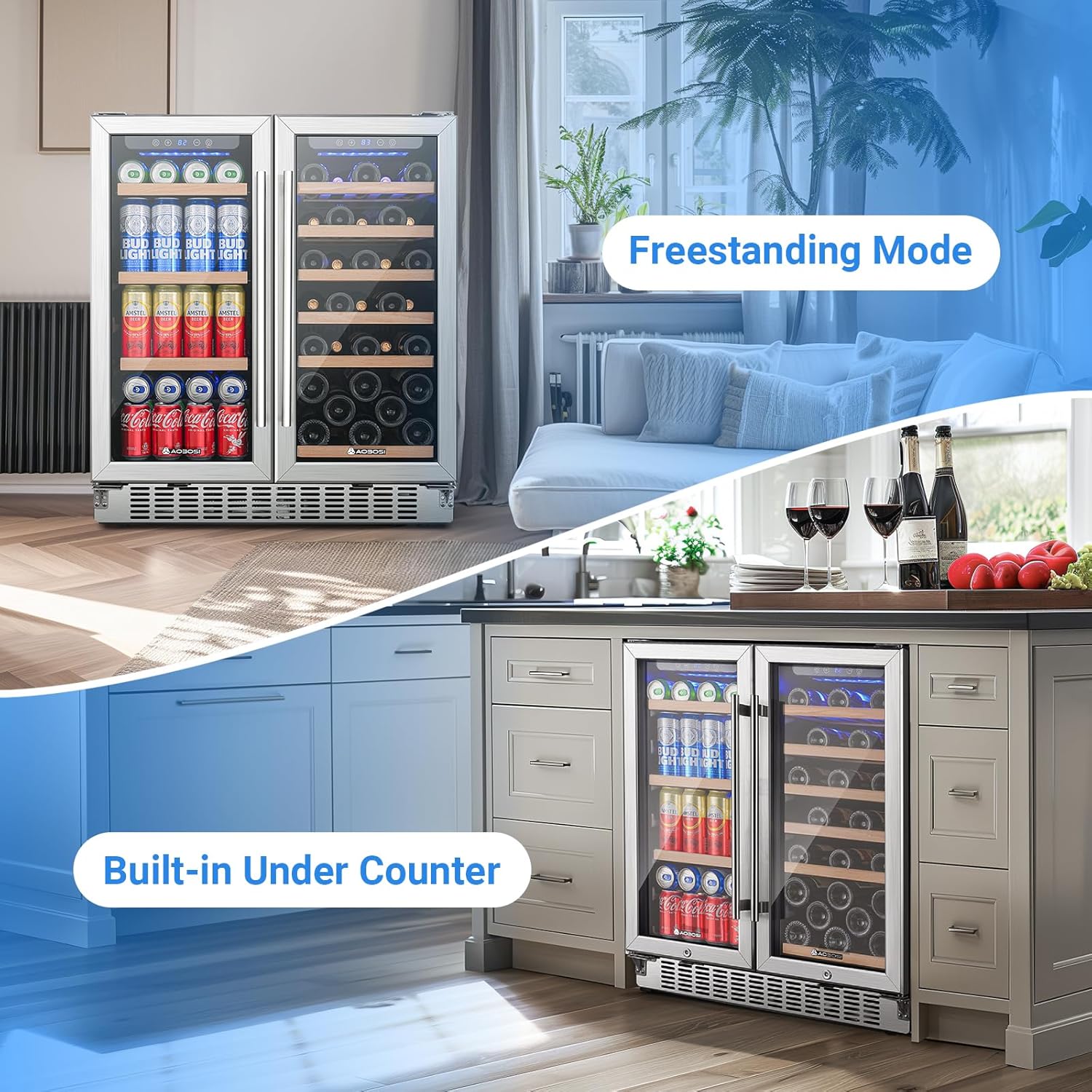

Image 3.1: The cooler can be used as a freestanding unit or integrated under a kitchen counter.

Image 3.2: Dimensional diagram for the cooler and recommended cutout dimensions for built-in installation.

3.3 Leveling

Adjust the leveling legs at the bottom of the unit to ensure it is stable and level. This is crucial for proper operation and door alignment.

3.4 Initial Power-On

After placing the cooler in its desired location, allow it to stand upright for at least 24-48 hours before plugging it into a power outlet. This allows the refrigerant to settle, preventing potential damage to the cooling system.

4. Operating Instructions

4.1 Digital Touch Control Panel

The cooler features an intelligent digital touch screen for precise temperature control and settings adjustment. The display shows important information at a glance.

Image 4.1: Digital touch control panel for setting temperatures, turning on/off, and controlling the internal light.

4.2 Dual Zone Temperature Control

This cooler has two independent temperature zones:

• Left Zone (Beverage): Temperature range from 38°F to 50°F (3°C to 10°C). Ideal for sodas, beers, and other chilled beverages.
• Right Zone (Wine): Temperature range from 40°F to 66°F (4°C to 19°C). Suitable for various types of wines, from sparkling to red.

Use the '+' and '-' buttons on the control panel to adjust the desired temperature for each zone. The unit switch button allows toggling between Celsius and Fahrenheit.

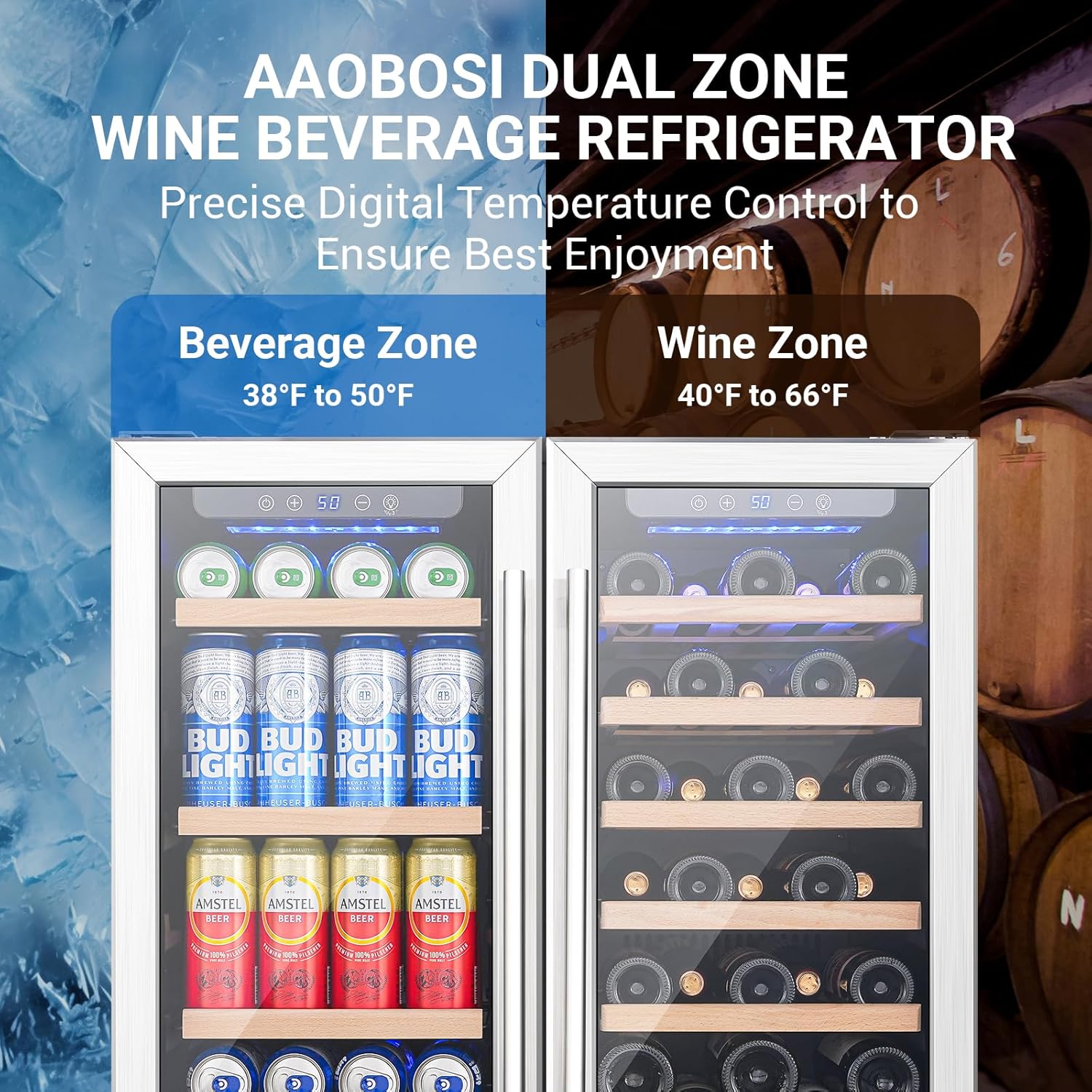

Image 4.2: Diagram showing the distinct temperature ranges for the beverage and wine zones.

4.3 Internal Lighting

The soft blue LED light illuminates the interior, allowing easy viewing of your collection without generating excessive heat that could affect the contents. Use the light switch button on the control panel to turn the light on or off.

4.4 Adjustable Shelves

The cooler features sturdy wooden shelves for wine bottles and metal shelves for beverages. These shelves are adjustable and removable, allowing you to customize the interior space to accommodate different bottle and can sizes. They are designed with block lines to prevent items from rolling off.

4.5 Advanced Cooling System

Equipped with an upgraded compressor and an advanced air circulation system, the cooler ensures fast, efficient, and even cooling throughout both zones. Intelligent fans balance the internal temperature, maintaining consistent conditions for your stored items.

Image 4.3: Depiction of the upgraded compressor and advanced air circulation system for optimal cooling.

4.6 Double-Pane Tempered Glass Door

The double-pane tempered glass doors provide enhanced insulation, protecting your beverages and wines from harmful UV rays and maintaining stable internal temperatures. This design also contributes to energy efficiency.

Image 4.4: Illustration of the double-pane tempered glass door's protective and insulating properties.

4.7 Low Noise Operation

The cooler is engineered for quiet operation, producing only about 42dB of sound, comparable to a quiet whisper. This makes it suitable for various living spaces without causing disturbance.

Image 4.5: Visual comparison of the cooler's low noise level to everyday sounds.

4.8 Product Overview Video

5. Maintenance and Care

5.1 Cleaning the Interior

To clean the interior, unplug the cooler and remove all contents. Wipe the interior surfaces with a soft cloth dampened with a mild detergent solution. Do not use abrasive cleaners or solvents. The wooden shelves can be removed and wiped clean with a damp cloth; ensure they are completely dry before returning them to the cooler.

5.2 Cleaning the Exterior

Clean the exterior surfaces with a soft cloth and a mild, non-abrasive cleaner. For stainless steel surfaces, use a stainless steel cleaner and polish in the direction of the grain. Regularly clean the front ventilation grille to ensure proper airflow and heat dissipation.

5.3 Defrosting

This appliance features an automatic defrost system. However, if excessive frost builds up, manually defrost the unit by unplugging it and leaving the doors open until the frost melts. Collect melted water with a towel to prevent spills.

5.4 Power Interruptions

In case of a power outage, the cooler will retain its temperature settings. However, prolonged power interruptions may affect the internal temperature. Minimize door openings during such events.

6. Troubleshooting Guide

Before contacting customer service, please refer to the following common issues and their potential solutions:

7. Specifications

8. Warranty and Customer Support

AAOBOSI is committed to providing high-quality products and excellent customer service. For specific warranty details regarding your AAOBOSI 30 Inch Dual Zone Wine and Beverage Cooler, please refer to the warranty card included with your purchase or visit the official AAOBOSI website.

Should you encounter any issues or require assistance, our customer support team is available to help. Please have your model number (YC-200) and purchase information ready when contacting support.

You can also visit the official AAOBOSI store on Amazon for more information and support: AAOBOSI Store
