Introduction
Thank you for choosing the HOMERECOMMEND 120 x 200 cm Metal Bed Frame. This manual provides detailed instructions for safe assembly, proper use, and essential maintenance to ensure the longevity and stability of your bed frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
This bed frame is designed to provide optimal support for various mattress types without requiring a box spring. It features a robust metal structure combined with P2 grade MDF wooden headboard and footboard, offering a stable and comfortable sleeping solution.
Safety Information
- Ensure all parts are present and undamaged before assembly. Do not use if any parts are missing or broken.
- Assemble the bed frame on a soft, clean surface to prevent scratches.
- Do not fully tighten screws until all components are loosely assembled. This allows for proper alignment.
- Regularly check all bolts and screws to ensure they remain tight.
- Do not exceed the maximum weight recommendation of 290 kilograms.
- Keep small parts away from children during assembly.
Setup and Assembly
The HOMERECOMMEND bed frame is designed for straightforward assembly. All necessary tools, including an Allen key and screws, are provided. Each component is clearly labeled for easy identification.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a protected surface. Verify that all parts listed in the included assembly guide are present.
- Assemble Headboard and Footboard: Attach the wooden panels to the metal frames for the headboard and footboard. Secure with the provided screws, tightening them only partially at this stage.
- Connect Side Rails: Attach the side rails to the assembled headboard and footboard. Ensure the connections are secure but do not fully tighten the bolts yet.
- Install Center Support Legs and Reinforcement: Position and attach any central support legs and reinforcement brackets as indicated in the assembly guide. This includes the underbed reinforcement bracket for added stability.
- Place Slatted Frame: Carefully place the metal slatted frame onto the bed frame. Ensure all slats are properly seated and secured according to the instructions.
- Final Tightening: Once all components are correctly aligned and assembled, systematically tighten all screws and bolts securely. Avoid overtightening to prevent damage.
Image: Bed frame components before mattress installation, illustrating the metal frame and wooden panels.

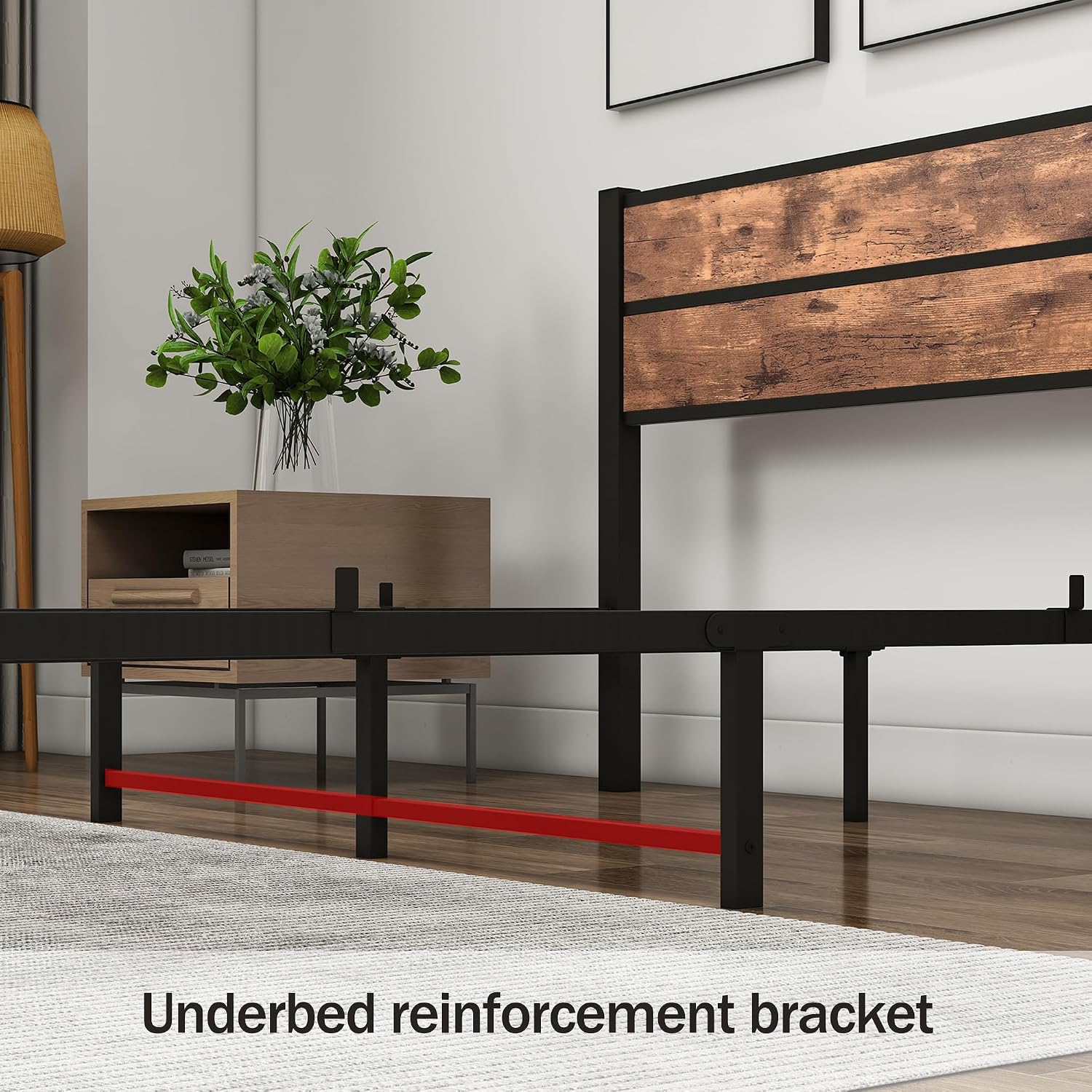

Image: Detail of the underbed reinforcement bracket, highlighting its position for enhanced stability.
Operating and Usage
Your HOMERECOMMEND bed frame is designed for daily use and offers several practical features:
- Mattress Support: The robust metal slatted frame provides direct support for all mattress types, eliminating the need for a box spring.
- Under-Bed Storage: With a clearance of 27 cm (approximately 10.6 inches) from the floor, the bed frame offers ample space for under-bed storage, helping to keep your bedroom organized.
- Weight Capacity: The bed frame is engineered to support a maximum weight of 290 kilograms (approximately 639 pounds).
Image: Dimensional overview of the bed frame, showing length, width, and height measurements.
Image: The bed frame without a mattress, illustrating the generous space available underneath for storage containers.
Maintenance
Proper maintenance will extend the life of your bed frame:
- Cleaning: Wipe metal surfaces with a soft, damp cloth. For wooden parts, use a dry or slightly damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
- Fastener Check: Periodically (e.g., every 3-6 months) inspect all screws and bolts. Tighten any that have become loose to maintain the frame's stability and prevent squeaking. Do not overtighten.
- Environmental Care: Avoid exposing the wooden components to excessive moisture or direct sunlight for prolonged periods, as this can cause warping or fading.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or unstable. | Loose fasteners; incorrect assembly. | Ensure all screws and bolts are fully tightened. Review the assembly instructions to confirm all parts are correctly installed. |
| Squeaking noises. | Loose connections; friction between metal parts. | Tighten all fasteners. If squeaking persists, disassemble and reassemble the affected section, ensuring all parts are properly aligned. A small amount of lubricant (e.g., silicone spray) can be applied to contact points if necessary, but avoid getting it on wooden surfaces. |
| Slats appear uneven or shift. | Slats not properly seated or secured. | Verify that each slat is correctly positioned and secured within its designated slot or attachment point on the frame. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 929 |
| Dimensions (L x W x H) | 200 cm x 120 cm x 95 cm (78.74 x 47.24 x 37.4 inches) |
| Color | Black (frame) + Brown (wooden panels) |
| Material | Metal frame, P2 grade MDF wooden headboard and footboard |
| Maximum Weight Recommendation | 290 Kilograms (639 lbs) |
| Item Weight | 20 Kilograms (44 lbs) |
| Under-Bed Clearance | 27 cm (10.6 inches) |
| Assembly Required | Yes |
Warranty and Support
HOMERECOMMEND is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, we offer comprehensive after-sales support.
If you encounter any issues, have questions regarding assembly, or require assistance with your bed frame, please contact our customer service team. We aim to provide a satisfactory solution within 24 hours of your inquiry.
Please refer to your purchase documentation or the HOMERECOMMEND official website for contact information and any applicable warranty terms.
