Performance PFM-845507 Window Crank Handle User Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your Performance PFM-845507 Window Crank Handle set. Designed as a direct replacement, these chrome metal handles are compatible with specific 1965-1966 Chevrolet Bel Air and Impala models. Please read this manual thoroughly before installation to ensure proper fitment and functionality.

Compatibility:

• 1965-1966 Chevrolet Bel Air
• 1965-1966 Chevrolet Impala

Always confirm compatibility with your vehicle before proceeding with installation.

2. Product Overview

The Performance PFM-845507 set includes two (2) window crank handles, designed for both left and right side applications. Crafted from durable metal with a polished chrome finish, these handles offer a quality construction and an OE-style appearance.

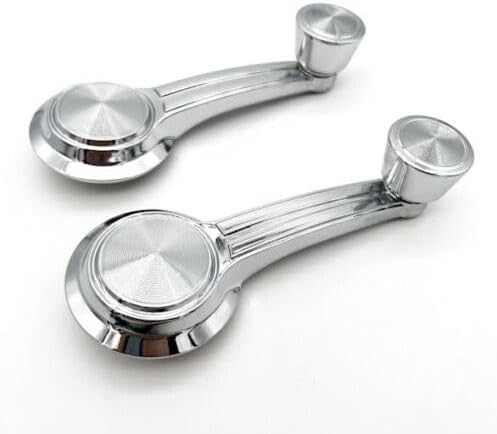

Figure 2.1: Performance PFM-845507 Window Crank Handle Set (Front View)

This image displays the two chrome window crank handles included in the set, showcasing their design and finish from a front perspective.

Figure 2.2: Single Window Crank Handle (Underside View)

This image provides a detailed view of the underside of one window crank handle, highlighting the internal mounting mechanism and the metal construction.

3. Installation

The Performance PFM-845507 Window Crank Handles are designed for easy, direct replacement installation. While specific vehicle disassembly steps may vary, the general process involves removing the old handle and securing the new one.

3.1. Tools Required (Typical)

• Flathead screwdriver or trim removal tool (for old handle clip)
• Rag or cloth (to protect interior panels)

3.2. Installation Steps (General)

1. Carefully remove the retaining clip from the base of the existing window crank handle. This clip typically holds the handle onto the window regulator shaft.
2. Slide the old handle off the shaft.
3. Align the new Performance PFM-845507 handle with the window regulator shaft. Ensure the handle is oriented correctly for operation.
4. Push the new handle firmly onto the shaft until it seats properly.
5. Reinstall the retaining clip to secure the new handle in place. Ensure the clip is fully seated and the handle is firm.
6. Test the window operation to confirm proper installation and smooth movement.

If you are unsure about any step, it is recommended to consult a professional automotive technician or a vehicle-specific service manual.

4. Operation

Once installed, the window crank handles operate identically to the original equipment. Rotate the handle clockwise to raise the window and counter-clockwise to lower the window. Ensure smooth and consistent movement without excessive force.

5. Maintenance

To maintain the appearance and functionality of your chrome window crank handles:

• Regularly wipe the handles with a soft, damp cloth to remove dust and grime.
• For stubborn spots, use a mild automotive chrome cleaner and polish, following the product's instructions.
• Avoid abrasive cleaners or harsh chemicals, as these can damage the chrome finish.
• Periodically check the retaining clip to ensure the handle remains securely attached to the window regulator shaft.

6. Troubleshooting

If you encounter issues with your new window crank handles, consider the following:

• Handle feels loose: Ensure the retaining clip is fully seated and properly securing the handle to the shaft.
• Window does not move smoothly: This may indicate an issue with the window regulator mechanism itself, not the handle. Inspect the window track for obstructions or damage.
• Handle does not fit: Double-check the compatibility information provided in this manual and on the product listing. Ensure your vehicle is one of the listed compatible models.

For persistent issues, it is advisable to seek assistance from a qualified automotive professional.

7. Specifications

8. Warranty Information

This Performance PFM-845507 Window Crank Handle set is backed by a 1-year unlimited-mileage warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for any warranty claims.

For detailed warranty terms and conditions, please refer to the official Performance PFM warranty policy or contact customer support.

9. Customer Support

If you have any questions regarding the Performance PFM-845507 Window Crank Handle set, require technical assistance, or need to make a warranty claim, please contact the seller or manufacturer directly through the platform where the product was purchased.

For more information about Performance PFM products, you may visit the official Performance PFM store on Amazon: Performance PFM Store.
