1. Introduction
Thank you for choosing the SKMEI 2209 Digital Sport Watch. This manual provides detailed instructions for the proper setup, operation, and maintenance of your watch. Please read this manual thoroughly to ensure optimal performance and longevity of your device.
Figure 1.1: Front view of the SKMEI 2209 Digital Sport Watch, displaying time, date, compass, and pedometer functions.
2. Product Overview
2.1 Key Features
- Multi-Functional Fitness Tracker: Integrated pedometer, calorie counter, and distance tracker.
- Durable Construction: Features a crystal glass face, ABS + zinc alloy case, and a comfortable silica gel band.
- Water Resistance: Rated for 50 meters, suitable for swimming and water sports.
- Clear Digital Display: Large, easy-to-read display with EL backlight for low-light conditions.
- Essential Functions: Includes countdown timer, 12/24-hour format, dual-time display, and alarm.
- Integrated Compass: Provides directional guidance.
2.2 Watch Components
The SKMEI 2209 watch features several buttons for navigation and function control:
- LIGHT Button: Activates the EL backlight.
- MODE Button: Cycles through different modes (Time, Pedometer, Chronograph, Countdown Timer, Alarm, Dual Time).
- START Button: Used to start/stop functions in Chronograph and Countdown Timer modes, and to adjust settings.
- RESET Button: Used to reset functions in Chronograph and Countdown Timer modes, and to adjust settings.

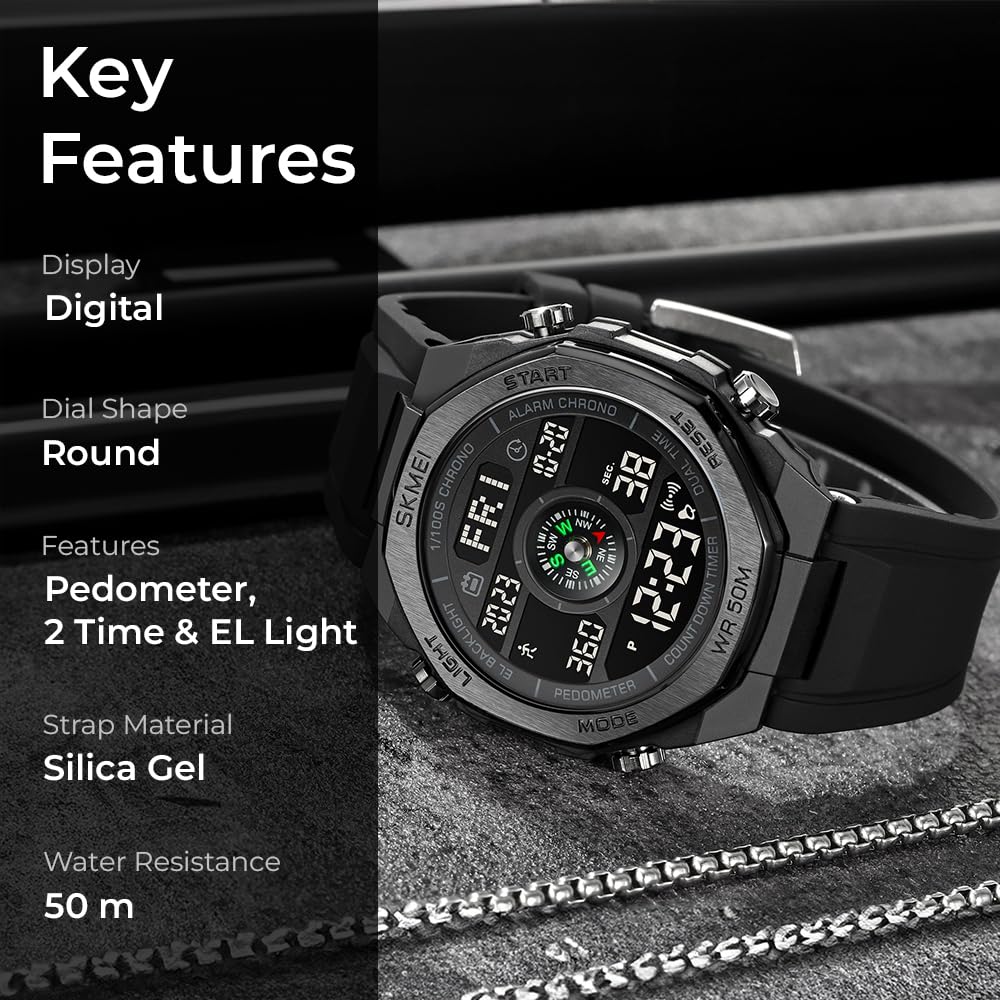

Figure 2.1: Diagram highlighting key features and button locations on the watch.
3. Setup
3.1 Initial Power On
Upon first use, the watch may require initial setup. If the display is blank, press any button to activate it. If the display remains blank, the battery may need replacement (refer to Maintenance section).
3.2 Setting Time and Date
- From the Time Display mode, press and hold the MODE button until the seconds begin to flash. This indicates setting mode.
- Press the RESET button to cycle through the settings: Seconds → Hour → Minute → Year → Month → Day → 12/24-hour format.
- Use the START button to adjust the flashing value.
- Once all settings are correct, press the MODE button to exit the setting mode.
3.3 Setting Alarm
- Press the MODE button repeatedly until you reach the Alarm mode (indicated by an alarm icon).
- Press and hold the START button until the hour digit flashes.
- Use the RESET button to adjust the hour.
- Press the START button to move to the minute setting, then use the RESET button to adjust the minutes.
- Press the START button again to confirm and exit alarm setting.
- To turn the alarm ON/OFF, press the RESET button in Alarm mode. An alarm icon will appear/disappear on the display.
4. Operating Instructions
4.1 Mode Navigation
Press the MODE button to cycle through the following functions:
- Time Display
- Pedometer
- Chronograph (Stopwatch)
- Countdown Timer
- Alarm
- Dual Time
4.2 Pedometer Function
The watch features a built-in pedometer to track your steps, distance, and calories burned.
- Navigate to Pedometer mode using the MODE button.
- The display will show your current step count, distance, and estimated calories burned.
- To reset the pedometer data, press and hold the RESET button in Pedometer mode.
Figure 4.1: The watch displaying the step counter function.
4.3 Compass Function
The integrated compass provides directional information. For accurate readings, ensure the watch is held horizontally and away from strong magnetic fields.
- Navigate to the Compass display mode (usually integrated into the main time display or a dedicated mode).
- Orient the watch horizontally. The compass needle on the display will indicate magnetic north.
Figure 4.2: The watch displaying the compass function, indicating direction.
4.4 Chronograph (Stopwatch)
- Navigate to Chronograph mode using the MODE button.
- Press START to begin timing.
- Press START again to pause timing.
- Press RESET to clear the stopwatch to zero.
- To record lap times, press RESET while the stopwatch is running. The lap time will display briefly, and the stopwatch will continue timing in the background.
4.5 Countdown Timer
- Navigate to Countdown Timer mode using the MODE button.
- To set the countdown time, press and hold the START button until the hour/minute digits flash.
- Use the RESET button to adjust the flashing value (hours, then minutes, then seconds).
- Press START to confirm each setting.
- Once the time is set, press START to begin the countdown.
- Press START again to pause the countdown.
- Press RESET to reset the timer to its initial set value.
4.6 Dual Time
The Dual Time function allows you to view a second time zone.
- Navigate to Dual Time mode using the MODE button.
- Press and hold the START button until the hour digit flashes.
- Use the RESET button to adjust the hour.
- Press the START button to move to the minute setting, then use the RESET button to adjust the minutes.
- Press the START button again to confirm and exit Dual Time setting.
4.7 EL Backlight
Press the LIGHT button to illuminate the display for a few seconds, improving visibility in dark conditions.
Figure 4.3: The watch display illuminated by the EL backlight.
5. Maintenance
5.1 Cleaning
Wipe the watch with a soft, damp cloth. Avoid using chemical cleaners, as they may damage the watch's finish or seals.
5.2 Water Resistance
The watch is water-resistant up to 50 meters (5 ATM). This means it is suitable for showering, swimming in shallow water, and general water sports. Do not press any buttons while the watch is submerged, as this can compromise the water seal. Avoid exposure to hot water or steam, which can damage the seals.
Figure 5.1: The watch demonstrating its 50-meter water resistance.
5.3 Battery Replacement
The watch uses a CR2025 battery. When the display dims or functions become erratic, it may be time to replace the battery. Battery replacement should ideally be performed by a qualified watch technician to ensure the water resistance seal is maintained.
Figure 5.2: The back of the watch, indicating model number 2209 and battery type CR2025.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Watch display is blank or dim. | Low battery. | Replace the battery (CR2025). |
| Time is incorrect. | Time not set correctly or reset. | Refer to Section 3.2 "Setting Time and Date" to reset the time. |
| Pedometer not counting steps accurately. | Incorrect wear position, sensor obstruction, or calibration needed. | Ensure the watch is worn securely on the wrist. Reset pedometer data. |
| Compass shows incorrect direction. | Interference from magnetic fields, or watch not held horizontally. | Move away from electronic devices or metal objects. Hold the watch flat. |
| Water inside the watch. | Water resistance compromised (e.g., buttons pressed underwater, damaged seal). | Immediately take the watch to a qualified technician for inspection and repair. Do not attempt to dry it yourself. |
7. Specifications
- Model Number: 2209
- Movement: Quartz Digital
- Case Material: ABS + Zinc Alloy
- Band Material: Silica Gel
- Display: Digital with EL Backlight
- Water Resistance: 50M (5 ATM)
- Battery Type: CR2025
- Case Diameter: 4.63 cm
- Case Thickness: 1.43 cm
- Band Width (Lug Width): 2.7 cm
- Item Weight: 69.3 g
- Functions: Time, Date, Day, Pedometer, Calories, Distance, Compass, Chronograph, Countdown Timer, Alarm, Dual Time, EL Backlight.
Figure 7.1: Watch dimensions including case height, width, and strap width.
8. Warranty and Support
Your SKMEI 2209 Digital Sport Watch comes with a limited warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For technical support or warranty claims, please contact your retailer or the official SKMEI customer service.
Manufacturer: SKMEI
Country of Origin: China
