1. Introduction and Product Overview
The Beyprern Automatic Pulse Repair Battery Reconditioner is designed to restore and extend the lifespan of various lead-acid batteries by addressing sulfation, a common cause of battery failure. This device utilizes advanced pulse reconditioner technology to dissolve sulfate crystals on battery plates, thereby improving battery performance and capacity.
It is suitable for 12V to 48V lead-acid batteries, including AGM, GEL, EFB, MF, Flooded, VRLA, and SLA types, commonly found in cars, trucks, motorcycles, SUVs, golf carts, farm vehicles, and motorboats.
Image 1.1: The Beyprern Battery Desulfator unit with its attached red and black alligator clips for battery connection.
Image 1.2: The desulfator connected to a battery, illustrating its compatibility with various lead-acid battery types.
2. Safety Information
- Always wear appropriate personal protective equipment, including eye protection and gloves, when working with batteries.
- Ensure adequate ventilation in the work area to prevent the accumulation of explosive gases.
- Avoid sparks, flames, and smoking near batteries, as they can produce flammable hydrogen gas.
- Connect the desulfator to the battery terminals correctly: RED clip to the positive (+) terminal and BLACK clip to the negative (-) terminal. Incorrect connection can damage the device or battery.
- Do not attempt to desulfate a physically damaged battery, a battery with dried electrolyte, or a completely dead battery (below recommended voltage thresholds).
- Keep the device away from water and extreme temperatures.
- This device operates by drawing power from the battery itself; no external power supply is needed.
Image 2.1: The device features a smart protection system and complies with various safety standards.
3. Product Features
- Automatic Pulse Repair: Utilizes advanced slow pulse reconditioner technology to detect and address battery sulfation and acid stratification.
- Extended Battery Life: Designed to restore lost battery performance, leading to stronger engine starts and prolonged battery lifespan.
- High-Frequency Peak Pulse: Delivers electronically controlled pulses to dissolve sulfates without damaging battery plates.
- Wide Compatibility: Supports 12V-48V lead-acid batteries including AGM, GEL, EFB, MF, Flooded, VRLA, and SLA types.
- Self-Powered Operation: The device draws power directly from the battery, eliminating the need for an external power supply.
- Smart Protection System: Incorporates features for automatic detection and repair, ensuring safe operation.
Image 3.1: Key benefits of using the Beyprern Battery Desulfator.

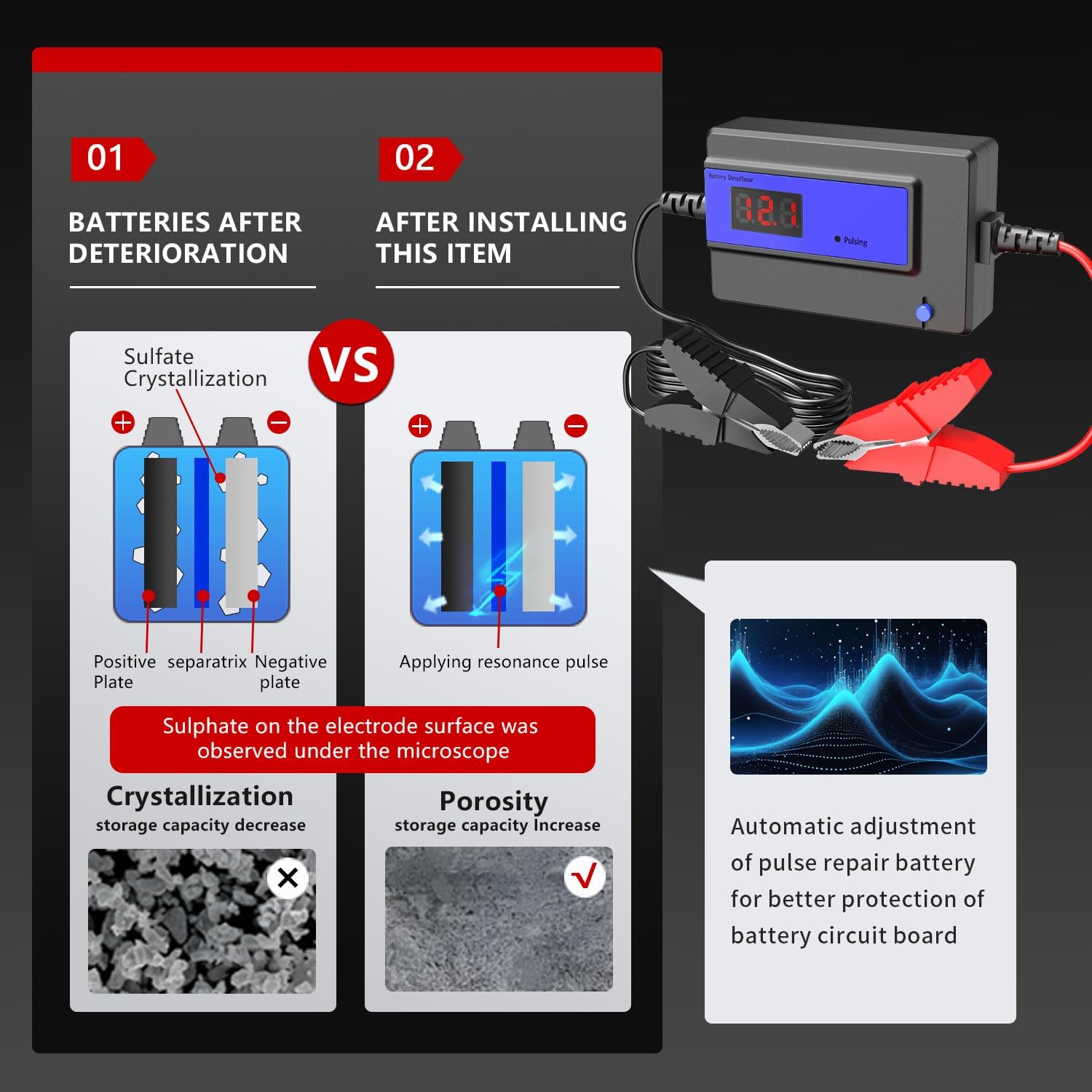

Image 3.2: Visual representation of how the pulse technology works to reverse sulfation.
Image 3.3: The device operates without the need for an external power source.
4. Setup Instructions
- Initial Voltage Check: Before connecting the desulfator, ensure the battery voltage is above the minimum threshold for its voltage class. If the battery voltage is below the specified value, charge the battery using a standard charger until it reaches the minimum operating voltage.
- For 12V batteries: Voltage must be > 11.5V
- For 24V batteries: Voltage must be > 22V
- For 36V batteries: Voltage must be > 33V
- For 48V batteries: Voltage must be > 44V
- Connect Clips: Connect the RED alligator clip to the positive (+) terminal of the battery. Connect the BLACK alligator clip to the negative (-) terminal of the battery. Ensure a secure connection.
- Verify Operation: Once connected, the desulfator will automatically begin operation. The red light on the device will flash, and a sound may be emitted, indicating that the desulfurizer is active.

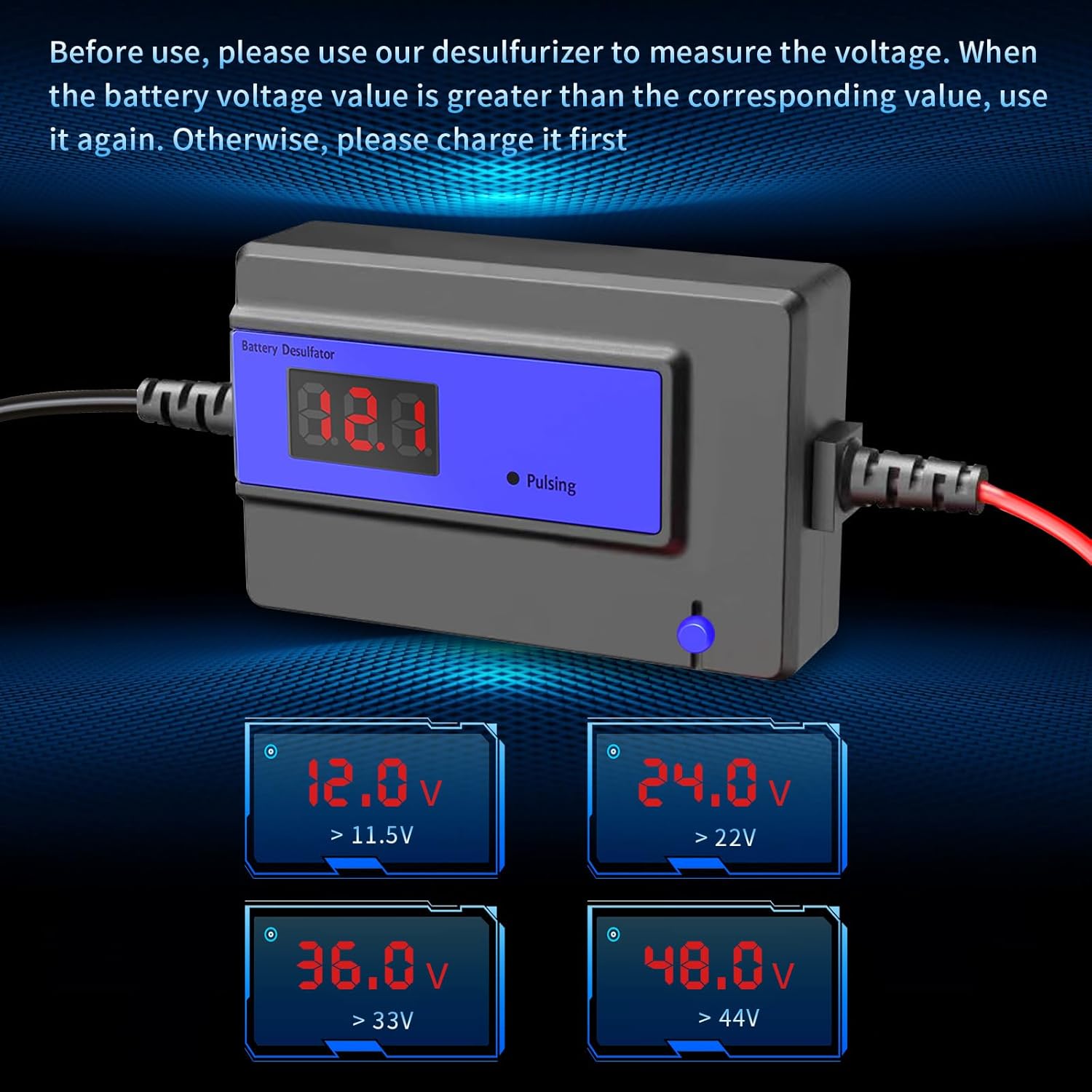

Image 4.1: Important voltage requirements before using the desulfator.
5. Operating Instructions
- Automatic Operation: The desulfator operates automatically once connected to a battery with sufficient voltage. It will continuously emit high-frequency pulses to break down sulfate crystals.
- Repair Duration: For batteries that have been in use for more than six months and require significant repair, the desulfating process can take 1 to 3 weeks. For optimal results, leave the device connected to the battery for more than 15 days.
- Monitoring: The device's display will show the battery voltage, and the "Pulsing" indicator light will confirm active operation.

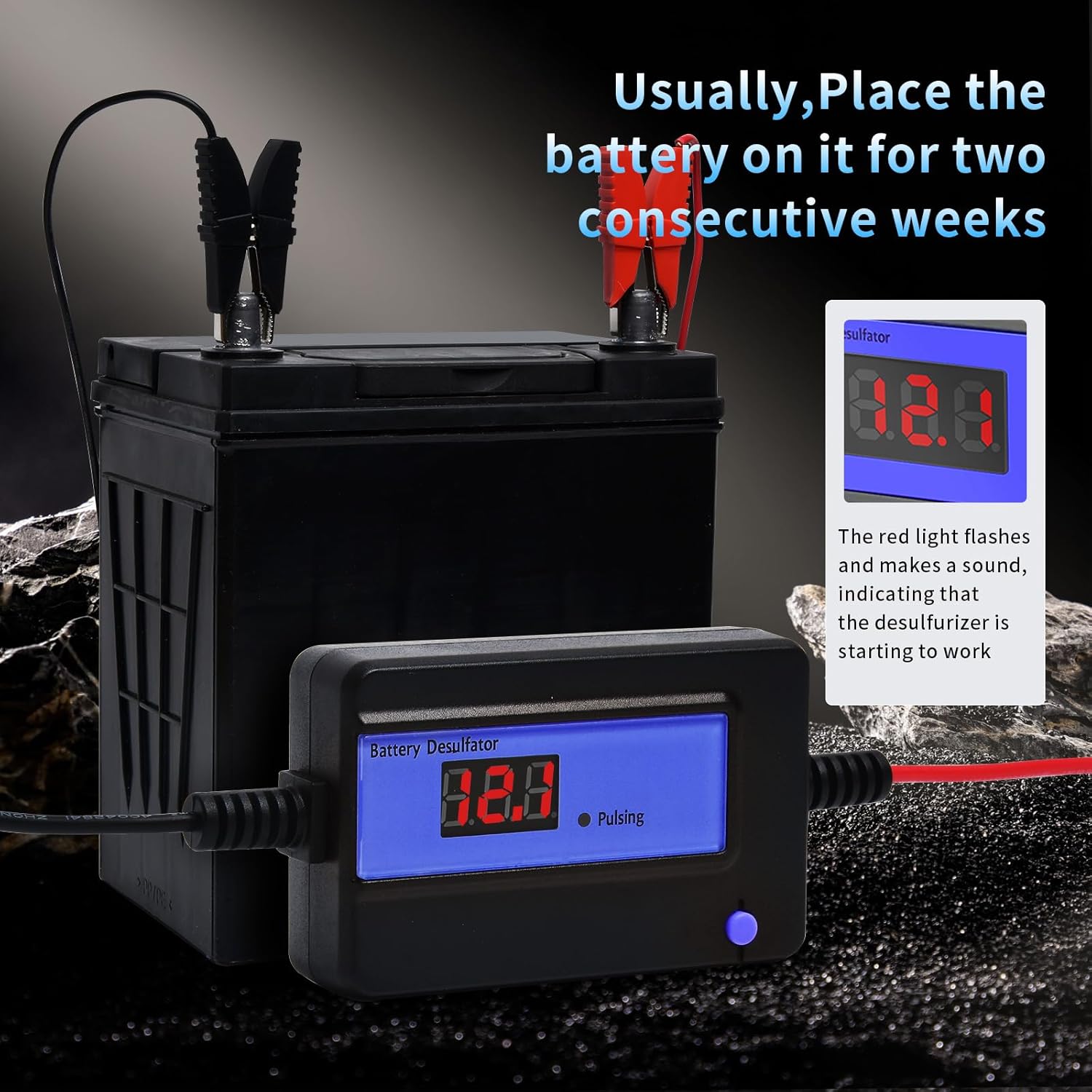

Image 5.1: The desulfator in operation, indicating the recommended duration for effective repair.
6. Maintenance
Regular desulfation can help maintain battery health and prevent future sulfation buildup. For daily or routine maintenance, it is recommended to connect the desulfator to the battery for approximately 6-7 hours.
- Keep the desulfator clean and dry.
- Inspect the alligator clips and cables for any signs of wear or damage before each use.
- Store the device in a cool, dry place when not in use.
Image 6.1: Recommendation for daily maintenance to prolong battery life.
7. Troubleshooting
- Device Not Activating:
- Check if the alligator clips are securely connected to the correct battery terminals (red to positive, black to negative).
- Verify that the battery voltage meets the minimum requirements (e.g., >11.5V for a 12V battery). If not, charge the battery first.
- Battery Not Improving:
- The desulfating process requires time. Ensure the device has been connected for the recommended duration (1-3 weeks for significant repair).
- Not all batteries can be fully restored. The desulfator is effective for sulfated batteries but cannot repair batteries with physical damage, dried-up electrolyte, or those that are completely dead.
- Ensure the battery is capable of holding some charge for the desulfator to operate effectively.
- Unusual Sounds or Smells: Disconnect the device immediately and inspect the battery and connections for any issues. Consult a professional if concerns persist.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 12V-48v Blue 400AH Large Clips |
| Product Dimensions | 1.6 x 2.2 x 0.4 inches (4.06 x 5.59 x 1.02 cm) |
| Item Weight | 5.3 ounces (150 grams) |
| Output Voltage | 12 Volts (DC) - Auto-setting for 12-48V systems |
| Working Current | 0.04A max |
| Peak Current | 4A max |
| Peak Voltage | 60-100V |
| Frequency | 10KHz |
| Off Working Current | 5mA |
| Brand | Beyprern |
| Manufacturer | nanjingdinjinghuoyundailiyouxiangongs |
| Date First Available | April 16, 2024 |
Image 8.1: Detailed specifications printed on the back of the desulfator unit.
9. Warranty and Support
For warranty information, technical support, or any inquiries regarding your Beyprern Battery Desulfator, please refer to the contact information provided with your purchase or visit the official Beyprern website. Please retain your proof of purchase for warranty claims.
You can also visit the Beyprern Store on Amazon for additional product information and support resources.
