LQGTQO Water Pressure Regulator with Manometer

Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your LQGTQO Water Pressure Regulator. Designed for household and various other applications, this device helps maintain a stable water pressure, protecting your plumbing system and appliances from fluctuations.

The regulator features a durable brass construction, an adjustable pressure knob, and an integrated mesh filter for optimal performance and longevity.

Safety Information

Please read all safety instructions carefully before installing or operating the water pressure regulator. Failure to follow these instructions may result in property damage or personal injury.

• Ensure the main water supply is turned off before any installation or maintenance.
• Wear appropriate personal protective equipment, such as gloves and eye protection.
• If you are unsure about any step, consult a qualified plumber.
• Do not exceed the maximum operating pressure or temperature specified in the specifications.
• Keep out of reach of children.

Product Components

The package includes the following components:

• 1 x Water Pressure Regulator
• 1 x Manometer (Pressure Gauge)

Figure 1: Overview of the LQGTQO Water Pressure Regulator. This image shows the main brass body, the green adjustment knob on top, the pressure gauge attached to the side, and the 3/4 inch threaded connections.

Figure 2: Key features of the regulator. This image highlights the easy-to-view pressure levels on the manometer, the built-in filter screen for impurity filtration, the thickened brass valve body for durability, and the deep threaded connections for secure installation.

Specifications

Figure 3: Dimensions of the water pressure regulator. This image shows the height as 15.4 cm (6 inches) and the width as 14.4 cm (5.7 inches), with G3/4 DN20 connections.

Installation Instructions

Follow these steps for proper installation of the water pressure regulator:

1. Prepare the Connection: Ensure the main water supply is turned off. Identify the desired installation point in your water system.
2. Connect the Threaded End: Insert one end of the threaded connection into the main body of the regulator and securely tighten it.
3. Mount the Main Body: Securely attach the main body of the regulator to the desired location in your plumbing system. Ensure all connections are tight to prevent leaks.
4. Remove Plugs: Remove any red protective plugs from the ports of the regulator. Double-check that all screws and connections are firmly tightened.
5. Install the Manometer: Carefully screw the manometer (pressure gauge) into its designated port on the regulator. Hand-tighten first, then use a wrench if necessary, but do not overtighten.
6. Check for Leaks: Slowly turn on the main water supply and carefully inspect all connections for any signs of leakage. Tighten connections further if necessary.

Figure 4: Visual guide for installation. This image illustrates four steps: 1. Inserting one end of the thread into the main body. 2. Connecting the main body to the system. 3. Unscrewing any red plugs. 4. Installing the pressure gauge.

Operating Instructions

Once installed, the water pressure regulator is ready for operation. The valve opens when water points in the system are opened. The spring force overcomes the opposing diaphragm force, moving the valve cone downwards and allowing water to flow through.

Adjusting Water Pressure:

The regulator features an adjustment knob on the top, allowing you to set the desired water pressure. The set pressure remains constant even with strong fluctuations in the inlet pressure, ensuring stable water pressure.

• To increase the pressure, turn the adjustment knob clockwise.
• To decrease the pressure, turn the adjustment knob counter-clockwise.

Monitor the manometer to achieve the precise pressure setting required for your application.

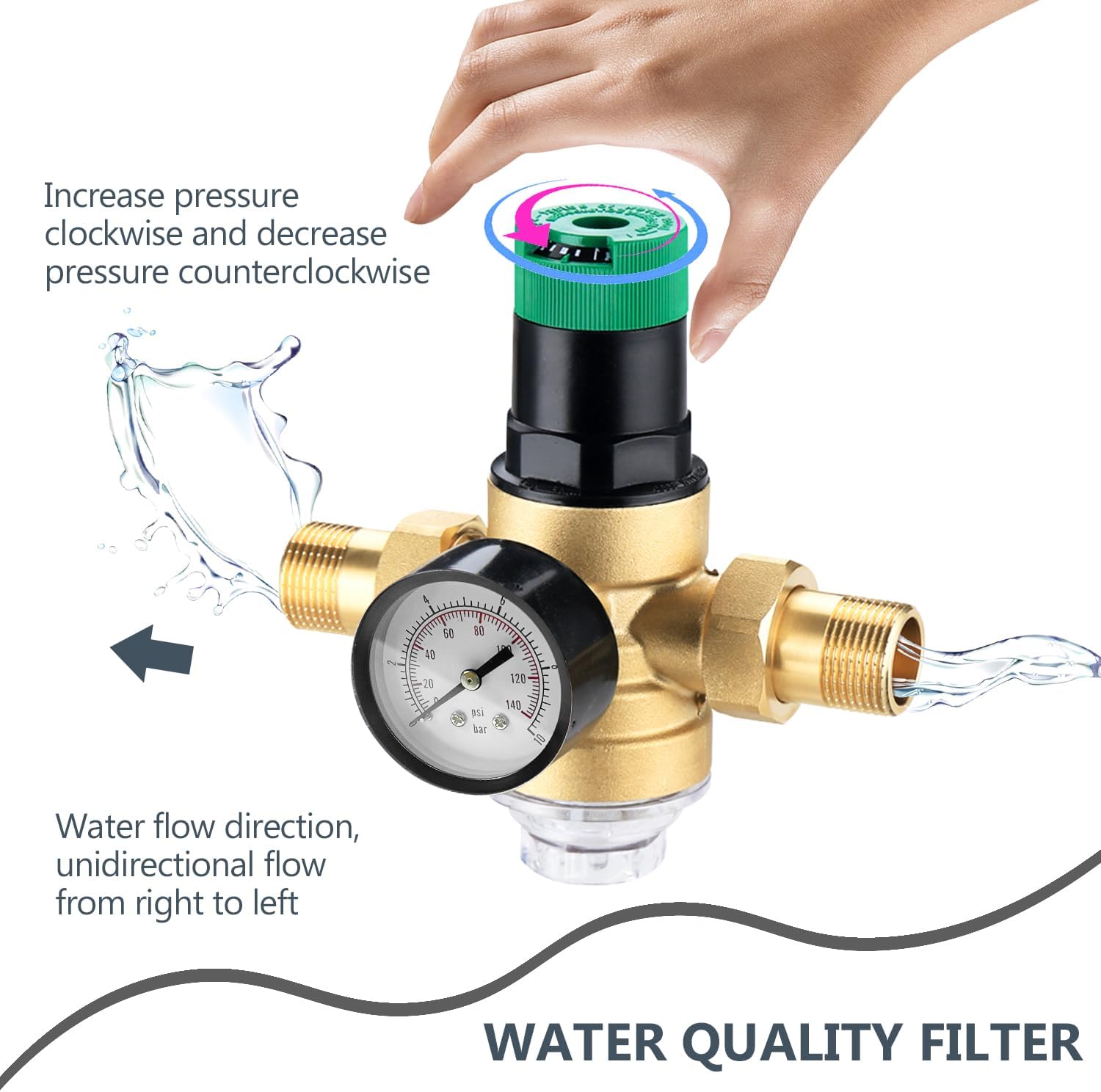

Figure 5: Pressure adjustment and water flow. This image shows a hand turning the green knob, indicating that turning clockwise increases pressure and counter-clockwise decreases it. It also illustrates the unidirectional water flow from right to left through the regulator.

Applications:

This water pressure regulator is suitable for various scenarios where hydraulic pressure is unstable or water flow is too fast, including:

• Water purifiers
• Solar installations
• Gas heaters
• Faucets
• Irrigation systems (e.g., sprinklers)
• Other household and industrial applications requiring stable water pressure.

Figure 6: Examples of product applications. This collage shows the regulator being used in various settings, including garden sprinklers and household faucets, demonstrating its versatility in maintaining stable water pressure.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your water pressure regulator.

Filter Cleaning:

The regulator is equipped with a stainless steel mesh filter that effectively traps impurities. Over time, this filter may accumulate debris, affecting water flow and pressure regulation. It is recommended to periodically inspect and clean the filter.

• Turn off the main water supply before attempting to clean the filter.
• Carefully unscrew the transparent filter housing at the bottom of the regulator.
• Remove the mesh filter and rinse it thoroughly under running water to remove any trapped particles.
• Inspect the filter for any damage. Replace if necessary.
• Reassemble the filter and housing, ensuring a tight seal to prevent leaks.
• Slowly turn the water supply back on and check for leaks.

General Care:

• Regularly check all connections for tightness to prevent leaks.
• Keep the regulator free from external dirt and debris.
• Avoid exposing the regulator to extreme temperatures outside its specified operating range.

Troubleshooting

If you encounter issues with your water pressure regulator, consider the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

Warranty and Support

For warranty information or technical support, please contact the manufacturer LQGTQO or your retailer. Keep your purchase receipt as proof of purchase.

For further assistance, refer to the contact information provided with your product packaging or visit the official LQGTQO website.
