Introduction
Thank you for choosing the FEITON Square Bathroom Exhaust Fan with LED Light. This product is designed to provide efficient ventilation and bright illumination for your bathroom, shower, restroom, living room, or office spaces. Featuring a super quiet EC draught fan with 110 CFM airflow and a 1.0 Sones rating, it effectively removes moisture and odors. The integrated 6000K LED light ensures clear visibility. This manual provides essential information for safe installation, operation, and maintenance of your new exhaust fan.
Figure 1: FEITON Square Bathroom Exhaust Fan with LED Light, illustrating airflow and included duct.
Installation and Setup
Safety Precautions
- Always disconnect power at the circuit breaker before installation or servicing.
- Ensure all wiring complies with local electrical codes and regulations.
- If you are unsure about electrical wiring, consult a qualified electrician.
- Wear appropriate personal protective equipment (PPE) during installation.
Tools Required
- Screwdriver (Phillips and Flathead)
- Wire Strippers
- Drill
- Measuring Tape
- Utility Knife or Drywall Saw
- Duct Tape or Aluminum Foil Tape
Mounting
The FEITON exhaust fan is designed for ceiling mount installation. Confirm the mounting hole size is approximately 7.8 x 7.8 inches. The product is fixed by a combination of screws and buckles for firm fixation and convenient disassembly for cleaning.
Figure 2: Product Dimensions and Mounting Hole Requirements.
Wiring
The fan features independent wires for the lamp and the fan, allowing for joint control or separate operation. The end of the wire is equipped with a junction box for convenient and safe wiring. Ensure proper connection of live, neutral, and ground wires as per the diagram.
Figure 3: Connection Line Reference Diagram for Fan and Light.
Figure 4: New wiring with junction box for enhanced security and easier installation.
Connect the 4-inch duct to the fan's exhaust port and secure it with a hose clamp and duct tape to ensure an airtight seal.
Operation
Fan Operation
The EC Draught Fan operates at 110 CFM with a low 1.0 Sones noise level, ensuring quiet and efficient air extraction. Activate the fan using your wall switch. It quickly removes moisture and odors from the room, improving air quality.
Figure 5: Illustrating the quiet operation of the FEITON exhaust fan.
Light Operation
The integrated 15W 6000K LED light provides bright and clear illumination. The light can be controlled independently or jointly with the fan, depending on your wiring setup. The LED light is waterproof and moisture-proof, suitable for bathroom environments.

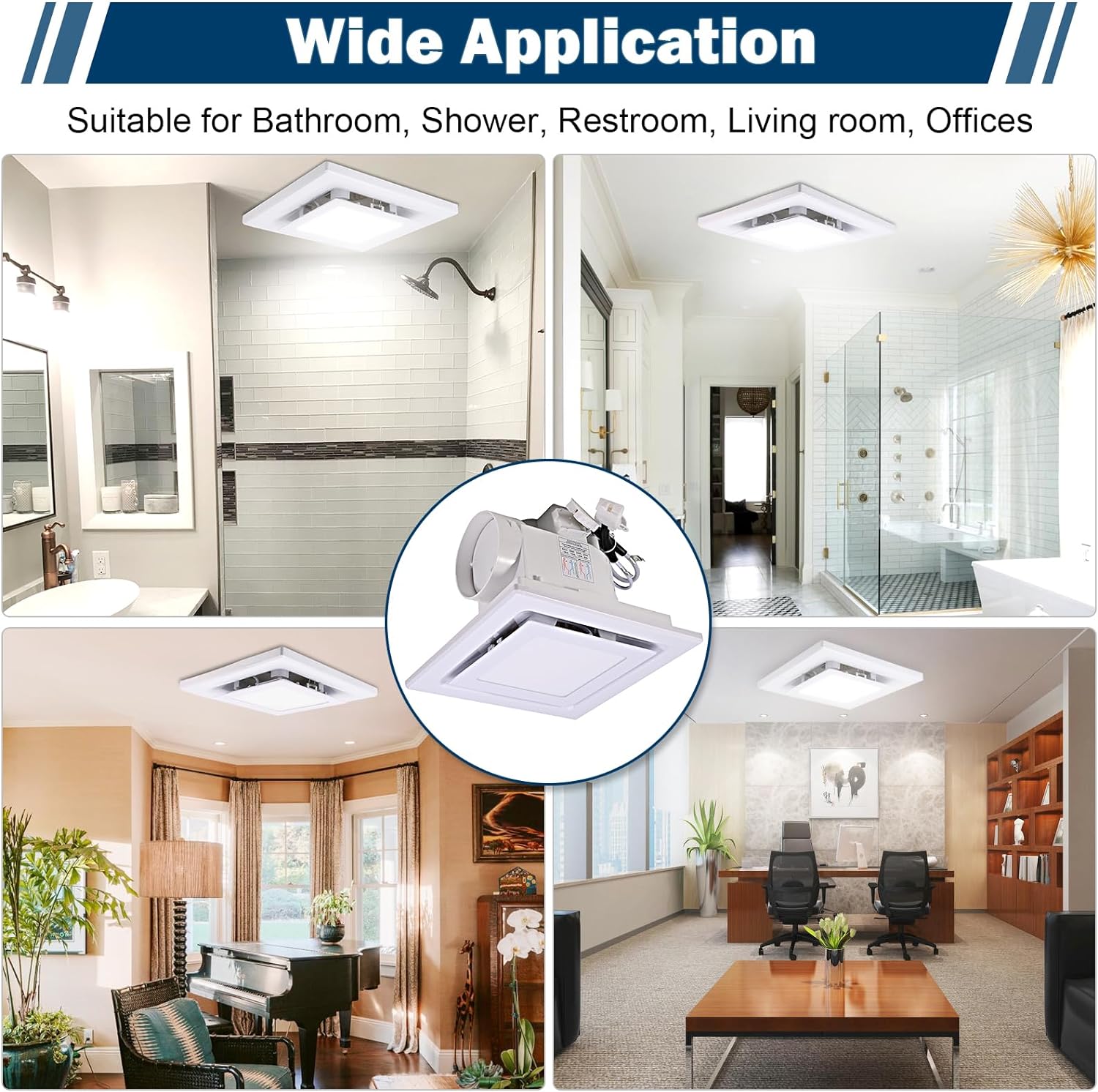

Figure 6: Wide application of the FEITON exhaust fan in various indoor spaces.
Maintenance
Cleaning
Regular cleaning of the fan grille and internal components is recommended to maintain optimal performance. The product's buckle design allows for simple installation and convenient disassembly, which is conducive to later cleaning and maintenance.
Motor Care
The fan is equipped with a high-quality copper motor designed for long product life and energy efficiency. No specific user maintenance is required for the motor itself, beyond keeping the fan clean to prevent dust buildup that could impede airflow.
Figure 7: Detailed components including the high-quality motor and buckle design for easy maintenance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan not operating | No power, loose wiring, motor issue | Check circuit breaker. Verify wiring connections. If problem persists, contact customer support. |
| Light not turning on | No power, loose wiring, LED failure | Check circuit breaker. Verify light wiring connections. |
| Reduced airflow | Blocked duct, dirty fan blades, motor issue | Inspect and clear ductwork. Clean fan blades and grille. |
| Excessive noise | Loose mounting, foreign object in fan, motor issue | Ensure fan is securely mounted. Check for and remove any obstructions. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact FEITON customer support for assistance.
Specifications
| Feature | Detail |
|---|---|
| Brand | FEITON |
| Model Name | 80006031 |
| Color | 110CFM with Light (White) |
| Material | Aluminum (Shade), Plastic (Housing) |
| Airflow (CFM) | 110 CFM |
| Noise Level (Sones) | 1.0 Sones |
| Power Source | EC |
| Voltage | 110-220V |
| Wattage | 30 watts (Total), 15W (LED Light) |
| Light Color Temperature | 6000K |
| Duct Diameter | 4.0 inches |
| Panel Dimensions | 10 x 10 inches |
| Mounting Hole Dimensions | 7.8 x 7.8 inches |
| Product Dimensions | 10 x 10 x 7.5 inches |
| Item Weight | 2.94 pounds |
| UPC | 708686943542 |
| Certifications | EU CE certification |
Warranty and Support
The FEITON Square Bathroom Exhaust Fan with LED Light is manufactured to high standards and has obtained EU CE certification, ensuring compliance with European safety, health, and environmental protection requirements. For specific warranty details and duration, please refer to the product packaging or contact FEITON customer support directly. Keep your purchase receipt for warranty claims.
For technical support, troubleshooting assistance, or parts inquiries, please visit the official FEITON website or contact their customer service department. Contact information can typically be found on the product packaging or the brand's official online presence.
