REBO Orchid Wooden Swing with Slide - User Manual

1. Product Overview

The REBO Orchid Wooden Swing with Slide is designed to provide a fun and engaging outdoor play experience for children. This robust play set features a swing seat and a slide, making it a versatile addition to any garden.

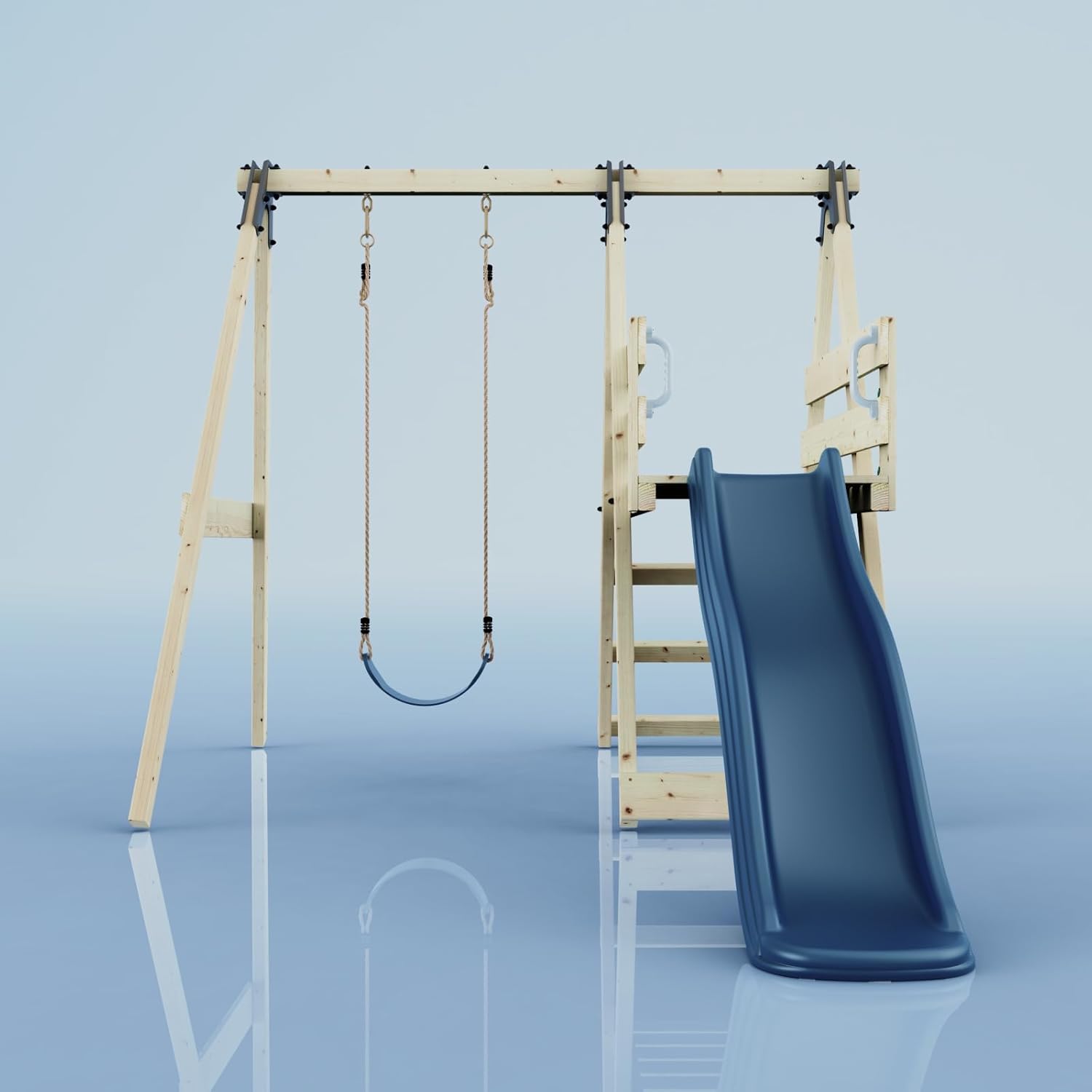

Image: Front view of the REBO Orchid Wooden Swing with Slide, showcasing the swing frame, swing seat, ladder, and blue slide.

Key Features:

• Superior Quality: Constructed from durable, untreated solid spruce wood.
• Robust Design: Features galvanized, powder-coated swing supports for enhanced durability.
• Adjustable Swing: Swing ropes are height-adjustable for user comfort and safety.
• Complete Set: Includes a set of 4 ground anchors for secure installation.
• Safety Compliant: Designed and manufactured in accordance with the DIN EN 71 toy safety regulation.

2. Safety Instructions

Adherence to the following safety guidelines is crucial for safe operation and to prevent injury:

• Age Restriction: Not suitable for children under 3 years of age.
• Supervision: Use only under direct adult supervision.
• Intended Use: This product is intended for domestic or home use only. It is not designed for commercial or public use.
• Installation: Ensure the product is securely anchored to the ground using the provided ground anchors.
• Regular Checks: Periodically inspect all components for wear, damage, or loose connections.
• Weight Limit: The swing is designed for a maximum user weight of 50 kg.

Note: All stated dimensions and displayed colors may vary slightly from the actual product.

3. Setup and Assembly

Assembly of the REBO Orchid Wooden Swing with Slide requires careful attention to detail. Complete step-by-step instructions are included with your delivery. Please ensure you have all components before beginning assembly.

3.1 Pre-Assembly Checks

• Verify all parts are present according to the packing list.
• Note that the wood components are not pre-drilled; drilling will be required during assembly.
• Ensure you have the necessary tools for assembly (e.g., drill, screwdriver, wrench).

Image: A graphic illustrating important delivery information, including checking name, delivery address, phone number, and email before order completion, and regularly checking emails for delivery coordination after order completion. It also notes that delivery may arrive in multiple shipments and that delivery to the property is at the discretion of the shipping company.

3.2 Assembly Steps

1. Unpack all components and lay them out on a clean, flat surface.
2. Follow the detailed step-by-step assembly instructions provided in the manual.
3. Assemble the main swing frame structure, ensuring all connections are secure.
4. Attach the ladder and slide components to the main structure.
5. Install the swing ropes and seat, adjusting the height as desired.
6. Once assembled, position the swing set in its desired location.
7. Securely fix the swing set to the ground using the four included ground anchors. This step is critical for stability and safety.

Image: An aerial view of the REBO Orchid Wooden Swing with Slide, showing the wooden frame, swing bar, and blue slide, useful for understanding the overall structure during assembly.

4. Operating Instructions

The REBO Orchid Wooden Swing with Slide is designed for straightforward use, providing hours of outdoor enjoyment.

4.1 Using the Swing

• Ensure the swing area is clear of obstacles before use.
• Children should sit centrally on the swing seat and hold firmly onto the ropes.
• The swing ropes can be adjusted in height to suit the user. To adjust, refer to the specific instructions in the assembly manual for rope adjustment mechanisms.
• Always ensure adult supervision during swinging activities.

4.2 Using the Slide

• Ensure the landing area at the bottom of the slide is clear.
• Children should climb the ladder safely and sit at the top of the slide before descending.
• Slide feet first, in a seated position.
• Always ensure adult supervision during sliding activities.

Image: A front view of the REBO Orchid Wooden Swing with Slide, illustrating the swing and slide components ready for use.

5. Maintenance

Regular maintenance will extend the lifespan of your REBO Orchid Wooden Swing with Slide and ensure continued safe operation.

• Wood Treatment: The swing set is made from untreated spruce wood. To protect the wood from weathering and prolong its life, it is highly recommended to paint it with a suitable outdoor wood stain, such as OutdoorToys wood stain. Apply according to the stain manufacturer's instructions.
• Component Inspection: Periodically check all bolts, screws, and connections to ensure they are tight. Tighten any loose fasteners immediately.
• Rope and Seat Check: Inspect swing ropes and the swing seat for any signs of fraying, wear, or damage. Replace worn or damaged parts promptly.
• Cleaning: Clean the swing set regularly with mild soap and water. Avoid harsh chemicals that could damage the wood or plastic components.
• Ground Anchors: Verify that the ground anchors remain firmly in place and are not loose or corroded.

6. Troubleshooting

This section addresses common issues you might encounter with your swing set.

7. Specifications

Detailed specifications for the REBO Orchid Wooden Swing with Slide:

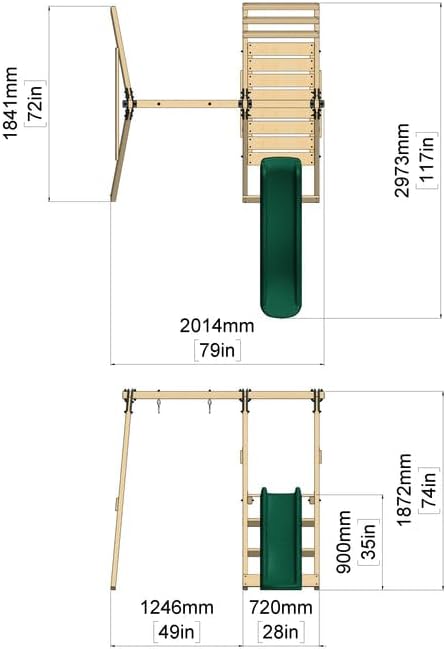

Image: Technical drawing showing detailed dimensions of the swing set, including height, width, and length measurements in both millimeters and inches.

8. Warranty and Support

Information regarding specific warranty terms for the REBO Orchid Wooden Swing with Slide is not provided in the product details. For warranty claims, spare parts, or technical support, please contact the manufacturer directly.

REBO offers a wide range of outdoor play equipment. For further assistance or to inquire about additional products, please visit the official REBO website or contact their customer service department.

Note: Availability of spare parts is not explicitly stated in the product information.
