CAPFEI 58mm Bottomless Portafilter User Manual

1. Product Overview

The CAPFEI 58mm Bottomless Portafilter is a precision-engineered accessory designed for select Bezzera espresso machines. It allows for direct observation of the extraction process, providing valuable feedback for perfecting your espresso shot. Constructed from durable materials, it includes a high-capacity filter basket for optimal coffee preparation.

2. Compatibility

This portafilter is specifically designed for compatibility with the following Bezzera espresso machine models:

• Bezzera B2009
• Bezzera BZ40
• Bezzera BZ02
• Bezzera BZ07
• Bezzera BZ09
• Bezzera BZ10
• Bezzera BZ13

Important Note: This portafilter is NOT compatible with BEZZERA STREGA, B2000 AL, Giulia, Magica, Mitica Top, Unica, and other E61 brewing group machines.

3. Product Features

• Material: Constructed from high-quality 304 Stainless Steel for durability and hygiene.
• Handle: Features a solid, ergonomic ABS handle for comfortable and secure grip.
• Filter Basket: Includes an 18-22g double cup capacity filter basket, allowing for a generous dose of coffee.
• Detachable Design: The portafilter features a detachable design, making it easy to clean and maintain.

Figure 1: The CAPFEI 58mm Bottomless Portafilter with its black ergonomic handle and included filter basket.

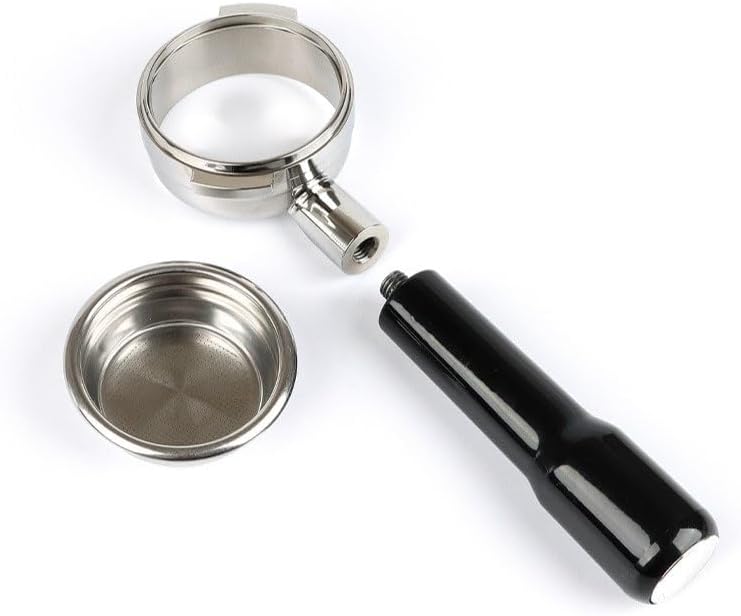

Figure 2: The detachable components of the portafilter, including the handle, portafilter head, and filter basket, illustrating ease of cleaning.

4. Setup

1. Unpack: Carefully remove all components from the packaging.
2. Initial Cleaning: Before first use, wash the portafilter head, filter basket, and handle (if detachable) with warm soapy water. Rinse thoroughly and dry completely.
3. Assemble: If the handle is detached, screw it firmly onto the portafilter head. Insert the provided filter basket into the portafilter head.
4. Inspect: Ensure all parts are securely assembled and free from any debris.

5. Operating Instructions

Using a bottomless portafilter requires attention to grind size, dosing, and tamping for optimal results. It provides visual feedback on your espresso extraction.

1. Prepare Coffee Grounds: Grind fresh coffee beans to an appropriate fineness for espresso. The ideal grind size will result in a steady, even flow from the portafilter.
2. Dose the Basket: Fill the 18-22g filter basket with your desired amount of ground coffee. Ensure the dose is consistent for even extraction.
3. Distribute and Tamp: Distribute the coffee grounds evenly within the basket. Use a tamper to apply firm, level pressure to compact the grounds. A consistent tamp is crucial for preventing channeling.
4. Attach to Machine: Securely insert the portafilter into your Bezzera espresso machine's group head. Ensure it is locked into place.
5. Begin Extraction: Initiate the brewing process. Observe the coffee flow from the bottomless portafilter. An ideal extraction will show a steady, conical flow, often referred to as a 'mouse tail'.
6. Monitor and Adjust: If you observe channeling (streams of coffee squirting unevenly) or an overly fast/slow extraction, adjust your grind size, dose, or tamping technique accordingly.

Figure 3: The portafilter with coffee grounds, ready for tamping, alongside a tamper.

6. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your CAPFEI Bottomless Portafilter.

• After Each Use: Immediately after brewing, remove the portafilter from the machine. Knock out the spent coffee puck. Rinse the portafilter head and filter basket under hot water to remove any residual coffee grounds and oils.
• Daily Cleaning: For a more thorough daily clean, detach the handle if necessary and wash all components with warm water and a mild dish soap. Use a brush to clean the filter basket holes.
• Drying: Ensure all parts are completely dry before reassembling or storing to prevent water spots and mineral buildup.
• Deep Cleaning (Weekly/Bi-weekly): Periodically soak the portafilter head and filter basket in a solution of espresso machine cleaner (e.g., Cafiza) according to the cleaner's instructions. This will remove stubborn coffee oils and residue. Rinse thoroughly after soaking.

7. Troubleshooting

If you encounter issues with your espresso extraction using the bottomless portafilter, consider the following common problems and solutions:

• Channeling (Coffee squirting unevenly):
  • Cause: Uneven distribution of coffee grounds, inconsistent tamping, or grind size too fine.
  • Solution: Ensure coffee grounds are evenly distributed in the basket before tamping. Apply consistent, level pressure when tamping. Try a slightly coarser grind.
• Extraction too fast (Weak, watery espresso):
  • Cause: Grind size too coarse, insufficient dose, or weak tamp.
  • Solution: Adjust grind to be finer. Increase coffee dose if necessary. Apply firmer tamp pressure.
• Extraction too slow (Bitter, over-extracted espresso, or no flow):
  • Cause: Grind size too fine, overdose, or excessive tamp pressure.
  • Solution: Adjust grind to be coarser. Reduce coffee dose. Apply lighter tamp pressure.
• Portafilter difficult to lock into group head:
  • Cause: Gasket in group head is worn or dirty, or portafilter is new and stiff.
  • Solution: Clean the group head gasket. If new, it may require a few uses to loosen up. If persistent, inspect or replace the group head gasket.

8. Specifications

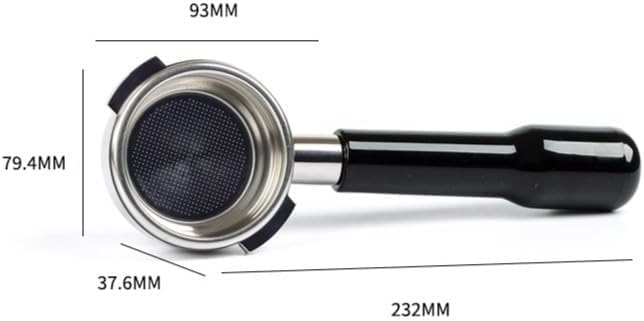

Figure 4: Dimensional diagram of the portafilter, showing key measurements in millimeters.

9. Support

For further assistance, product inquiries, or support, please visit the official CAPFEI store or contact customer service through your purchase platform.

Official CAPFEI Store: CAPFEI Store on Amazon
