ZOTA 125mm Dual Action Car Polisher User Manual

1. Introduction

Thank you for choosing the ZOTA 125mm Dual Action Car Polisher, Model DA-8MM-PR508. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new polisher. Please read it thoroughly before use and keep it for future reference.

Key Features:

• PSE Certified: This polisher complies with PSE electrical safety certification standards, ensuring quality and safety.
• Lightweight and Easy Operation: Designed for ergonomic comfort, its compact size and light weight (approximately 1.92kg) allow for one-handed operation and easy speed adjustment during use.
• Low Noise & Low Vibration: High-quality grease gears ensure smooth, quiet operation. The 8mm eccentric shaft design and precise balance correction minimize machine vibration, enhancing user comfort.
• High Speed & High Efficiency: Features precise control with a 2500-6500 RPM speed range and a 6-mode rotary speed adjustment button. This allows for versatile use from low speeds for waxing to high speeds for scratch and oxidation removal, without damaging the paint.
• Versatile Applications: Ideal for polishing and waxing car paint, motorcycles, and yachts. It can also be used for removing metal paint and rust, polishing furniture, stairs, other wooden items, bathroom tiles, and marble floors/walls.

2. Safety Information

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury.

• Read all instructions before operating the tool.
• Wear appropriate personal protective equipment (PPE) such as safety glasses, gloves, and hearing protection.
• Ensure the work area is well-lit and free from obstructions.
• Keep children and bystanders away while operating a power tool.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Avoid accidental starting. Ensure the switch is in the off-position before plugging in.
• Do not force the power tool. Use the correct power tool for your application.
• Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
• This product is PSE certified, ensuring it meets specific safety standards for electrical appliances.

3. Package Contents

Verify that all items are present upon unpacking:

• ZOTA 125mm Dual Action Car Polisher (Model DA-8MM-PR508)
• 125mm Backing Plate
• Various Polishing Pads (e.g., foam pads, wool pads)
• Side Handle
• Wrench
• Microfiber Towel
• User Manual
• Spare Carbon Brushes

Image: The ZOTA polisher box contents, including the polisher, various pads, wrench, and manual.

4. Setup

4.1 Attaching Polishing Pads

1. Ensure the polisher is unplugged from the power source.
2. Align the desired polishing pad with the hook-and-loop backing plate.
3. Press firmly to secure the pad to the backing plate.

4.2 Attaching the Side Handle

1. Locate the threaded hole on the side of the polisher housing.
2. Screw the side handle into the threaded hole until it is securely fastened.
3. The handle can be attached to either side for left or right-handed use.

Image: Diagram showing the polisher's components, including the handle attachment point and speed control knob.

4.3 Using Small Polishing Attachments

For intricate areas, the polisher can be adapted with smaller polishing attachments. This involves using a long shaft and collet to attach small foam or wool cones/pads.

5. Operating Instructions

5.1 Powering On/Off

1. Plug the polisher into a standard 100V power outlet.
2. To turn on, press the ON/OFF switch.
3. To turn off, release the ON/OFF switch.

5.2 Speed Adjustment

The polisher features a 6-speed adjustment dial located on the side of the unit. Rotate the dial to select the desired speed:

• Speed 1-2 (2500-3300 RPM): Ideal for waxing and light polishing.
• Speed 3-4 (4100-4900 RPM): Suitable for general polishing and cleaning.
• Speed 5-6 (5700-6500 RPM): For removing paint scratches, oxidation, and achieving a mirror finish.

Image: Diagram illustrating the 6-speed settings and their recommended uses for different polishing tasks.

5.3 Polishing Technique

1. Apply a small amount of polishing compound or wax evenly onto the pad.
2. Place the pad flat on the surface to be polished before turning on the machine.
3. Start at a low speed to spread the product, then gradually increase to the desired speed.
4. Move the polisher in a cross-hatch pattern, applying even, moderate pressure. Avoid pressing too hard.
5. Work on small sections at a time (e.g., 2x2 feet).
6. After polishing, wipe off any residue with a clean microfiber towel.

6. Applications

The ZOTA Dual Action Car Polisher is designed for a wide range of polishing and finishing tasks:

• Automotive Detailing: Ideal for removing swirl marks, scratches, oxidation, and applying waxes or sealants to car paint.
• Headlight Restoration: Effectively restores clarity to hazy or yellowed headlights.
• Metal Polishing: Can be used to remove rust and polish various metal surfaces.
• Household Surfaces: Suitable for polishing wooden furniture, marble countertops, and cleaning bathroom tiles.

Image: Collage showing the polisher being used on a motorcycle, car, wooden floor, and piano, highlighting its versatility.

Image: A visual comparison of a car surface before and after using the polisher to remove scratches, demonstrating its effectiveness.

7. Maintenance

7.1 Cleaning

• After each use, clean the polishing pads thoroughly to remove any compound residue. This prolongs pad life and ensures optimal performance.
• Wipe down the polisher body with a clean, damp cloth. Do not use harsh chemicals or immerse the tool in water.

7.2 Carbon Brush Replacement

Carbon brushes are consumable parts and will wear out over time. They typically last for 80-100 hours of use. Your new machine comes with spare carbon brushes. When the machine stops working or its performance significantly decreases, it may be time to replace the carbon brushes. Refer to the detailed instructions in the included manual for replacement procedures.

7.3 Storage

Store the polisher in a dry, clean place, away from direct sunlight and extreme temperatures. Keep it out of reach of children.

8. Troubleshooting (Q&A)

Here are answers to some common questions regarding the polisher:

• Q: What are the precautions when waxing?
  A: Always wash the car and remove dirt/stains before waxing. Avoid waxing on a hot body or in direct sunlight, as high temperatures can reduce wax adhesion and affect the polishing results.
• Q: Do carbon brushes need to be replaced?
  A: Yes, carbon brushes are consumable parts. They should be replaced when worn out, typically after 80-100 hours of use. New machines are equipped with spare carbon brushes. If the machine does not rotate after prolonged use, replace the carbon brushes.

Image: A visual representation of common questions and answers regarding the ZOTA polisher's operation and maintenance.

9. Specifications

10. Warranty and Support

This ZOTA polisher model RP508A is PSE certified, adhering to electrical safety standards. You can verify the PSE certification document on the official online store's top page. Our after-sales technical team provides 7x24 hour support. For any issues or inquiries, please contact customer service.

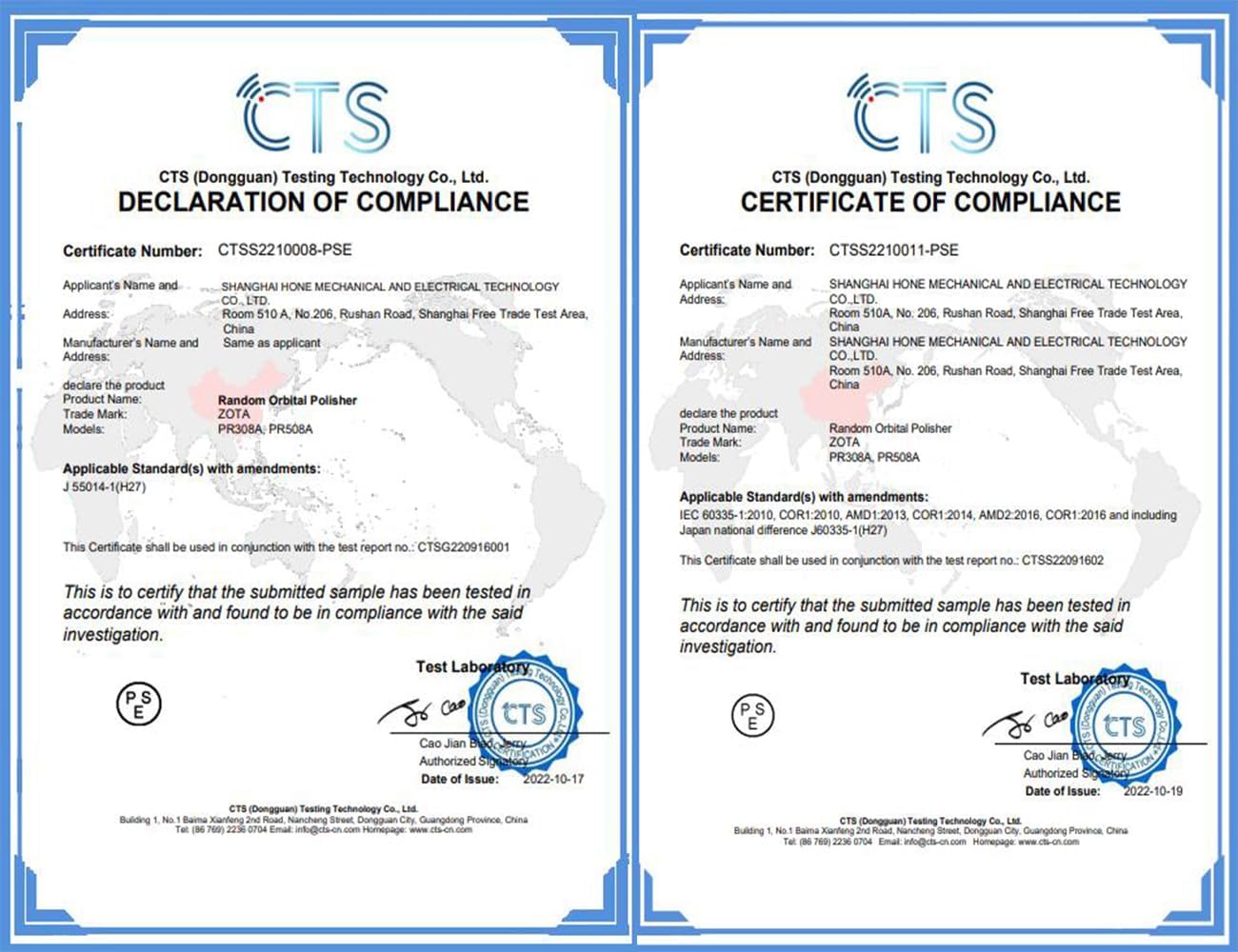

Image: Documents displaying the PSE electrical safety certification for the ZOTA polisher.
