Ebikestar 26cc Gas Chainsaw User Manual

1. Introduction

This manual provides essential instructions for the safe and efficient operation, assembly, and maintenance of your Ebikestar 26cc Gas Chainsaw. Please read this manual thoroughly before using the chainsaw to ensure proper handling and to prevent injury or damage. Keep this manual for future reference.

Image 1.1: The Ebikestar 26cc Gas Chainsaw, shown with cut wood logs, highlighting its lightweight, portable, and fuel-efficient design for various cutting tasks.

2. Safety Information

Operating a chainsaw can be dangerous if proper safety precautions are not followed. Always prioritize safety to prevent serious injury.

2.1 Personal Protective Equipment (PPE)

• Head Protection: Wear a safety helmet, preferably with a face shield.
• Eye Protection: Always wear safety glasses or goggles under a face shield.
• Ear Protection: Use earplugs or earmuffs to protect against noise.
• Hand Protection: Wear heavy-duty work gloves.
• Leg Protection: Wear chainsaw protective chaps or trousers.
• Foot Protection: Wear steel-toed safety boots with good grip.

2.2 General Safety Guidelines

• Read and understand the entire manual before operation.
• Inspect the chainsaw before each use for loose parts, damage, or wear.
• Ensure the chain brake is functional.
• Operate the chainsaw only in well-ventilated areas.
• Keep bystanders, children, and animals at a safe distance (at least 10 meters/30 feet).
• Maintain a firm grip with both hands on the chainsaw handles.
• Be aware of kickback and how to avoid it.
• Do not operate the chainsaw when fatigued, under the influence of alcohol, drugs, or medication.
• Store fuel in approved containers and away from ignition sources.
• Never refuel a hot or running engine.

Image 2.1: A user demonstrating proper safety attire, including a helmet with face shield and ear protection, while operating a chainsaw for tree pruning.

3. Included Components

Your Ebikestar 26cc Gas Chainsaw package includes the following items:

• 1 x Chainsaw Engine Unit
• 1 x 12 inch Guide Bar
• 1 x 12 inch Saw Chain
• 1 x Tool Kit (for assembly and maintenance)
• 1 x Fuel Mixing Bottle
• 1 x User Manual (this document)

Image 3.1: All components included in the Ebikestar 26cc Gas Chainsaw package, featuring the chainsaw unit, guide bar, chain, tool kit, and fuel mixing bottle.

4. Specifications

Refer to the following specifications for your Ebikestar 26cc Gas Chainsaw:

Image 4.1: Visual representation of the chainsaw's dimensions (length, width, height) and its approximate weight.

Image 4.2: Illustration highlighting the chainsaw's heat dissipation system, designed to increase cylinder cooling and exhaust efficiency for improved work performance.

5. Setup and Assembly

5.1 Parts Identification

Familiarize yourself with the main components of your chainsaw:

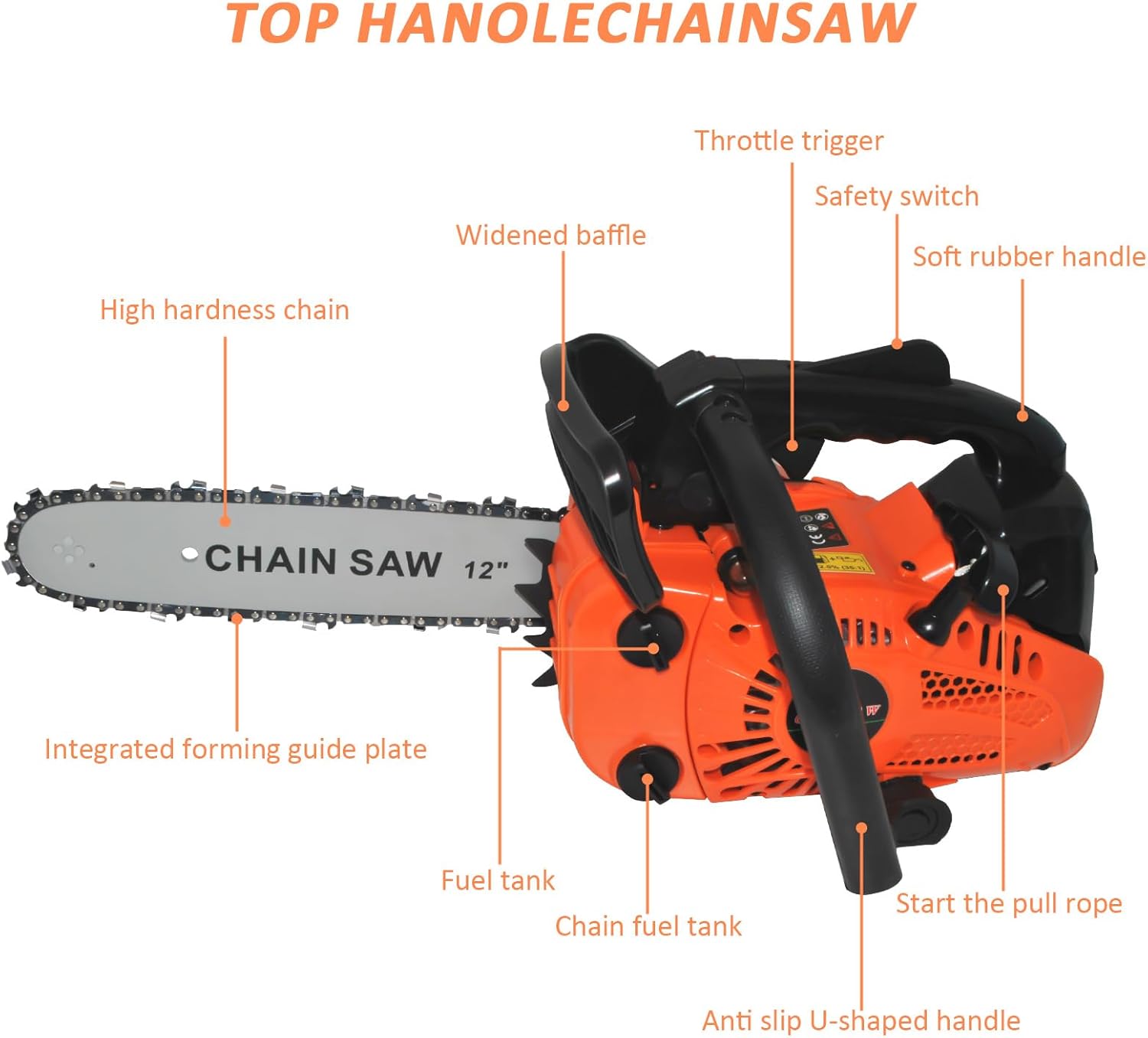

Image 5.1: Diagram illustrating key components of the chainsaw, including the throttle trigger, safety switch, soft rubber handle, widened baffle, high hardness chain, integrated forming guide plate, fuel tank, chain fuel tank, and anti-slip U-shaped handle.

5.2 Guide Bar and Chain Assembly

1. Ensure the engine is off and the chain brake is engaged.
2. Remove the chain cover nuts and the chain cover.
3. Place the chain around the clutch drum and guide bar. Ensure the cutting edges of the chain are facing the correct direction (refer to markings on the chain or bar).
4. Align the guide bar studs with the holes on the guide bar.
5. Replace the chain cover and loosely tighten the nuts.
6. Adjust chain tension (refer to Section 7.1).
7. Once tension is correct, fully tighten the chain cover nuts.

5.3 Fuel and Chain Oil Preparation

This chainsaw uses a 2-cycle engine and requires a specific fuel mixture.

• Fuel Mixture: Mix unleaded gasoline with high-quality 2-cycle engine oil at a ratio of 40 parts gasoline to 1 part oil (40:1). Use the provided mixing bottle for accurate measurement.
• Chain Oil: Fill the chain oil tank with good quality bar and chain oil. This lubricates the chain and guide bar during operation. Do not use waste oil or motor oil.

Important: Always mix fuel in a well-ventilated area away from ignition sources. Never refuel a hot engine.

6. Operating Instructions

6.1 Starting the Chainsaw

1. Place the chainsaw on a flat, stable surface.
2. Engage the chain brake by pushing the front hand guard forward.
3. Push the primer bulb several times until fuel is visible.
4. Pull the choke lever out to the "CHOKE" position (cold start).
5. Hold the chainsaw firmly with one hand on the front handle and place your foot on the rear handle.
6. Pull the starter rope slowly until resistance is felt, then pull sharply until the engine fires (it may only run for a second).
7. Once the engine fires, push the choke lever halfway in (half-choke position).
8. Pull the starter rope again until the engine starts and runs.
9. Once the engine is running, push the choke lever fully in.
10. Allow the engine to warm up for a few moments before disengaging the chain brake and beginning operation.

6.2 Basic Cutting Techniques

• Always maintain a balanced stance and firm grip on both handles.
• Plan your cut before starting. Identify potential kickback zones.
• Start cutting with the chain at full speed.
• Avoid cutting with the tip of the guide bar to prevent kickback.
• Be aware of falling branches and logs.
• For felling trees, follow proper notching and felling procedures.
• For limbing, work from the bottom up, supporting the branch if necessary.

6.3 Stopping the Chainsaw

• Release the throttle trigger.
• Engage the chain brake.
• For complete shutdown, move the ignition switch to the "OFF" position.

7. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your chainsaw.

7.1 Chain Tensioning

Proper chain tension is crucial for safe and efficient operation. The chain should be snug against the guide bar, but still able to be pulled around by hand without binding.

1. Ensure the engine is off and the chain brake is engaged.
2. Loosen the chain cover nuts slightly.
3. Use the tensioning screw (typically located on the side of the chainsaw) to adjust the chain tension. Turn clockwise to tighten, counter-clockwise to loosen.
4. Once the desired tension is achieved, hold the guide bar tip up and tighten the chain cover nuts firmly.
5. Check tension again after tightening.

7.2 Air Filter and Spark Plug Access

The chainsaw features easy access clips on the cylinder cover for quick access to the air filter and spark plug for inspection and cleaning.

• Air Filter: Clean or replace the air filter regularly to ensure proper engine breathing and prevent debris from entering the engine.
• Spark Plug: Inspect the spark plug for wear or carbon buildup. Clean or replace as needed to ensure reliable starting and engine performance.

7.3 Chain Sharpening

A sharp chain is essential for safe and effective cutting. A dull chain will cause the chainsaw to vibrate excessively, produce sawdust instead of chips, and require more effort to cut.

• Sharpen the chain regularly using a round file of the correct diameter for your chain type.
• Maintain the correct filing angles for both the top plate and side plate.
• Ensure depth gauges are also maintained to the correct height.
• If unsure, consult a professional or refer to detailed chain sharpening guides.

7.4 General Cleaning and Storage

• After each use, clean sawdust and debris from the chainsaw, especially around the guide bar, chain, and engine cooling fins.
• Drain fuel from the tank if storing for extended periods, or use a fuel stabilizer.
• Store the chainsaw in a dry, secure location, out of reach of children.

8. Troubleshooting

This section addresses common issues you might encounter with your chainsaw.

If you encounter issues not covered here or require further assistance, please contact customer service.

9. Warranty and Support

Ebikestar is committed to providing quality products and customer satisfaction. Your chainsaw comes with a commitment to lifelong customer service.

For technical support, missing parts, damaged parts, or any other inquiries regarding your Ebikestar 26cc Gas Chainsaw, please contact our customer service team. We aim to respond to all inquiries within 24 hours.

Please refer to your purchase documentation or the Ebikestar official website for specific warranty terms and contact information.
