1. Introduction
Thank you for choosing the EKEDALEN chair. This manual provides essential information for the safe assembly, use, and maintenance of your new chair. Please read it thoroughly before assembly and keep it for future reference.

Image 1.1: The EKEDALEN chair featuring an oak effect frame and a light grey upholstered seat, designed for comfort and durability.
2. Important Safety Information
Please read and follow all assembly instructions carefully. Do not exceed the maximum weight limit of 110 kg (242 lbs). Be cautious when adjusting the backrest to prevent injury.
- Ensure all screws and fittings are tightened securely before initial use.
- Regularly check all connections to ensure they remain tight and re-tighten as needed.
- Do not stand on the chair.
- Keep children away from the assembly area and do not allow them to play with packaging materials.
- Maximum weight capacity: 110 kg (242 lbs).
3. Setup and Assembly
The EKEDALEN chair requires assembly. Detailed step-by-step instructions and all necessary hardware are typically included in the product packaging. Please refer to those specific instructions for the most accurate assembly process.
General Assembly Tips:
- Unpack all components and verify against the parts list provided in the packaging.
- Assemble on a soft, clean surface (e.g., a rug or blanket) to prevent scratching the chair parts or floor.
- Do not fully tighten all screws until the chair is completely assembled and stable.
- Ensure all parts are correctly oriented before tightening.

Image 3.1: The EKEDALEN chair is designed to complement dining room settings, shown here with a matching table.
4. Usage and Operation
The EKEDALEN chair is designed for comfortable seating in dining rooms, offices, or other indoor spaces. Its key features include an upholstered seat and a comfortable angle of the backrest, making it ideal for long periods of sitting, such as during dinners.
- Use the chair on a flat, stable surface to ensure stability.
- Avoid sudden movements or excessive leaning that could destabilize the chair.
- The chair is suitable for adult use.

Image 4.1: Side profile of the EKEDALEN chair, illustrating its ergonomic design and comfortable backrest angle.
5. Maintenance
Proper care will extend the life and maintain the appearance of your EKEDALEN chair.
- Cleaning: For the oak effect frame, wipe clean with a damp cloth. For the upholstered seat, spot clean with a mild fabric cleaner if necessary. Do not use abrasive cleaners, harsh chemicals, or excessive moisture.
- Inspection: Periodically check all bolts and screws to ensure they are tight. Re-tighten if necessary to prevent wobbling and ensure structural integrity.
- Environment: Avoid placing the chair in direct sunlight or near heat sources, as this can cause the wood to dry out, crack, or the fabric to fade. Maintain a stable room temperature and humidity.

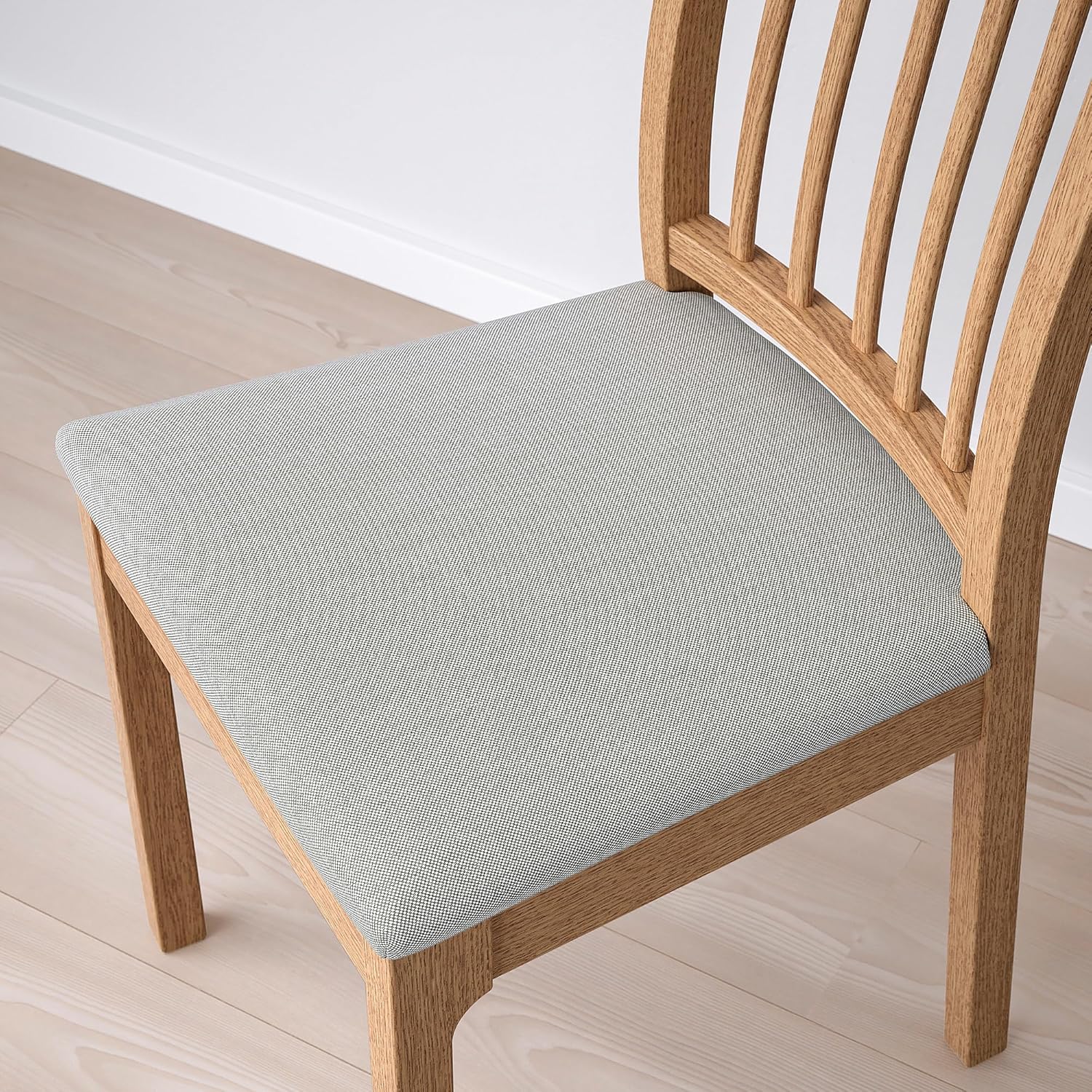

Image 5.1: Detail of the durable, light grey fabric upholstery on the chair seat, which is easy to spot clean.
6. Troubleshooting
Most common issues with the EKEDALEN chair can be resolved with simple adjustments.
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair wobbles or is unstable. | Uneven floor or loose connections. | Ensure the chair is on a flat, level surface. Check and tighten all assembly screws and bolts. |
| Squeaking noise during use. | Loose joints or friction between parts. | Tighten all screws. If squeaking persists, disassemble and reassemble, ensuring all parts are correctly aligned. A small amount of silicone-based lubricant on joints may help. |
| Fabric appears dirty or stained. | Accumulated dirt or spills. | Spot clean with a mild fabric cleaner and a soft, clean cloth. Blot the stain, do not rub. Allow to air dry completely. |
7. Specifications
Detailed specifications for the EKEDALEN chair:
- Brand: Generic
- Model Name: EKEDALEN
- Overall Dimensions (Depth x Width x Height): 20.08"D x 17.72"W x 37.4"H (51 cm x 45 cm x 95 cm)
- Seat Width: 17.72" (45 cm)
- Seat Depth: 15.35" (39 cm)
- Seat Height: 18.9" (48 cm)
- Maximum Load Capacity: 110 kg (242 lbs)
- Back Style: Solid Back
- Arm Style: Armless
- Fill Material: Foam
- Furniture Finish: Oak effect
- Pattern: Solid
- Recommended Uses: Dining, Office
- Indoor/Outdoor Usage: Indoor only
- Product Care Instructions: Wipe Clean

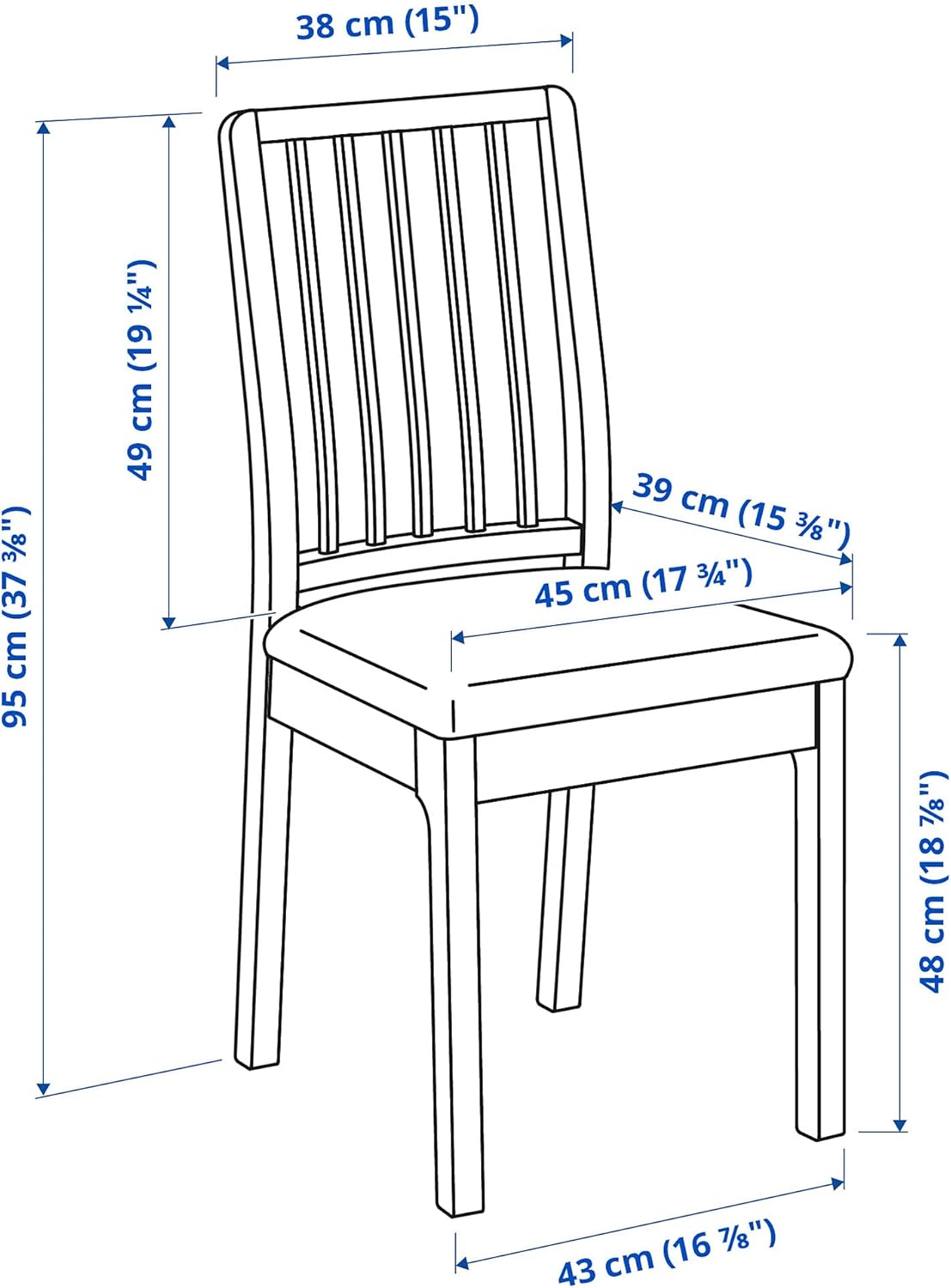

Image 7.1: Dimensional drawing of the EKEDALEN chair, indicating height, width, and depth measurements for accurate placement.
8. Warranty and Support
For warranty information and customer support, please refer to the documentation included with your purchase or contact the seller directly. The manufacturer is ProTuning.
Protection plans may be available for extended coverage. Please check with your retailer for details on available plans, such as 2-Year or 3-Year Protection Plans, to safeguard your investment.
For direct support regarding this product, you may contact the seller: Fast Shipping Tuning US.
