Introduction
Thank you for choosing the ANRÄTTA Forced Air Oven. This manual provides essential information for the safe and efficient use, installation, and maintenance of your new appliance. Please read it thoroughly before first use and keep it for future reference.
Key Features:
- Forced Air Heating for even cooking.
- 71 litres capacity.
- Stainless Steel finish.
- Built-In installation type.
Setup and Installation
The ANRÄTTA oven is designed for built-in installation. Professional installation is recommended to ensure proper electrical connection and ventilation.
Pre-Installation Checks:
- Ensure the installation cabinet dimensions match the oven's specifications.
- Verify the electrical supply meets the oven's power requirements.
- Unpack the oven and remove all packaging materials and accessories from inside the oven cavity.
Installation Steps:
- Carefully slide the oven into the prepared cabinet opening.
- Secure the oven to the cabinet using the provided screws.
- Connect the oven to the electrical supply according to local regulations and the wiring diagram (not included in this manual, refer to separate installation guide).
- Perform a test run to ensure all functions are operating correctly.
Operating Instructions
The ANRÄTTA oven features intuitive controls for various cooking functions. Familiarize yourself with the control panel before operation.
Control Panel Overview:
The control panel typically includes a digital display, function selector knob, temperature control knob, and various touch buttons for settings like timer, start/stop, and light.
Basic Operation:
- Turn On: Rotate the function selector knob to choose your desired cooking mode (e.g., Forced Air, Convection).
- Set Temperature: Use the temperature control knob to set the desired cooking temperature. The display will show the set temperature.
- Set Time (Optional): If available, use the timer function to set a cooking duration.
- Preheat: Allow the oven to preheat to the set temperature before placing food inside. The oven will indicate when preheating is complete.
- Place Food: Carefully place food inside the oven using appropriate bakeware.
- Monitor: Periodically check on your food. The oven light can be turned on for better visibility.
- Turn Off: Once cooking is complete, turn the function selector knob to the 'Off' position.
Accessories:
The oven comes with standard accessories such as baking trays and a wire rack, designed for optimal cooking performance.
Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your ANRÄTTA oven.
General Cleaning:
- Always ensure the oven is cool before cleaning.
- Wipe the interior and exterior surfaces with a soft cloth and mild detergent. Avoid abrasive cleaners or scouring pads, especially on stainless steel surfaces.
- For stubborn stains, use a specialized oven cleaner, following the product's instructions carefully.
- Clean the oven door glass with a glass cleaner.
- Remove and clean oven racks and trays separately in warm soapy water.
Defrost System:
The oven features a Hot Air Defrost system. Ensure the oven cavity is clean to allow for efficient defrosting.
Troubleshooting
Before contacting customer service, please refer to the following common issues and their potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven does not turn on | No power supply; Door not closed properly; Control panel locked. | Check power outlet and circuit breaker; Ensure door is fully closed; Unlock control panel if applicable. |
| Uneven cooking | Improper rack position; Overcrowding; Fan malfunction. | Use recommended rack positions; Do not overcrowd oven; Contact service if fan is not working. |
| Oven light not working | Bulb burnt out. | Replace the oven light bulb (refer to specific instructions for bulb type and replacement). |
| Excessive smoke during cooking | Food spills; Grease buildup. | Clean oven interior thoroughly; Use appropriate bakeware to prevent spills. |
Technical Specifications
Detailed specifications for the ANRÄTTA Forced Air Oven.
| Feature | Detail |
|---|---|
| Brand | Generic |
| Model Number | IK.604.117.20 |
| Capacity | 71 litres |
| Installation Type | Built-In |
| Special Features | Forced Air Heating |
| Heating Method | Convection |
| Colour | Stainless Steel |
| Defrost System | Hot Air Defrost |
| Material Type | Stainless Steel |

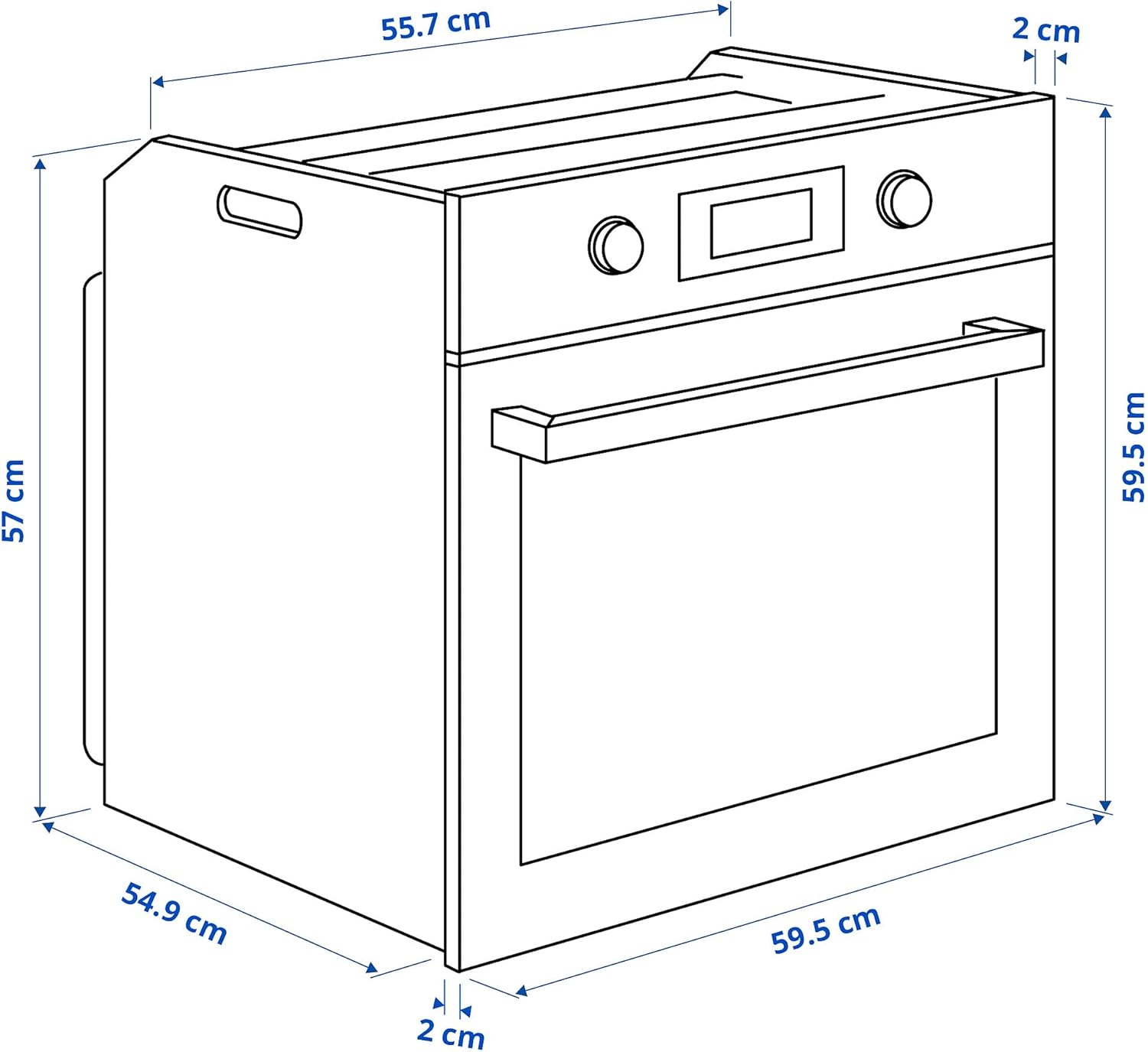

| Assembled Width | 59.5 cm |
| Assembled Depth | 56.9 cm |
| Assembled Height | 59.5 cm |
| Cord Length | 90.0 cm |
| Manufacturer | ProTuning |
| Country of Origin | Latvia |
Warranty and Support
Warranty Information:
The ANRÄTTA Forced Air Oven comes with a 5-year guarantee. Please refer to the guarantee brochure provided with your purchase for full terms and conditions.
Customer Support:
For technical assistance, spare parts, or warranty claims, please contact your retailer or the manufacturer, ProTuning. Ensure you have your model number (IK.604.117.20) and purchase date available when contacting support.
Important note for customers outside the EU: You may be subject to import duty and tax. Please check with your local postal or tax office regarding import regulations before contacting support for related inquiries.
