Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Generic HJÄLPA Soft-Close Hinge. Designed for smooth and quiet door closure, this hinge features an integrated damper mechanism. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
Product Features
- Soft-Close Mechanism: Integrated damper ensures doors close slowly, silently, and gently, preventing slamming.
- Durable Finish: Electroplated finish provides enhanced durability and corrosion resistance.
- Door-Mounted Design: Specifically designed for secure and stable door mounting.
Safety Information
Always handle tools and hardware with care. Wear appropriate safety gear, such as gloves and eye protection, during installation. Keep small parts away from children. Ensure all screws are tightened securely to prevent accidents. Do not modify the hinge or use it for purposes other than its intended design.
Package Contents
Please verify that all components are present before beginning installation. The package typically includes:
- HJÄLPA Soft-Close Hinge(s)
- Mounting Screws (quantity may vary)
Note: Specific quantities may vary based on the product variant purchased.
Setup and Installation
The HJÄLPA hinge is designed for door mounting. Follow these general steps for installation. Specific door and cabinet designs may require slight variations.
- Prepare the Door and Cabinet: Ensure the door and cabinet frame are clean and free of debris. Mark the desired hinge placement on both the door and the cabinet.
- Attach Hinge to Door: Position the hinge on the door according to your markings. Secure it using the provided mounting screws. Ensure the hinge is flush and level.
- Attach Hinge to Cabinet: Align the door with the cabinet opening. Position the other part of the hinge onto the cabinet frame. Secure it with the remaining mounting screws.
- Test and Adjust: Gently open and close the door to test the soft-close function. If necessary, make minor adjustments to the hinge screws to achieve perfect alignment and smooth operation.

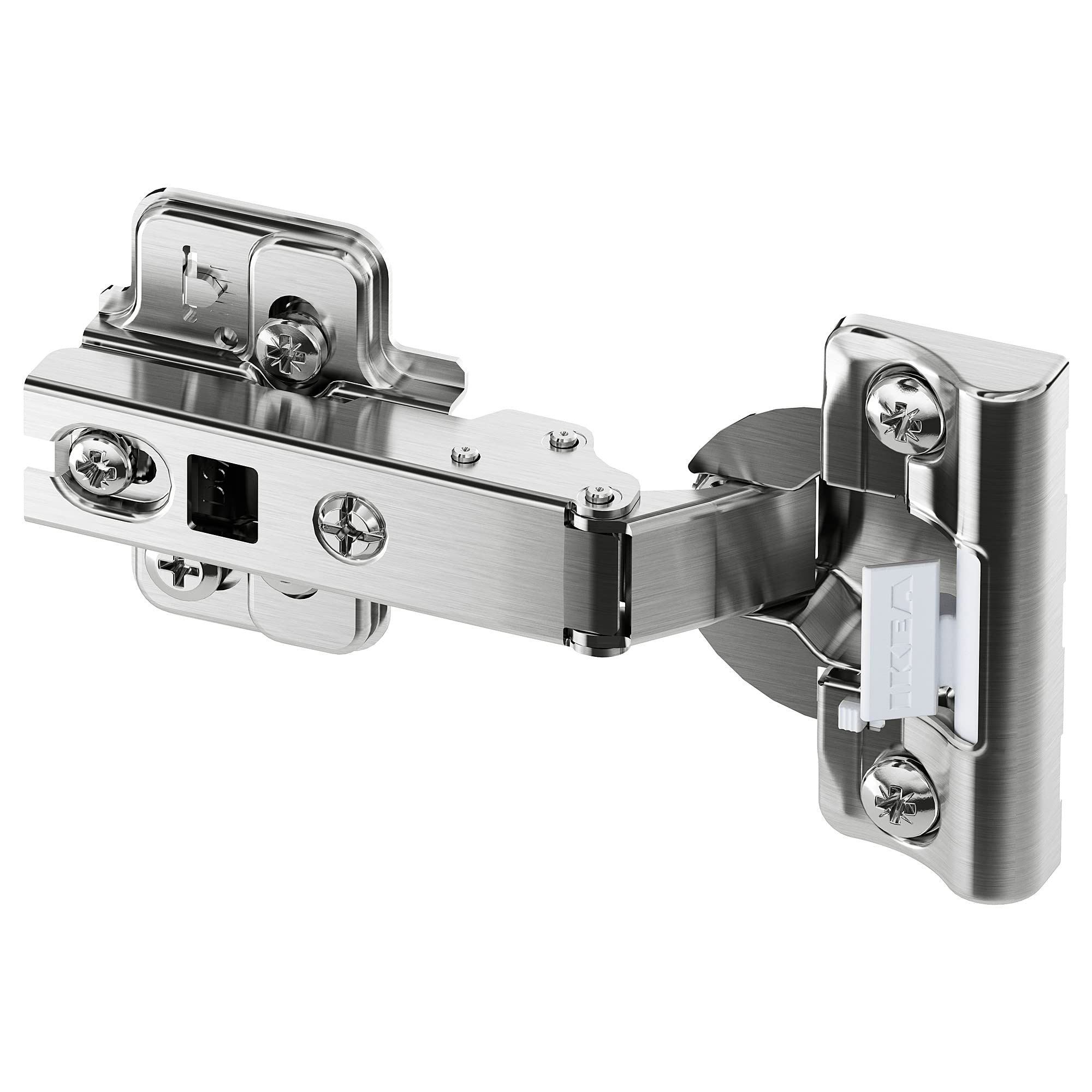

Image: The Generic HJÄLPA Soft-Close Hinge, showing its electroplated finish and design for door mounting.
Operating Instructions
The HJÄLPA soft-close hinge operates automatically. When closing the door, the integrated damper will engage, slowing the door's movement in the final few centimeters of its closing path. This ensures a gentle and silent closure.
- Opening: Simply open the door as you normally would. The hinge offers standard resistance during opening.
- Closing: Push the door gently towards the closed position. The soft-close mechanism will take over, pulling the door shut quietly and smoothly. Do not force the door closed against the soft-close mechanism.
Maintenance
Regular maintenance will help prolong the life and performance of your hinge.
- Cleaning: Wipe the hinge surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the electroplated finish.
- Lubrication: The soft-close mechanism is generally maintenance-free. If you notice any squeaking or stiffness over time, a small amount of silicone-based lubricant can be applied to the moving parts, avoiding the damper mechanism itself.
- Tightening Screws: Periodically check all mounting screws and tighten them if they have become loose.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Door slams shut. | Soft-close mechanism not engaging or damaged. | Check for obstructions. Ensure the hinge is installed correctly. If damaged, consider replacement. |
| Door does not close completely. | Misalignment or obstruction. | Adjust hinge alignment. Check for anything blocking the door's path. |
| Squeaking noise during operation. | Lack of lubrication or loose parts. | Apply a small amount of silicone-based lubricant to moving parts (avoiding the damper). Tighten all screws. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Generic |
| Model | HJÄLPA B0D1CP9NNP |
| Finish Type | Electroplated |
| Mounting Type | Door Mount |
| Manufacturer | ProTuning |
| ASIN | B0D1CP9NNP |
Warranty and Support
This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty details, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or inquiries, please reach out to the seller or manufacturer through your purchase platform.
