1. Introduction
Thank you for choosing the Tamobyke V20 4.0 Electric Dirt Bike. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new electric bike. Please read this manual thoroughly before your first ride to ensure proper use and to maximize your riding experience. Keep this manual for future reference.

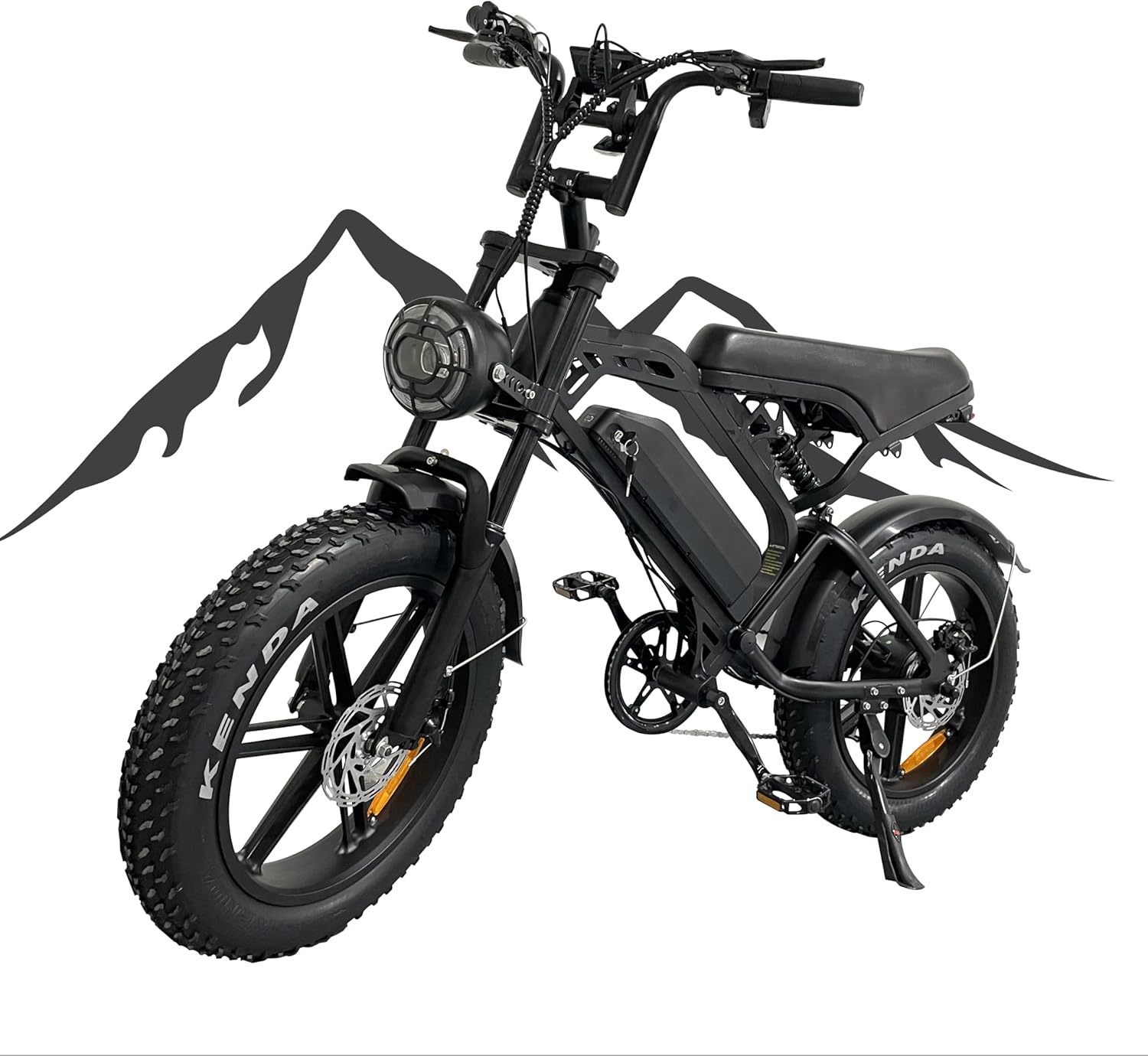

Image: The Tamobyke V20 4.0 Electric Dirt Bike, showcasing its robust frame, fat tires, and integrated headlight.
2. Safety Information
Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to local traffic laws and regulations. Perform a pre-ride inspection before each use, checking brakes, tire pressure, and battery level. Avoid riding in adverse weather conditions or on unsafe terrain. Do not exceed the maximum load capacity of 350 pounds (158 kg).
3. Product Overview & Features
The Tamobyke V20 4.0 is a high-performance electric dirt bike designed for versatile riding. It features a powerful 1000W motor, a 48V 15Ah battery, and a top speed of 28 MPH. Key features include:
- Advanced IPX7 Waterproof 3.0 LED Display: Provides comprehensive ride data including battery status, speed, modes, and mileage.
- Versatile Riding Modes: Offers five distinct modes for a customizable riding experience.
- Efficient Dual Hydraulic Disc Brake System: Ensures reliable stopping power in various conditions.
- Full Suspension: Dual shock absorbers for a smoother ride over varied terrain.
- 20-inch Fat Tires: Provides excellent stability and grip on diverse surfaces.
- Timeless and Sturdy Design: Integrated matte finish frame capable of supporting riders up to 350 lbs.
Image: An overview of key specifications including 48V 15AH battery, 1000W Hub Motor, estimated range, and 20x4.0 inch All Terrain Fat Tires.

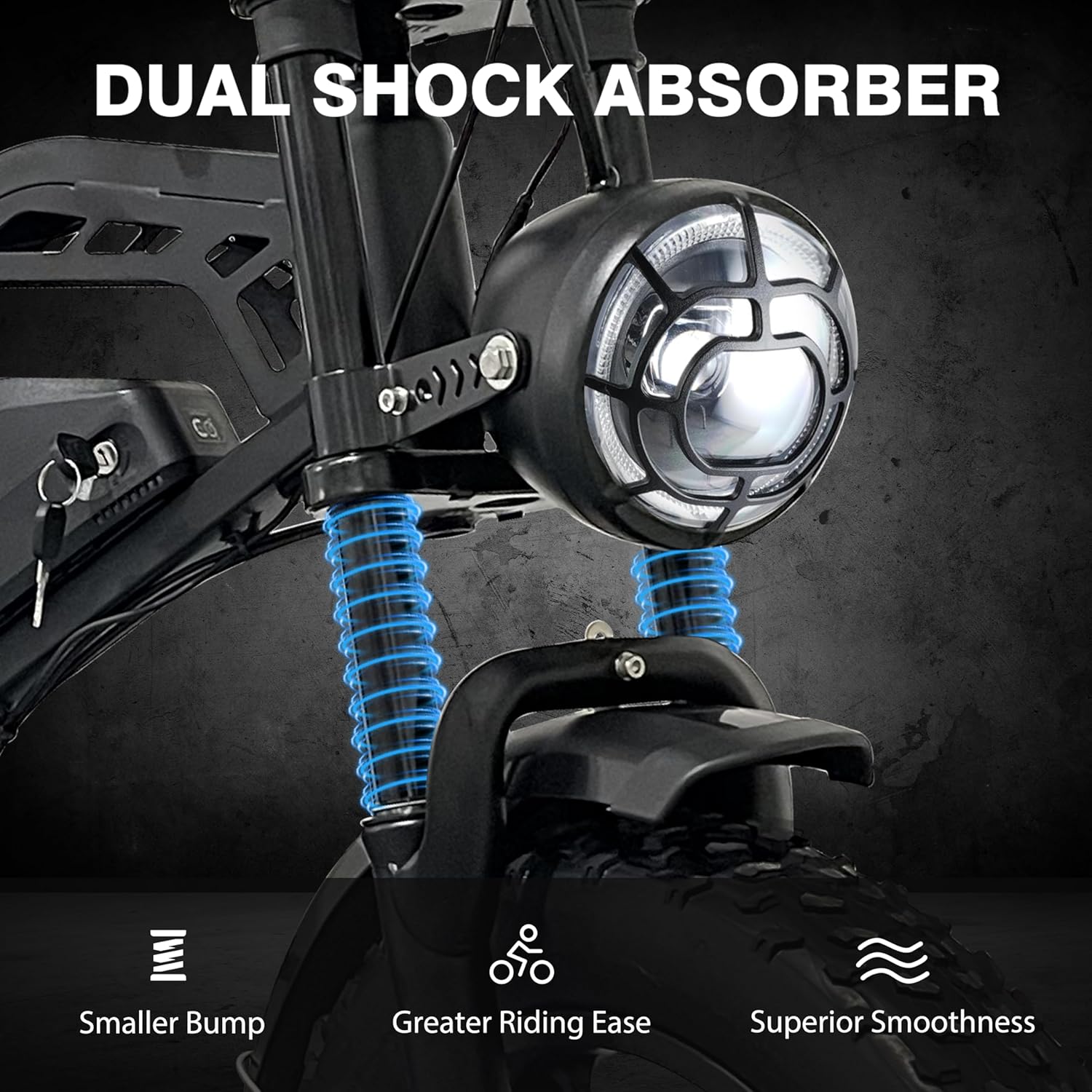

Image: Close-up of the dual shock absorber system on the front fork, highlighting its role in reducing bumps and improving ride smoothness.
Image: The bike's bright LED headlight and rear taillight, designed to ensure safe riding in various road conditions, especially at night.
Image: A visual representation of the large 15.6AH battery, emphasizing its capacity and features like being removable and waterproof.
4. Setup & Assembly
The Tamobyke V20 4.0 requires some assembly upon arrival. Please follow the detailed instructions provided in the separate assembly guide included with your bike. Ensure all components are securely fastened before your first ride.
4.1 Initial Battery Charging
Before your first ride, fully charge the battery. The 48V 15Ah lithium-ion battery can be charged directly on the bike or removed for charging. A full charge typically takes 6-8 hours. Use only the provided charger.
Image: Illustrates the dual brake system and the removable battery, showing options for direct charging or charging after removal.
5. Operating Instructions
5.1 Riding Modes
The V20 4.0 offers five distinct riding modes:
- Bike Mode: Power off, functions as a normal bicycle with pedal power only.
- Pedal-Assist Mode: Power on, provides motor assistance while pedaling. Max speed 28 MPH.
- Cruise Control Mode: In pure electric mode, press the power switch on the dashboard to activate.
- Throttle Mode: Power on, no need to pedal, uses throttle for propulsion. Max speed 28 MPH.
- Walk Assist Mode: Provides assistance at a slow speed (approx. 2.8 MPH) for walking the bike.
The bike is also equipped with a 7-speed shifter gear for precise gear changes.

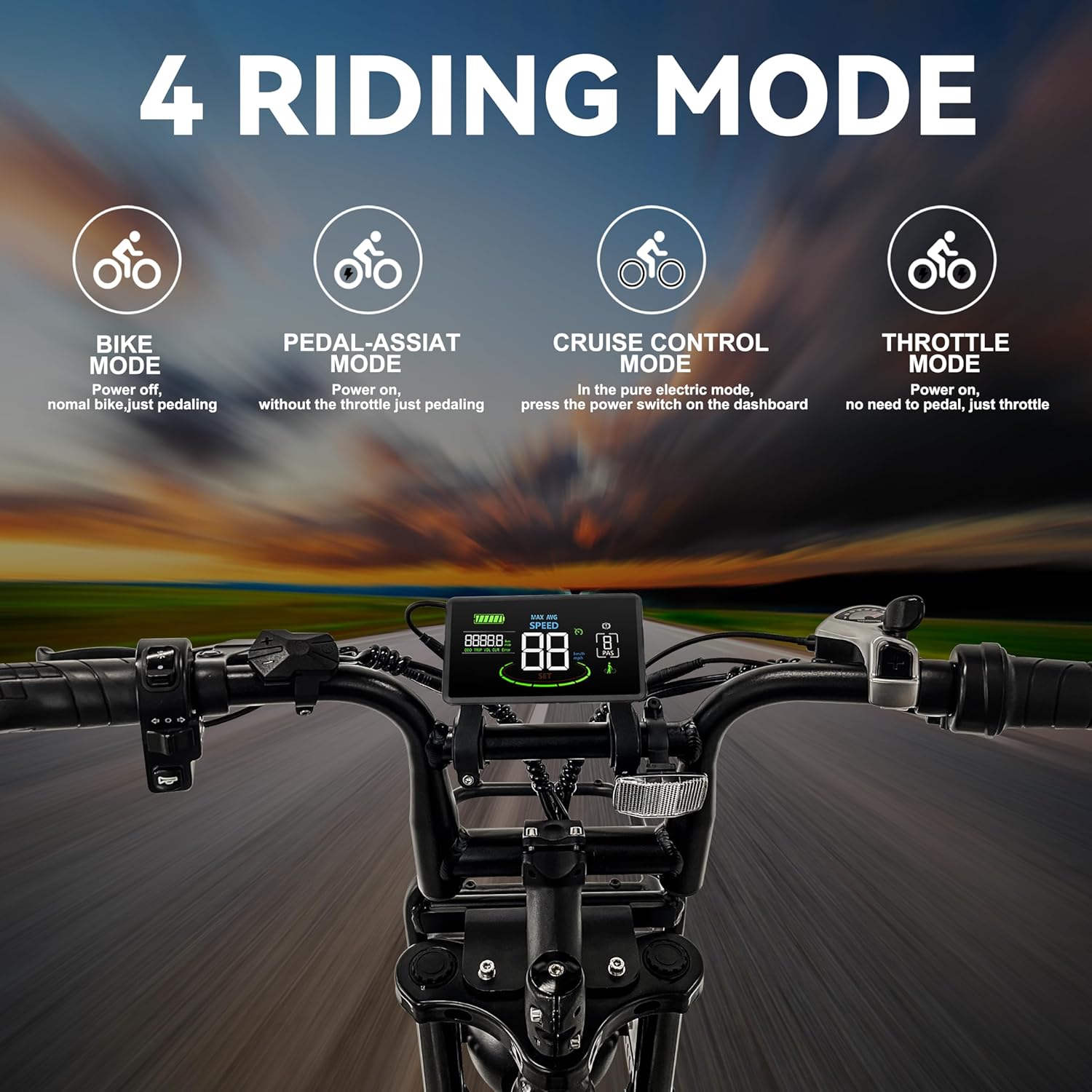

Image: A visual guide to the four primary riding modes: Bike Mode, Pedal-Assist Mode, Cruise Control Mode, and Throttle Mode.
5.2 LED Display Operation
The clear LED display provides real-time information. Familiarize yourself with the display functions:
- Battery Status: Indicates remaining battery charge.
- Speed: Current riding speed.
- Modes: Shows the active riding mode.
- Mileage: Displays trip distance and total odometer.
- PAS Level: Pedal Assist System level (1-5).
Image: A detailed view of the LED display on the handlebars, with labels pointing to various indicators such as Max/Avg speed, Battery, Speed, Odo/Trip, Vol/Cur, Cruise Control, Brake, Walk, and PAS.
5.3 Braking System
The bike is equipped with an efficient dual hydraulic disc brake system. Apply both front and rear brakes simultaneously for optimal stopping power. Regularly check brake pads and rotors for wear.
6. Maintenance
Regular maintenance ensures the longevity and performance of your Tamobyke V20 4.0.
- Tires: Check tire pressure before each ride. Recommended pressure is typically found on the tire sidewall. Inspect for wear and punctures.
- Brakes: Inspect brake levers, cables, pads, and rotors regularly. Adjust or replace components as needed.
- Chain: Keep the chain clean and lubricated to prevent rust and ensure smooth shifting.
- Battery: Store the battery in a cool, dry place. Charge it regularly, even if not in use, to maintain battery health. Avoid fully discharging the battery.
- Frame & Components: Periodically check all bolts and fasteners for tightness. Clean the bike with a damp cloth; avoid high-pressure washing directly on electrical components.
7. Troubleshooting
This section addresses common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike not powering on | Battery not charged or not properly seated; power button not pressed. | Ensure battery is fully charged and securely installed. Press and hold the power button. |
| Motor not assisting | PAS level too low; brake levers engaged; motor connection loose. | Increase PAS level. Release brake levers. Check motor cable connections. |
| Brakes feel weak | Worn brake pads; air in hydraulic lines; misaligned calipers. | Inspect and replace brake pads. Bleed hydraulic lines (professional service recommended). Adjust caliper alignment. |
| Short battery range | Battery not fully charged; riding in high-power modes; low tire pressure; cold weather. | Fully charge battery. Use lower PAS levels. Maintain proper tire pressure. Battery performance decreases in cold. |
8. Specifications
Detailed specifications for the Tamobyke V20 4.0 Electric Dirt Bike:
Image: A size guide for the V20 3.0 (similar to 4.0), showing total height (45.2"), total length (64"), seat height (32.6"), bike weight (84 lbs), max load (265 lbs), and recommended rider height (5.5-6.5 ft).
Image: A diagram illustrating various dimensions of the bike, including total length (A), total height (B), seat height (C), seat length (D), battery length (E), and head length (F).
| Feature | Specification |
|---|---|
| Bike Type | Road Bike (suitable for various terrains) |
| Motor | 1000W (750W Brushless Motor mentioned in image) |
| Max Speed | 28 MPH |
| Battery | 48V 15Ah Lithium-ion (Removable) |
| Range | 30-80 Miles (depending on assist level and conditions) |
| Wheel Size | 20 Inches (4-inch fat tires) |
| Frame Material | Alloy Steel |
| Suspension Type | Dual (Front and Rear Shock Absorbers) |
| Brake Style | Hydraulic Disc |
| Number of Speeds | 7 |
| Max Load Capacity | 350 lbs (158 kg) |
| Included Components | Charger, E Bike Accessory Kit, Electric Bike |
| Assembly Required | Yes |
| Model Name | v20-0410-6 |
9. Warranty & Support
The Tamobyke V20 4.0 Electric Dirt Bike comes with a One Year Warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.
For technical support, warranty claims, or replacement parts, please contact Tamobyke customer service. You can find more information and contact details on the official Tamobyke store page: Tamobyke Store.
Always refer to the official Tamobyke website or contact their support for the most up-to-date information and assistance.
