LRFDRESS ZR005202

LRFDRESS ZR005202 HEPA Filter Replacement Manual

For Rowenta X-Pert 160 and X-Pert 3.60 Vacuum Cleaners

1. Introduction

This instruction manual provides essential information for the proper installation, maintenance, and replacement of the LRFDRESS ZR005202 HEPA filter. This filter is designed as a replacement part for specific Rowenta X-Pert series cordless vacuum cleaners, ensuring continued optimal performance and air filtration.

2. Compatibility

The LRFDRESS ZR005202 filter is compatible with the following Rowenta X-Pert vacuum cleaner models:

  • Rowenta X-Pert 160 (RH72 series): MS722, MS723, RH722, RH723, X-Pert Easy 160 RH723
  • Rowenta X-Pert 3.60 (RH69 series): RH692, RH693, RH697, TY693, TY697, X-Pert 360 RH723, TY723, X-Pert 360 Easy TY723

Please verify your vacuum cleaner's model number to ensure compatibility.

3. Installation (Setup)

Follow these steps to replace the filter in your Rowenta X-Pert vacuum cleaner. Always ensure the vacuum cleaner is turned off and unplugged (if applicable) before performing any maintenance.

  1. Locate the Dust Bin: Identify and remove the dust bin from your vacuum cleaner. Refer to your vacuum cleaner's original manual for specific instructions on dust bin removal.
  2. Remove the Old Filter: Inside the dust bin, you will find the existing filter. Gently twist or pull the old filter to remove it. Dispose of the old filter responsibly.
    Bottom view of the ZR005202 HEPA filter, showing the base and pleated filter material.

    Image: The bottom view of the filter, illustrating the part that connects to the vacuum's dust bin.

  3. Insert the New Filter: Take the new LRFDRESS ZR005202 HEPA filter. Align the new filter with the slot in the dust bin and push it firmly into place until it is securely seated. Ensure the rubber seal is properly positioned to prevent air leakage.
    Top view of the ZR005202 HEPA filter, showing the top opening and rubber seal.

    Image: The top view of the filter, showing the opening where air enters and the sealing ring.

  4. Reattach the Dust Bin: Once the new filter is installed, reattach the dust bin to the vacuum cleaner, ensuring it clicks securely into position.

4. Maintenance

Regular cleaning and timely replacement of your filter are crucial for maintaining your vacuum cleaner's suction power and filtration efficiency.

4.1 Filter Cleaning

  • Remove the filter from the dust bin as described in the 'Installation' section.
  • Tap the filter gently over a waste bin to remove loose dust and debris.
  • Rinse the filter under cool, running water until the water runs clear. Do not use hot water or detergents.
  • Gently squeeze out excess water.
  • Allow the filter to air dry completely for at least 24 hours before reinstallation. Do not use a dryer or direct heat, as this can damage the HEPA material.
  • Ensure the filter is completely dry before placing it back into the vacuum cleaner to prevent mold growth and damage to the vacuum.

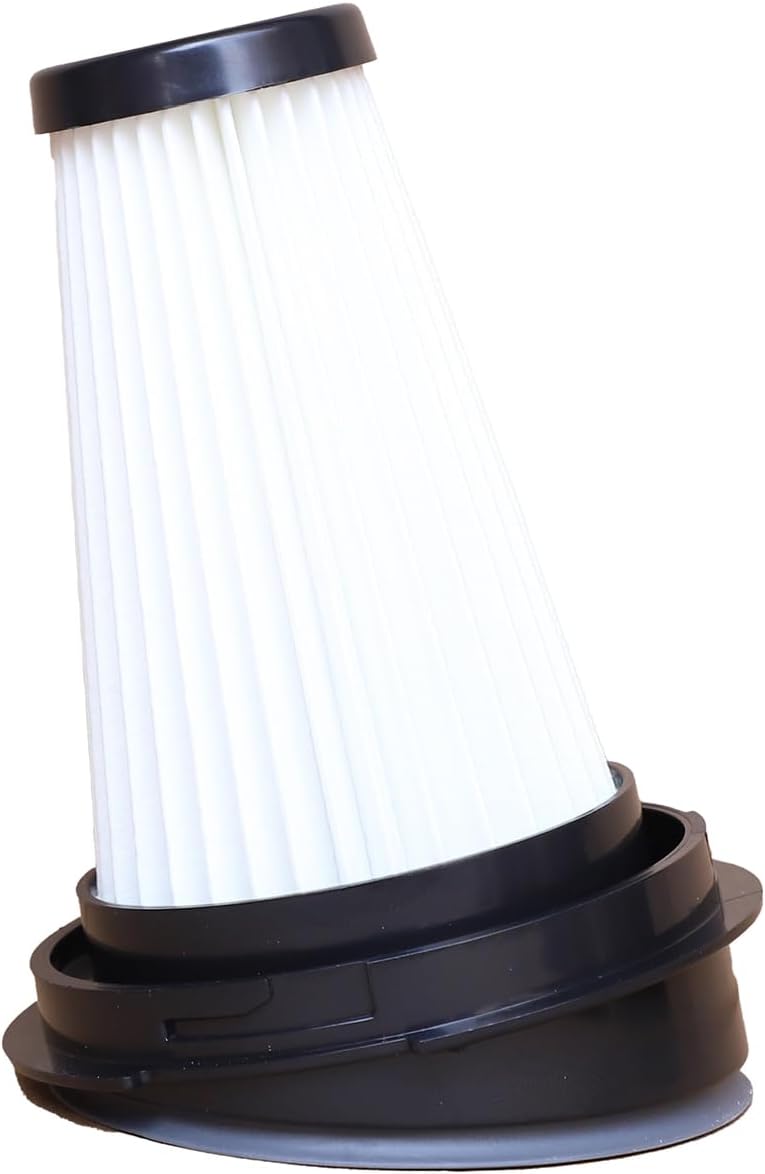

Angled view of the ZR005202 HEPA filter, showing the pleated material and plastic frame.

Image: An angled view of the filter, suitable for illustrating the cleaning process.

4.2 Filter Replacement

For optimal performance, it is recommended to replace the filter every 3 to 6 months, depending on usage frequency and household dust levels. If you notice a decrease in suction power, unusual odors, or visible damage to the filter, replace it immediately.

5. Troubleshooting

If you experience issues with your vacuum cleaner after filter replacement, consider the following:

  • Reduced Suction Power:
    • Check if the filter is installed correctly and securely.
    • Ensure the filter is clean and completely dry. A wet or heavily clogged filter will restrict airflow.
    • Verify that the dust bin is properly attached and not full.
  • Unusual Noise or Odor:
    • A damaged or improperly installed filter can cause unusual noises. Re-check installation.
    • Persistent odors may indicate the filter needs a thorough cleaning or replacement.
  • Dust Leakage:
    • Ensure the filter's rubber seal is intact and properly seated in the dust bin to prevent dust from escaping.

6. Specifications

Key specifications for the LRFDRESS ZR005202 HEPA Filter:

  • Model Number: ZR005202
  • Material: HEPA
  • Reusability: Reusable (Washable)
  • Product Dimensions: Approximately 4.33 inches (110mm) Length x 2.76 inches (70mm) Width x 1.18 inches (30mm) Height (at base)
  • Weight: Approximately 3.17 ounces (90 grams)
  • Package Contents: 2 x ZR005202 Vacuum Cleaner Filters
ZR005202 HEPA filter with dimensions labeled: 70mm width, 95mm height, 110mm total height, 30mm base width.

Image: The filter shown with its key dimensions for reference.
