COVERONICS CO-PYDS23-G005Gr

COVERONICS 10FT x 10FT Patio Polycarbonate Hardtop Gazebo User Manual

Model: CO-PYDS23-G005Gr

Product Overview

The COVERONICS 10FT x 10FT Patio Polycarbonate Hardtop Gazebo is designed to provide a comfortable and protected outdoor space. It features a robust powder-coated steel frame and a durable polycarbonate roof that filters out 99% of UV rays. The gazebo is equipped with double tracks for breathable netting and shaded curtains, offering flexibility for ventilation, privacy, and sun protection. Its sturdy construction is suitable for various outdoor environments, including patios, lawns, gardens, and poolside areas.

COVERONICS 10FT x 10FT Patio Polycarbonate Hardtop Gazebo setup in an outdoor patio setting with furniture.

Image: The COVERONICS 10FT x 10FT Patio Polycarbonate Hardtop Gazebo, showcasing its spacious interior with outdoor furniture, ideal for relaxation and entertaining.

Key Features

  • Powder-Coated & Reinforced Steel Frame: Constructed with a strong, all-weather resistant steel frame and reinforced steel tubes for durability. Features pre-drilled holes and ground stakes for enhanced stability.
  • Permanent Polycarbonate Roof: Filters 99% of UV rays and helps keep the interior cooler. The sloped design ensures quick water runoff, and the roof is stable enough for heavy snow and wind. Includes a top hook for hanging lights or decorations.
  • Convenient Double Track Design: Equipped with double tracks and hooks for hanging curtains and breathable netting, allowing easy adjustment for desired coverage, ventilation, or privacy.
  • Versatile Application: Ideal for various outdoor settings such as backyards, lawns, decks, gardens, and poolside areas, perfect for grilling, barbecues, parties, or leisure.
Diagram showing the dimensions of the 10FT x 10FT gazebo and icons for sun-shading, easy setup, waterproof, and portable.

Image: A dimensional diagram of the 10FT x 10FT gazebo, highlighting its weather-resistant features and ease of setup.

Setup Instructions

Assembly of the COVERONICS Gazebo requires careful attention to detail. It is recommended to have at least two people for assembly. Please ensure all components are present before beginning.

  1. Unpacking: The gazebo is typically packed in three separate boxes. These boxes may arrive at different times. Please wait for all boxes to be delivered before starting assembly. Carefully unpack all components and verify against the parts list provided in your package.
  2. Frame Assembly: Follow the detailed instructions in your included assembly guide to connect the powder-coated steel frame components. Pay close attention to the orientation of each piece.
  3. Roof Panel Installation: Install the polycarbonate roof panels according to the guide. Ensure panels are securely fitted to provide optimal UV protection and weather resistance.
  4. Curtain and Netting Attachment: Attach the breathable netting and shaded curtains to the double tracks using the provided hooks.
  5. Anchoring: For maximum stability and safety, it is highly recommended to mount the gazebo on a stable concrete or wooden board using appropriate expansion screws. Ensure the feet are securely fastened to the ground.
Image showing the gazebo with different weather conditions: sunny, rainy, snowy, and icons for spring, summer, autumn, winter.

Image: The gazebo designed to withstand various weather conditions throughout all four seasons.

Close-up images of the gazebo's sturdy steel triangle structure and robust footrest bracket with pre-drilled holes for anchoring.

Image: Detailed view of the sturdy steel triangle structure and robust footrest bracket, emphasizing the stability and ease of anchoring.

Operating Instructions

  • Adjusting Curtains and Netting: The gazebo features a double track system. To adjust the curtains or netting, simply slide them along the tracks. Use the hook and loop fastener straps to secure them in an open or closed position as desired for privacy, shade, or ventilation.
  • Hanging Accessories: A central hook is located on the interior roof structure. This hook can be used to hang lightweight items such as decorative lights or a small fan to enhance your outdoor experience.

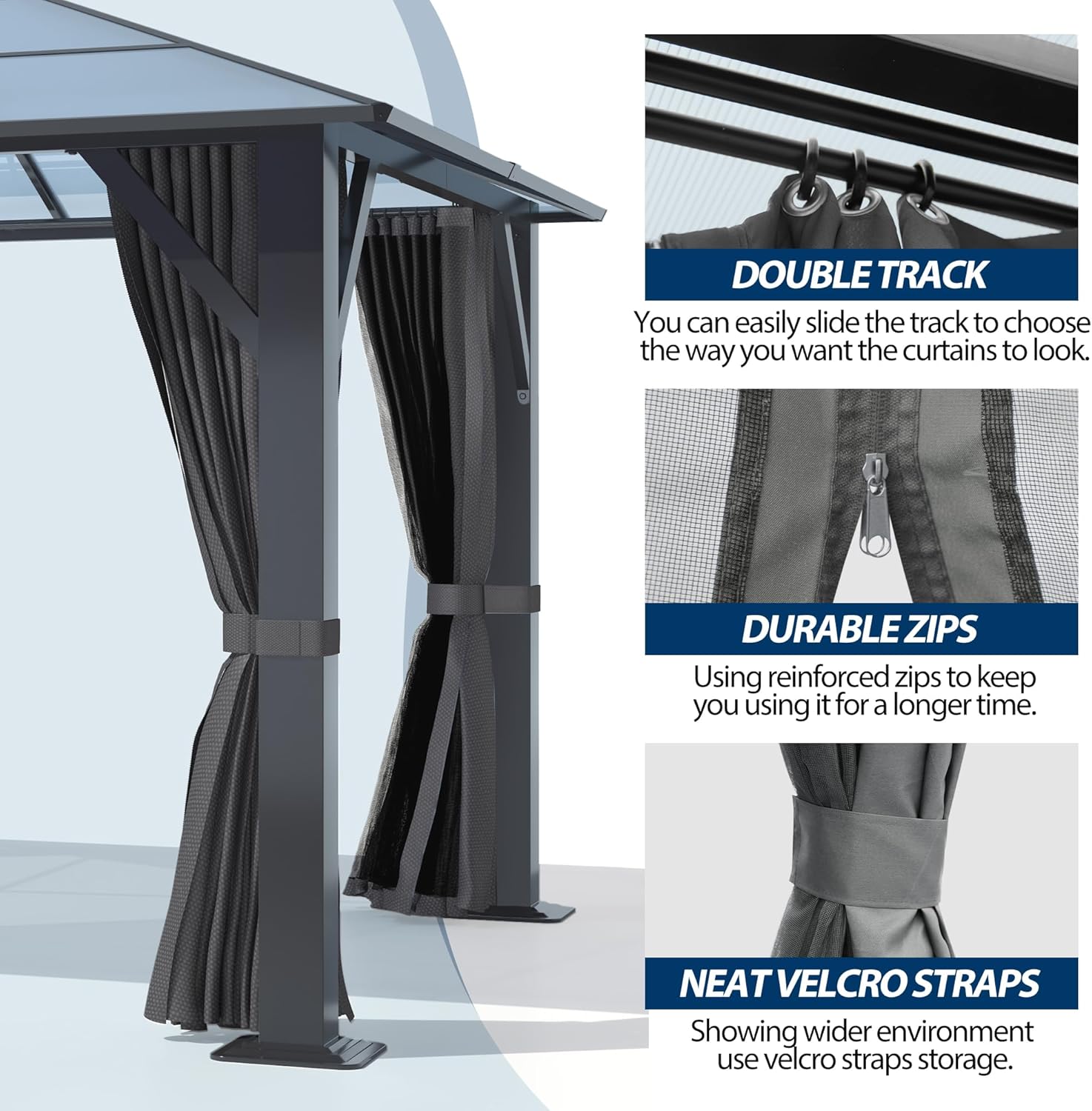

Close-up images detailing the double track system for curtains, durable zippers on netting, and neat Velcro straps for securing curtains.

Image: Features of the curtain and netting system, including the double track, durable zippers, and Velcro straps for easy adjustment and secure storage.

Close-up of the central hook on the gazebo roof, indicating its use for hanging lamps, fans, or decorations.

Image: The integrated ceiling hook, designed for hanging lights, fans, or other decorative elements to personalize your gazebo space.

Maintenance

  • Roof Care: In winter, it is crucial to clear snow from the polycarbonate roof in a timely manner to prevent excessive weight accumulation and potential collapse.
  • General Cleaning: Regularly clean the frame and roof panels with mild soap and water. Avoid abrasive cleaners or tools that could scratch the surfaces.
  • Fabric Care: Curtains and netting can be spot cleaned as needed. For deeper cleaning, refer to any specific care instructions provided with the fabric components.
  • Hardware Inspection: Periodically check all bolts, screws, and connections to ensure they remain tight and secure. Tighten any loose hardware to maintain structural integrity.
Image showing the multi-layered polycarbonate roof with anti-UV, sound insulation, heat insulation, anti-aging, and waterproof layers.

Image: Cross-section view of the grey polycarbonate board roof, illustrating its multi-layered construction for enhanced durability and protection.

Troubleshooting

ProblemPossible CauseSolution
Gazebo feels unstable after assembly.Improper anchoring or loose connections.Ensure the gazebo is securely mounted to a concrete or wooden surface using appropriate expansion screws. Double-check all frame connections and tighten any loose bolts.
Water pooling on the roof.Excessive snow accumulation or debris.Regularly clear snow, leaves, and other debris from the roof to maintain proper water runoff.
Curtains/netting not sliding smoothly.Debris in tracks or damaged hooks.Clean the double tracks to remove any obstructions. Inspect hooks for damage and replace if necessary.
Missing parts upon delivery.Shipment arrived in multiple boxes or packing error.Verify if all three boxes have arrived. If parts are still missing, contact COVERONICS customer service immediately with your order details.

Specifications

  • Brand: COVERONICS
  • Model Number: CO-PYDS23-G005Gr
  • Material: Polycarbonate Roof, Alloy Steel Frame
  • Product Dimensions: 116.16"L x 116.16"W x 104.28"H (approx. 10FT x 10FT x 8.7FT)
  • Item Weight: 143.3 Pounds
  • Floor Area: 100 Square Feet
  • Water Resistance Level: Waterproof
  • Ultraviolet Light Protection: UV Protection (99% UV rays filtered)
  • Assembly Required: Yes
  • Color: Polycarbonate Top (Roof), Dark Grey (Frame/Curtains)

Customer Support & Warranty

COVERONICS is committed to providing excellent customer service. If you have any questions, concerns, or require assistance with your gazebo, please do not hesitate to contact our service team. We are dedicated to helping you resolve any issues.

While specific warranty details are not provided in this manual, please refer to your purchase documentation or contact COVERONICS directly for information regarding product warranty and return policies. The standard return policy allows for returns within 30 days of purchase.

For support, please visit the official COVERONICS website or contact the seller directly through your purchase platform.
