1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your REPTI ZOO 68 Gallon Reptile Enclosure. This enclosure is designed for tropical and desert reptiles requiring specific humidity and temperature conditions, such as bearded dragons, leopard geckos, chameleons, lizards, snakes, ball pythons, and turtles.
Key features include:
- Superior Insulation: Wooden construction offers better temperature regulation than traditional glass tanks.
- Optimal Ventilation: Removable mesh screen top ensures ample airflow and allows full-spectrum, UVB, and IR light penetration.
- Natural Aesthetic: Wood grain texture and eco-friendly materials provide a naturalistic and safe environment.
- Secure Access: Detachable tempered glass sliding doors with safety locks prevent escapes and facilitate easy cleaning and feeding.
- Lightweight Design: Constructed from lightweight wood for easier handling and placement.
Image: Overview of the REPTI ZOO Wooden Reptile Tank, emphasizing its key features.
2. Safety Information
- Always assemble the enclosure on a flat, stable surface.
- Ensure all screws and fasteners are securely tightened before placing any animals inside.
- Do not overtighten screws, as this may damage the wood panels.
- Keep small parts away from children and pets during assembly.
- Verify that the sliding doors are properly locked to prevent reptile escape.
- Avoid using harsh chemicals for cleaning, as they can be harmful to reptiles.
- Position the enclosure away from direct sunlight or heat sources that could cause overheating.
- Regularly inspect the enclosure for any signs of wear or damage.
3. Package Contents
Before beginning assembly, please ensure all components are present and undamaged. Refer to the exploded view diagram for identification.
Image: Exploded view of enclosure components.
- Base Panel (1)
- Side Panels (2)
- Back Panel (1)
- Top Mesh Screen Panels (2)
- Front Glass Sliding Doors (2)
- Door Lock with Keys (1 set)
- Assembly Hardware (screws, connectors)
- Instruction Manual (this document)
4. Setup & Assembly
Follow these steps to assemble your REPTI ZOO reptile enclosure. It is recommended to have a second person assist with assembly.
- Prepare the Base: Place the base panel on a clean, flat, and stable surface.
- Attach Side Panels: Secure the two side panels to the base using the provided screws. Ensure they are aligned correctly.
- Install Back Panel: Slide the back panel into the grooves of the side panels and secure it to the base and side panels with screws.
- Place Top Mesh Screens: Carefully place the two mesh screen panels onto the top frame of the enclosure. These panels are removable for easy access and ventilation.
- Insert Sliding Doors: Gently slide the tempered glass doors into the front tracks. Ensure they move smoothly.
- Install Door Lock: Attach the safety lock to the sliding doors as shown in the diagram below. Test the lock to ensure it functions correctly and prevents the doors from opening.
Image: Detail of the sliding door lock mechanism.
After assembly, double-check all connections for stability and security. The enclosure is now ready for substrate, decor, and your reptile.
5. Operation
5.1 Temperature and Humidity Control
The wooden construction of this enclosure provides excellent insulation, aiding in stable temperature maintenance. The top mesh screen allows for optimal airflow and heat dissipation, crucial for preventing mold and bacteria growth, while also facilitating the penetration of full-spectrum, UVB, and IR lighting.
Image: Illustration of the enclosure's superior insulation properties.
Image: Illustration of the enclosure's breathability and ventilation.

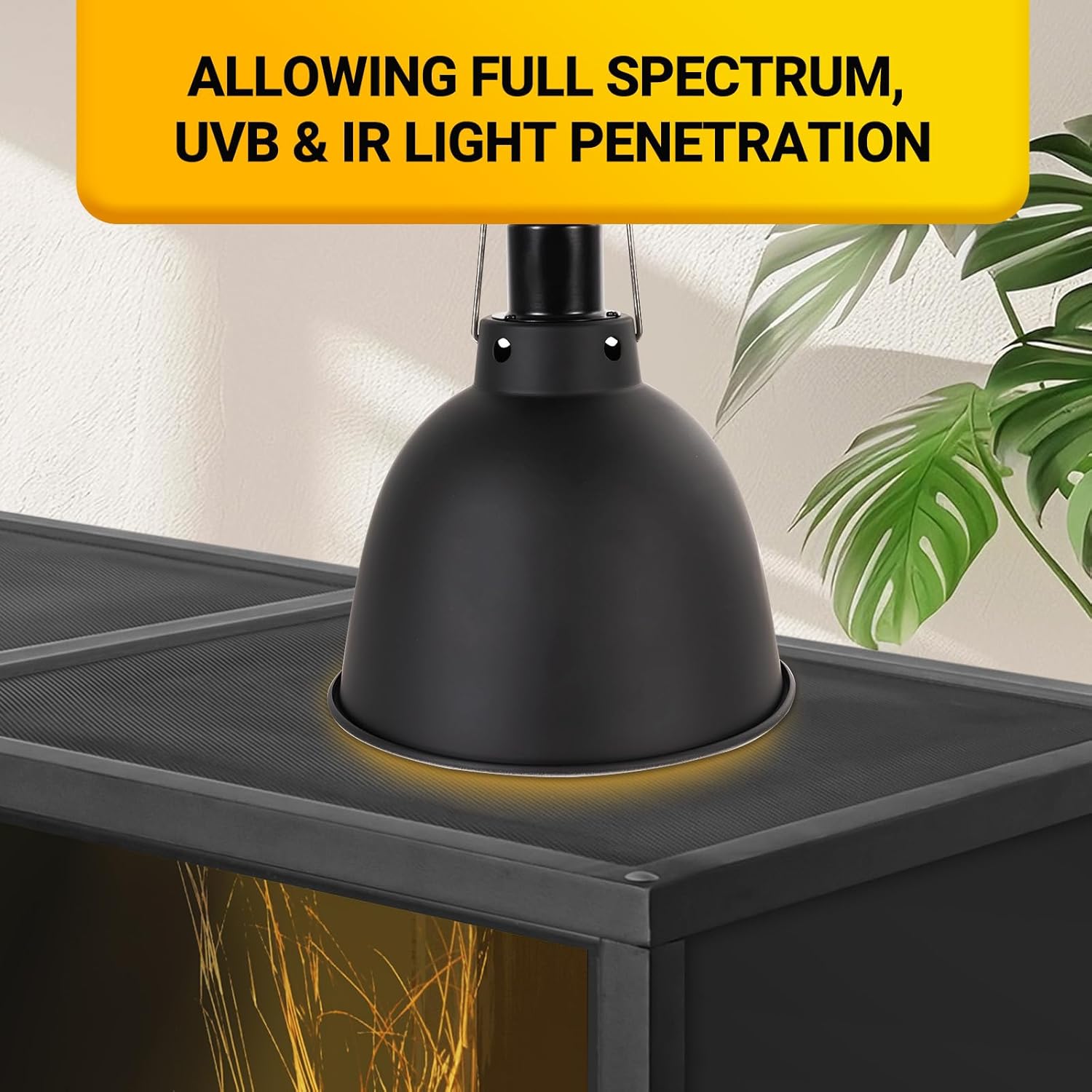

Image: Illustration of light penetration through the mesh top.
5.2 Access and Security
The front sliding glass doors provide convenient access for feeding, cleaning, and interacting with your reptile. Always ensure the doors are securely closed and locked using the provided key to prevent accidental escapes.
6. Maintenance
6.1 Cleaning
- Regularly remove waste and soiled substrate.
- Wipe down glass surfaces with a reptile-safe glass cleaner or warm water.
- For wooden surfaces, use a damp cloth with mild, non-toxic soap if necessary, and dry thoroughly to prevent moisture damage.
- The mesh screen top can be removed for cleaning. Use a soft brush to remove debris.
- Periodically disinfect the entire enclosure with a reptile-safe disinfectant, following product instructions.
6.2 General Care
- Inspect the enclosure for any loose screws or damaged panels and address them promptly.
- Ensure the door lock mechanism is clean and operating smoothly.
- Avoid placing heavy objects on the top mesh screen.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Doors do not slide smoothly or fall out. | Tracks may be obstructed, or the top screen frame might be misaligned/warped. | Clean tracks of debris. Inspect the top screen frame for proper seating and alignment. If a component is warped, contact customer support for assistance. |
| Enclosure feels unstable after assembly. | Screws not fully tightened or panels not properly seated. | Review assembly steps and ensure all screws are tightened. Check that panels are fully inserted into their respective grooves. |
| Difficulty maintaining desired temperature/humidity. | Improper heating/misting equipment, or external environmental factors. | Ensure appropriate heating and humidity devices are used for your reptile's needs. Monitor ambient room temperature. The enclosure's design provides good insulation and ventilation, but external factors are critical. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Name | Reptile Tank |
| Brand | REPTI ZOO |
| Dimensions (L x W x H) | 48 x 18 x 18 inches (121.92 x 45.72 x 45.72 cm) |
| Tank Volume | 68 Gallons (approx. 257.4 liters) |
| Material | Wood, Tempered Glass, Metal Mesh |
| Item Weight | 36 pounds (approx. 16.3 kg) |
| Color | Black |
| Target Species | Bearded dragons, leopard geckos, chameleons, lizards, snakes, ball pythons, turtles, frogs, toads, etc. |
Image: Detailed product dimensions for the 68 Gallon model.
Image: Available sizes of REPTI ZOO reptile enclosures.
9. Warranty & Support
9.1 Warranty Information
This REPTI ZOO product comes with a 90-day warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. It does not cover damage resulting from misuse, accidental damage, unauthorized modifications, or normal wear and tear.
Please retain your proof of purchase for warranty claims.
9.2 Customer Support
For any questions, concerns, or assistance with your REPTI ZOO reptile enclosure, please contact our customer support team. You can typically find contact information on the REPTI ZOO official website or through your retailer.
For more information and products, visit the REPTI ZOO Store on Amazon.
