Rock Series RKS-UL6504OS 6.5-inch Professional SPL Open Show Subwoofer User Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Rock Series RKS-UL6504OS 6.5-inch Professional SPL Open Show Subwoofer. Please read this manual thoroughly before installation and use to ensure optimal performance and safety. Retain this manual for future reference.

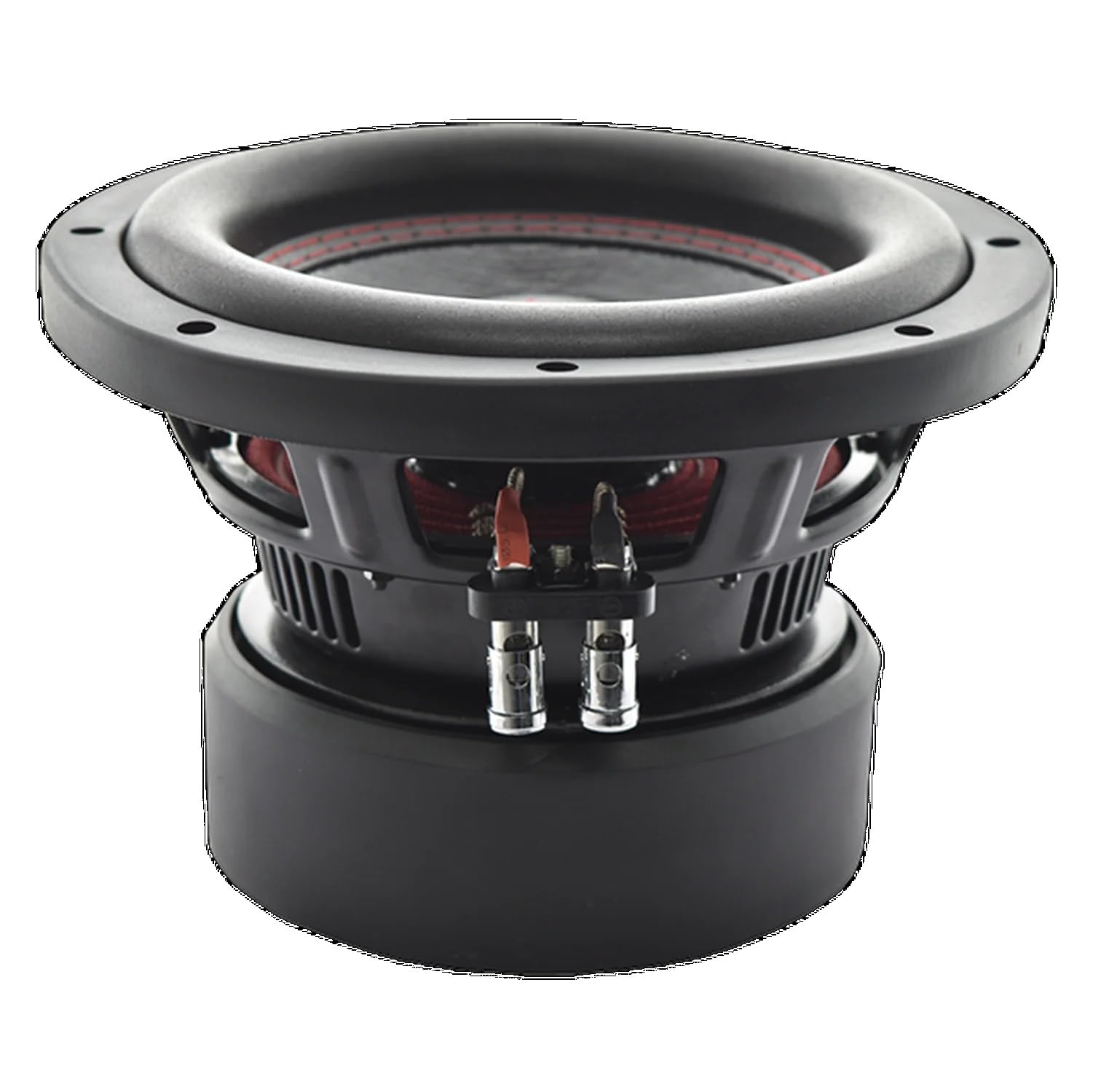

The Rock Series RKS-UL6504OS is designed for high-performance audio systems, featuring a 6.5-inch dual 4-ohm voice coil configuration, capable of handling up to 450 Watts RMS power (900 Watts peak). Its robust construction with laminated cellulose pulp cone and high-excursion suspension is engineered for powerful bass reproduction in both sealed and ported enclosures.

2. Safety Information

Important Safety Instructions:

• Always disconnect the vehicle's battery before performing any electrical work.
• Ensure all wiring is properly insulated and secured to prevent short circuits and damage.
• Avoid installing the subwoofer in locations where it may be exposed to excessive moisture or direct sunlight.
• Use appropriate gauge wiring for power and speaker connections to prevent overheating and power loss.
• Operating audio systems at high volumes for extended periods can cause permanent hearing damage.
• Consult a professional installer if you are unsure about any part of the installation process.

3. Package Contents

Verify that all items are present in the package before proceeding with installation:

• 1 x Rock Series RKS-UL6504OS Professional Subwoofer
• User Manual (this document)

Image: The Rock Series RKS-UL6504OS subwoofer shown within its retail packaging. The packaging displays the brand "Rock Series", model "RKS-UL6504OS", and key features like "6.5" Professional High SPL Open Show Subwoofer" and "900W".

4. Setup & Installation

Proper installation is crucial for the performance and longevity of your subwoofer. It is recommended to have this unit installed by a qualified car audio professional.

4.1 Enclosure Recommendations

The RKS-UL6504OS subwoofer is versatile and can perform well in both sealed and ported enclosures. The optimal enclosure size will depend on your desired sound characteristics and available space.

• Sealed Enclosure: For tight, accurate bass response. Recommended internal dimensions: approximately 18 cm (W) x 35 cm (H) x 15 cm (D).
• Ported Enclosure: For louder, more extended bass. Recommended internal dimensions: approximately 18 cm (W) x 11.8 cm (H) x 15 cm (D) with a port of 25 cm x 5 cm.

Note: These are general recommendations. Fine-tuning may be required based on vehicle acoustics and personal preference.

4.2 Wiring Connections (Dual 4-Ohm Voice Coils)

The RKS-UL6504OS features dual 4-ohm voice coils, offering flexibility in wiring configurations to match your amplifier's impedance requirements. Always ensure your amplifier is stable at the chosen impedance.

4.2.1 Parallel Wiring (2 Ohms)

Connect the positive (+) terminal of Voice Coil 1 to the positive (+) terminal of Voice Coil 2. Connect the negative (-) terminal of Voice Coil 1 to the negative (-) terminal of Voice Coil 2. Then, connect the combined positive terminals to the amplifier's positive output and the combined negative terminals to the amplifier's negative output. This configuration results in a 2-ohm load.

4.2.2 Series Wiring (8 Ohms)

Connect the positive (+) terminal of Voice Coil 1 to the amplifier's positive output. Connect the negative (-) terminal of Voice Coil 1 to the positive (+) terminal of Voice Coil 2. Connect the negative (-) terminal of Voice Coil 2 to the amplifier's negative output. This configuration results in an 8-ohm load.

4.3 Mounting the Subwoofer

1. Carefully place the subwoofer into the prepared enclosure opening.
2. Align the mounting holes on the subwoofer frame with the pre-drilled holes on the enclosure.
3. Secure the subwoofer using appropriate screws, ensuring even pressure around the frame. Do not overtighten.
4. Ensure a tight seal between the subwoofer and the enclosure to prevent air leaks, which can degrade performance.

5. Operating Instructions

Once installed, follow these guidelines for optimal operation:

• Break-in Period: Allow a break-in period of approximately 10-20 hours of moderate listening before operating the subwoofer at high volumes. This allows the suspension components to loosen and perform optimally.
• Amplifier Gain Setting: Set your amplifier's gain correctly to match the output voltage of your head unit. Incorrect gain settings can lead to distortion and potential damage to the subwoofer.
• Crossover Settings: Use a low-pass filter (LPF) on your amplifier or head unit to send only low frequencies to the subwoofer. A typical LPF setting for this subwoofer might be between 60 Hz and 100 Hz, depending on your system and preference.
• Subsonic Filter: If your amplifier has a subsonic filter, it is recommended to set it slightly below your enclosure's tuning frequency (for ported enclosures) or around 25-30 Hz (for sealed enclosures) to protect the subwoofer from over-excursion at very low frequencies.
• Volume Control: Avoid prolonged operation at maximum volume levels, especially if distortion is audible. Distortion indicates that the amplifier or subwoofer is being overdriven, which can cause damage.

6. Maintenance

The Rock Series RKS-UL6504OS subwoofer requires minimal maintenance to ensure long-term performance.

• Cleaning: Periodically wipe the cone and surround with a soft, dry cloth to remove dust and debris. Do not use harsh chemicals or solvents.
• Inspection: Regularly inspect the speaker terminals and wiring for any signs of corrosion or loose connections.
• Environmental Protection: Ensure the subwoofer is protected from extreme temperatures, direct sunlight, and moisture.

7. Troubleshooting

If you experience issues with your subwoofer, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, contact Rock Series customer support or a qualified service technician.

8. Specifications

9. Warranty & Support

Warranty Information:

This Rock Series RKS-UL6504OS subwoofer comes with a limited warranty. Please refer to the warranty card included with your product or visit the official Rock Series website for detailed terms and conditions. The warranty typically covers defects in materials and workmanship under normal use.

Note: Damage caused by improper installation, abuse, accident, or unauthorized modifications is not covered under warranty.

Customer Support:

For technical assistance, warranty claims, or general inquiries, please contact Rock Series customer support through their official website or the contact information provided on your purchase receipt.

Website: www.rockseries.com (Example URL, please verify official website)
