1. Introduction
Thank you for choosing the KISSBOBO GLE10 Wearable Breast Pump. This innovative, hands-free, and lightweight electric breast pump is designed to provide comfort and efficiency for breastfeeding mothers. Its invisible design allows for discreet pumping, empowering you to maintain your daily routine while expressing milk. This manual provides detailed instructions for the safe and effective use, maintenance, and troubleshooting of your new breast pump.
2. What's in the Box
Your KISSBOBO GLE10 Wearable Breast Pump package includes the following components:
- GLE10 Breast Pump Motor (2 units)
- Milk Collector Cups (2 units)
- Silicone Diaphragms (2 units)
- Duckbill Valves (2 units)
- Flange Inserts (19mm, 21mm, 24mm options, 2 sets)
- Nipple Protectors (2 units)
- USB Type-C Charging Cables (2 units)
- Breast Pads (4 units)
- Milk Storage Bags (20 units)
- Storage Suitcase (1 unit)
3. Setup and Assembly
Before first use, sterilize all parts that come into contact with breast milk. Ensure all components are completely dry before assembly.
- Insert Silicone Diaphragm: Press the silicone diaphragm firmly into the inner circle of the milk collector cup. Ensure it is securely seated to prevent air leakage.
- Attach Duckbill Valve: Make sure the duckbill valve is vertically downward and securely attached to the bottom of the milk collector.
- Insert Flange: Insert the middle part of the silicone flange into the silicone diaphragm. Choose the appropriate flange size (19mm, 21mm, or 24mm) for your comfort and optimal milk expression. Refer to the sizing guide below.
- Press Silicone Shield: Press the silicone shield into the milk collector and press it tightly to ensure a secure seal.
- Attach Motor: Align the motor with the two insertion openings of the milk collector and press it tightly until it clicks into place.
Correct Wearing Method
- Place the nipple in the center of the silicone shield.
- Press the silicone shield firmly against the breast, leaving no gaps.
- Wear the bra after fixing the breast pump in place and keep your body upright to pump.
Flange Sizing Guide
Choosing the correct flange size is crucial for comfort and effective milk expression.
4. Operation

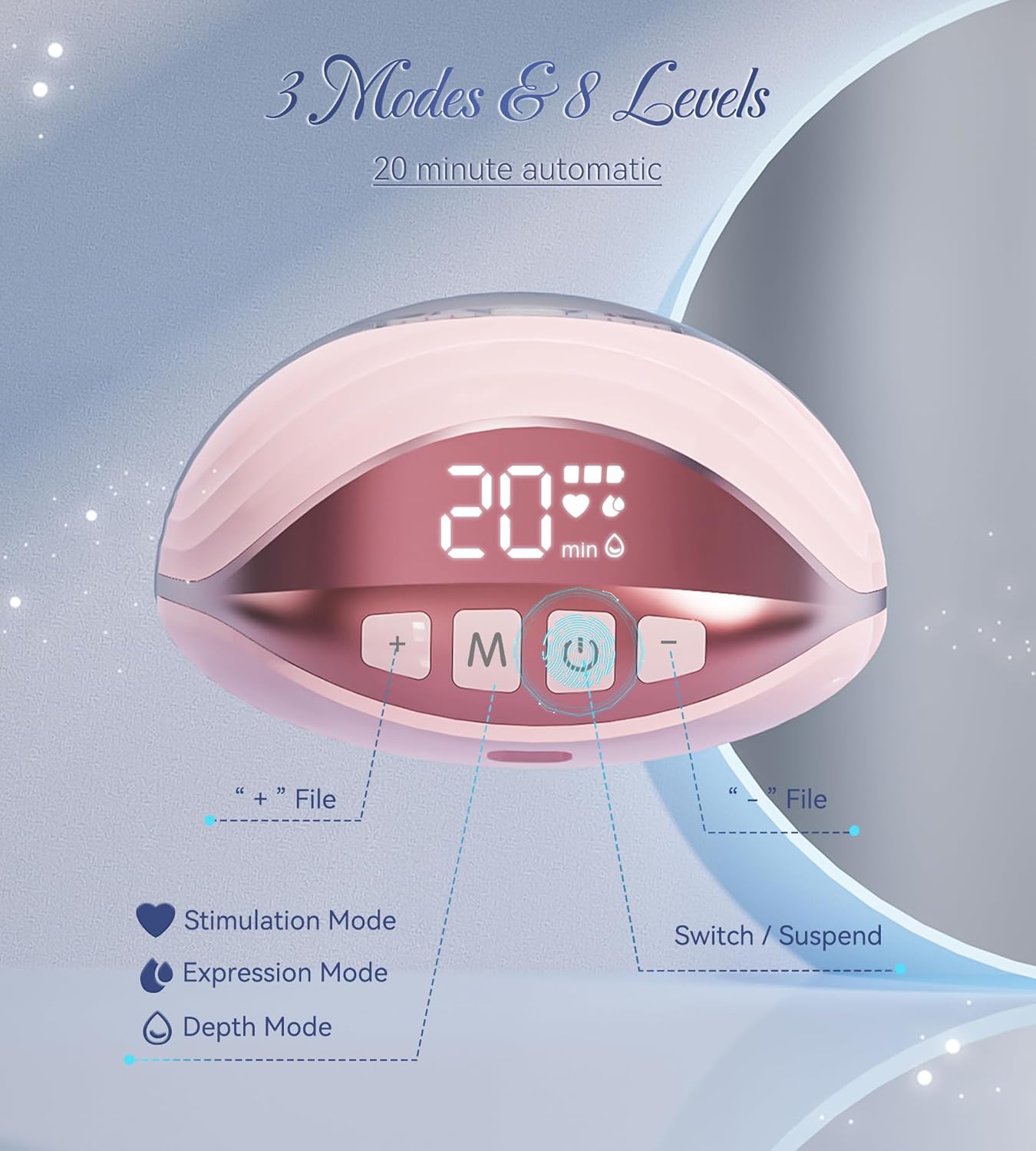

The KISSBOBO GLE10 features an intuitive control panel with three modes and eight adjustable levels to customize your pumping experience.
Control Buttons:
- Power Button (ⓒ): Press and hold to turn the pump ON/OFF. Short press to Switch/Suspend pumping.
- Mode Button (M): Press to cycle through the three pumping modes: Stimulation Mode, Expression Mode, and Depth Mode.
- Increase Level (+): Press to increase the suction level.
- Decrease Level (-): Press to decrease the suction level.
Pumping Modes:
- Stimulation Mode: A faster, lighter suction pattern designed to stimulate milk let-down.
- Expression Mode: A slower, stronger suction pattern for efficient milk expression once let-down has occurred.
- Depth Mode: Provides deeper, more sustained suction for thorough emptying.
The pump features an automatic 20-minute shut-off timer. The screen will dim after 20 seconds of inactivity to conserve power.
5. Cleaning and Maintenance
Proper cleaning and maintenance are essential for hygiene and the longevity of your breast pump. All parts that come into contact with breast milk are made from food-grade safe silicone and are dishwasher safe.
Daily Cleaning:
- Disassemble: After each use, disassemble all parts that came into contact with breast milk (milk collector, silicone diaphragm, duckbill valve, flange).
- Rinse: Rinse all disassembled parts under cold running water to remove any milk residue.
- Wash: Wash parts in warm, soapy water using a dedicated brush. Alternatively, place them on the top rack of your dishwasher.
- Rinse Again: Rinse thoroughly under clean running water.
- Air Dry: Place parts on a clean paper towel or drying rack and allow them to air dry completely. Do not use cloth towels as they may leave lint.
Sterilization:
Sterilize all parts that contact breast milk at least once a day, or as recommended by your healthcare provider. This can be done by boiling in water for 5 minutes, using a steam sterilizer, or a microwave sterilizer bag.
Motor Unit Care:
The motor unit should never be submerged in water or sterilized. Wipe the motor unit with a clean, damp cloth as needed. Ensure it is completely dry before storage or next use.
Storing Milk:
After pumping, carefully pour the milk into a storage bottle or bag. Ensure the pump is kept upright when detaching the motor to prevent spills.
6. Troubleshooting
If you encounter any issues with your KISSBOBO GLE10 breast pump, please refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| No suction or weak suction |
|
|
| Pump not turning on |
|
|
| Uncomfortable pumping |
|
|
| Milk leaking from pump |
|
|
If the problem persists after trying these solutions, please contact KISSBOBO customer support for further assistance.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | GLE10 |
| Product Dimensions | 4.84 x 4.29 x 2.72 inches |
| Weight | Approx. 220g (per pump unit) |
| Material | Silicone (BPA-free) |
| Modes | 3 (Stimulation, Expression, Depth) |
| Suction Levels | 8 levels per mode |
| Auto Shut-off | 20 minutes |
| Charging Port | USB Type-C |
| Dishwasher Safe Parts | Yes (parts that contact milk) |
| Manufacturer | DONGGUAN RONGFENG MEDICAL CO.,LTD |
8. Warranty and Support
KISSBOBO stands behind the quality of its products. For warranty information, product registration, or any technical support, please refer to the contact details provided on the product packaging or visit the official KISSBOBO website. Our customer service team is available to assist you with any questions or concerns.
