Introduction
Thank you for choosing the YATINEY 3-Tier Bar Cart. This manual provides detailed instructions for the assembly, operation, and maintenance of your new bar cart. Please read this manual thoroughly before assembly and retain it for future reference. Proper assembly and care will ensure the longevity and optimal performance of your product.
Safety Information
Important Safety Precautions:
- Do not exceed the weight capacity of 99 lbs (approximately 45 kg) for the entire cart. Each tier is designed to withstand a weight of 33 pounds (approximately 15 kg).
- Use caution when moving the cart on uneven surfaces to prevent tipping.
- Ensure the brakes on the swivel casters are engaged when the cart is stationary to prevent unintended movement.
- Keep small parts away from children during assembly.
- Always assemble the product on a soft, clean surface to prevent scratches.
Product Overview
The YATINEY 3-Tier Bar Cart is designed for versatile storage and serving in various home settings. It features a rustic brown and black aesthetic, combining particleboard shelves with a metal frame.
Figure 1: Fully assembled YATINEY 3-Tier Bar Cart, showcasing its design and capacity for beverages and glassware.
Key Features:
- 3-Tier Storage: Provides ample space for wine coolers, bottles, glasses, and other bar essentials.
- Premium Materials: Constructed from durable particleboard and a sturdy metal frame.
- Thoughtful Design: Equipped with four swivel casters (two with brakes) for mobility and stability. Each tier includes a fence design to prevent items from falling.
- Integrated Cup Holders: Features two metal cup holders designed to securely store up to 6 goblets.
Figure 2: Detail of the integrated cup holders, designed to securely hold up to 6 wine glasses.

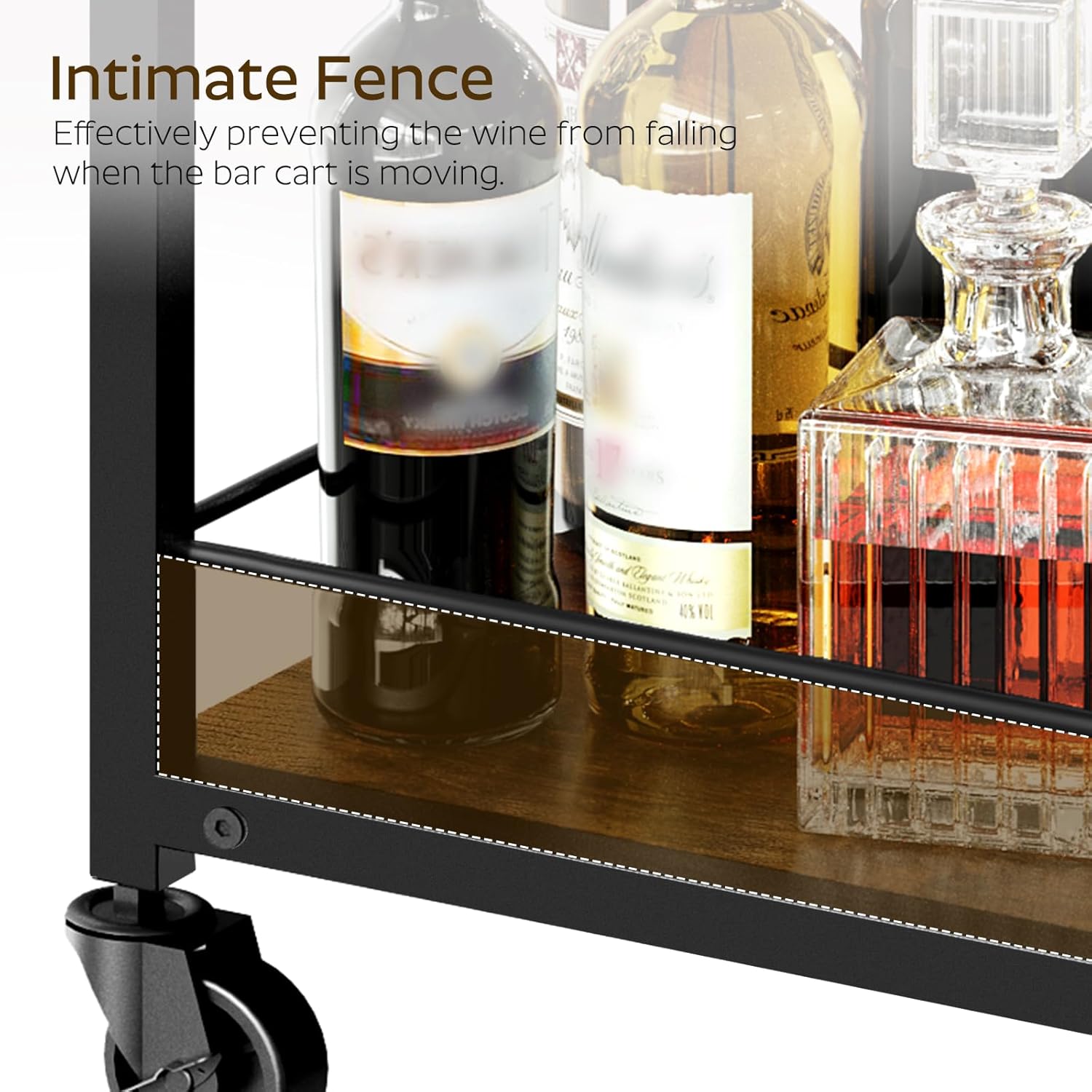

Figure 3: View of the intimate fence design on each tier, which helps prevent items from falling during movement.
Figure 4: Detail of the smooth 360-degree rotating casters, showing the lock and unlock positions for stability.
Specifications
Figure 5: Dimensional diagram of the YATINEY 3-Tier Bar Cart.
| Attribute | Detail |
|---|---|
| Product Dimensions | 11.4"D x 15.3"W x 32.7"H (29 cm D x 39 cm W x 83 cm H) |
| Shelf Type | Tiered Shelf |
| Frame Material | Metal |
| Brand | YATINEY |
| Color | Rustic Brown + Black |
| Furniture Finish | Stained |
| Maximum Weight Recommendation | 99 Pounds (45 kg) |
| Number of Shelves | 3 |
| Item Weight | 12.54 pounds (5.69 kg) |
| Model Number | BC03BR Bar Cart |
| Included Components | 1 X Bar Cart (all necessary parts for assembly) |
Setup and Assembly
Before beginning assembly, ensure all parts are present and undamaged. It is recommended to assemble the cart on a soft, clean surface to prevent scratches.
- Unpack Components: Carefully remove all parts from the packaging. Lay them out and compare them against the parts list (typically included in the box) to ensure nothing is missing.
- Assemble Frame: Follow the provided diagrams to connect the metal frame components. Ensure all screws are finger-tightened initially.
- Attach Shelves: Securely attach the particleboard shelves to the frame. Pay attention to the orientation of the shelves and the fence design.
- Install Casters: Attach the four swivel casters to the base of the cart. Ensure the two casters with brakes are positioned as indicated in the assembly instructions for optimal functionality.
- Install Cup Holders: Secure the metal cup holders to the designated area, typically under the top shelf.
- Final Tightening: Once all components are in place, systematically tighten all screws with the provided tool. Do not overtighten.
- Inspect: After assembly, gently shake the cart to ensure it is stable and all connections are secure.
Operating Instructions
Using your YATINEY Bar Cart is straightforward:
- Loading: Distribute items evenly across the three tiers, keeping within the maximum weight capacity of 33 lbs per tier and 99 lbs total. Place heavier items on lower shelves for stability.
- Moving the Cart: To move the cart, ensure the brakes on the casters are disengaged. Use the top handle for easy maneuvering.
- Locking the Cart: When the cart is in its desired position, engage the brakes on the two locking casters by pressing down on the lever. This will prevent the cart from rolling.
- Using Cup Holders: Hang wine glasses or goblets upside down in the designated metal cup holders for secure storage and easy access.
Figure 6: Demonstrating how to use the handle for easy movement of the bar cart.
Maintenance
To keep your bar cart in optimal condition:
- Cleaning: Wipe the surfaces with a dry cloth. Avoid using harsh chemicals or abrasive cleaners, which may damage the finish.
- Spills: Clean up spills immediately with a dry or slightly damp cloth to prevent staining or damage to the particleboard.
- Hardware: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
- Casters: Keep the casters free of debris to ensure smooth rolling.
Troubleshooting
If you encounter any issues with your bar cart, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cart is wobbly or unstable. | Screws are loose; uneven assembly. | Check and tighten all screws. Ensure the cart is assembled on a flat surface. |
| Casters do not roll smoothly. | Debris caught in casters; casters not properly installed. | Clean any debris from the caster wheels. Verify casters are fully inserted and tightened. |
| Brakes do not hold the cart in place. | Brakes not fully engaged; faulty caster. | Ensure the brake lever is fully pressed down. If the issue persists, inspect the caster for damage. |
| Items fall off shelves during movement. | Overloaded shelves; items placed too close to edge; fence design not utilized. | Do not overload shelves. Ensure items are placed securely within the boundaries of the fence design. Move the cart slowly and carefully. |
Warranty and Support
YATINEY stands behind the quality of its products. While specific warranty details may vary, most products are covered by a standard return policy.
- Return Policy: This product typically includes a 30-day return period from the date of purchase for refund or replacement, subject to the retailer's terms and conditions.
- Customer Support: For any questions, missing parts, or issues not covered in this manual, please contact YATINEY customer service through the retailer's platform or visit the official YATINEY store page.
For further assistance, please refer to the contact information provided with your purchase or visit the YATINEY brand store online.
