Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your LemonNova 30ft 22-LED Permanent Outdoor Light Strip (Model: DT-3332W-W-22D-MG-US). This product is designed as an extension light strip and requires a compatible LemonNova permanent outdoor light system (25ft to 100ft) for operation. Please read this manual thoroughly before installation and retain it for future reference.
Important Safety Information
- Electrical Safety: This light strip operates on low voltage when connected to a compatible power adapter (not included). Ensure all connections are secure and protected from moisture. Do not attempt to connect this light strip directly to AC power.
- Installation: Always follow local electrical codes and installation guidelines. Ensure the installation surface is clean, dry, and structurally sound.
- Product Integrity: Do not cut the light strip. Cutting the strip will damage the product and void any potential warranty.
- Compatibility: This extension light strip is specifically designed for LemonNova permanent outdoor lights (25ft to 100ft). Do not attempt to connect it with other brands or incompatible systems.
- Operating Environment: While designed for outdoor use and IP67 waterproof, avoid submerging the light strip in water. Ensure proper drainage around installation areas.
Product Overview
The LemonNova 30ft 22-LED Permanent Outdoor Light Strip is an extension component for existing LemonNova permanent outdoor lighting systems. It features 22 individual LED lights designed for vibrant, multi-color illumination.
Note: This product includes only the extension light strip. The power adapter, control box, and remote control are NOT included and must be purchased separately or already be part of your existing LemonNova permanent outdoor light system.

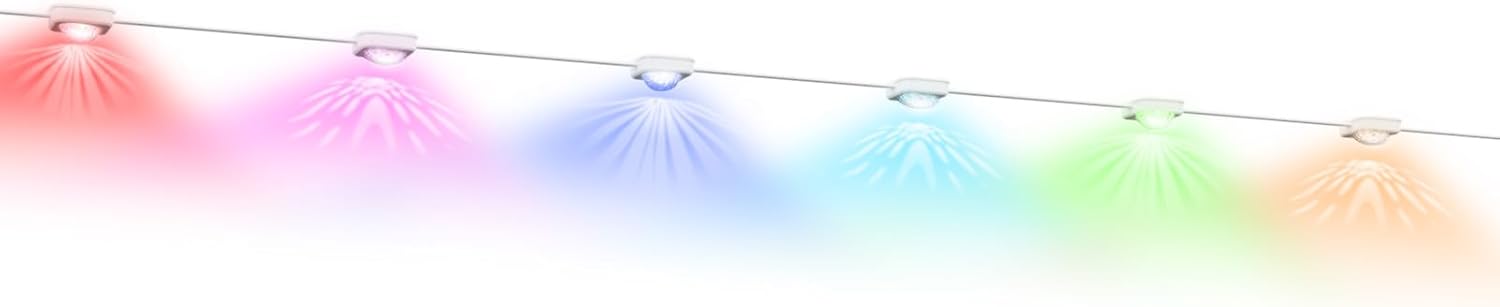

Image 1: The LemonNova 30ft 22-LED Permanent Outdoor Light Strip. This image displays the light strip with individual LED modules, showcasing its design as an extension for existing outdoor lighting setups.
Specifications
| Feature | Detail |
|---|---|
| Model Number | DT-3332W-W-22D-MG-US |
| Length | 30 feet |
| Number of LEDs | 22 |
| Color | Multicolor (RGB) |
| Indoor/Outdoor Usage | Outdoor |
| Water Resistance Level | IP67 Waterproof |
| Power Source | AC/DC (via compatible adapter, not included) |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Lifespan | Up to 50,000 hours |
| Included Components | Light Strip (extension only) |
| UPC | 643556175473 |
Setup and Installation
This light strip is an extension and must be connected to an existing LemonNova permanent outdoor light system (25ft to 100ft). Ensure your existing system is powered off before beginning installation.
- Prepare the Surface: Clean the eaves or desired installation surface thoroughly. Ensure it is dry and free of dust, dirt, or grease.
- Plan the Layout: Determine the desired path for the extension light strip. Remember that the total length of your combined light system (original + extension) should not exceed 200ft.
- Connect the Extension: Locate the designated connection point on your existing LemonNova permanent outdoor light system. Carefully align and connect the extension light strip, ensuring a secure and waterproof seal.
- Secure the Strip: Use the provided VHB glue and clips to firmly attach each individual LED light module to the eaves or installation surface. Ensure each clip is securely fastened to prevent sagging or detachment.
- Final Check: Once the entire strip is installed and secured, double-check all connections and mounting points.
- Power On: Reconnect power to your main LemonNova permanent outdoor light system.
Important: Do not cut the light strip. Cutting will damage the internal wiring and render the product inoperable.
Image 2: Depiction of the LemonNova permanent outdoor lights installed on a house, highlighting their upgraded waterproof rating (IP67) for year-round outdoor protection. This image also shows the associated control box and remote, which are part of the main system, not included with this extension strip.
Operating Instructions
As an extension light strip, this product does not have independent operating controls. Its functionality is entirely dependent on the main LemonNova permanent outdoor light system to which it is connected.
- Power On/Off: The extension strip will turn on and off with the main lighting system.
- Color and Mode Control: All color changes, lighting modes, and brightness adjustments will be controlled via the remote control or smart app associated with your main LemonNova permanent outdoor light system.
- Compatibility: Ensure the extension is properly connected to a compatible LemonNova system for optimal performance.
Image 3: This image illustrates the versatility of the LemonNova permanent outdoor lights, showcasing both a regular warm white setting and the vibrant 16 million color options available through the main system's controls. The extension strip will display these same colors.
Maintenance
The LemonNova Permanent Outdoor Light Strip is designed for minimal maintenance due to its durable construction and IP67 waterproof rating.
- Cleaning: Periodically wipe the light strip and LED modules with a soft, damp cloth to remove dust and debris. Do not use harsh chemicals or abrasive cleaners.
- Inspection: Regularly inspect the light strip for any signs of damage, loose connections, or wear. Ensure all clips remain securely fastened.
- Environmental Durability: The lights are built with anti-UV material and can withstand temperatures from -4°F to 140°F (-20°C to 60°C), ensuring year-round performance in various weather conditions.

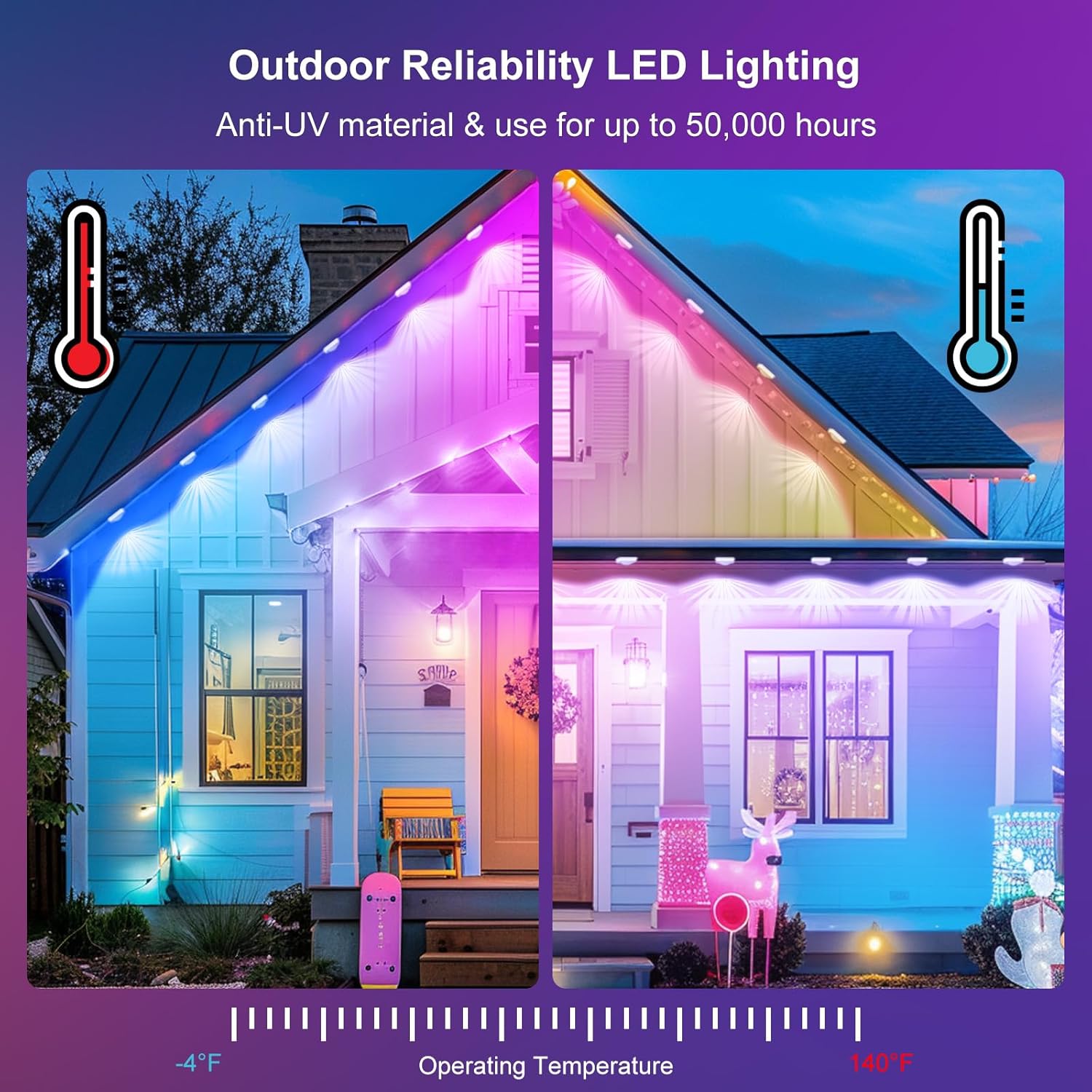

Image 4: This image highlights the robust outdoor reliability of the LED lighting, indicating its anti-UV material and long lifespan of up to 50,000 hours. It also visually represents the wide operating temperature range from -4°F to 140°F, demonstrating its suitability for diverse climates.
Troubleshooting
If you encounter issues with your LemonNova Permanent Outdoor Light Strip, consider the following troubleshooting steps:
- Lights Not Turning On:
- Ensure the main LemonNova lighting system is powered on.
- Check all connections between the extension strip and the main system for proper seating.
- Verify that the main power adapter and control box are functioning correctly.
- Inconsistent Lighting/Flickering:
- Inspect connections for any looseness or corrosion.
- Ensure the total length of your combined light system does not exceed the recommended 200ft. Overloading can cause performance issues.
- Check for any physical damage to the light strip.
- Incorrect Colors/Modes:
- This is controlled by the main system. Refer to the manual for your main LemonNova permanent outdoor light system for troubleshooting remote or app control issues.
If problems persist after attempting these steps, please contact LemonNova customer support.
Warranty and Support
Specific warranty details for the LemonNova 30ft 22-LED Permanent Outdoor Light Strip are typically provided with the main LemonNova permanent outdoor light system or can be found on the official LemonNova website. Please retain your proof of purchase for warranty claims.
For technical support, product inquiries, or warranty service, please visit the official LemonNova website or contact their customer service department. Contact information is usually available on the product packaging or the brand's official online presence.
