Generic 82983 2 Inch x 1-1/4 Inch Galvanized Steel Reducer Coupling Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective installation, operation, and maintenance of the Generic 82983 Galvanized Steel Reducer Coupling. Please read this manual thoroughly before installation and retain it for future reference.

The Generic 82983 is a galvanized steel reducer coupling designed to connect two pipes of different diameters, specifically reducing from a 2-inch pipe to a 1-1/4-inch pipe. Its galvanized finish provides enhanced corrosion resistance, making it suitable for various plumbing and industrial applications.

2. Safety Information

Always observe the following safety precautions to prevent injury or damage to property:

• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, during installation.
• Ensure the system is depressurized and drained before attempting any installation or maintenance.
• Verify that the coupling's material and pressure rating are suitable for the intended application.
• Do not overtighten connections, as this can damage threads or the coupling itself.
• Keep children and unauthorized personnel away from the work area.

3. Package Contents

Upon opening the package, verify that all components are present and undamaged:

• 1 x Generic 82983 2 Inch x 1-1/4 Inch Galvanized Steel Reducer Coupling

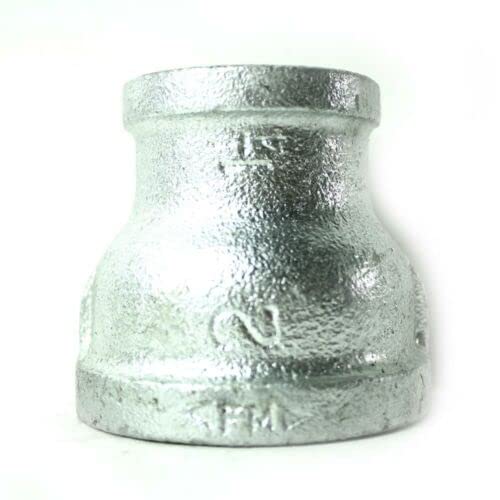

Figure 1: Generic 82983 Galvanized Steel Reducer Coupling. This image shows the reducer coupling, which is a threaded pipe fitting designed to connect a larger 2-inch pipe to a smaller 1-1/4-inch pipe.

4. Setup and Installation

Follow these steps for proper installation of the reducer coupling:

1. Prepare Pipes: Ensure the ends of both the 2-inch and 1-1/4-inch pipes are clean, free of burrs, and properly threaded.
2. Apply Thread Sealant: Apply an appropriate thread sealant (e.g., PTFE tape or pipe joint compound) to the male threads of both pipes. This helps ensure a watertight and airtight seal.
3. Connect Larger Pipe: Thread the 2-inch pipe into the larger opening of the reducer coupling. Hand-tighten first, then use a pipe wrench to tighten further, typically 1 to 3 turns past hand-tight, depending on the sealant and pipe material. Avoid overtightening.
4. Connect Smaller Pipe: Thread the 1-1/4-inch pipe into the smaller opening of the reducer coupling. Follow the same tightening procedure as for the larger pipe.
5. Inspect Connections: Visually inspect all connections to ensure they are properly aligned and tightened.
6. Test for Leaks: After installation, slowly pressurize the system and carefully check for any leaks at the coupling connections. If leaks are detected, depressurize the system and re-tighten the connection or reapply thread sealant.

5. Operation and Function

The Generic 82983 reducer coupling is a passive component designed to facilitate the connection between pipes of different diameters. Once properly installed, its function is to maintain a secure and leak-free transition for the flow of fluids or gases within the piping system.

Proper operation relies entirely on correct installation. Ensure that the system's operating pressure and temperature do not exceed the specifications of the coupling and the connected pipes.

6. Maintenance

The galvanized steel reducer coupling requires minimal maintenance. Regular inspection is recommended to ensure continued performance:

• Periodic Inspection: Periodically inspect the coupling and surrounding pipework for any signs of corrosion, leaks, or physical damage. The galvanized coating helps prevent rust, but damage to the coating can expose the steel.
• Cleaning: If necessary, clean the exterior of the coupling with a mild detergent and water. Avoid abrasive cleaners or tools that could damage the galvanized finish.
• Leak Checks: For critical applications, perform routine leak checks to ensure the integrity of the connection.

7. Troubleshooting

Most issues related to pipe couplings stem from improper installation. Refer to the following common problems and solutions:

8. Specifications

9. Warranty and Support

Specific warranty information for this Generic product is not provided in the product details. For warranty inquiries or technical support, please contact your retailer or the manufacturer directly.

For assistance with product questions, orders, or personalized recommendations, please refer to the contact information provided by your seller or retailer.
