MTQCRHGP Spinning Fishing Reel User Manual

1. Product Overview

The MTQCRHGP AC2000-AC7000 Series Spinning Fishing Reels are designed for versatile fishing applications, offering robust performance for both freshwater and saltwater environments. These reels feature a durable metal construction, smooth operation, and adjustable drag power, making them suitable for targeting various fish species including bass and pike.

Image 1.1: Front view of the MTQCRHGP Spinning Fishing Reel, showcasing its sleek black and silver design with a comfortable handle.

2. Key Features

• Durable Metal Construction: Built with rugged metal components for enhanced longevity and resistance to wear.
• Smooth Winding System: Engineered for consistent and smooth line retrieval, reducing tangles and improving casting efficiency.
• Adjustable Drag Power: Offers 5-8 KGMax drag power, allowing precise control over line tension for various fishing conditions and fish sizes.
• Ergonomic Design: Features a comfortable handle and balanced body for extended use without fatigue.
• Versatile Application: Suitable for a wide range of fishing, including bass and pike, in both freshwater and light saltwater.

Image 2.1: The MTQCRHGP Spinning Reel mounted on a fishing rod, with key features such as real materials, smooth winding, rugged metal, long and thick body, and light metal smooth line highlighted.

3. Safety Information

Please read and understand all safety instructions before using your fishing reel. Failure to follow these instructions may result in injury or damage to the product.

• Always handle fishing hooks and sharp objects with extreme care.
• Ensure the reel is securely mounted to the fishing rod before casting.
• Keep fingers clear of moving parts, especially during casting and retrieval.
• Do not attempt to disassemble the reel beyond routine maintenance as described in this manual.
• Store the reel in a dry place, away from direct sunlight and extreme temperatures.

4. Setup

4.1 Attaching the Handle

The handle of your MTQCRHGP spinning reel is reversible for left or right-hand retrieve. To attach:

1. Unscrew the cap on the side opposite to where you want the handle.
2. Insert the handle shaft into the main gear opening.
3. Screw the handle firmly into place.
4. Replace the cap on the unused side.

Image 4.1: Close-up view of the reel's handle, illustrating its ergonomic design and attachment point.

4.2 Spooling Fishing Line

Properly spooling line is crucial for optimal performance. Follow these steps:

1. Open the bail arm.
2. Tie the fishing line to the spool using an arbor knot or similar secure knot.
3. Close the bail arm.
4. Hold the line taut and begin reeling slowly, ensuring the line lays evenly on the spool.
5. Fill the spool to about 1/8 inch from the rim to prevent tangles and maximize casting distance.

Image 4.2: Angled view of the reel's spool, showing the line capacity markings and the general area for line winding.

5. Operating Instructions

5.1 Casting

1. Hold the rod and reel comfortably.
2. Open the bail arm with your non-dominant hand.
3. Use your index finger to hold the line against the rod.
4. Swing the rod forward, releasing your finger from the line at the desired point to cast.
5. As the lure hits the water, close the bail arm manually or by turning the handle.

5.2 Retrieving

Turn the handle clockwise (for right-hand retrieve) or counter-clockwise (for left-hand retrieve) to retrieve the line. Maintain a steady retrieve speed appropriate for your lure and target fish.

5.3 Adjusting Drag

The drag knob is located on the top of the spool. Turn it clockwise to increase drag tension and counter-clockwise to decrease it. Set the drag to approximately one-third of your line's breaking strength. This allows line to be pulled out when a fish pulls hard, preventing line breakage.

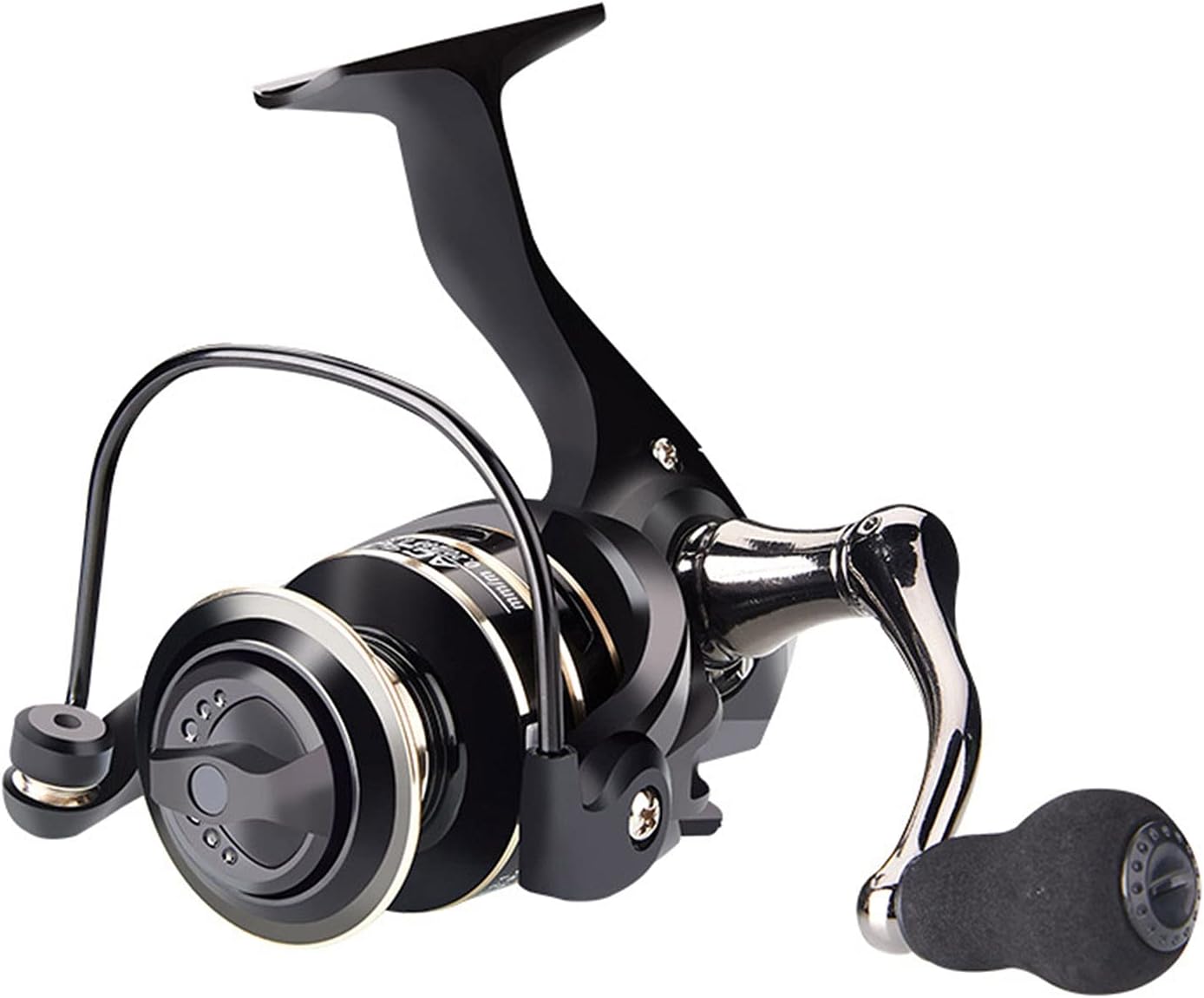

Image 5.1: Side view of the MTQCRHGP AC3000 reel, highlighting the drag adjustment knob on the spool and the overall reel body.

6. Maintenance

Regular maintenance will extend the life and performance of your MTQCRHGP fishing reel.

• Rinse After Use: After each use, especially in saltwater, lightly rinse the reel with fresh water to remove salt and debris. Do not submerge the reel.
• Dry Thoroughly: Wipe the reel dry with a soft cloth. Allow it to air dry completely before storage.
• Lubrication: Periodically apply a small amount of reel oil to moving parts such as the handle shaft, bail arm pivot, and line roller. Use reel grease for gears if accessible.
• Inspect Line: Regularly check your fishing line for fraying or damage and replace it as needed.
• Storage: Store the reel in a cool, dry place, ideally in a reel cover or bag to protect it from dust and impacts.

7. Troubleshooting

8. Specifications

9. Warranty Information

MTQCRHGP warrants this product against defects in materials and workmanship for a period of one (1) year from the original date of purchase. This warranty does not cover damage caused by misuse, abuse, unauthorized modification, accident, or normal wear and tear. Proof of purchase is required for all warranty claims.

10. Customer Support

For technical assistance, warranty claims, or general inquiries, please contact MTQCRHGP customer support:
