Wengart 125A 550V DC Molded Case Circuit Breaker (MCCB) User Manual

1. Introduction

The Wengart WGM1PV-250 (125A) Molded Case Circuit Breaker (MCCB) is an industrial-grade protective device designed for high-capacity Direct Current (DC) electrical systems. It provides superior protection for photovoltaic installations, battery energy storage systems, and other DC power infrastructure, ensuring safety and reliability.

Unlike standard miniature circuit breakers (MCBs), this MCCB is engineered to manage high DC currents and effectively extinguish powerful electrical arcs, which is critical for preventing fires and electrical damage in 550V DC systems. Its robust construction and bipolar design offer comprehensive protection and safe isolation for maintenance.

This MCCB is compatible with a wide range of DC systems, from high-voltage 550V applications down to lower voltage systems like 12V, 24V, and 48V battery banks commonly found in premium camper vans or isolated homes, providing a significantly higher safety margin and breaking capacity than conventional thermal-magnetic circuit breakers.

2. Product Features

The Wengart MCCB incorporates several advanced features to ensure optimal performance and safety:

• Industrial-Grade Protection (MCCB): Designed for high-intensity continuous currents with superior breaking capacity, making it ideal for centralized inverters and power wiring in complex photovoltaic systems.
• Optimized for DC 550V / 125A: Specifically developed for Direct Current (DC) applications. Features a high-performance magnetic arc extinguishing chamber to prevent fires and electrical damage by interrupting current flow under load.
• Robust Design for Continuous Use: Constructed from reinforced, high-thermal-resistance polymers. Oversized connection terminals ensure a firm connection for large cross-section cables (up to 70mm² or more with lug terminals), eliminating hot spots even at 100% capacity.
• Bipolar Safety for Total Isolation: Simultaneously cuts both poles, allowing for safe maintenance on battery banks or solar strings by ensuring no residual voltage remains in the protected line.
• Load Disconnect Capability: Its robust manual operating mechanism allows for quick and safe disconnection of the DC power source during technical inspections or emergencies.

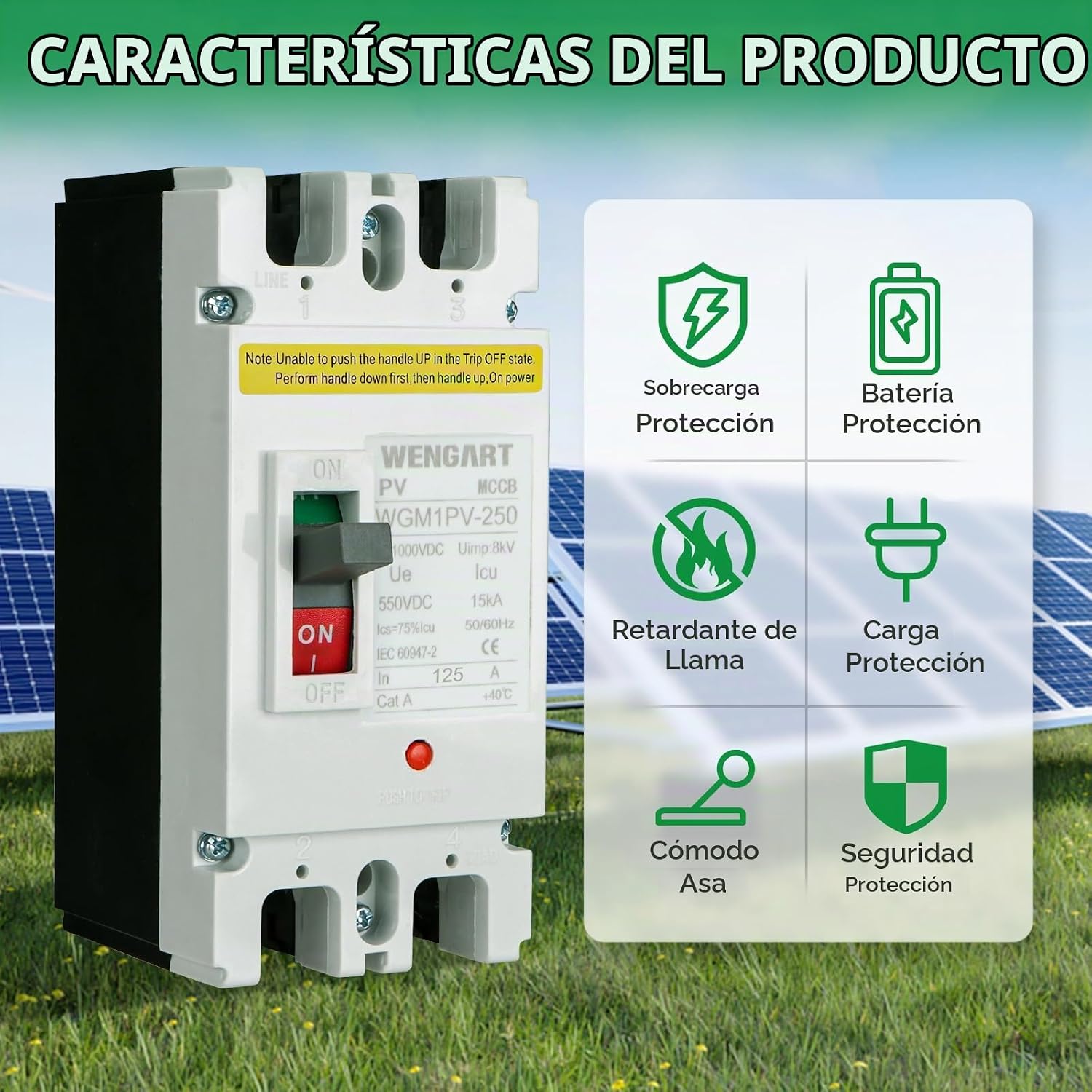

Figure 2.1: This image highlights the key features of the Wengart MCCB, including its capabilities for overload and battery protection, flame-retardant construction, load protection, ergonomic handle design, and overall safety.

3. Safety Information

WARNING: Electrical installation should only be performed by qualified personnel. Failure to follow these safety guidelines can result in serious injury or death.

• Polarity is Critical: For maximum safety and proper arc extinguishing, it is mandatory to follow the (+) and (-) polarity markings indicated on the chassis. Incorrect polarity can compromise the device's protective function.
• Arc Flash Hazard: This device is designed to interrupt high DC currents. Always wear appropriate Personal Protective Equipment (PPE) when working with or near the circuit breaker.
• Verify Dimensions: Due to its MCCB design, this unit is larger than conventional circuit breakers. Ensure adequate space in your electrical cabinet before installation.
• Secure Connections: Ensure all cable connections are firm and properly torqued to prevent loose connections, which can lead to overheating and potential fire hazards.
• Do Not Exceed Ratings: Never operate the circuit breaker beyond its rated current (125A) or voltage (550V DC).

4. Product Overview and Components

Familiarize yourself with the main components of the Wengart MCCB:

Figure 4.1: A detailed diagram illustrating the various components of the Wengart MCCB, such as the mounting hole, input and output terminals, flame-retardant casing, parameter label, operating handle, and test button.

1. Mounting Hole: Used for securing the MCCB to a DIN rail or mounting plate.
2. Input Terminals: Connection points for the incoming DC power source.
3. Flame-Retardant Casing: The outer housing designed to resist fire and protect internal components.
4. Parameter Table: Label displaying technical specifications such as rated current, voltage, and breaking capacity.
5. Operating Handle: Lever used to manually switch the breaker ON or OFF, and indicates trip status.
6. Test Button: Allows for manual testing of the trip mechanism.
7. Output Terminals: Connection points for the protected DC load.

5. Setup and Installation

Proper installation is crucial for the safe and effective operation of the MCCB.

5.1 Mounting

The Wengart MCCB is designed for DIN rail mounting. Securely attach the breaker to the DIN rail within your electrical enclosure. Ensure sufficient clearance around the breaker for ventilation and access to terminals.

5.2 Wiring Connections

IMPORTANT: Always ensure the power source is disconnected before making any electrical connections.

• Cable Section: The MCCB is designed for large cross-section cables (up to 70mm² or more when using lug terminals). Use appropriate cable gauges for 125 Amperes to prevent power loss due to heat or contact resistance.
• Polarity: Observe the (+) and (-) markings on the MCCB chassis for input and output connections. Incorrect polarity will prevent the thermal and magnetic mechanisms from acting instantly in case of a fault.
• Terminal Tightening: Use appropriate tools to firmly tighten all terminal screws. Loose connections can lead to overheating and potential hazards.

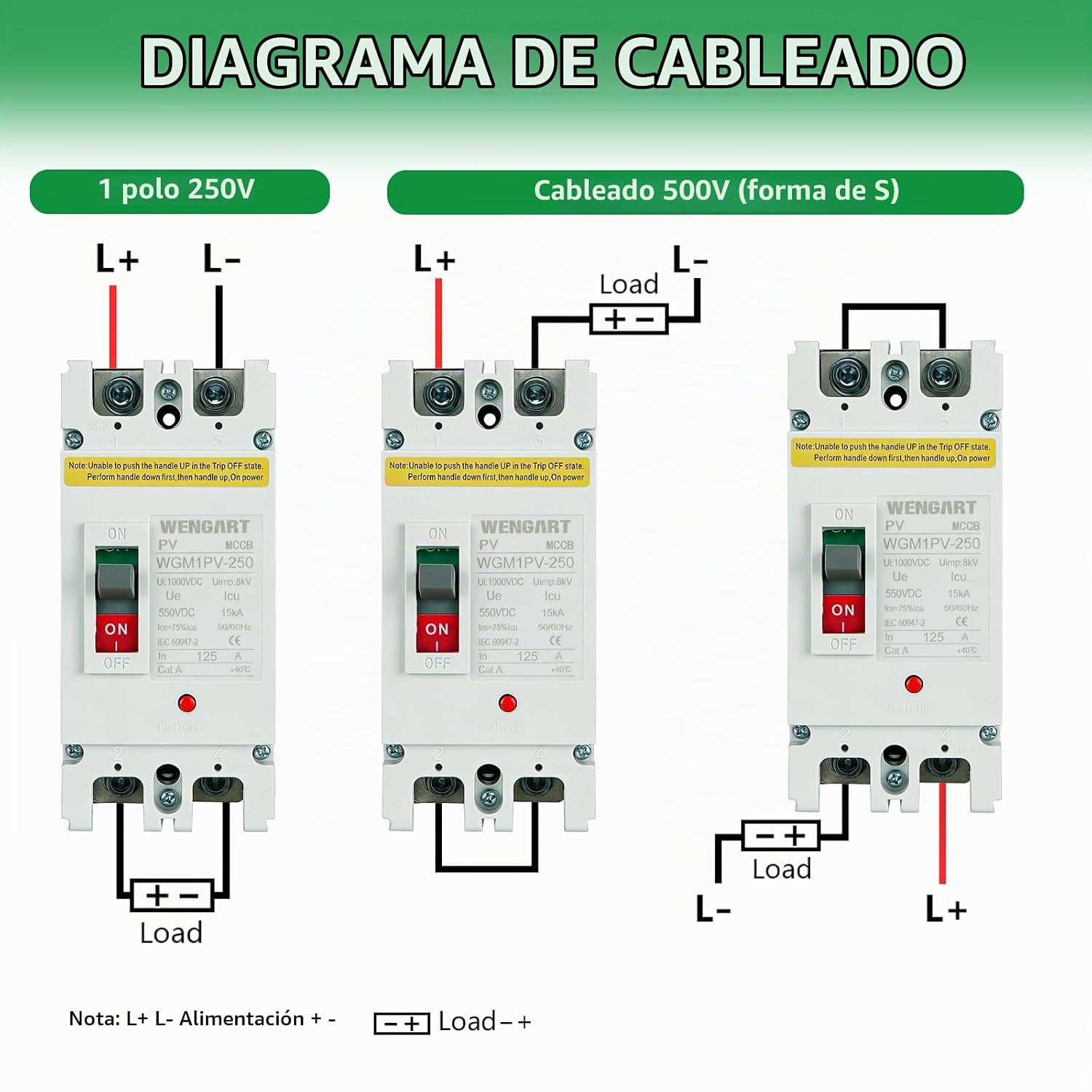

Figure 5.1: This diagram provides essential wiring instructions for the Wengart MCCB, detailing connections for both 1-pole 250V and 500V (S-form) systems. It clearly indicates positive (+) and negative (-) terminals and load connections, emphasizing correct polarity.

6. Operating Instructions

6.1 Switching ON/OFF

The operating handle clearly indicates the breaker's status:

• ON (Red): When the handle is in the UP position, the circuit is closed, and power is flowing.
• OFF (Green): When the handle is in the DOWN position, the circuit is open, and power is disconnected.

Figure 6.1: This image illustrates the operating handle of the Wengart MCCB, showing the red 'ON' position (lever up) and the green 'OFF' position (lever down).

6.2 Resetting After a Trip

If the MCCB trips due to an overload or short circuit, the handle will move to an intermediate position. To reset the breaker:

1. First, push the handle fully DOWN to the OFF position.
2. Then, push the handle fully UP to the ON position.

Note: If the breaker trips immediately after resetting, do not attempt to reset it again. Investigate and resolve the fault in the circuit before attempting to restore power.

6.3 Using as a Load Disconnect Switch

Thanks to its robust manual mechanism, the MCCB can be safely used as a load disconnect switch to isolate the DC power source for maintenance or emergencies. Simply move the handle to the OFF position to disconnect power.

7. Maintenance

Regular maintenance helps ensure the longevity and reliable operation of your Wengart MCCB.

• Periodic Inspection: Visually inspect the MCCB and its connections periodically for any signs of damage, discoloration, or loose wiring.
• Cleaning: Keep the MCCB clean and free from dust and debris. Use a dry, non-abrasive cloth for cleaning. Do not use solvents or liquids.
• Terminal Check: Periodically check the tightness of all terminal connections.
• Test Button: Press the test button annually to verify the trip mechanism is functional. If the breaker does not trip, it may require replacement.
• Bipolar Isolation: When performing maintenance on connected equipment, always ensure the MCCB is in the OFF position to provide total isolation and prevent residual voltage.

8. Troubleshooting

If you encounter issues with your Wengart MCCB, consider the following:

• MCCB Trips Frequently:
  • Overload: The connected load may be drawing more current than the MCCB's 125A rating. Reduce the load or verify the system design.
  • Short Circuit: A direct short circuit in the wiring or connected equipment will cause an immediate trip. Inspect wiring and equipment for faults.
  • Ground Fault: A fault to ground can also cause tripping. Check for insulation damage.
  • Loose Connections: Overheating at terminals due to loose connections can cause nuisance tripping. Check and tighten all connections.
• MCCB Does Not Turn ON:
  • Tripped State: Ensure the handle is fully pushed down to OFF before attempting to push it up to ON.
  • No Power Input: Verify that there is power supplied to the input terminals of the MCCB.
  • Internal Fault: If the breaker cannot be reset or remains in the OFF position despite no apparent fault, the unit may be damaged and require replacement.
• MCCB Overheats:
  • Overload: The current draw is too high.
  • Loose Connections: Poor contact at terminals generates heat.
  • Inadequate Ventilation: Ensure the electrical enclosure has proper airflow.

If troubleshooting steps do not resolve the issue, consult a qualified electrician or contact Wengart customer support.

9. Specifications

Detailed technical specifications for the Wengart WGM1PV-250 (125A) MCCB:

Figure 9.1: This image showcases the substantial build quality of the Wengart MCCB, displaying its weight of 1332.2g on a scale, which signifies the use of robust and durable materials in its construction. Note: The weight shown in the image (1332.2g) may vary slightly from the listed product weight (930g) due to packaging or specific model variations.

10. Applications

The Wengart MCCB is versatile and suitable for a wide range of DC power applications, providing essential protection in demanding environments:

• Solar Power Systems: Protection for photovoltaic arrays, inverters, and battery banks.
• Wind Power Systems: Safeguarding DC circuits in wind energy installations.
• Hydropower Systems: Used in DC power generation and distribution within small-scale hydropower setups.
• Automotive and Marine: Ideal for high-current DC systems in vehicles, recreational vehicles (RVs), and marine vessels.
• DC Charging Stations: Protection for electric vehicle (EV) charging infrastructure.
• Industrial DC Power Supplies: General protection for various industrial equipment operating on DC power.

Figure 10.1: This image demonstrates the wide range of applications for the Wengart MCCB, including solar power systems, wind power installations, marine vessels, recreational vehicles (RVs), and DC charging stations.
