1. Introduction
Thank you for purchasing the RAF R.1245R Steam Iron. This manual provides essential information for the safe and efficient use of your new appliance. Please read these instructions carefully before first use and retain them for future reference.
Figure 1: RAF R.1245R Steam Iron
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury.
- Read all instructions before using the iron.
- Use the iron only for its intended use.
- To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
- Always turn the iron to OFF before plugging or unplugging from the electrical outlet. Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect.
- Do not allow cord to touch hot surfaces. Let the iron cool completely before putting away. Loop cord loosely around iron when storing.
- Always disconnect iron from electrical outlet when filling with water or emptying, and when not in use.
- Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron; take it to a qualified service person for examination and repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.
- Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.
- Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down – there may be hot water in the reservoir.
- The iron must be used and rested on a stable surface.
- When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
3. Product Components
Familiarize yourself with the parts of your RAF R.1245R Steam Iron:
- Water Spray Nozzle
- Water Filling Inlet
- Steam Control Dial
- Temperature Control Dial
- Handle
- Power Cord
- Ceramic Soleplate
- Water Tank
- Self-Clean Button

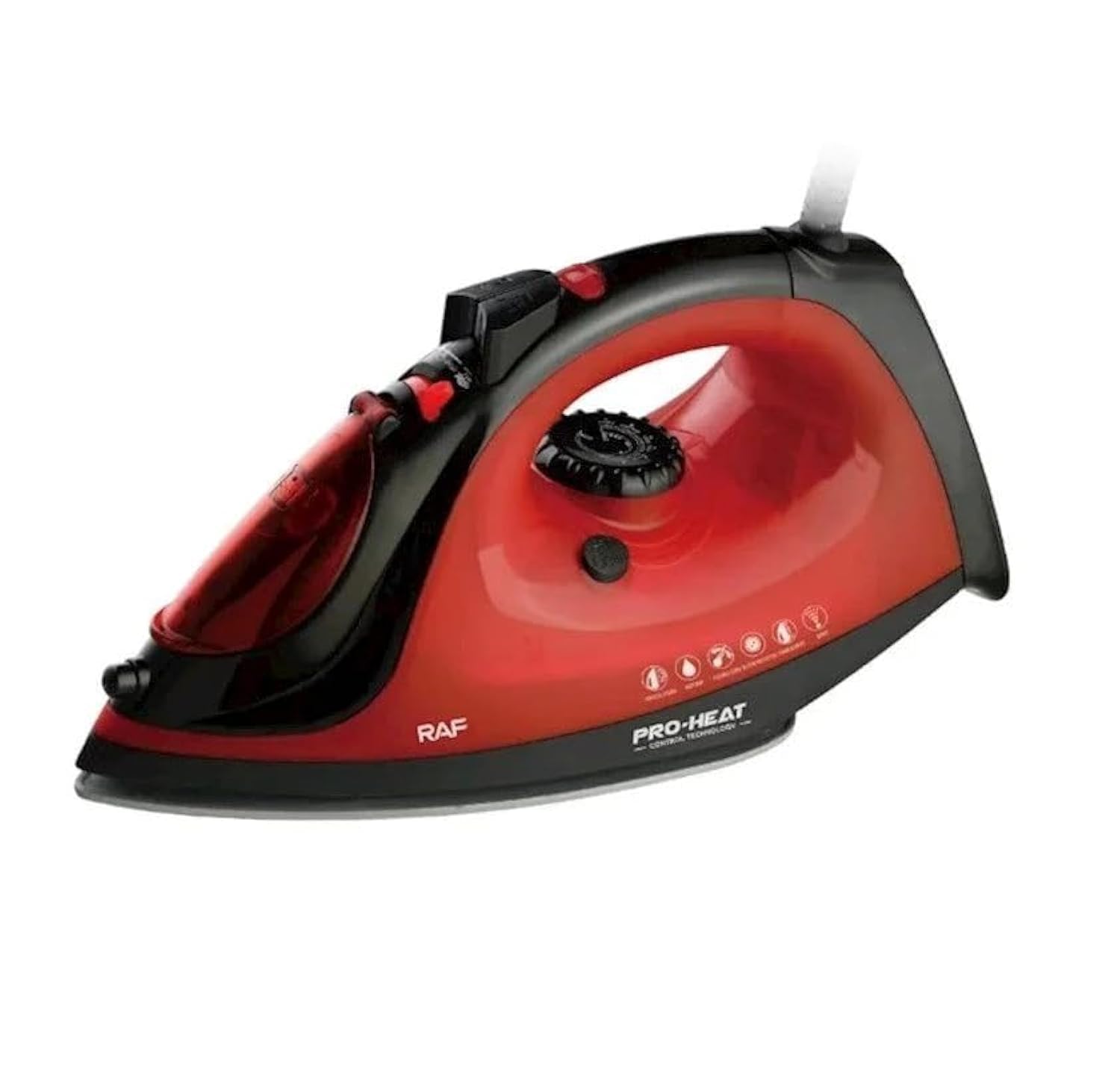

Figure 2: Key features of the RAF R.1245R Steam Iron
4. Setup
4.1 First Use
- Remove any stickers or protective foil from the soleplate.
- It is normal for a slight odor or smoke to be emitted during the first few minutes of use as manufacturing residues burn off. This is harmless and will disappear quickly.
4.2 Filling the Water Tank
- Ensure the iron is unplugged from the power outlet.
- Set the steam control dial to the 'Dry Ironing' position (no steam).
- Open the water filling inlet cover.
- Fill the water tank with clean tap water up to the 'MAX' mark. Do not overfill.
- Close the water filling inlet cover securely.
Note: For areas with hard water, it is recommended to use distilled or demineralized water to prevent mineral buildup.
5. Operating Instructions
5.1 Dry Ironing
- Ensure the water tank is empty or the steam control dial is set to 'Dry Ironing'.
- Plug the iron into a suitable 220V, 50Hz power outlet.
- Set the temperature control dial to the desired fabric setting (e.g., Silk, Wool, Cotton, Linen). The indicator light will illuminate.
- Wait for the indicator light to turn off, indicating the iron has reached the set temperature.
- Begin ironing.
5.2 Steam Ironing
- Fill the water tank as described in Section 4.2.
- Plug the iron into a suitable power outlet.
- Set the temperature control dial to the 'Steam' range (usually between Wool and Linen settings). The indicator light will illuminate.
- Wait for the indicator light to turn off, indicating the iron has reached the set temperature.
- Adjust the steam control dial to the desired steam level.
- Begin ironing. For optimal steam, move the iron continuously.
5.3 Vertical Steaming
This feature is useful for removing wrinkles from hanging garments, curtains, or drapes.
- Ensure the water tank is filled and the iron is heated to a high temperature setting (e.g., Linen).
- Hold the iron vertically, a few inches away from the fabric.
- Press the steam burst button (if available) or set the steam control to maximum.
- Move the iron up and down over the fabric.
5.4 Water Spray Function
Press the spray button to moisten stubborn wrinkles. Ensure the water tank contains water.
6. Maintenance
6.1 Cleaning the Iron
- Always unplug the iron and allow it to cool completely before cleaning.
- Wipe the exterior of the iron with a damp cloth and then dry with a soft, dry cloth.
- To clean the ceramic soleplate, use a damp cloth and a non-abrasive cleaner. Do not use harsh scouring pads or metal cleaners as these can damage the soleplate.
6.2 Self-Cleaning Function
The self-cleaning function helps to remove mineral deposits and impurities from the steam chamber.
- Fill the water tank to the 'MAX' level.
- Plug in the iron and set the temperature control dial to the maximum setting.
- Allow the iron to heat until the indicator light turns off.
- Unplug the iron from the power outlet.
- Hold the iron horizontally over a sink.
- Press and hold the self-clean button. Hot water and steam will be expelled from the soleplate, carrying away impurities.
- Gently shake the iron back and forth until the water tank is empty.
- Release the self-clean button.
- Reheat the iron and iron an old cloth to dry the soleplate.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Iron does not heat up. | Not plugged in; power outlet faulty; temperature dial set to minimum. | Check power connection; try another outlet; set temperature dial to desired heat. |
| No steam or insufficient steam. | Water tank empty; temperature too low; steam control set to 'Dry Ironing'. | Fill water tank; set temperature to steam range; adjust steam control. |
| Water leakage from soleplate. | Temperature too low for steam; water tank overfilled; steam control left open when iron is cold. | Increase temperature; do not overfill; ensure steam control is off when iron is cooling or not in use. |
| White flakes coming from soleplate. | Mineral deposits from hard water. | Perform the self-cleaning function. Use distilled water in the future. |
8. Specifications
- Brand: RAF
- Model: R.1245R
- Electric Power: 1800 Watts
- Electric Voltage: 220 Volts
- Frequency: 50 Hz
- Main Material: Ceramic (Soleplate)
- Color: Red
- Special Features: Lightweight, Self-cleaning, Vertical Steaming
- Product Dimensions (Length x Width): 30 cm x 10 cm
- Recommended Uses: General use, suitable for most fabrics and clothes
- Country of Origin: China
9. Warranty and Support
This RAF R.1245R Steam Iron comes with an International Warranty. For specific details regarding the warranty period and terms, please refer to the warranty card included with your product or contact your retailer.
For technical support, service, or inquiries about your product, please contact the manufacturer or your local authorized service center. Keep your purchase receipt as proof of purchase for warranty claims.
