ENGEL Low-Profile Standard Front-Pull Fridge Freezer Slide User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your ENGEL Low-Profile Standard Front-Pull Fridge Freezer Slide, Model SIS-7003T. Designed for durability and ease of access, this slide enhances the functionality of your portable fridge or freezer in various outdoor and vehicle settings. Please read this manual thoroughly before use to ensure proper function and longevity of your product.

2. Key Features

• Innovative Locking System: The slide features a unique locking mechanism that secures your fridge by its feet, eliminating the need for traditional tie-down straps. This ensures stability on various terrains.
• Effortless Access: A tilt function allows for easy access to fridge contents, reducing the need for bending or stretching.
• Durable Construction: Constructed from high-quality 304 Grade Stainless Steel and aluminum with a tough powder-coated finish, ensuring longevity and reliability in outdoor conditions.
• Easy Installation: Designed for quick and straightforward installation, compatible with a wide range of vehicle models.
• Space-Saving Design: Its compact, ultra-low profile maximizes vehicle space, leaving more room for other gear.
• Versatile Usage: Suitable for storing and accessing not only cold refreshments but also other essential items.
• Single-Handed Operation: Features a single-handed locking and release button with an integrated handle for convenient use.

3. What's in the Box

• Fridge Slide
• Feet for locking mechanism
• Screws and bolts for installation

4. Setup and Installation

The ENGEL Fridge Freezer Slide is designed for straightforward installation. Follow these steps to properly set up your slide in your vehicle.

4.1 Unpacking and Component Identification

Carefully unpack all components and verify against the "What's in the Box" section. Familiarize yourself with each part before beginning installation.

4.2 Assembly of the Slide (if required)

Some components may require initial assembly. Refer to the included diagrams for connecting the slide rails and base plates using the provided screws and bolts. Ensure all connections are secure.

4.3 Securing the Slide in Your Vehicle

Position the assembled slide in your vehicle's cargo area. Use the provided screws and bolts to securely fasten the slide to the vehicle's floor or a compatible drawer system. Ensure the mounting points are robust enough to support the weight of the slide and your fridge/freezer.

Image: A person is shown installing the Engel Tilt Fridge Slide into the back of a vehicle. The image highlights the feet locking mechanism, which secures the fridge without the need for tie-down straps.

Once the slide is mounted, place your portable fridge/freezer onto the slide. The innovative feet locking system will secure the fridge in place. For added security, especially on rough terrain, ensure the fridge is properly seated and the locking mechanism is engaged.

Image: A close-up view of the fridge slide's feet locking system. This system is designed to hold the fridge securely in place, eliminating the need for additional tie-down straps.

5. Operating Instructions

The ENGEL Fridge Freezer Slide is designed for user-friendly operation. Follow these guidelines to maximize convenience and functionality.

5.1 Extending and Retracting the Slide

To extend the slide, locate the single-handed locking and release button (often integrated with a handle). Press the button and gently pull the fridge/freezer outwards until it fully extends and locks into position. To retract, press the release button again and push the fridge/freezer back into its stowed position until it locks securely.

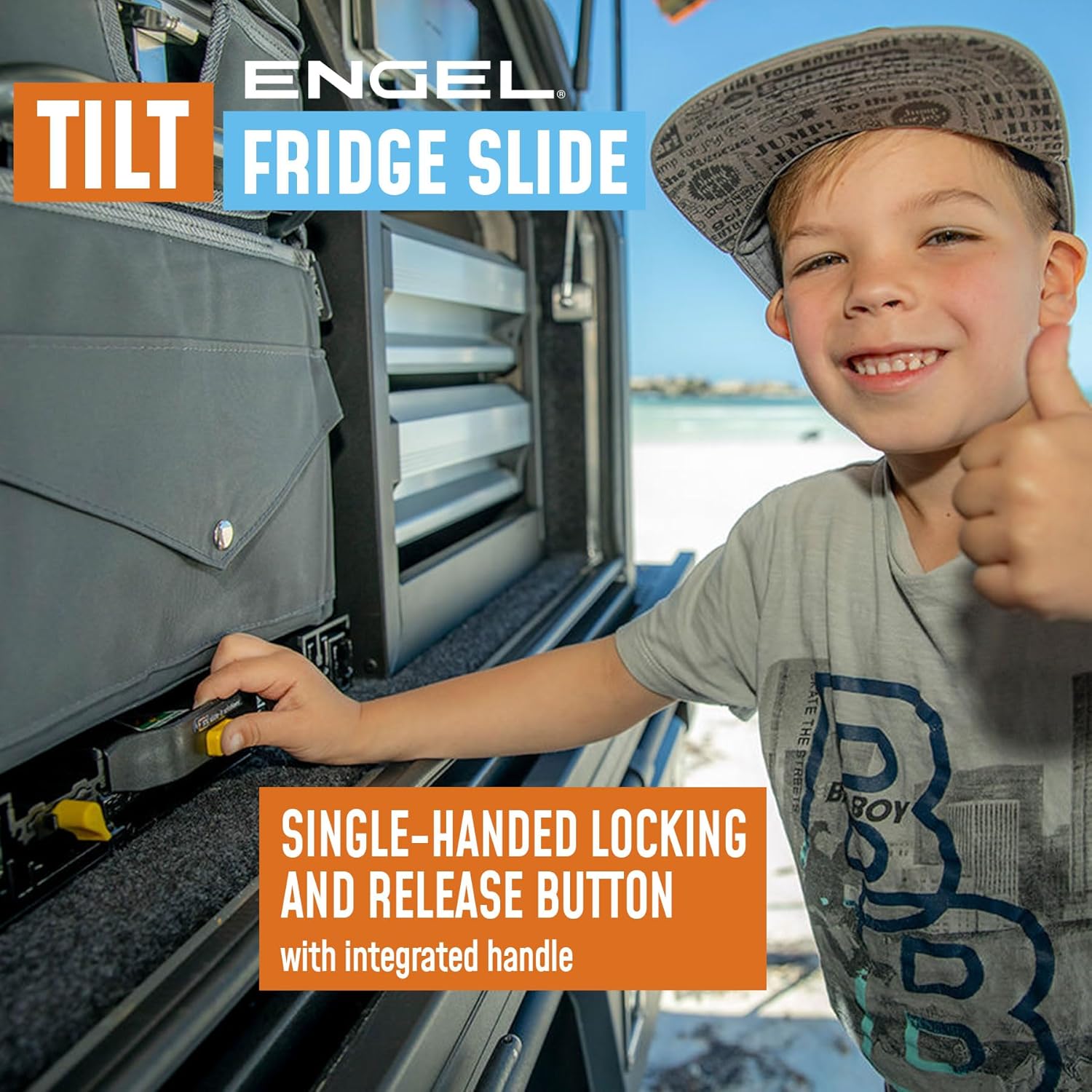

Image: A child easily operates the single-handed locking and release button on the Engel Fridge Slide, demonstrating its user-friendly design.

5.2 Utilizing the Tilt Function

For easier access to the contents of your fridge/freezer, the slide features a tilt function. Once the slide is fully extended, activate the tilt mechanism (refer to specific product markings if unsure) to lower the front of the fridge/freezer by approximately 9.85 inches, providing a 30-degree viewing angle. This allows for comfortable access without excessive bending.

Image: A woman is shown easily reaching into her portable fridge, which is tilted downwards on the Engel Fridge Slide, providing convenient access to its contents.

Image: A visual representation of the Engel Tilt Slide demonstrating its 30-degree tilt capability for improved accessibility.

5.3 Powering and Temperature Control (for compatible fridges)

If your portable fridge/freezer has dual zones, you can often control them independently. Some models offer app control for remote monitoring and adjustment of temperature settings and power modes (e.g., Eco or Max). Refer to your fridge/freezer's specific manual for detailed instructions on these features.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your fridge freezer slide.

• Cleaning: Periodically clean the slide rails and all metal components to remove dirt, dust, and debris. Use a damp cloth and mild detergent if necessary. Ensure all parts are dry after cleaning.
• Lubrication: Apply a small amount of silicone-based lubricant to the ball bearing drawer slides every few months, or as needed, to ensure smooth operation. Avoid using oil-based lubricants as they can attract dirt.
• Fastener Check: Regularly inspect all screws, bolts, and mounting hardware to ensure they are tight and secure. Tighten any loose fasteners to prevent movement or damage during transit.
• Strap Inspection: If using additional tie-down straps, inspect them for wear and tear before each trip. Replace any damaged straps immediately.

7. Troubleshooting

If you encounter issues with your fridge freezer slide, refer to the following common problems and solutions:

• Slide is Stiff or Difficult to Move:
  • Check for debris in the slide rails. Clean thoroughly.
  • Apply lubricant to the ball bearing slides.
  • Ensure the slide is not overloaded beyond its weight capacity.
• Slide Does Not Lock in Extended or Retracted Position:
  • Inspect the locking mechanism for obstructions or damage.
  • Ensure the slide is fully extended or retracted to allow the lock to engage.
• Fridge/Freezer is Not Secure on the Slide:
  • Verify that the feet of the fridge are properly seated in the locking mechanism.
  • Ensure all mounting hardware for the slide itself is tight.

8. Specifications

9. Warranty & Support

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official ENGEL website. Keep your proof of purchase for any warranty claims.
