1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Kucht KFX3000X/LP-S Gas Range. This 30-inch model combines design, high performance, and safety features, making it a central appliance for your kitchen. It features new True Simmer Burners for precise temperature control and a heavy-duty 21,000 BTU Rocket Power Burner for high-heat cooking. The oven includes a 22,000 BTU convection oven and a 16,000 BTU infra-red broiler, with a fine blue porcelain interior and adjustable, telescopic stainless steel racks.
Figure 1.1: Front view of the Kucht KFX3000X/LP-S Gas Range. This image displays the stainless steel finish, the control knobs, the oven door with a large viewing window, and the four cooktop burners with continuous grates.
2. Safety Information
Always adhere to the following safety guidelines to prevent injury or damage to the appliance.
- Read all instructions thoroughly before installation and operation.
- Ensure proper ventilation in the kitchen area.
- Do not store flammable materials near the range.
- Keep children and pets away from the appliance during operation.
- Do not use water on grease fires; smother the fire or use a dry chemical or foam-type extinguisher.
- Always use dry potholders. Moist or damp potholders on hot surfaces may result in burns from steam.
- Never use your appliance for warming or heating the room.
- Do not repair or replace any part of the appliance unless specifically recommended in this manual. All other servicing should be referred to a qualified technician.
3. Setup and Installation
Proper installation is crucial for the safe and efficient operation of your gas range. It is highly recommended that installation be performed by a qualified professional.
3.1. Location Requirements
- The range must be installed on a level, stable surface.
- Ensure adequate clearance from combustible materials. Refer to local building codes for specific requirements.
- The appliance requires a 120 Volt electrical connection for ignition and oven functions.
- This range is designed for use with natural gas or liquid propane (LP). Ensure the correct fuel type connection is made.
3.2. Dimensions and Weight
The Kucht KFX3000X/LP-S Gas Range has the following approximate dimensions and weight:
- Item Weight: 224 pounds
- Package Dimensions: 46 x 35 x 32 inches
- Product Dimensions (Approximate): 30 inches (Width) x 27.75 inches (Depth) x 36 inches (Height)

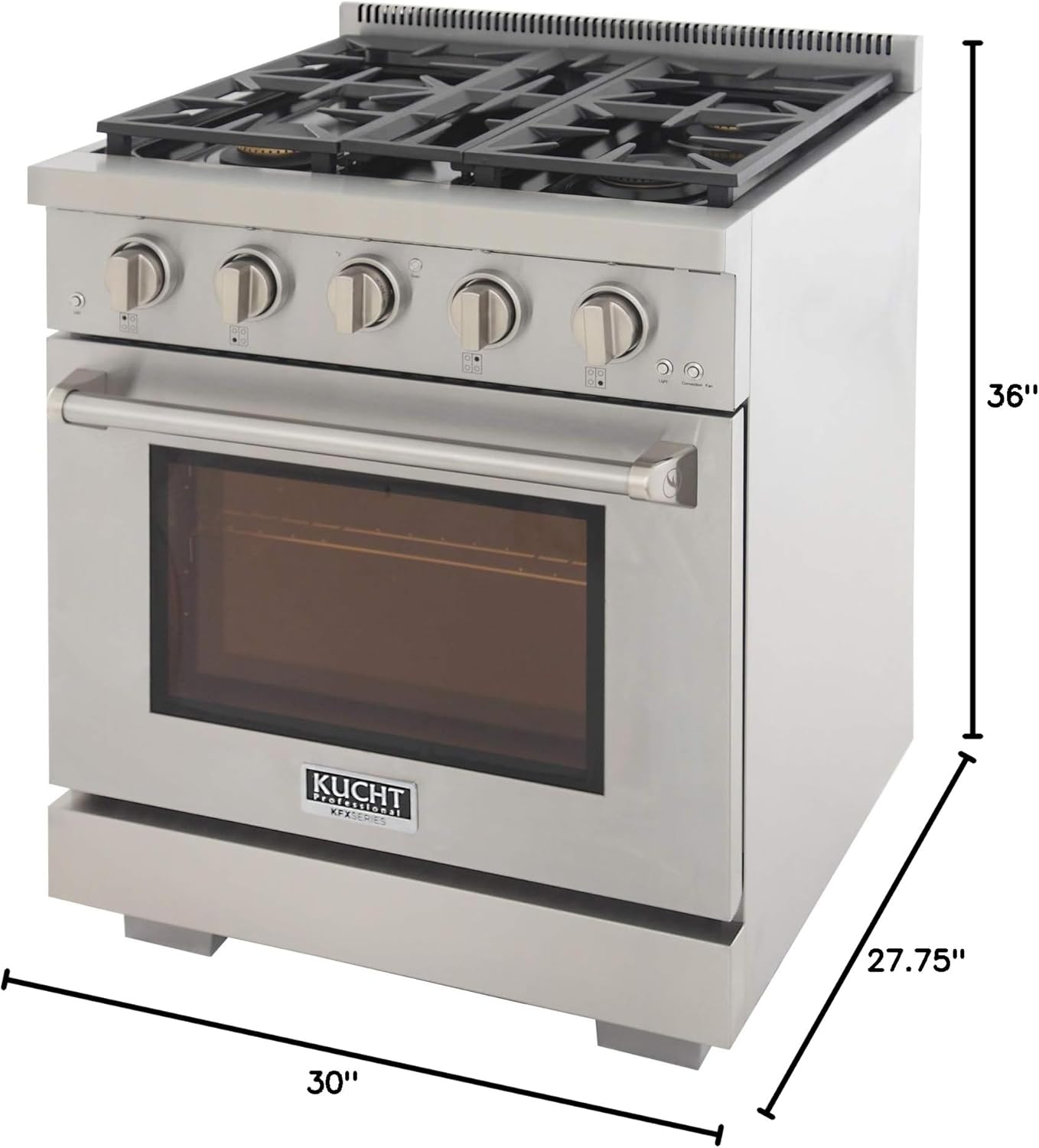

Figure 3.1: Dimensional view of the Kucht KFX3000X/LP-S Gas Range, indicating approximate width, depth, and height.
Figure 3.2: This image highlights the compatibility of the Kucht KFX3000X/LP-S Gas Range with both natural gas and liquid propane fuel types.
4. Operating Instructions
4.1. Cooktop Operation
The cooktop features four sealed burners with continuous grates, allowing for easy movement of cookware. The auto-reignition system ensures the flame reignites automatically if it goes out.
- Burner Ignition: To ignite a burner, push in and turn the corresponding control knob counter-clockwise to the "LITE" position. Hold until the burner ignites. Once ignited, adjust the flame to the desired intensity.
- True Simmer Burners: These burners provide very low heat for delicate simmering tasks, ideal for sauces and stews.
- Rocket Power Burner: One burner is a heavy-duty 21,000 BTU burner, designed for high-heat cooking such as stir-frying or using a wok.
Figure 4.1: Top view of the cooktop, illustrating the layout of the four sealed burners and the robust continuous grates.
Figure 4.2: Detailed view of a single gas burner, showing the burner cap, igniter, and gas port.
Figure 4.3: Close-up of a control knob, highlighting the "True Simmer" feature with its distinctive blue illumination.
4.2. Oven Operation
The oven features a 4.2 cubic feet capacity, a 22,000 BTU convection oven, and a 16,000 BTU infra-red broiler. The interior is coated with fine blue porcelain, and it includes adjustable, telescopic stainless steel racks.
- Preheating: Turn the oven control knob to the desired temperature. The oven will begin to preheat. An indicator light will typically turn off when the set temperature is reached.
- Convection Baking: Use the convection setting for more even heat distribution, ideal for baking multiple trays or larger items.
- Broiling: Position the oven rack according to the food item's thickness. Turn the oven control knob to the "BROIL" setting. Monitor food closely to prevent burning.
- Rack Adjustment: The telescopic racks can be easily adjusted to different heights to accommodate various cooking needs.
Figure 4.4: Interior view of the oven, showcasing the blue porcelain finish and the two adjustable, telescopic stainless steel racks.
Figure 4.5: A closer look at the telescopic oven racks, demonstrating their smooth extension for easy access to food.
5. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Kucht gas range.
- Stainless Steel Surfaces: Clean with a soft cloth and a non-abrasive stainless steel cleaner. Always wipe in the direction of the grain.
- Cooktop Grates and Burner Caps: These can be removed for cleaning. Wash with warm, soapy water. For stubborn stains, a non-abrasive scrub pad may be used. Ensure they are completely dry before re-installing.
- Oven Interior: The blue porcelain interior is designed for easy cleaning. Wipe spills as soon as the oven cools. For baked-on residue, use a non-abrasive oven cleaner suitable for porcelain surfaces.
- Oven Racks: The stainless steel racks are adjustable and telescopic, making them easy to remove for cleaning. They can be washed with warm, soapy water.
6. Troubleshooting
This section provides solutions to common issues you might encounter. For problems not listed here, or if issues persist, contact Kucht Professional customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner not igniting | No power, gas supply off, igniter dirty/wet, burner cap not seated correctly. | Check power supply. Ensure gas valve is open. Clean igniter and burner cap. Re-seat burner cap properly. |
| Oven not heating | Gas supply off, oven control set incorrectly, igniter issue. | Verify gas supply. Ensure oven control is set to a temperature, not just "OFF". Contact service if igniter is faulty. |
| Uneven cooking in oven | Improper rack position, overloaded oven, dirty convection fan. | Adjust rack position. Avoid overcrowding the oven. Clean convection fan area if accessible. |
| Gas odor | Gas leak. | IMMEDIATELY turn off gas supply, open windows, and contact a qualified gas technician. Do not operate electrical switches. |
7. Specifications
Detailed technical specifications for the Kucht KFX3000X/LP-S Gas Range.
| Specification | Value |
|---|---|
| Brand Name | KUCHT Professional |
| Model Info | KFX3000X/LP-S |
| Item Weight | 224 pounds |
| Package Dimensions | 46 x 35 x 32 inches |
| Item model number | KFX3000X/LP-S |
| Capacity | 4.2 Cubic Feet |
| Installation Type | Freestanding |
| Part Number | KFX3000X/LP-S |
| Form Factor | Freestanding |
| Burner type | Sealed |
| Drawer Type | Baking, Broiler |
| Heating Elements | 4 |
| Color | Stainless Steel |
| Control Console | Knob |
| Voltage | 120 Volts |
| Fuel type | Gas |
| Certification | CSA |
| Material Type | Stainless Steel |
| Included Components | KFX3000X/LP-S |
| Batteries Required? | No |
| Date First Available | March 27, 2024 |
8. Warranty and Support
KUCHT Professional offers comprehensive warranty and support for your gas range.
8.1. Warranty Information
- USA: 4-year warranty for parts and labor.
- CANADA: 2-year warranty for parts and labor.
Figure 8.1: Kucht Professional's 4-year warranty details for customers in the USA, including lifetime online support.
Figure 8.2: Kucht Professional's 2-year warranty details for customers in Canada, including lifetime online support.
8.2. Lifetime Support
Both USA and Canada warranties include lifetime video chat support with a Kucht specialist. For support, please visit the official KUCHT Professional website or contact their customer service line.
