1. Product Overview
The Lgsixe MTD 611-04144B Rear Axle Assembly is a critical replacement component designed for specific lawn mower models. This assembly is integral to the proper function of your mower's drive system, facilitating the connection and rotation of the rear wheels to transmit power effectively. It ensures the mobility and operational efficiency of your lawn equipment.

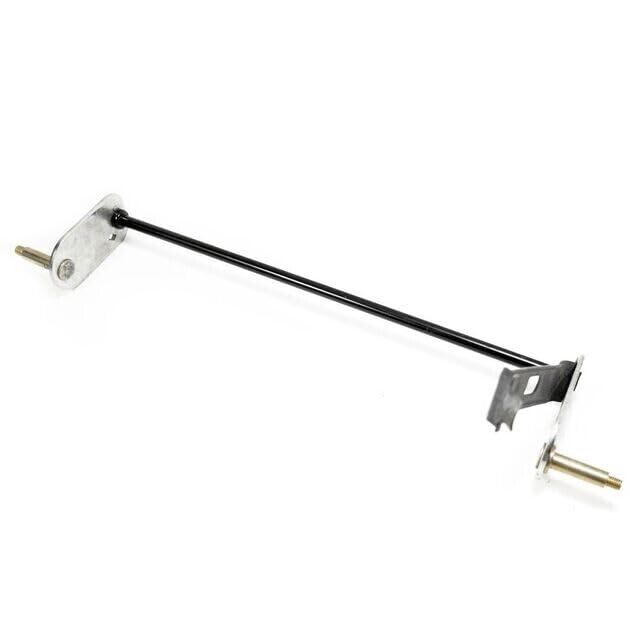

Image 1.1: The Lgsixe MTD 611-04144B Rear Axle Assembly, showing its full length and mounting points.
2. Compatibility
This rear axle assembly is engineered as a direct replacement for OEM Part Number 611-04144B. It is essential to verify the existing part number on your lawn equipment to ensure proper fitment and compatibility before installation. Using an incompatible part may lead to operational issues or damage to your machinery.
3. Installation (Setup)
Safety First: Always disconnect the spark plug wire or remove the battery before performing any maintenance or installation on lawn equipment. Wear appropriate personal protective equipment, including gloves and eye protection, to prevent injury.
- Park the lawn mower on a flat, stable, and level surface to ensure stability during the installation process.
- Secure the mower to prevent any accidental movement. Use wheel chocks or blocks if necessary.
- Locate the existing rear axle assembly on your lawn mower. It is typically positioned at the rear of the mower, connecting the two rear wheels.
- Carefully remove any retaining clips, bolts, nuts, or other fasteners that secure the old axle assembly to the mower frame and wheels. Keep track of all hardware for reassembly.
- Detach the rear wheels and any associated components (e.g., pulleys, gears) from the old axle.
- Remove the old axle assembly from the mower chassis.
- Position the new Lgsixe MTD 611-04144B Rear Axle Assembly into the designated mounting points on the mower frame.
- Reattach the rear wheels and other components, ensuring all fasteners are securely tightened according to the mower's original specifications. Do not overtighten.
- Verify that the wheels spin freely and that the new axle assembly is properly seated and aligned.
- Reconnect the spark plug wire or reinstall the battery.
- Test the mower's movement at a slow speed in a clear area before resuming normal operation.
4. Operation (Usage)
The rear axle assembly functions as an integral, non-user-operated part of your lawn mower's drive system. Once correctly installed, it facilitates the rotation of the rear wheels, enabling the mower to move forward or backward as directed by the operator. No direct user operation of the axle itself is required beyond its proper installation and subsequent maintenance as outlined in this manual and your lawn mower's primary instruction manual.
5. Maintenance
Regular inspection and basic maintenance of the rear axle assembly can extend its lifespan and ensure reliable performance of your lawn mower.
- Visual Inspection: Periodically check the axle assembly for any visible signs of wear, damage, bending, or corrosion. Look for cracks in the metal or excessive play in the wheel connections.
- Fastener Check: Ensure all bolts, nuts, and retaining clips securing the axle and wheels remain tight. Loose fasteners can lead to instability and premature wear.
- Cleaning: Remove any accumulated grass clippings, dirt, or debris from around the axle, wheel hubs, and mounting points. Debris can hinder movement and cause abrasion.
- Lubrication: If your specific lawn mower model's manual recommends lubrication for axle components (e.g., bearings, bushings), follow those guidelines using the specified lubricant. The Lgsixe 611-04144B is a sealed unit and generally does not require external lubrication.
6. Troubleshooting
If you encounter issues after installing the rear axle assembly, consider the following common problems and solutions:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Unusual noises (e.g., grinding, squeaking) from rear wheels. | Loose fasteners, worn bearings (if applicable), or debris accumulation. | Inspect all connections for tightness. Clean the area around the axle and wheels. Check for excessive play in the wheels. |
| Difficulty moving the mower or wheels binding. | Axle binding, damaged components, or improper installation. | Re-check all installation steps. Ensure no obstructions are preventing wheel rotation. Inspect the axle for any signs of damage or bending. |
| Rear wheels wobble excessively. | Loose wheel nuts, bent axle, or damaged wheel hub. | Tighten wheel nuts to manufacturer specifications. Inspect the axle for straightness. Check wheel hubs for damage. |
If troubleshooting steps do not resolve the issue, it is recommended to consult with a qualified service technician or contact customer support.
7. Specifications
| Manufacturer | Lgsixe |
| Part Number | XXBH-282 |
| Item Weight | 3.3 pounds |
| Product Dimensions | 21 x 10 x 10 inches |
| Item Model Number | 611-04144B |
| Included Components | Rear Axle |
8. Warranty Information
This Lgsixe product comes with a limited warranty. For specific details regarding the warranty period, coverage, and terms, please refer to the purchase documentation provided at the time of sale or contact the seller directly. Keep your proof of purchase for any warranty claims.
9. Support
For technical assistance, installation questions, or warranty inquiries regarding your Lgsixe MTD 611-04144B Rear Axle Assembly, please contact Lgsixe Direct, the seller, through your Amazon order details. Providing your order number will help expedite the support process.
