Generic Upright Vacuum Cleaner Brush Roll for Kenmore - Model 46-3402-03 Instruction Manual

Introduction

This manual provides instructions for the installation, operation, and maintenance of the Generic Upright Vacuum Cleaner Brush Roll, Model 46-3402-03. This brush roll is specifically designed to fit Kenmore upright vacuum cleaners that utilize a flat rubber belt and feature U-shaped end caps on the original brush roll. Please read these instructions carefully before proceeding with installation to ensure proper fit and function.

Important Safety Information

• Always unplug the vacuum cleaner from the electrical outlet before attempting any installation, maintenance, or troubleshooting.
• Wear appropriate protective gear, such as gloves, to prevent injury during installation or maintenance.
• Ensure the replacement brush roll matches the specifications of your original part, especially the end cap design.
• Keep small children and pets away from the work area during installation.
• If you are unsure about any step, consult a qualified technician or refer to your vacuum cleaner's original manual.

Setup and Installation

This brush roll is designed for Kenmore upright vacuum cleaners that use a flat rubber belt and have U-shaped end caps on the brush roll. It is critical to verify that your existing brush roll has end caps identical to those shown in the images below for proper fitment.

Step 1: Prepare the Vacuum Cleaner

1. Unplug the Vacuum: Disconnect the vacuum cleaner from the power outlet.
2. Access the Brush Roll: Lay the vacuum cleaner on its back. Locate and remove the bottom plate or cover that secures the brush roll. This usually involves unscrewing several screws.

Step 2: Remove the Old Brush Roll

3. Remove the Belt: Carefully remove the flat rubber belt from the motor shaft and the old brush roll.
4. Extract Brush Roll: Lift out the old brush roll from its housing.

Step 3: Verify End Cap Compatibility

Before installing the new brush roll, compare its end caps with your old brush roll and the images provided. The brush roll features distinctive U-shaped end caps.

Image 1: Close-up of the brush roll's U-shaped end cap, showing its distinct design for compatibility verification.

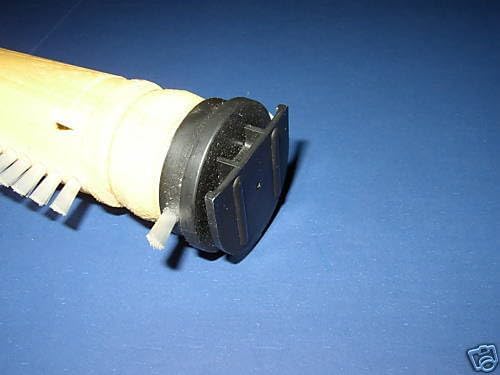

Image 2: Angled perspective of the brush roll's U-shaped end cap, highlighting its structural features.

Image 3: Side profile of the brush roll's U-shaped end cap, providing another angle for fitment confirmation.

Important: If your existing brush roll does not have end caps that are exact as shown in these pictures, this replacement part may not be compatible with your vacuum cleaner.

Step 4: Install the New Brush Roll

5. Place New Brush Roll: Carefully insert the new brush roll into the vacuum cleaner's housing. Ensure it sits correctly in its designated slots.
6. Install the Belt: Loop the flat rubber belt around the motor shaft and then around the new brush roll. Ensure the belt is properly seated and tensioned.
7. Reattach Cover: Replace the bottom plate or cover and secure it with the screws removed earlier.

Once installed, gently rotate the brush roll by hand to ensure it moves freely and the belt is correctly aligned.

Ensuring Proper Function

After installation, plug in the vacuum cleaner and test its operation. The brush roll should spin freely and consistently when the vacuum is turned on. Listen for any unusual noises or vibrations, which could indicate improper installation or a misalignment of the belt.

• If the brush roll does not spin, check the belt for proper placement and tension.
• Ensure no debris is obstructing the brush roll's movement.

Maintenance

Regular maintenance of your brush roll helps maintain optimal vacuum performance and extends the life of the part.

• Hair and Debris Removal: Periodically inspect the brush roll for tangled hair, threads, or other debris. Use scissors or a seam ripper to carefully cut and remove any obstructions.
• Belt Inspection: Check the flat rubber belt for signs of wear, stretching, or damage. Replace the belt if it appears worn to ensure consistent brush roll rotation.
• End Cap Check: Ensure the end caps are free from debris and are securely seated.

Always unplug the vacuum cleaner before performing any maintenance.

Troubleshooting

Specifications

• Product Name: Upright Vacuum Cleaner Brush Roll
• Brand: Generic
• Model Number: 46-3402-03
• Compatibility: Designed to fit Kenmore upright vacuum cleaners with U-shaped end caps and flat rubber belts.
• Belt Type: Flat Rubber Belt (required for compatible vacuum models)

Warranty and Support

For information regarding warranty coverage or technical support, please contact the retailer or manufacturer directly. Keep your purchase receipt as proof of purchase.
