Aceup Energy AWPG3400 Gas Pressure Washer User Manual

Introduction

Thank you for choosing the Aceup Energy AWPG3400 Gas Pressure Washer. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your pressure washer. Please read this manual thoroughly before operating the unit and keep it for future reference. Proper use and maintenance will ensure optimal performance and extend the life of your equipment.

This gas pressure washer is designed for various cleaning tasks, delivering 3400 PSI and 2.6 GPM, powered by a 212CC engine. It is EPA compliant.

Important Safety Information

WARNING: Failure to follow these instructions may result in serious injury or property damage.

• Always wear appropriate personal protective equipment, including eye protection, hearing protection, and gloves.
• Never point the spray gun at people, animals, or electrical devices.
• Ensure the work area is well-ventilated when operating the gas engine to prevent carbon monoxide poisoning.
• Do not operate the pressure washer indoors.
• Before performing any maintenance or cleaning, always turn off the engine and disconnect the spark plug wire.
• Keep children and pets away from the operating area.
• Use only approved accessories and replacement parts.
• Do not operate the pressure washer if any parts are damaged or missing.
• Always connect the water supply before starting the engine. Running the pump dry can cause damage.

Package Contents

Carefully unpack all items and ensure all components are present and undamaged. If any items are missing or damaged, contact customer support.

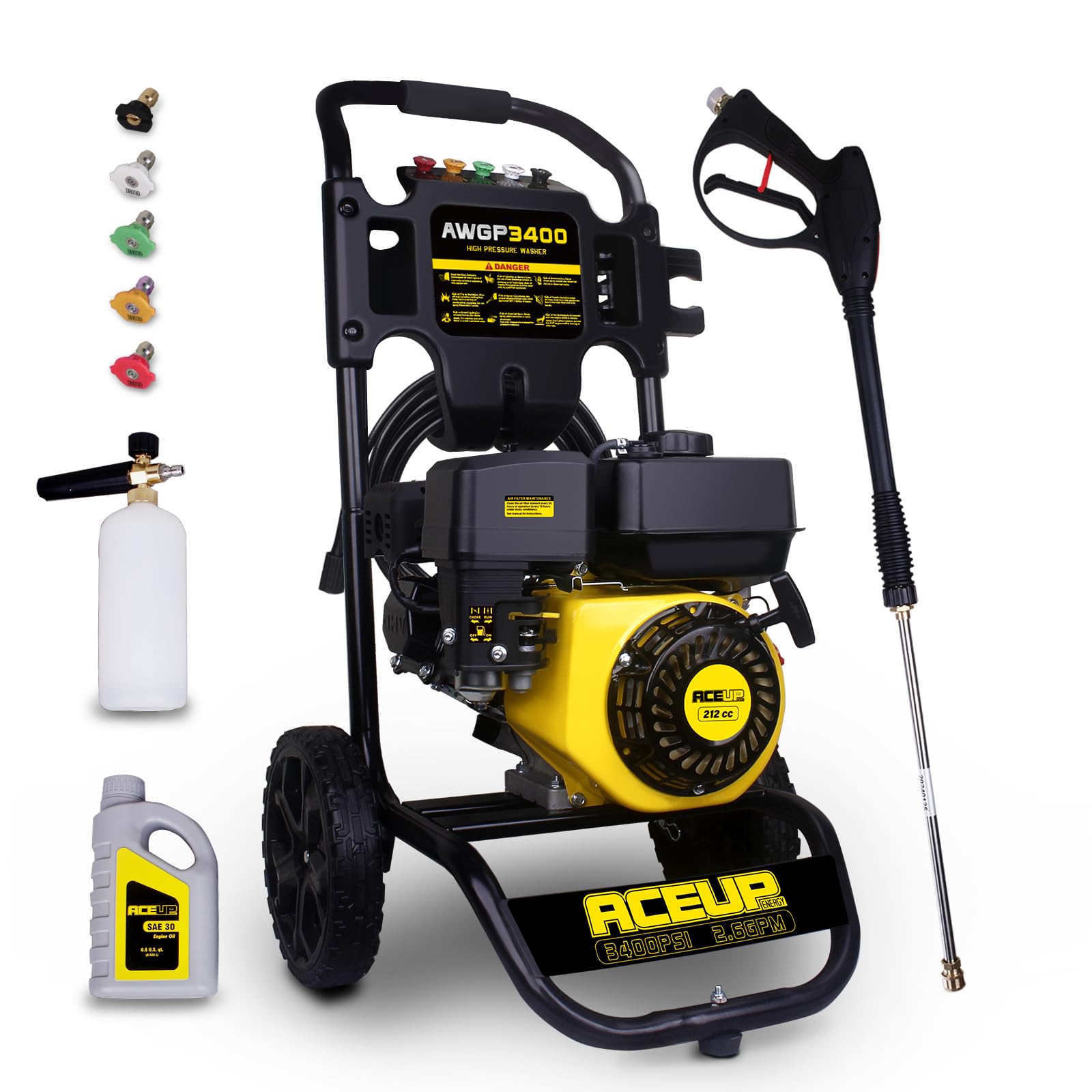

Image: The Aceup Energy AWPG3400 Gas Pressure Washer with its accessories laid out. Visible items include the pressure washer unit, a detergent hose, a wrench, a spark plug tool, a bottle of engine oil, and a foam cannon.

The package typically includes:

• Aceup Energy AWPG3400 Gas Pressure Washer Unit
• High-Pressure Hose
• Spray Gun with Wand
• Nozzle Tips (various degrees)
• Detergent Hose
• Foam Cannon (1 L capacity)
• Engine Oil (SAE 30)
• Spark Plug Wrench and other assembly tools
• User Manual

Assembly and Setup

1. Handle Assembly

Attach the handle to the main unit frame using the provided hardware. Ensure it is securely fastened.

2. Add Engine Oil

Before first use, add the provided SAE 30 engine oil to the engine crankcase. Refer to the engine manual for exact oil capacity and fill level. Do not overfill. The oil level should be at the bottom of the filler threads.

3. Fueling the Engine

Fill the fuel tank with fresh, unleaded gasoline. Do not use E85 or other ethanol-heavy fuels. Leave some space at the top of the tank to allow for fuel expansion.

4. Hose Installation

Connect the high-pressure hose, water supply hose, and detergent hose as shown in the diagram below.

Image: Close-up view of the pressure washer pump connections. Labels indicate the connection points for the "Detergent Hose" (top), "High Pressure Hose" (middle right), and "Water Supply" (bottom right, connected to a garden hose leading to a bucket).

• Water Supply: Connect a standard garden hose to the water inlet on the pump. Ensure the water source is clean and free of debris.
• High-Pressure Hose: Connect one end of the high-pressure hose to the pump outlet and the other end to the spray gun. Tighten all connections securely to prevent leaks.
• Detergent Hose: If using detergent, connect the small detergent hose to the designated inlet on the pump and place the filter end into a container of pressure washer safe detergent.

Operating Instructions

1. Pre-Start Checklist

• Check engine oil level.
• Check fuel level.
• Ensure all hose connections are tight.
• Open the water supply valve completely.
• Squeeze the spray gun trigger to purge air from the pump and hose until a steady stream of water emerges.

2. Starting the Engine

• Turn the engine switch to the "ON" position.
• Move the choke lever to the "CHOKE" position (for cold starts).
• Pull the recoil starter handle firmly until the engine starts.
• Once the engine starts, gradually move the choke lever to the "RUN" position.
• Allow the engine to warm up for a few moments.

3. Using Nozzle Tips

The pressure washer comes with various nozzle tips, each designed for different applications. Always select the appropriate nozzle for the task to avoid damage to surfaces.

Image: A grid displaying different pressure washer nozzle tips (0°, 15°, 25°, 40°, Foam) and examples of their use. The 0° nozzle shows concentrated stream for tough spots, 15° for brick cleaning, 25° for deck cleaning, 40° for car washing, and the foam nozzle for applying soap.

• Red (0°): Concentrated, high-impact stream for stubborn stains and hard-to-reach areas. Use with extreme caution as it can damage surfaces.
• Yellow (15°): Narrow fan spray for intensive cleaning of small areas, such as removing paint or rust.
• Green (25°): Medium fan spray for general cleaning of decks, patios, and driveways.
• White (40°): Wide fan spray for gentle cleaning of vehicles, boats, and delicate surfaces.
• Black (Foam/Soap): Low-pressure spray for applying detergents or cleaning solutions.

To change nozzles, turn off the engine and squeeze the trigger to release any residual pressure. Pull back the collar on the spray wand and insert the desired nozzle. Release the collar to lock it in place.

4. Using the Foam Cannon

The included foam cannon can be used for applying a thick layer of soap. Fill the foam cannon reservoir with appropriate pressure washer detergent. Attach the foam cannon to the spray gun in place of a standard nozzle. Operate the pressure washer at low pressure (using the black soap nozzle if not using the dedicated foam cannon) to apply the foam.

Image: A black car covered in white foam, being sprayed by a foam cannon attached to a pressure washer wand. This demonstrates the application of cleaning solution.

5. Shutting Down

• Turn the engine switch to the "OFF" position.
• Turn off the water supply.
• Squeeze the spray gun trigger to release any remaining pressure in the system.
• Disconnect the garden hose and high-pressure hose.

Maintenance

Regular maintenance is crucial for the longevity and safe operation of your pressure washer.

• After Each Use:
  • Flush the pump with clean water to remove any detergent residue.
  • Clean the nozzle tips to prevent clogging.
  • Wipe down the unit to remove dirt and debris.
• Every 25 Hours of Operation or Annually:
  • Change the engine oil.
  • Inspect and clean or replace the air filter.
  • Check the spark plug and clean or replace if necessary.
  • Inspect all hoses and connections for wear or damage.
• Storage:
  • Drain all fuel from the tank or use a fuel stabilizer.
  • Drain water from the pump by running it for a few seconds after disconnecting the water supply. Consider using a pump protector/antifreeze if storing in freezing temperatures.
  • Store the unit in a clean, dry, and protected area.

Troubleshooting

Specifications

Image: The Aceup Energy AWPG3400 Gas Pressure Washer shown with its key dimensions: 25.9 inches (length), 19.5 inches (width), and 38 inches (height). The weight is indicated as 52.9 lbs.

• Model: AWPG3400
• Engine Displacement: 212CC
• Maximum Pressure: 3400 PSI
• Maximum Flow Rate: 2.6 GPM (Gallons Per Minute)
• Power Source: Gasoline
• Compliance: EPA Compliant
• Product Dimensions: 19.7 x 19.7 x 38.6 inches (approximately 25.9 x 19.5 x 38 inches as depicted in some visuals)
• Item Weight: 62.9 pounds (approximately 52.9 lbs as depicted in some visuals)
• Tank Volume: 1 Liter (for detergent)
• Color: Yellow and Black

Note: Specifications are subject to change without notice. Minor discrepancies in dimensions/weight may occur due to manufacturing variations or measurement methods.

Warranty and Customer Support

For warranty information, technical assistance, or to order replacement parts, please contact Aceup Energy customer support. Keep your purchase receipt and model number (AWPG3400) readily available when contacting support.

Refer to the contact information provided with your product packaging or visit the official Aceup Energy website for the most up-to-date support details.
