EROMMY 11.7x15.6 ft Louvered Pergola with Side Screens Instruction Manual

1. Product Overview

The EROMMY 11.7x15.6 ft Louvered Pergola is an outdoor aluminum structure designed to provide adjustable shade and privacy for your deck, patio, or garden. It features an adjustable louvered roof for flexible control over sunlight and weather protection, along with integrated pull-down side screens for enhanced privacy and sun blocking. The pergola is constructed with durable aluminum frames and stainless steel fittings, ensuring stability and longevity.

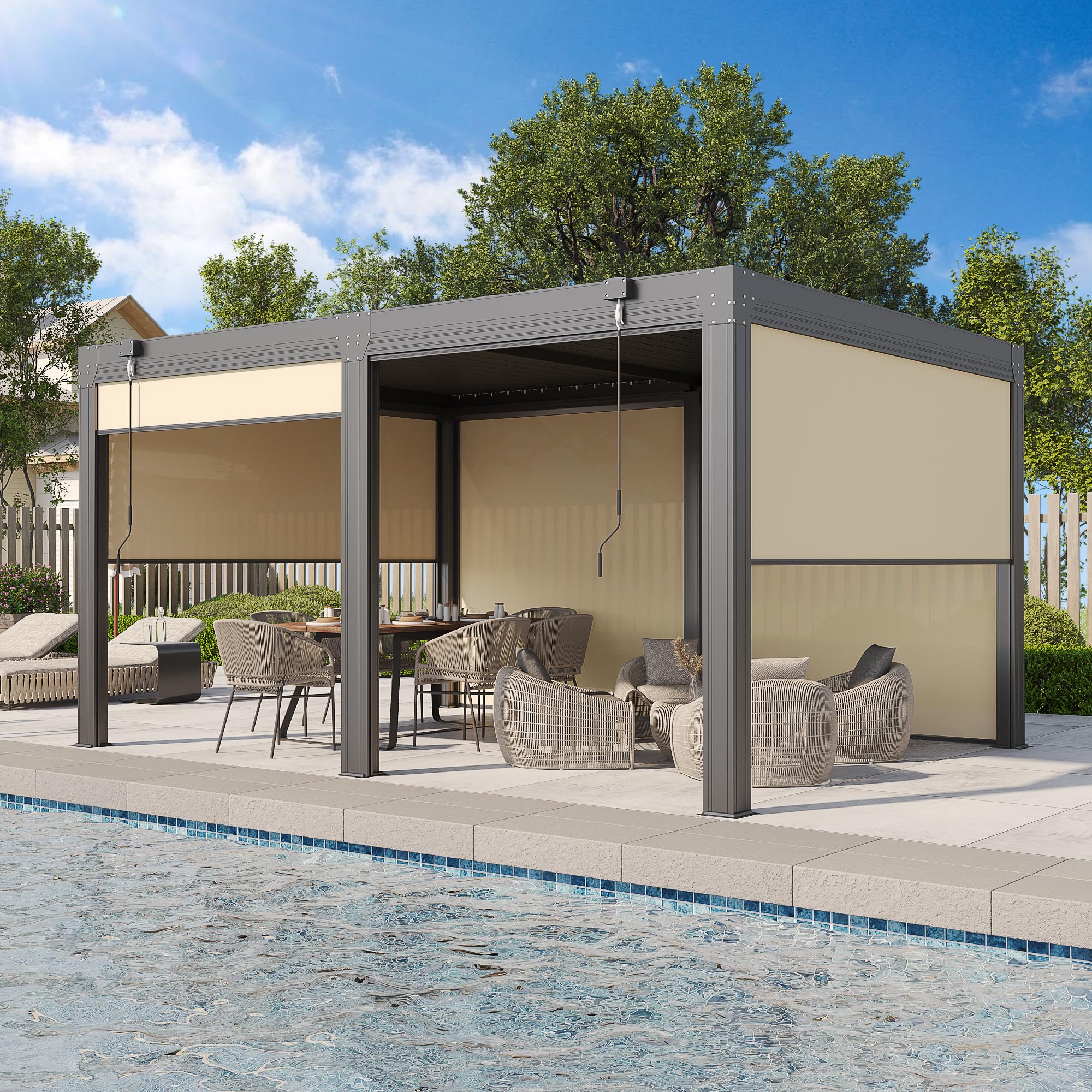

Image 1.1: Overview of the EROMMY Louvered Pergola with side screens.

2. Safety Information

Please read and understand all safety instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Always follow assembly instructions carefully.
• Use appropriate tools and safety equipment when handling heavy components.
• Secure the pergola to a stable, level foundation to prevent tipping. Expansion anchor bolts are provided for this purpose.
• Keep children and pets away from the assembly area.
• Do not operate or use the pergola in windy conditions exceeding 20 mph. Retract side screens and close louvers in strong winds.

3. Setup and Assembly

Assembly of the EROMMY Louvered Pergola requires careful attention to detail and multiple individuals for safe handling of components.

3.1 Pre-Assembly Checklist

• Verify all components are present according to the packing list.
• Ensure you have the necessary tools (e.g., wrenches, screwdrivers, ladder, level).
• Choose a flat, sturdy, and level surface for installation.
• Allocate approximately 3-6 hours for assembly with 4-6 people.

3.2 Assembly Steps

Refer to the detailed assembly instructions provided in your product packaging for step-by-step guidance. Key steps include:

1. Assemble the main frame structure, ensuring all connections are secure.
2. Install the louvered roof panels and their adjustment mechanisms.
3. Attach the side pull-down screens to the designated tracks.
4. Secure the pergola to the ground using the pre-drilled base plates and expansion anchor bolts.

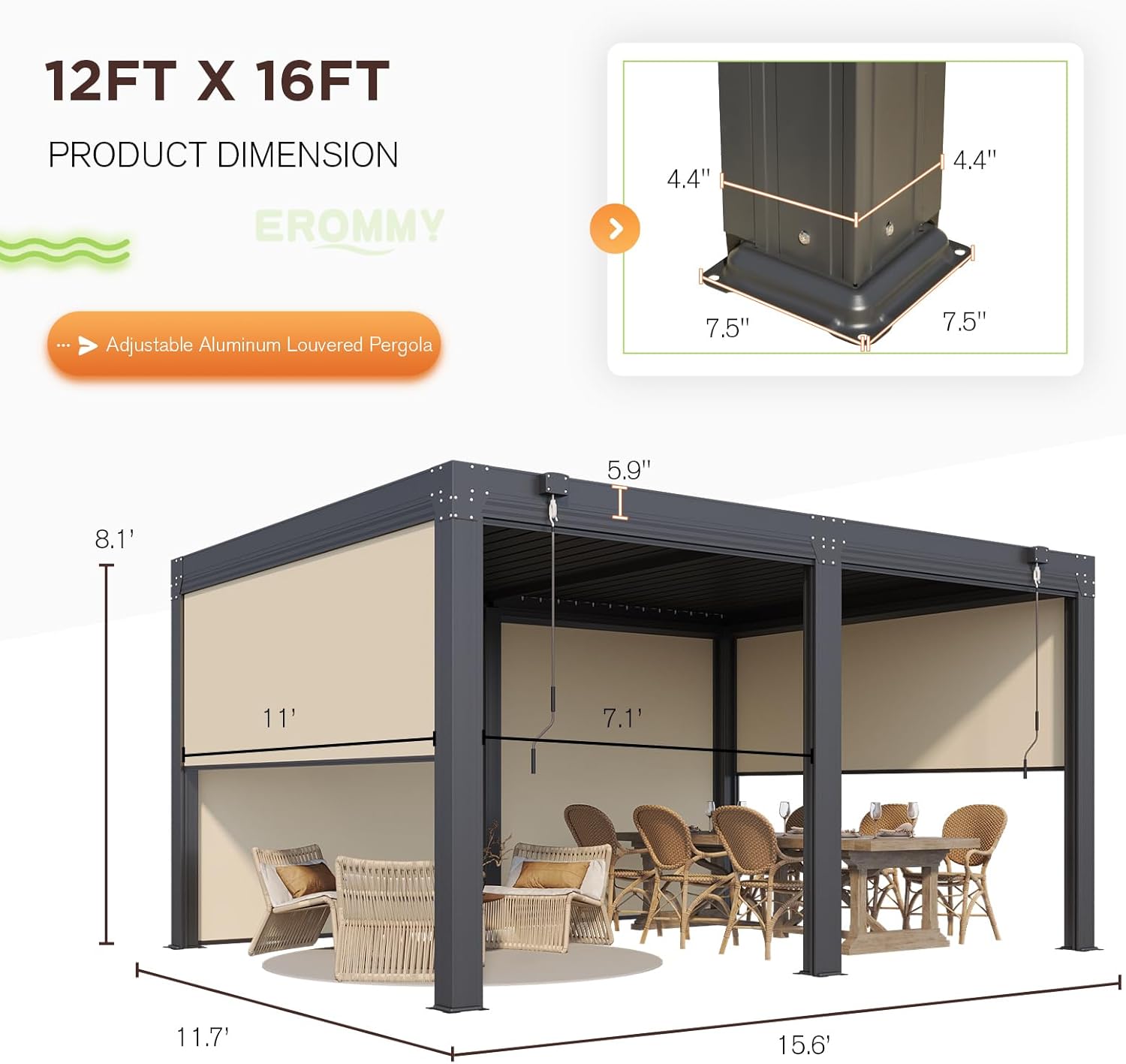

Image 3.1: Product dimensions for planning your installation space.

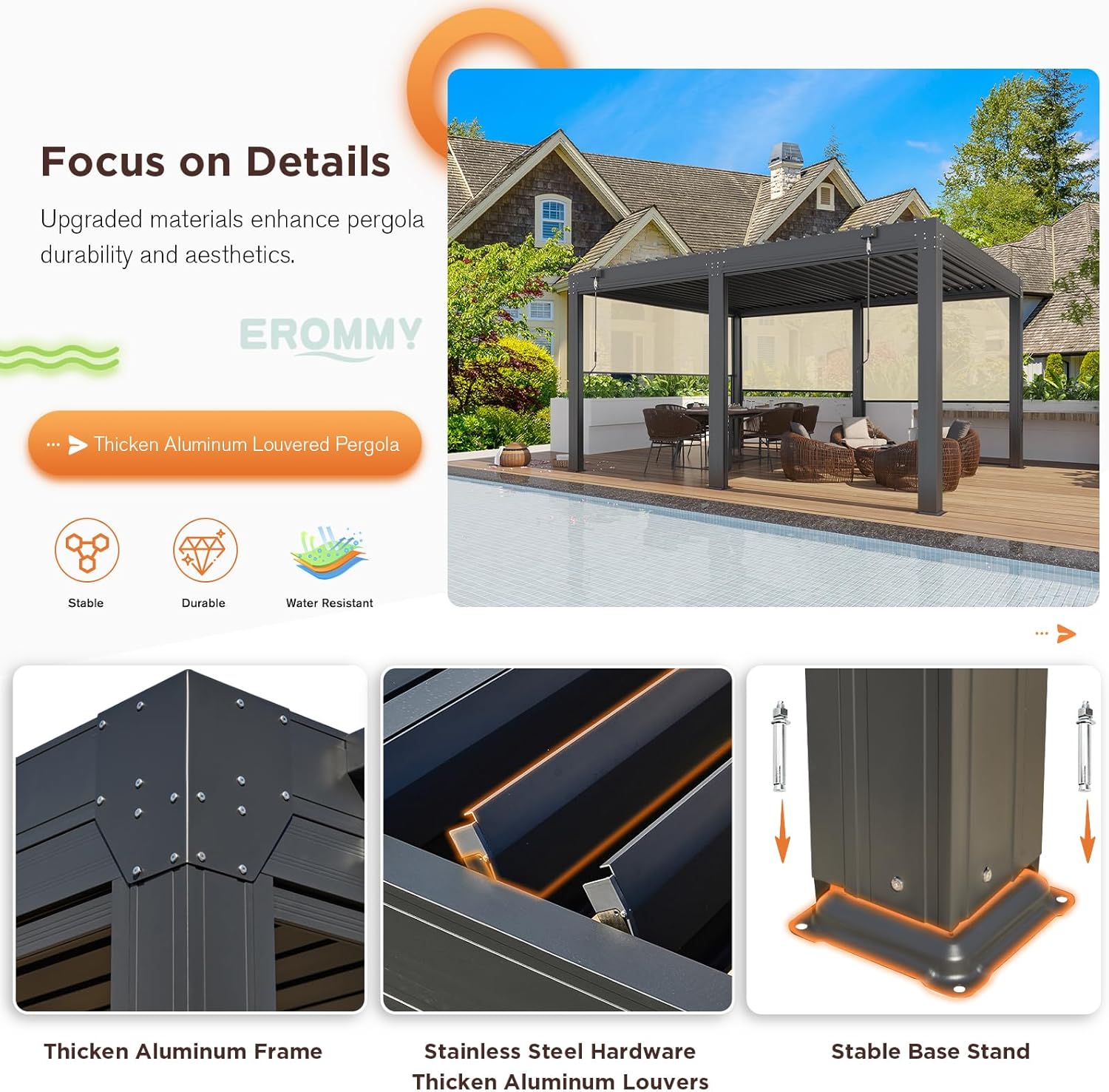

Image 3.2: Details of the thickened aluminum frame and stable base stand for secure installation.

4. Operating Instructions

4.1 Adjustable Louvered Roof

The louvered roof can be adjusted to control sunlight and provide shelter from rain. Use the integrated mechanism to open or close the louvers to your desired angle. This allows for flexible adaptation to various weather conditions and personal preferences.

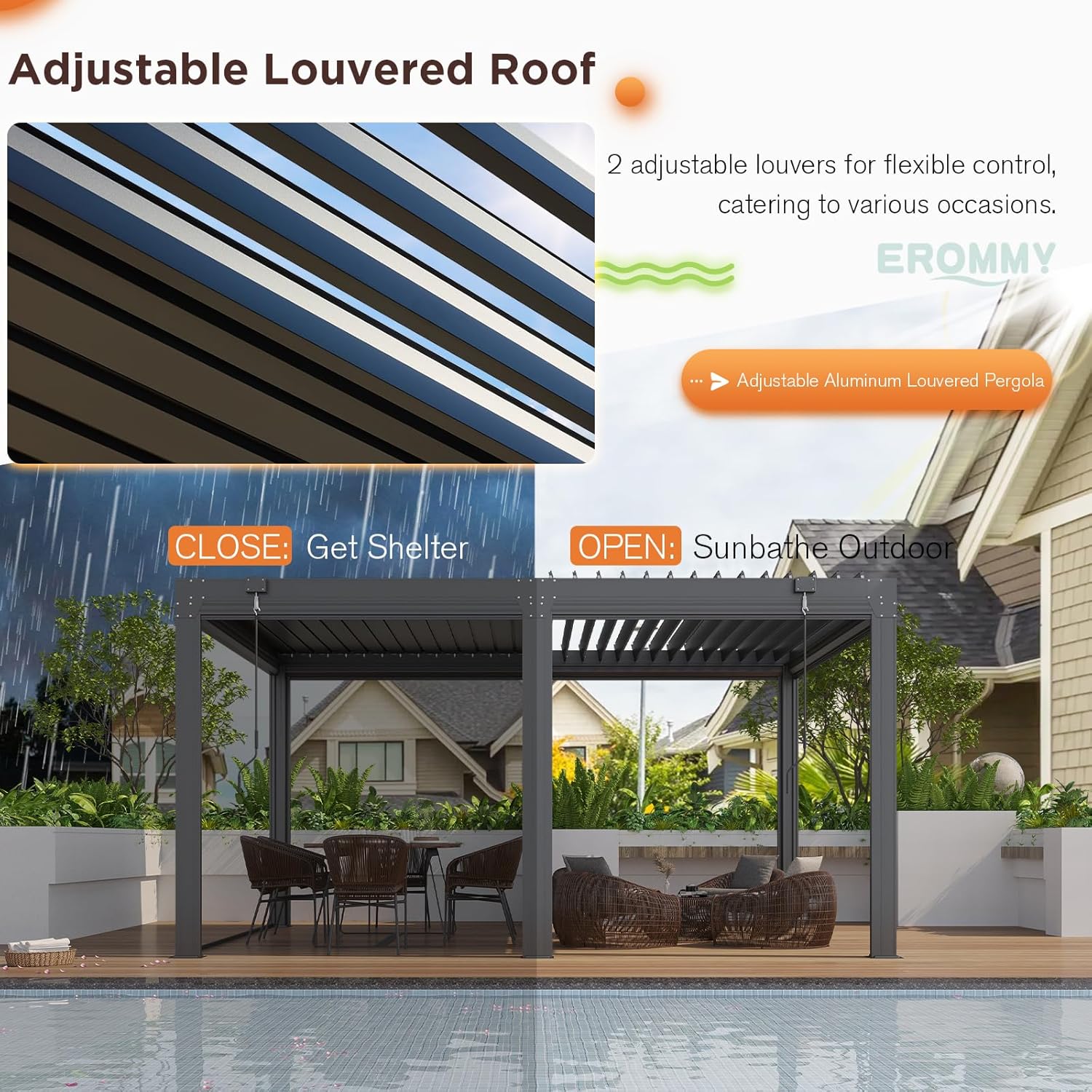

Image 4.1: Demonstrates opening and closing the adjustable louvered roof for sun or shelter.

4.2 Side Pull-Down Screens

The pergola is equipped with pull-down side screens for privacy, sun protection, and wind resistance. Gently pull down the screens to deploy them and retract them when not needed. The design helps block intense sunlight and harmful UV rays while allowing gentle breezes to pass through.

Image 4.2: Illustrates the functionality of the windproof side screens for privacy and sun blocking.

5. Maintenance

Regular cleaning and inspection will help prolong the lifespan of your EROMMY Louvered Pergola.

• Cleaning: Clean the aluminum frame and louvered roof with a mild soap and water solution. Rinse thoroughly with clean water and dry with a soft cloth. Avoid abrasive cleaners or harsh chemicals.
• Screen Care: Clean side screens with a damp cloth. Ensure screens are dry before retracting to prevent mildew.
• Drainage System: Periodically inspect the built-in drainage system for any blockages (leaves, debris) to ensure efficient rainwater runoff.
• Hardware Check: Regularly check all bolts and connections to ensure they remain tight and secure.

Image 5.1: Diagram showing the in-built gutter system for effective rainwater drainage through the support pillars.

6. Troubleshooting

This section addresses common issues you might encounter with your pergola.

• Louvered Roof Not Operating Smoothly: Check for any obstructions in the louver mechanism. Ensure all moving parts are clean and free of debris. Apply a silicone-based lubricant if necessary.
• Side Screens Jamming: Inspect the tracks for debris or damage. Ensure the screens are aligned correctly within their guides.
• Water Accumulation: Verify that the drainage system is clear of blockages. Ensure the pergola is installed on a level surface to facilitate proper water flow.
• Pergola Instability: Re-check all frame connections and ensure the base plates are securely anchored to the ground.

If you encounter issues not listed here or require further assistance, please contact customer support.

7. Specifications

8. Warranty and Support

For any questions, concerns, or assistance with your EROMMY Louvered Pergola, please contact our customer service team. Our service team is dedicated to providing support and will promptly respond to your inquiries.

Please refer to your purchase documentation for specific warranty details.
