Butane Gas Blow Torch User Manual

1. Introduction

Thank you for choosing the Hperu Butane Gas Blow Torch. This versatile tool is designed for various applications, including culinary tasks like blazing desserts and pastries, soldering jewelry, and outdoor activities such as BBQ, camping, and hiking. Its robust copper construction ensures durability and a healthy burning environment. This manual provides essential information for safe and effective use, setup, operation, and maintenance of your new blow torch.

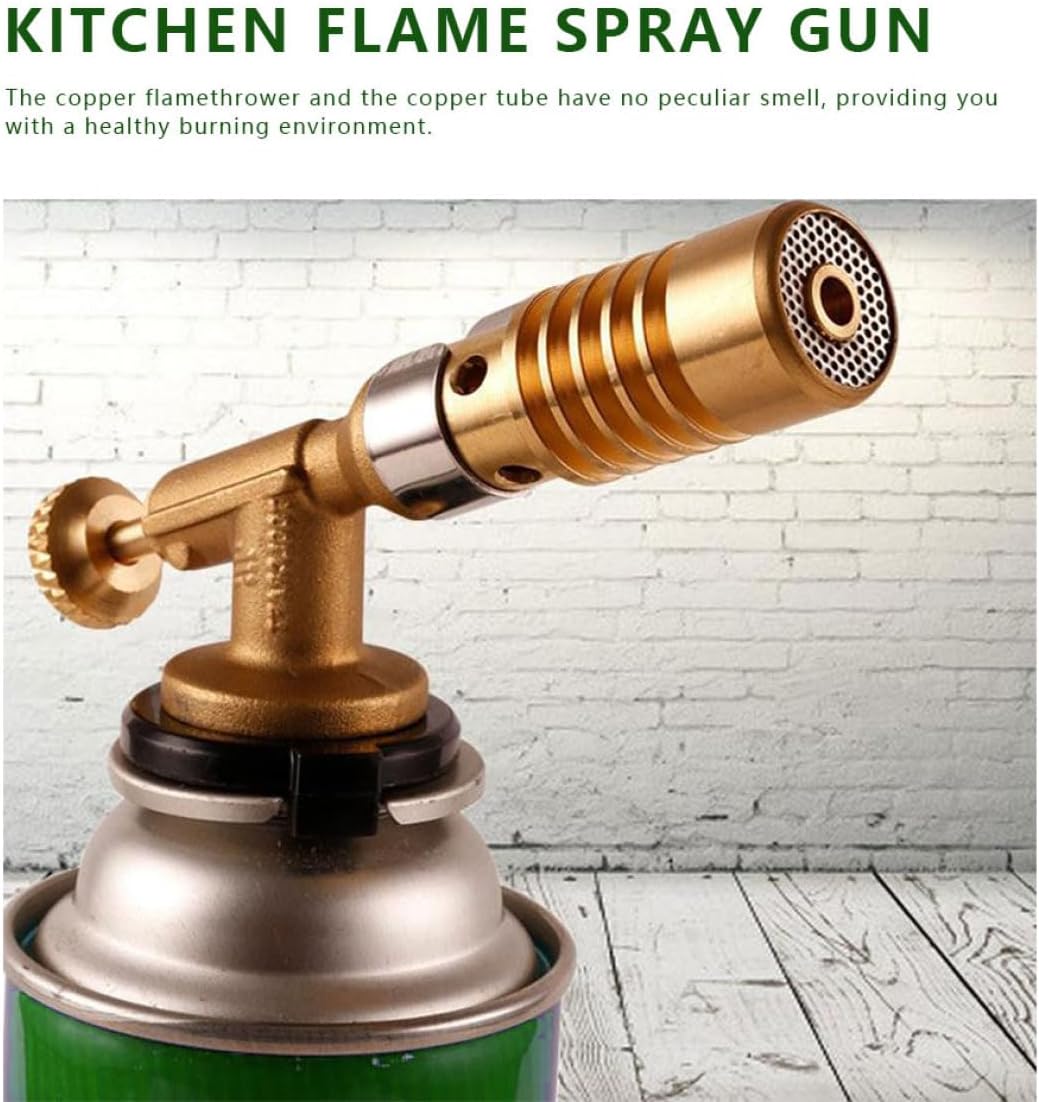

Image 1: The Hperu Butane Gas Blow Torch, demonstrating its attachment to a gas canister. The copper construction ensures a healthy burning environment.

2. Safety Information

WARNING: Failure to follow these safety instructions may result in serious injury, fire, or property damage.

• Use only with approved butane gas canisters.
• Ensure proper ventilation when operating the torch. Do not use in enclosed spaces.
• Keep out of reach of children. This is not a toy.
• Do not point the torch at yourself, others, or flammable materials.
• Do not touch the nozzle or any metal parts immediately after use, as they will be extremely hot. Allow to cool completely.
• Store the torch and gas canisters in a cool, dry place away from direct sunlight and heat sources.
• Do not puncture, incinerate, or expose gas canisters to temperatures above 50°C (122°F).
• Always check for gas leaks before ignition. If you smell gas, do not ignite. Move to a well-ventilated area and check connections.
• Butane fuel is not included with the product.

3. Product Overview

The Hperu Butane Gas Blow Torch features a robust copper design for durability and efficient heat transfer. It is ergonomically designed for comfortable handling during extended use.

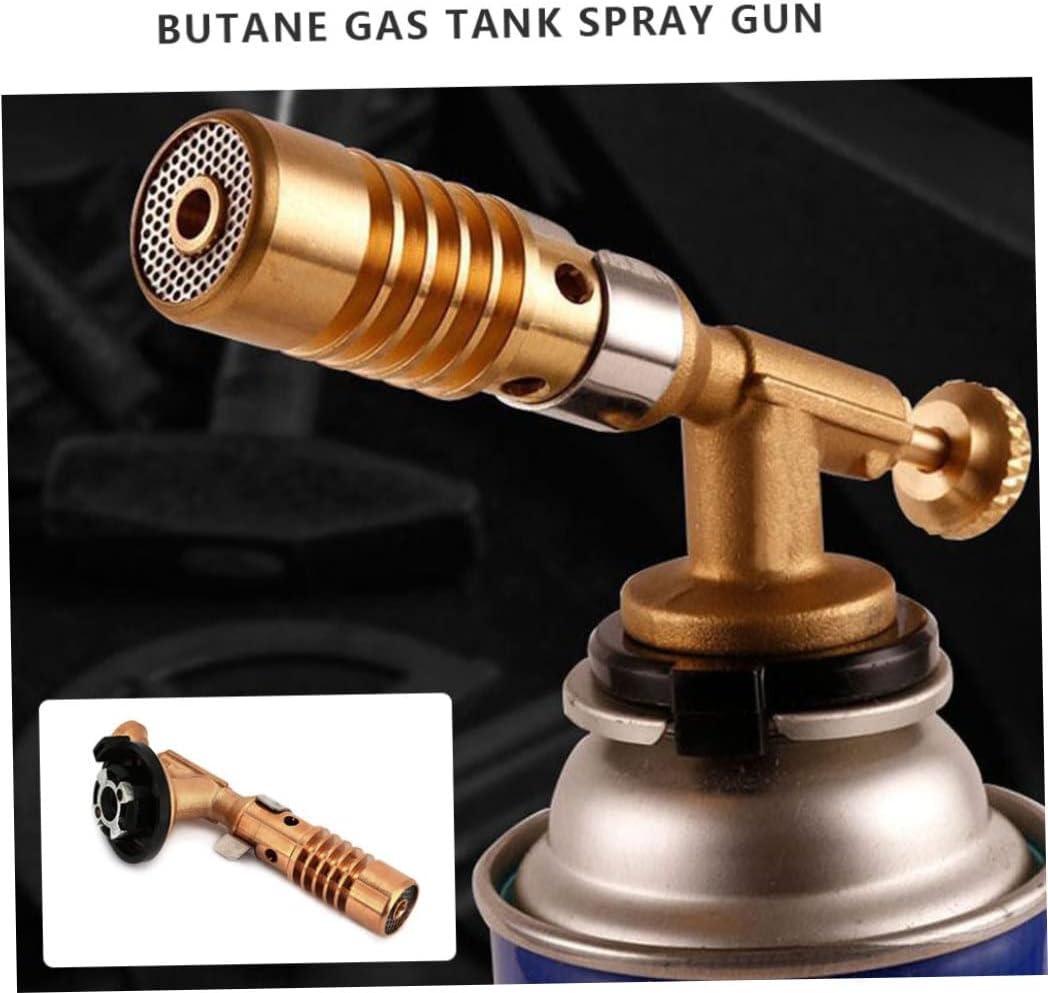

Image 2: A detailed view of the Hperu Butane Gas Blow Torch, highlighting its copper components and the gas canister connection mechanism.

Components:

• Torch Head: The main body with the nozzle and flame adjustment.
• Gas Canister Connector: Designed for secure attachment to standard butane gas canisters.
• Flame Adjustment Knob: Controls the intensity and size of the flame.
• Ignition Button/Lever: For lighting the flame.

4. Setup

Follow these steps to safely attach the blow torch to a butane gas canister:

1. Ensure the flame adjustment knob on the torch is in the "OFF" position or fully closed.
2. Take a standard butane gas canister.
3. Align the protruding part of the torch's bayonet connector with the notch on the gas canister's valve.
4. Gently push the torch onto the canister and turn it clockwise until it is securely fixed. You should hear a click or feel it lock into place. Do not overtighten.
5. Verify the connection is secure and there are no gas leaks (e.g., by listening for a hissing sound or using a leak detection spray).

Image 3: The butane gas blow torch securely attached to a gas tank, demonstrating the correct setup for operation.

5. Operating Instructions

Once the torch is securely attached to the gas canister, you can begin operation:

1. Ignition: Slowly turn the flame adjustment knob counter-clockwise to allow a small amount of gas to flow. Then, press the ignition button/lever to ignite the flame. If it doesn't ignite immediately, close the gas, wait a few seconds, and try again.
2. Flame Adjustment: Rotate the flame adjustment knob to increase or decrease the flame intensity and size. The flame temperature can reach up to 1300°C.
3. Using the Torch: Direct the flame towards the desired object, maintaining a safe distance.
4. Turning Off: When finished, turn the flame adjustment knob clockwise until the flame extinguishes completely. Ensure the gas flow is fully shut off.
5. Detaching Gas Canister: Only detach the gas canister after the torch has completely cooled down. Turn the torch counter-clockwise to release it from the canister.

Image 4: The Hperu Butane Gas Blow Torch in active use, demonstrating the powerful and adjustable flame.

6. Maintenance

Proper maintenance ensures the longevity and safe operation of your blow torch:

• Cleaning: After each use, ensure the torch is completely cool. Wipe the exterior with a clean, dry cloth to remove any residue or dust. Do not use abrasive cleaners or solvents.
• Storage: Store the torch in a cool, dry place, away from direct sunlight, heat sources, and flammable materials. Detach it from the gas canister before storage.
• Inspection: Periodically inspect the torch for any signs of damage, wear, or loose connections. Do not use if damaged.

7. Troubleshooting

8. Specifications

Image 5: The blow torch with its approximate length of 12 cm (4.72 inches) indicated, providing a clear understanding of its size.

9. Customer Support

For any questions, concerns, or technical assistance, please contact Hperu customer support through your purchase platform. Please have your model number (AVB240325EQO7IC14UK) ready when contacting support.
