ROEDE Overflow Moisture Cap Exhaust Valve Parts Instruction Manual

1. Introduction

This manual provides instructions for the installation and maintenance of the ROEDE Overflow Moisture Cap Exhaust Valve. This component is designed as a direct replacement part for specific Panasonic Rice Cooker models. Please read these instructions carefully before proceeding with installation to ensure proper function and safety.

2. Product Overview

The ROEDE Overflow Moisture Cap Exhaust Valve is a critical component for regulating steam release and preventing overflow in compatible rice cookers. It is manufactured from durable materials to ensure a long service life and a precise fit.

Figure 2.1: Top-down view of the ROEDE Overflow Moisture Cap Exhaust Valve, showing its overall shape and central opening.

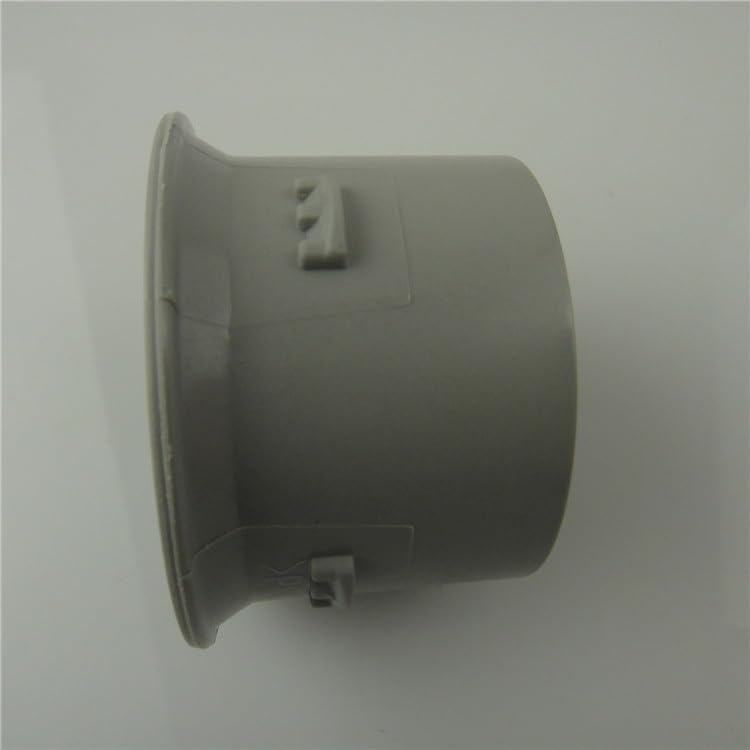

Figure 2.2: Side view of the exhaust valve, highlighting the external tabs used for secure attachment within the rice cooker lid.

Figure 2.3: Bottom view of the exhaust valve, revealing the internal cross-shaped structure designed to manage steam flow.

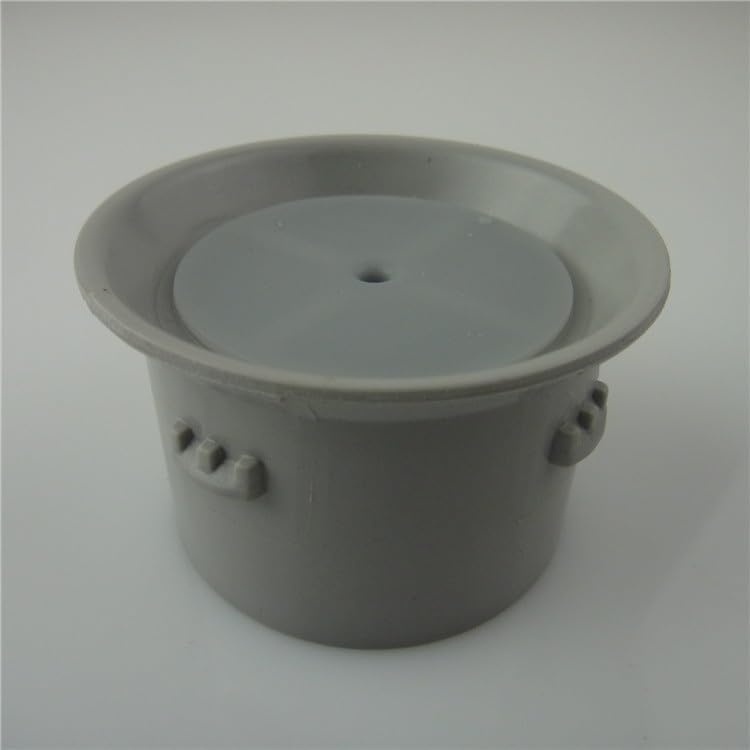

Figure 2.4: Angled view of the exhaust valve, providing a comprehensive look at its exterior design and attachment features.

3. Compatibility

This ROEDE Overflow Moisture Cap Exhaust Valve is compatible with the following Panasonic Rice Cooker models:

• SR-DG103
• SR-DG153
• SR-DG183
• SR-DC186

Please verify your rice cooker's model number before purchasing and installing this replacement part.

4. Installation

Follow these steps to replace the overflow moisture cap exhaust valve:

1. Safety First: Ensure the rice cooker is unplugged from the power outlet and completely cooled down before beginning any installation or maintenance.
2. Locate the Old Valve: Identify the existing overflow moisture cap exhaust valve on the lid of your Panasonic rice cooker.
3. Remove the Old Valve: Gently twist or pull the old valve to detach it from the rice cooker lid. Some models may require a slight push from the underside of the lid. Observe how the old valve was seated to aid in installing the new one.
4. Clean the Area: Wipe down the area where the valve sits on the lid to remove any food residue or moisture.
5. Install the New Valve: Align the new ROEDE Overflow Moisture Cap Exhaust Valve with the opening on the rice cooker lid. Press it firmly into place until it clicks or feels securely seated. Ensure the tabs (visible in Figure 2.2) are properly engaged.
6. Verify Installation: Gently tug on the newly installed valve to confirm it is securely attached and does not wobble.
7. Test (Optional): After installation, you may perform a test run with water (without rice) to ensure proper steam release and no leaks before cooking food.

5. Maintenance

To ensure the longevity and optimal performance of your ROEDE Overflow Moisture Cap Exhaust Valve, follow these maintenance guidelines:

• Regular Cleaning: After each use of the rice cooker, remove the exhaust valve and wash it with warm, soapy water. Rinse thoroughly to remove all soap residue.
• Inspect for Blockages: Periodically check the valve for any food particles or debris that might obstruct the steam vent. Clear any blockages carefully.
• Avoid Harsh Chemicals: Do not use abrasive cleaners or harsh chemicals, as these can damage the material of the valve.
• Air Dry: Allow the valve to air dry completely before reattaching it to the rice cooker lid.

6. Troubleshooting

If you encounter issues after replacing the exhaust valve, consider the following:

• Valve Not Seating Properly: Ensure the valve is correctly aligned and fully pressed into the opening on the rice cooker lid. Check for any obstructions preventing a flush fit.
• Excessive Steam Leakage: Re-check the installation to ensure the valve is securely in place. If the issue persists, verify that the valve is the correct model for your rice cooker.
• No Steam Release: Confirm that the valve is clean and free of any blockages.

If problems persist, consult your rice cooker's original instruction manual or contact a qualified technician.

7. Specifications

8. Warranty and Support

For specific warranty information, please refer to the product packaging or contact the retailer from whom the ROEDE Overflow Moisture Cap Exhaust Valve was purchased. For further assistance or inquiries, please reach out to ROEDE customer support through the contact information provided with your purchase.
