Introduction
Thank you for choosing the BRIGHT SHOWERS Dual Shower Head System. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new shower system. Please read it thoroughly before beginning installation or use.
Safety Information
- Ensure all connections are tight to prevent leaks.
- Do not overtighten components, as this may cause damage.
- Always turn off the main water supply before installation or maintenance.
- Use appropriate tools and follow all local plumbing codes.
- Keep small parts away from children.
Package Contents
Verify that all components are present before beginning installation:
Image: All components included in the BRIGHT SHOWERS Dual Shower Head System.
- Rainfall Shower Head
- Handheld Shower Head
- Adjustable Shower Arm
- 69" Stainless Steel Shower Hose
- 3-Way Diverter with Holder
- Installation Guide
- Accessories (washers, plumber's tape)
Setup and Installation
Follow these steps for a successful installation. It is recommended to watch the official installation video for visual guidance.
Installation Video
Video: Official installation guide for the BRIGHT SHOWERS Dual Shower Head System.
Step-by-Step Guide
- Prepare the Shower Arm: Apply plumber's tape to the threads of your existing shower arm.
- Install the Adjustable Extension Arm: Screw the adjustable extension arm onto your existing shower arm. Ensure it is hand-tight, then use a wrench to secure it, being careful not to overtighten.
- Attach the Rainfall Shower Head: Connect the rainfall shower head to the upper outlet of the adjustable extension arm. Ensure a rubber washer is in place and tighten securely.
- Connect the Handheld Shower Head: Attach one end of the 69" stainless steel hose to the handheld shower head and the other end to the lower outlet of the adjustable extension arm. Place the handheld shower head into its holder on the extension arm.
- Test for Leaks: Turn on the water supply and check all connections for leaks. Tighten any leaking connections as needed.
Image: Visual steps for DIY installation.
Image: Brass adjustable shower arm.
Operating Instructions
3-Way Diverter
The 3-way diverter allows you to switch between the rainfall shower head, the handheld shower head, or use both simultaneously. Rotate the diverter knob to select your desired water flow.
Image: 3-Way Diverter for selecting shower modes.
Rainfall Shower Head (2 Spray Settings)
The rainfall shower head offers two distinct spray settings: Full Body Rainfall and Relaxing Massage. Adjust the setting by rotating the outer rim of the shower head.
Image: Rainfall Shower Head with two spray modes.
Handheld Shower Head (9 Spray Settings)
The handheld shower head features nine spray settings, including Full Body Rain, Relaxing Massage, Power Misty, and more. Rotate the dial on the shower head to cycle through the different spray patterns.
Image: Handheld Shower Head with 9 spray settings.
Built-in Power Wash
For targeted cleaning, the handheld shower head includes a built-in power wash function. Press the button located on the back of the handheld shower head to activate a concentrated stream of water, ideal for cleaning shower messes, soap scum, and tiles.
Image: Handheld shower head demonstrating the power wash feature for cleaning.
Adjusting Height and Angle
The adjustable extension arm allows for customization of both the height and angle of the shower heads. Loosen the knobs on the arm to adjust the position, then tighten them to secure. This feature is beneficial for users of varying heights and for specific tasks like bathing children or pets.

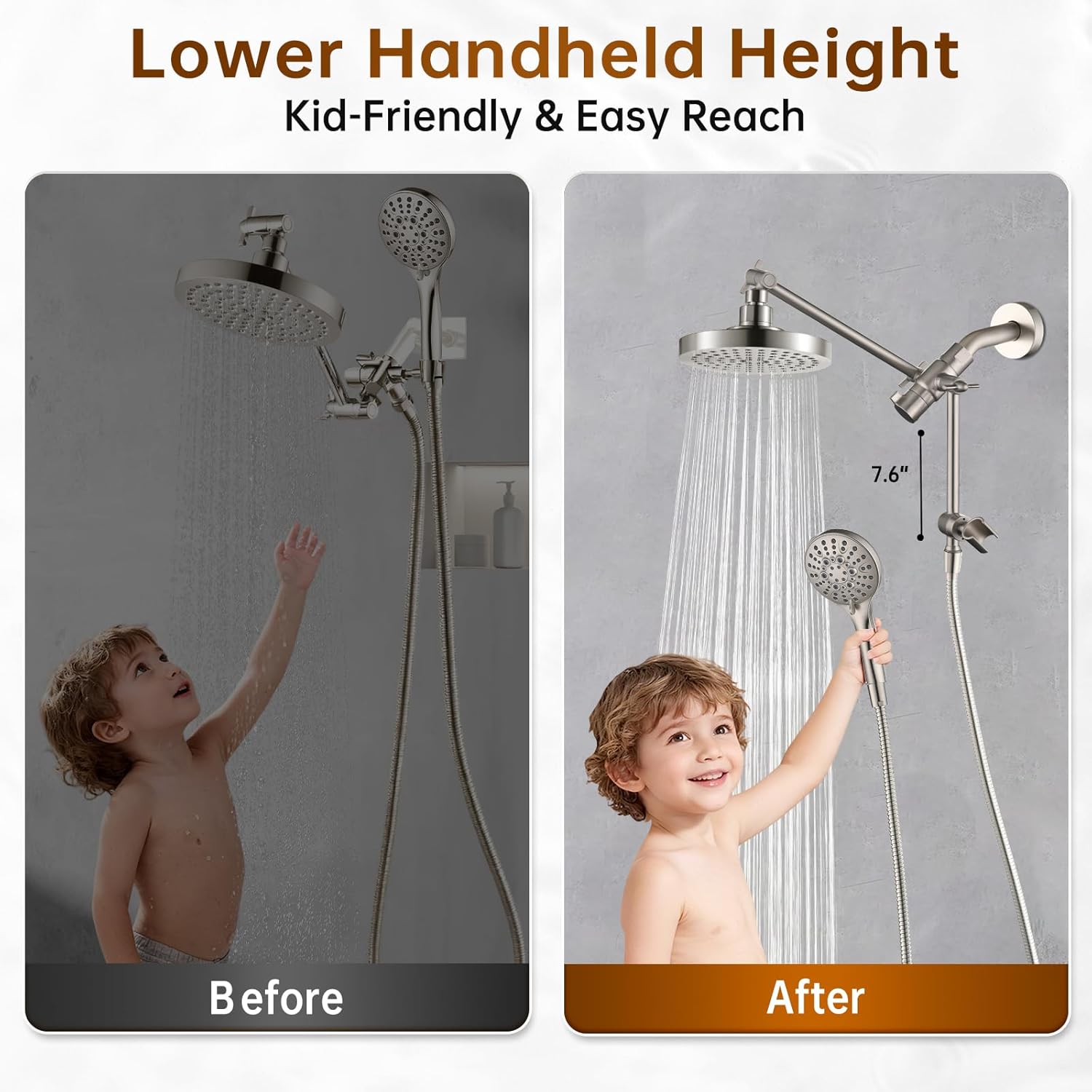

Image: Adjustable height feature for the handheld shower head.
Image: Angle adjustable shower arm for optimal positioning.
Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your BRIGHT SHOWERS Dual Shower Head System.
- Cleaning Nozzles: To prevent mineral buildup, periodically rub the rubber nozzles on both shower heads to dislodge any deposits.
- General Cleaning: Clean the shower heads and hose with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Hose Care: Ensure the stainless steel hose is not kinked or twisted during use or storage to maintain its integrity.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Pressure | Clogged nozzles or flow restrictor. | Clean the rubber nozzles. Check and clean the flow restrictor if necessary (refer to local regulations for removal). |
| Leaking Connections | Loose connections or worn washers. | Ensure all connections are tightened. Replace rubber washers if they appear worn or damaged. Apply plumber's tape to threads. |
| Diverter Not Switching Properly | Mineral buildup or internal issue. | Flush the diverter with water. If the issue persists, contact customer support. |
Specifications
| Feature | Detail |
|---|---|
| Brand | BRIGHT SHOWERS |
| Model Number | BAS2055-92 |
| Material | Brass, Stainless Steel, Acrylonitrile Butadiene Styrene |
| Finish Type | Brushed Nickel |
| Installation Type | Wall Mounted |
| Rainfall Head Settings | 2 (Full Body Rainfall, Relaxing Massage) |
| Handheld Head Settings | 9 (including Power Wash) |
| Hose Length | 69 Inches |
| Flow Rate | 2.5 GPM |
| Item Weight | 4.15 Pounds |
Warranty and Support
BRIGHT SHOWERS products are backed by a limited lifetime protection. For customer support, parts replacement, or any inquiries, please contact our California-based team. Refer to your purchase documentation for specific warranty terms and contact details.
For further assistance, visit the BRIGHT SHOWERS Store on Amazon.
